Car Won't Crank Over
2008 SUZUKI VITARA
STEFYW23
MEMBER
1 POST
FOLLOW
Where is the starter located in not working?
Aug 23, 2015 at 12:04 PM
Advertisement
HMAC300
CERTIFIED EXPERT
48,601 POSTS
Hello,
The starter motor is located back of block right hand side. Here is a guided to walk you through the steps and diagrams below to show you on your car
https://www.2carpros.com/articles/how-to-replace-a-starter-motor

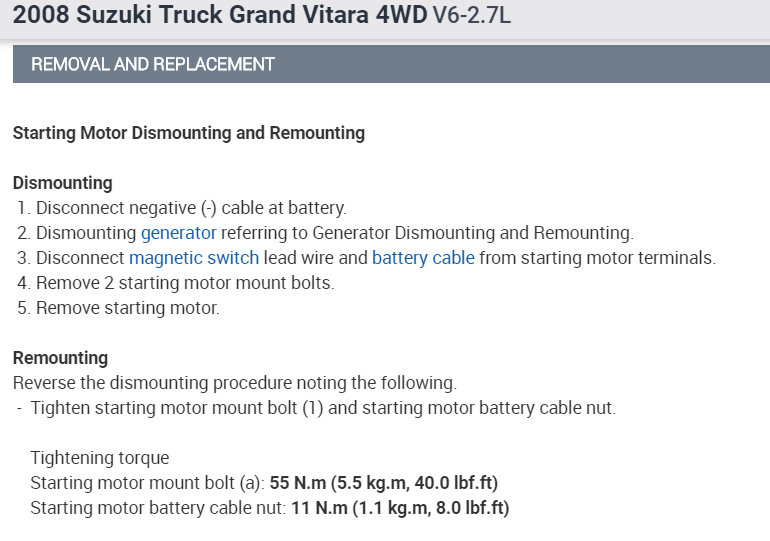

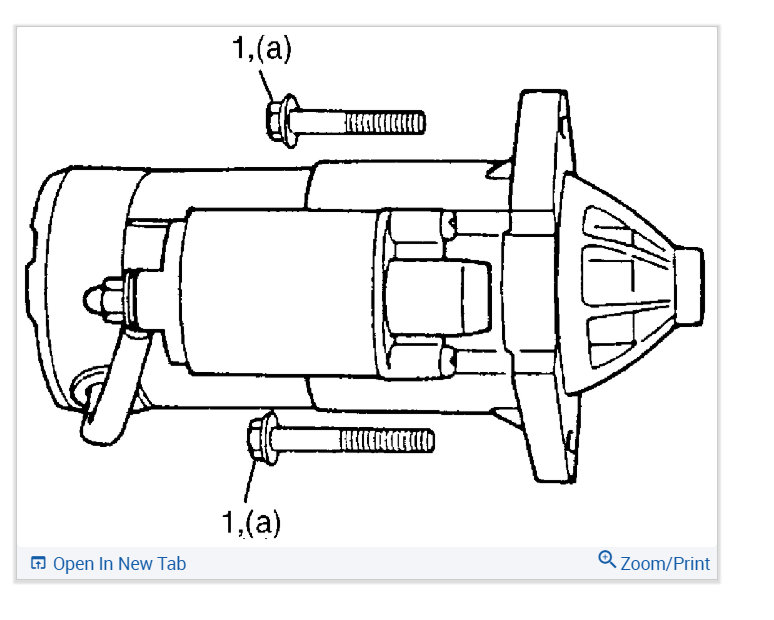

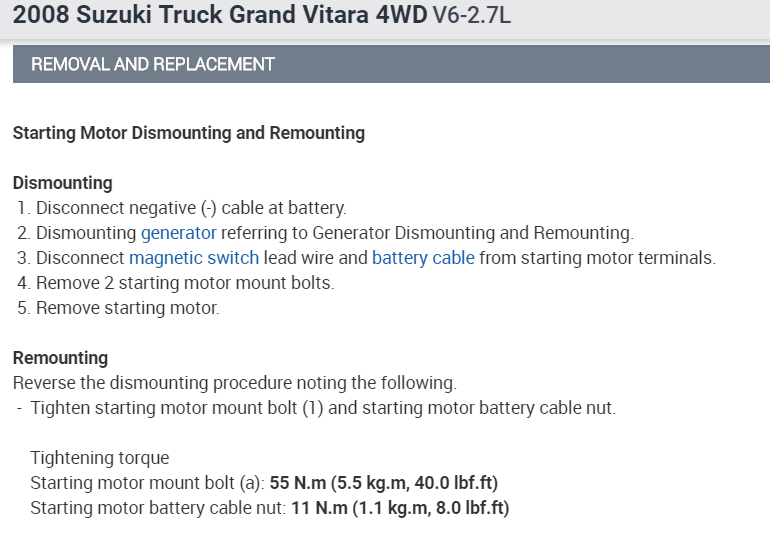

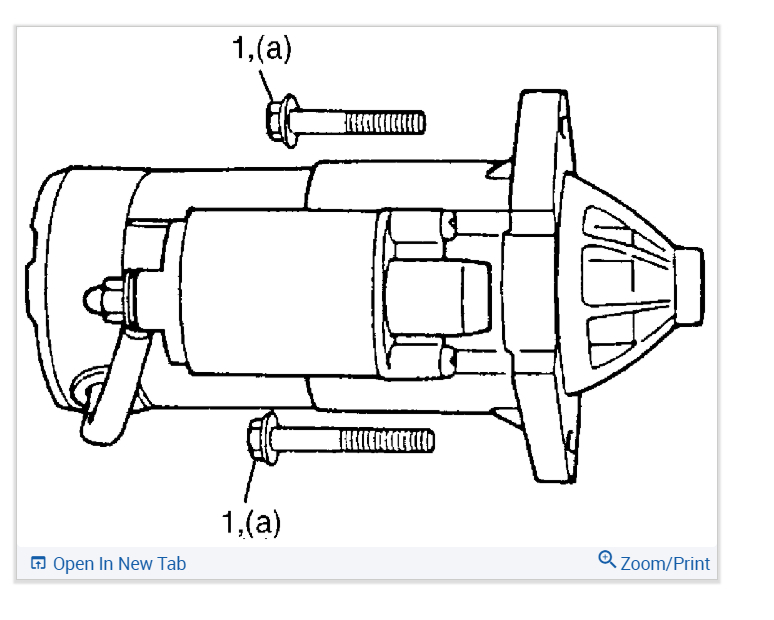

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Aug 24, 2015 at 7:35 AM
GIGIB2009
MEMBER
1 POST
Sometimes, not always, engine will have to be turned over 1-5 times before it starts.
Feb 11, 2019 at 5:58 PM (Merged)
Advertisement
DAVE H
CERTIFIED EXPERT
13,384 POSTS
start by having the vehicle tuned/serviced
Feb 11, 2019 at 5:58 PM (Merged)
