Heater core removal

2008 PONTIAC G6
120,000 MILES • 3.5L • V6 • FWD • AUTOMATIC
Avatar
MELROSE11
  • MEMBER
  • 1 POST
Very confident my heater core went out in my 08 Pontiac g6. I have no heat, smell coolant in the vents and I'm losing small amount of coolant everyday. I need step by step instructions on how to remove the heater core. I've already started on disassembling the dash but I am unsure where to go from there. Thanks!
Oct 11, 2015 at 9:34 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hey MELROSE11,

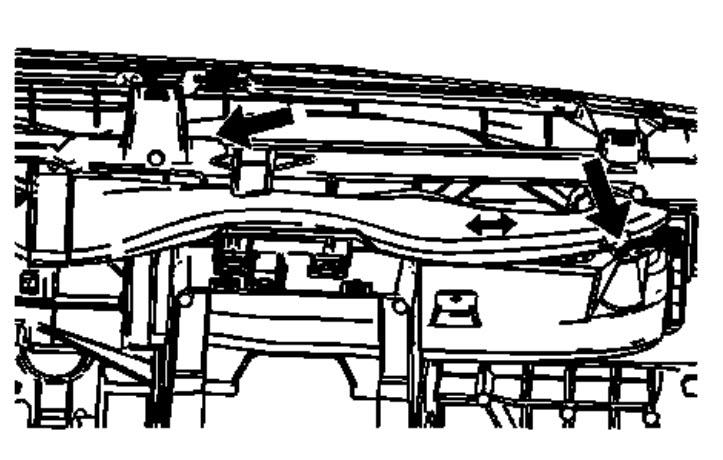

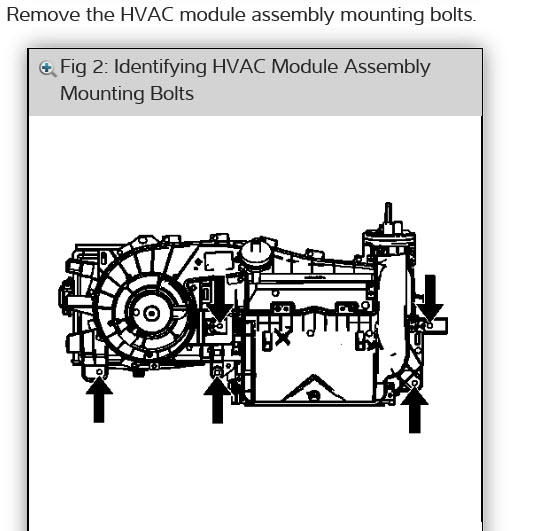

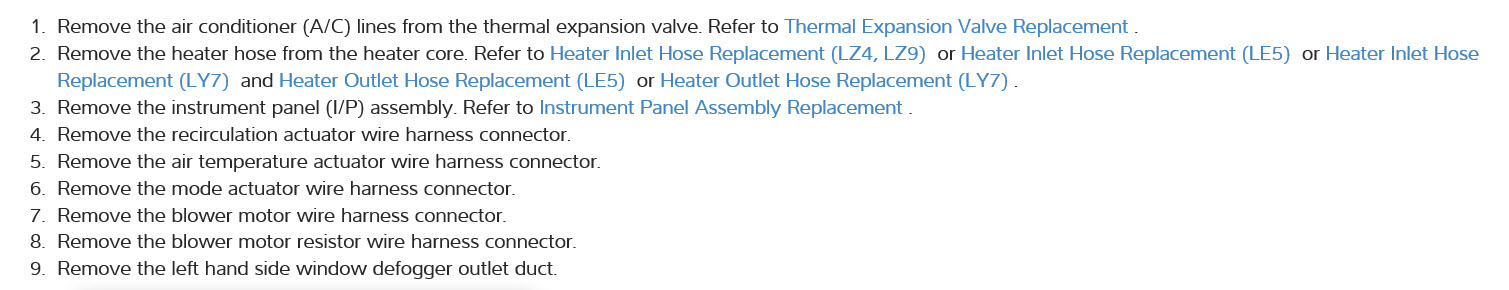

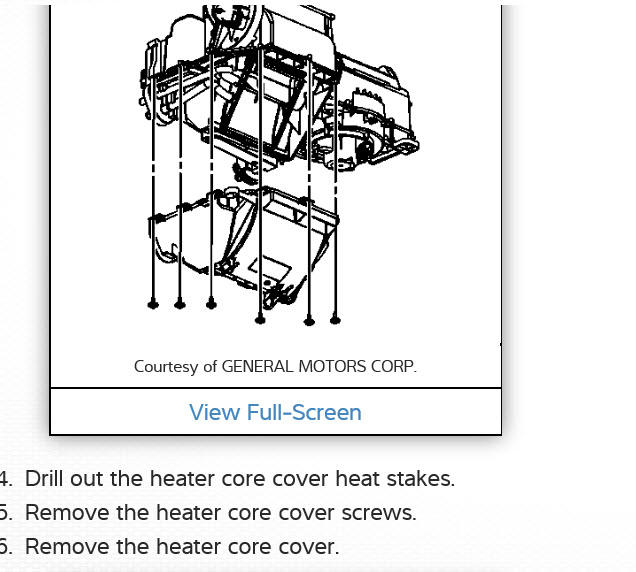

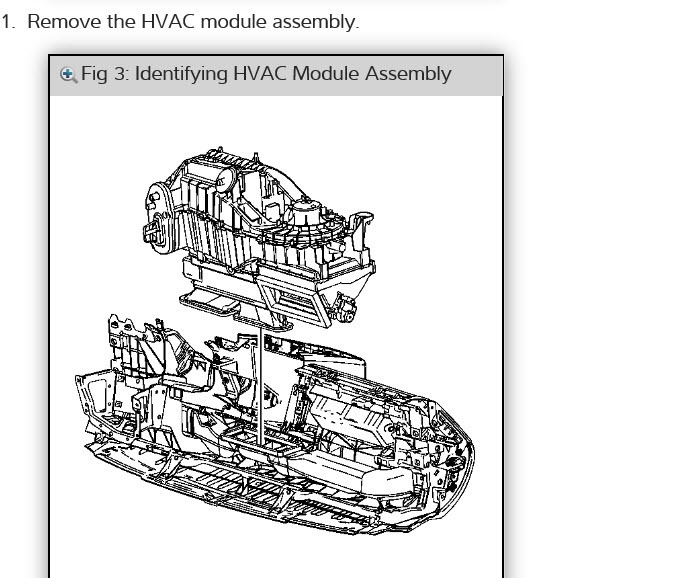

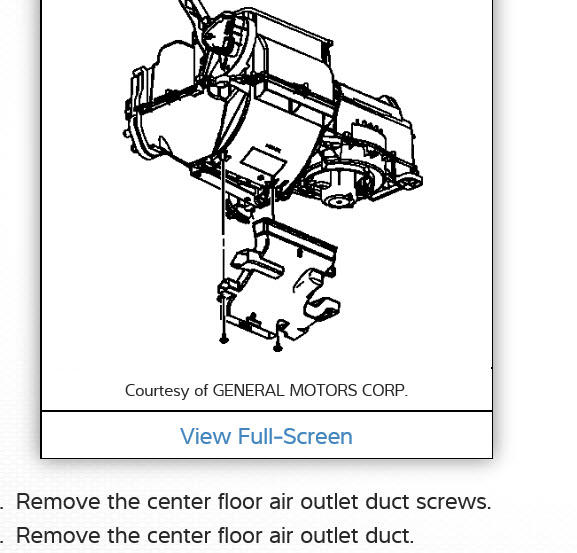

That is a big job but if you keep at it you can get it done, here is a guide that will way you through it and some diagrams which will show what it will be like on your car.

https://www.2carpros.com/articles/replace-heater-core

Please let us know happens so it will help others.

Best, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 11, 2015 at 10:19 AM
Avatar
CADENCE SELLERS
  • MEMBER
  • 1 POST
Removing heater core do you have to take the whole dash out?
Jan 3, 2017 at 9:50 AM (Merged)
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
yes, the dash as well as the center console have to be removed and air conditioner charge has to be evacuated as well.
Jan 3, 2017 at 9:50 AM (Merged)
