b1318 code?

2008 MAZDA MX5

9,000 MILES

ANONYMOUS

MEMBER
1 POST
FOLLOW

my 2008 MX5 showed codes B1318 and B1884 just before the 4 year service .The car was serviced by my Mazda dealer and reset.80 miles later the EML light is on again .This time the code is P0131. Is there a connection between these codes? Also Is there any way the Mazda dealer could have caused the P0131 code by incorrect service procedure? Thanks Roger

Mar 13, 2013 at 10:13 AM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

The code B1318 is for the anti lock brake system and P0131 is a emission code. So they should not be connected. Its hard to say if the service procedure did something for the light to come on.

https://youtu.be/vMwTzURWXmk

https://www.2carpros.com/articles/how-to-replace-an-oxygen-sensor

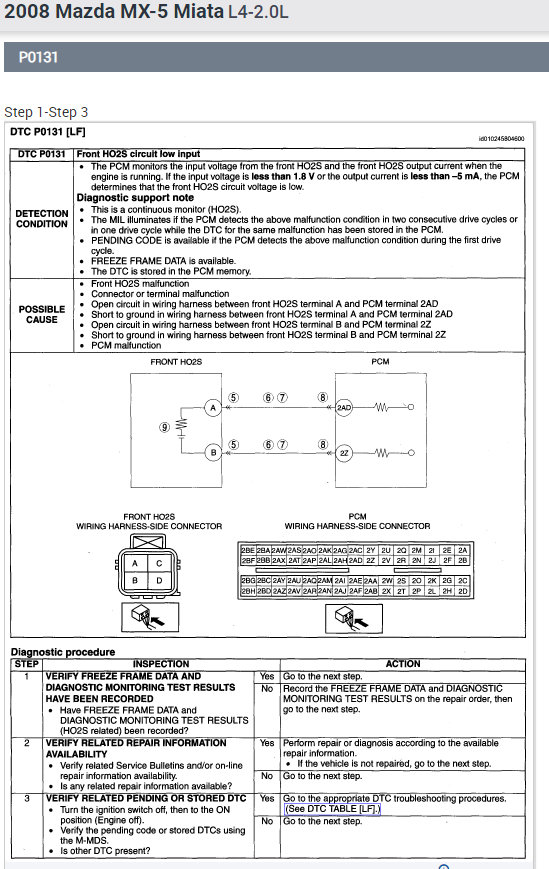

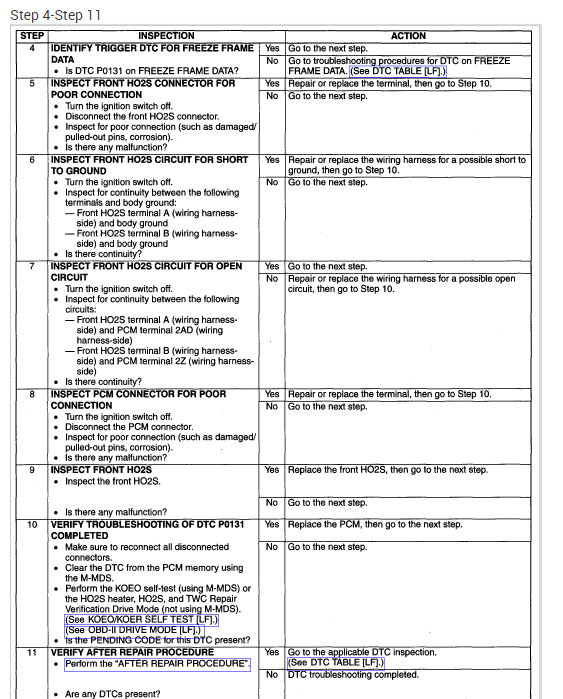

I have attached the diagnostics steps for the P0131.

Let me know if you have any questions.

Thank you.

Images (Click to enlarge)

Jul 16, 2021 at 10:42 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Good evening,

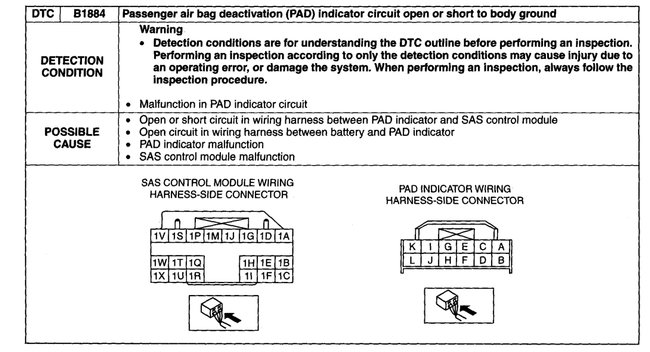

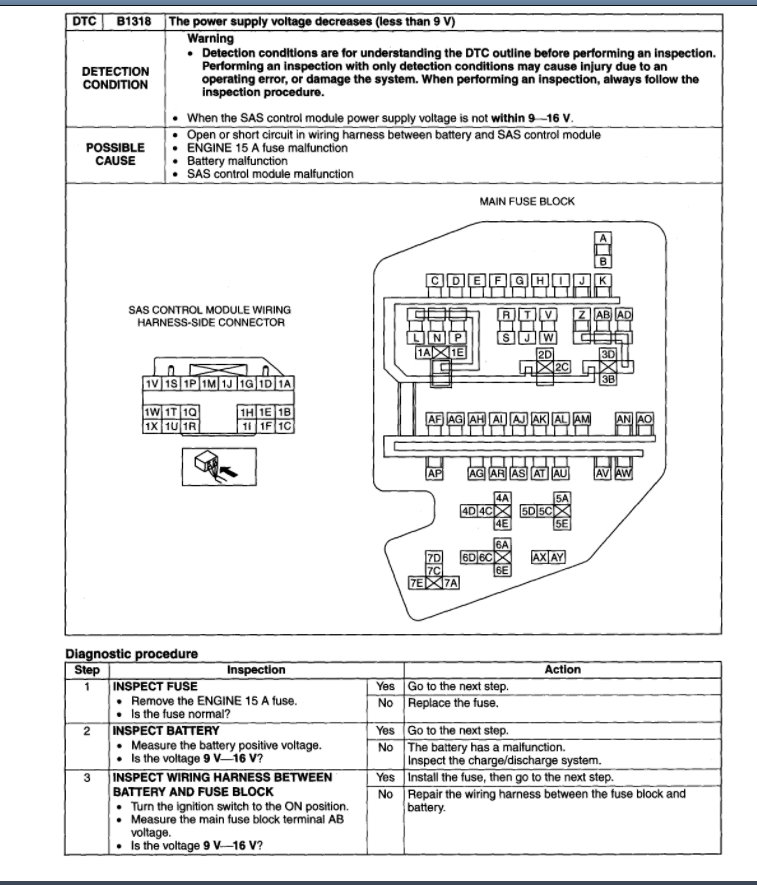

The B codes are for the restraint system in your car. They indicate low voltage in the system.

Every time I see low voltage, the first thing I recommend is checking the battery. A bad battery can cause this code.

https://www.2carpros.com/articles/car-battery-load-test

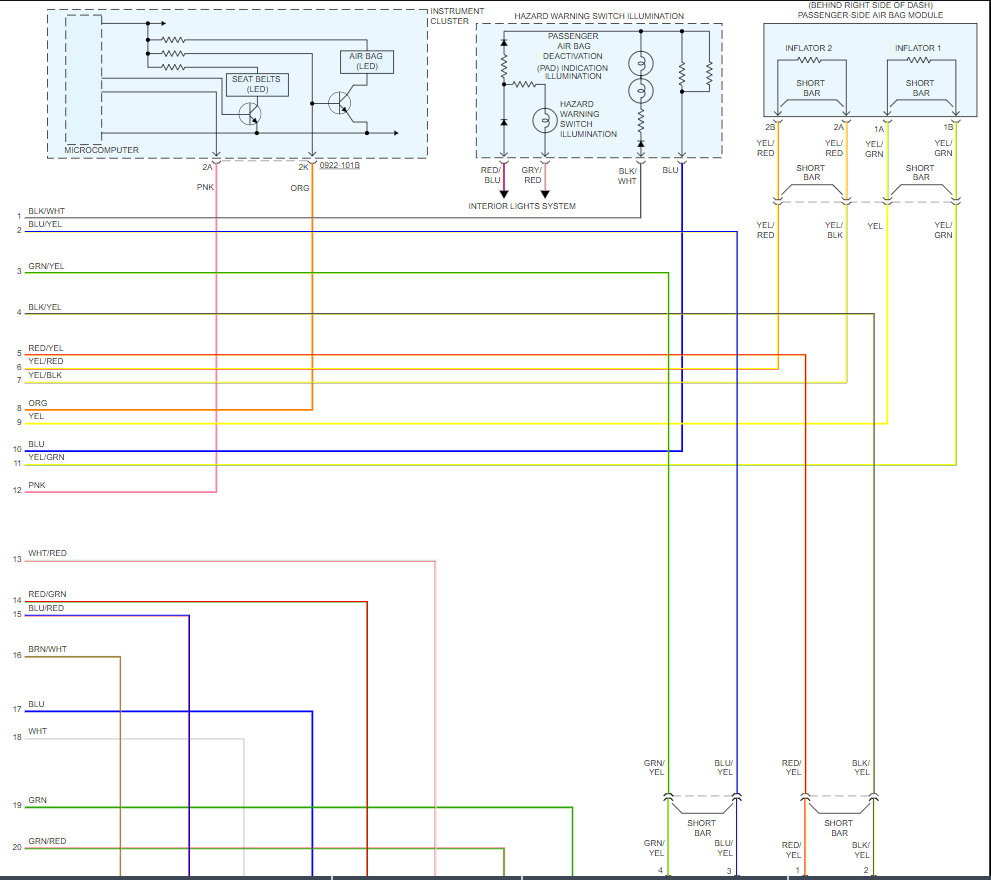

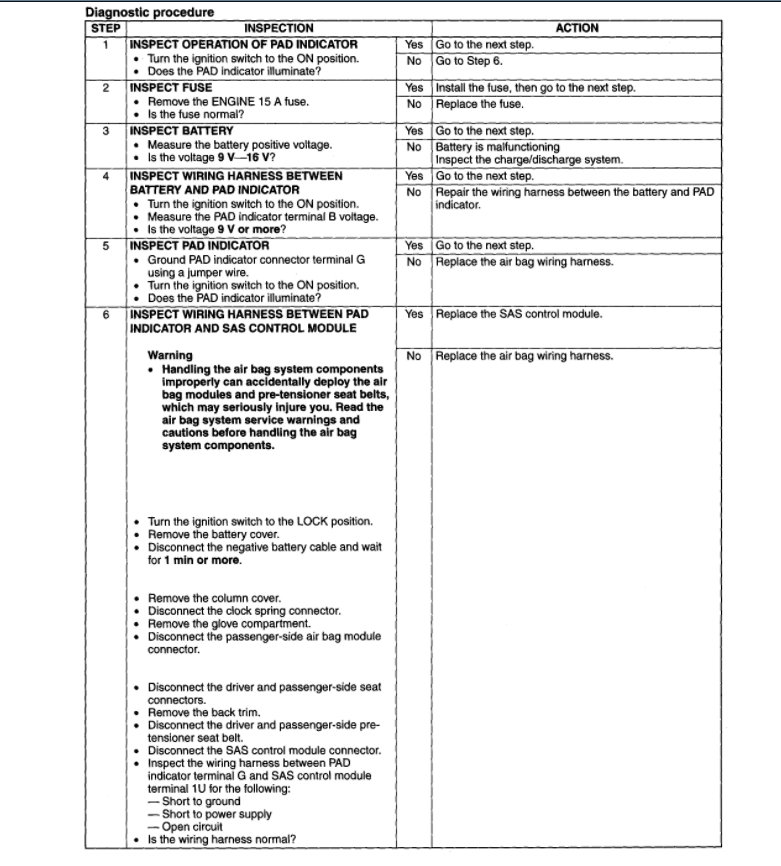

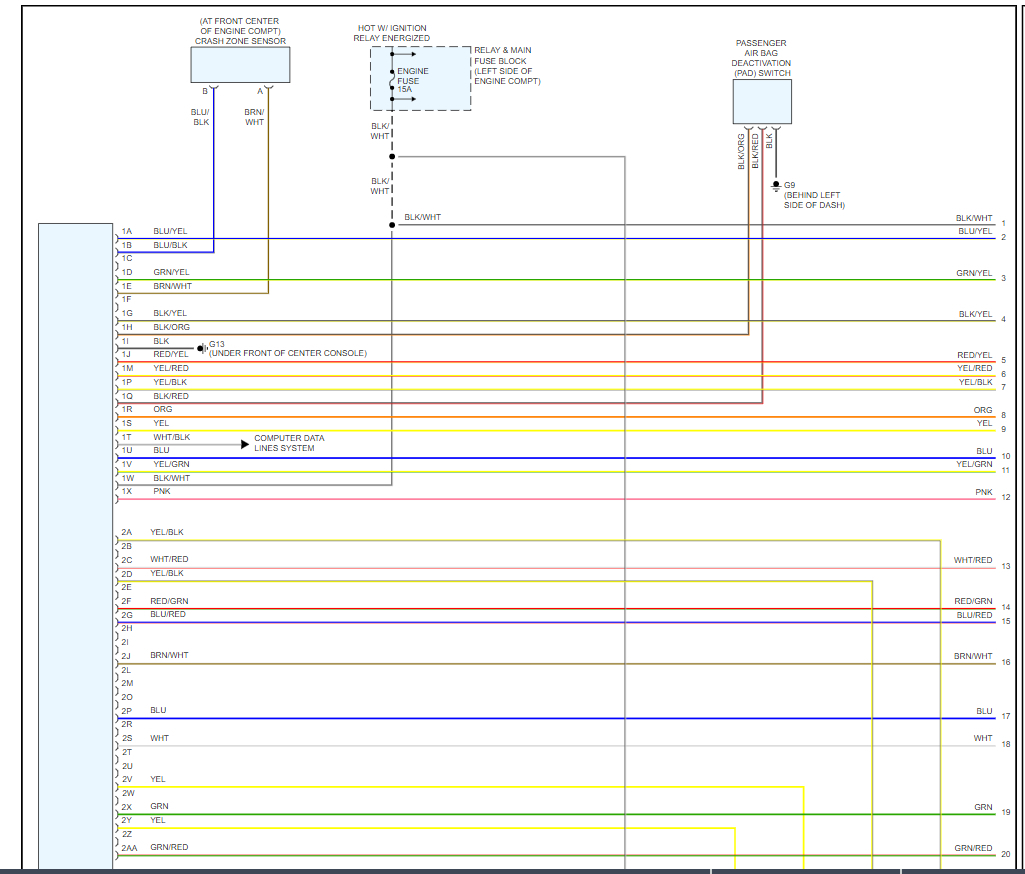

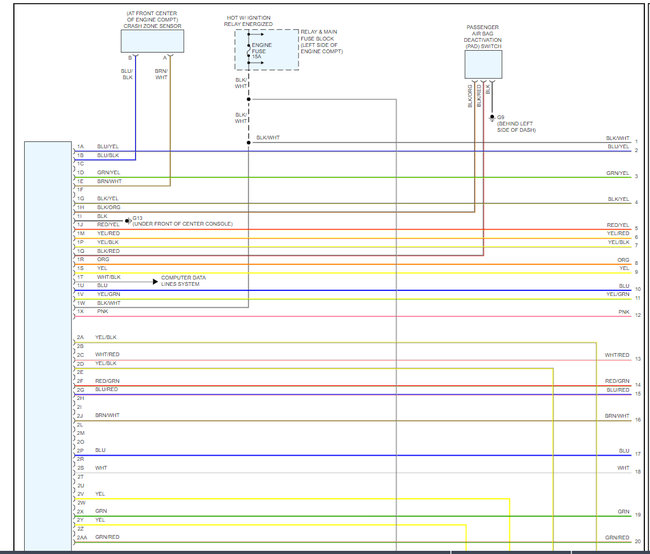

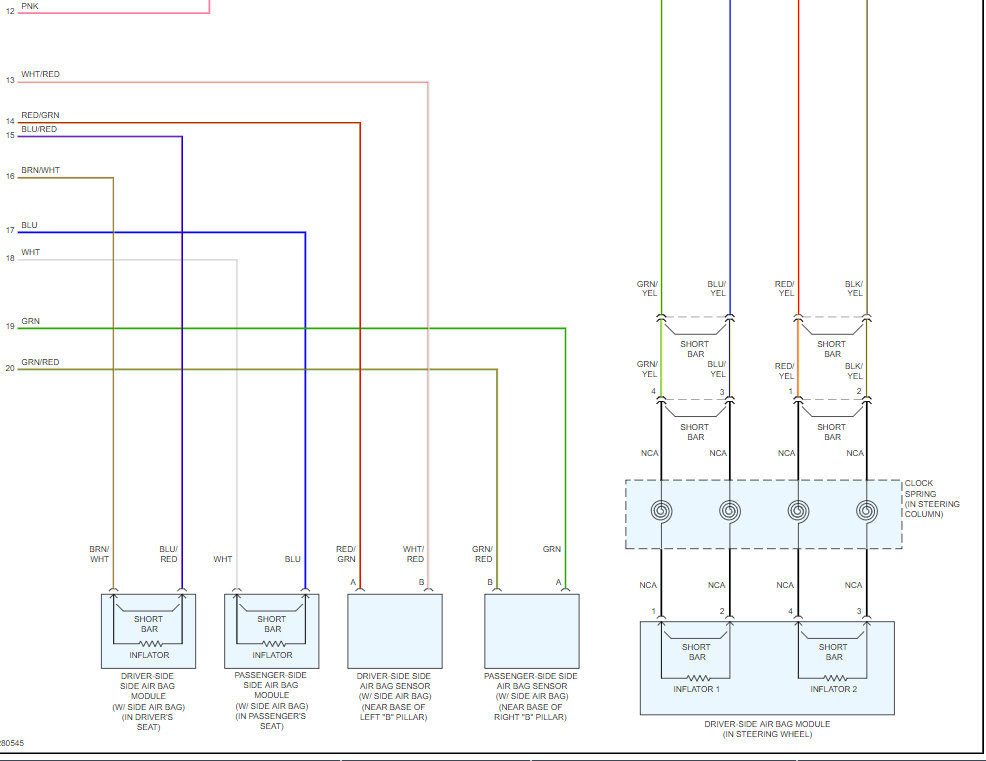

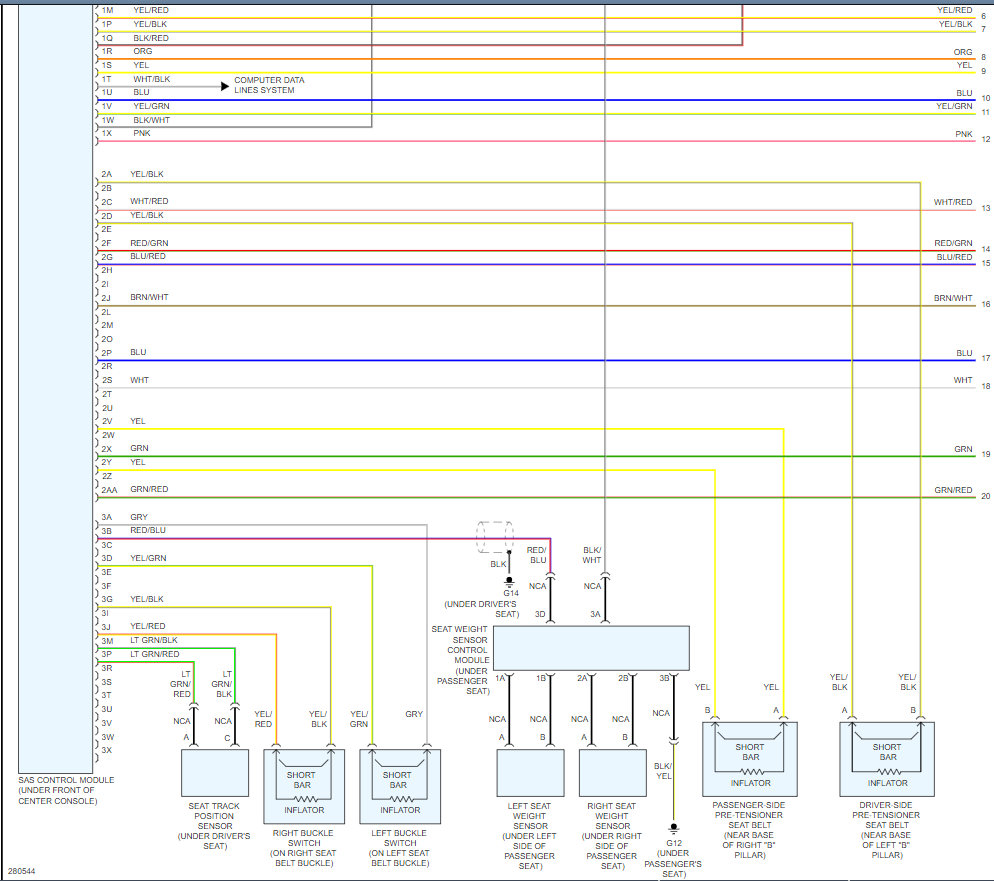

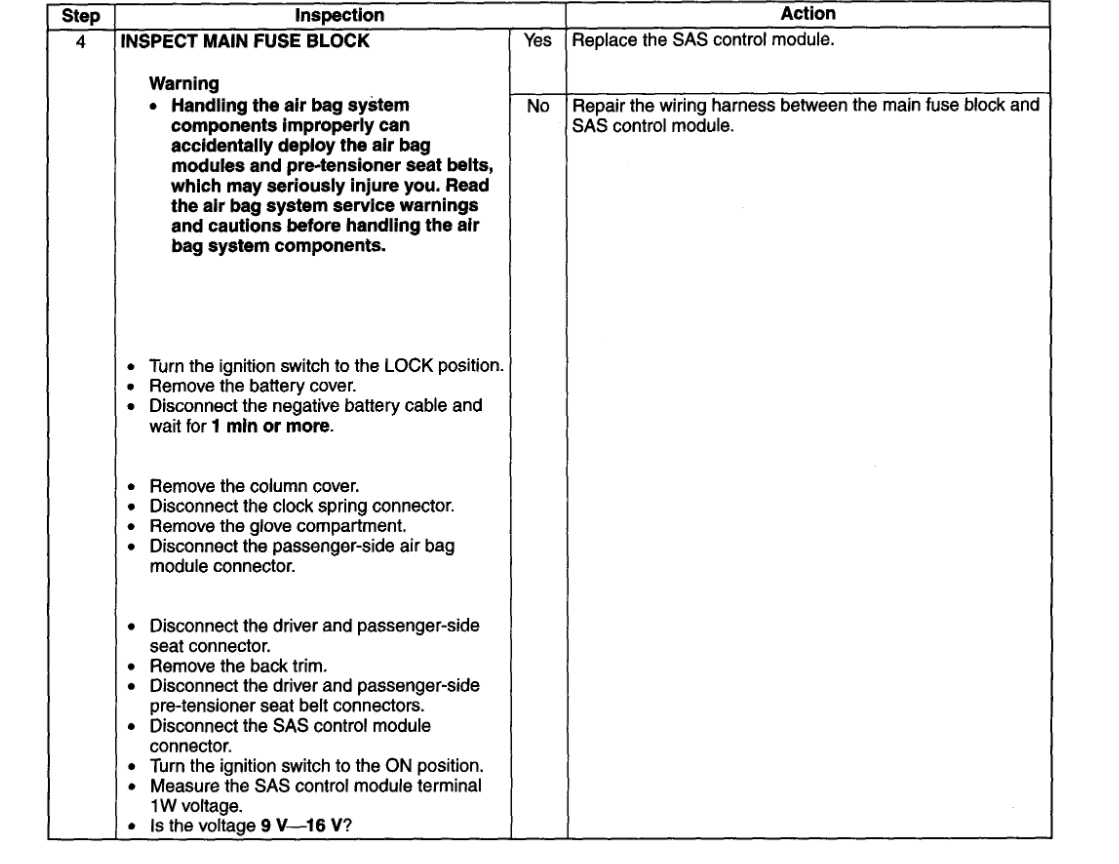

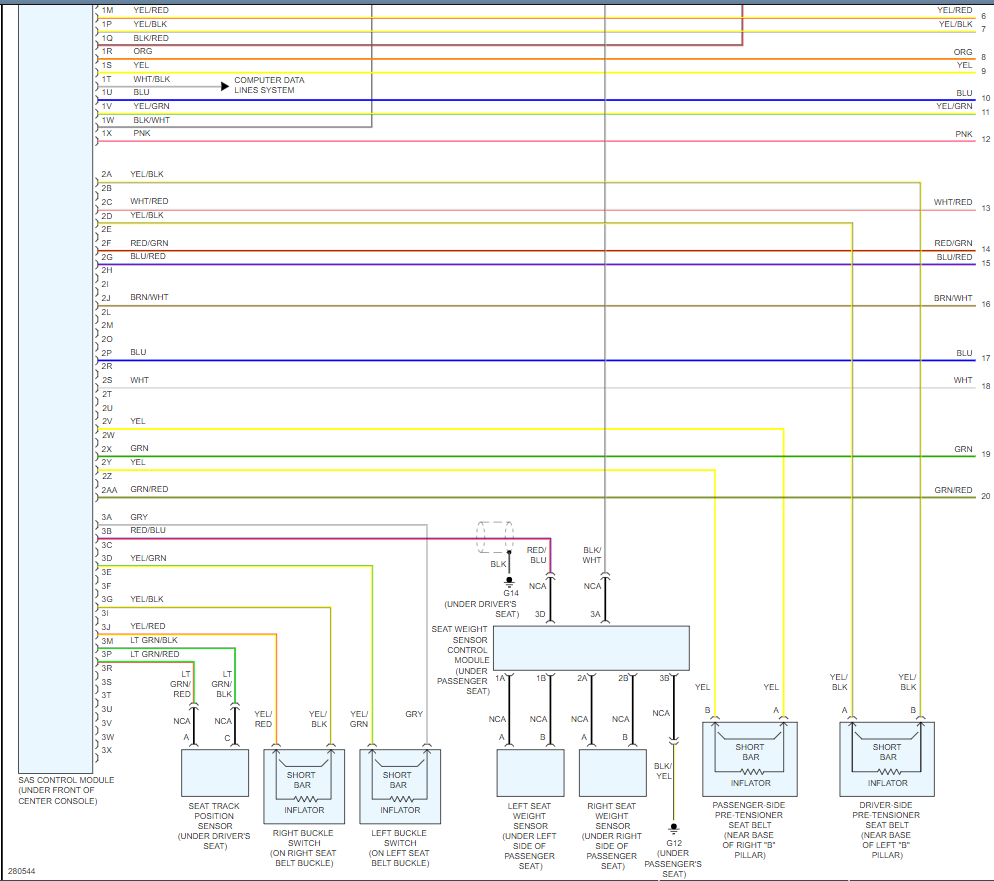

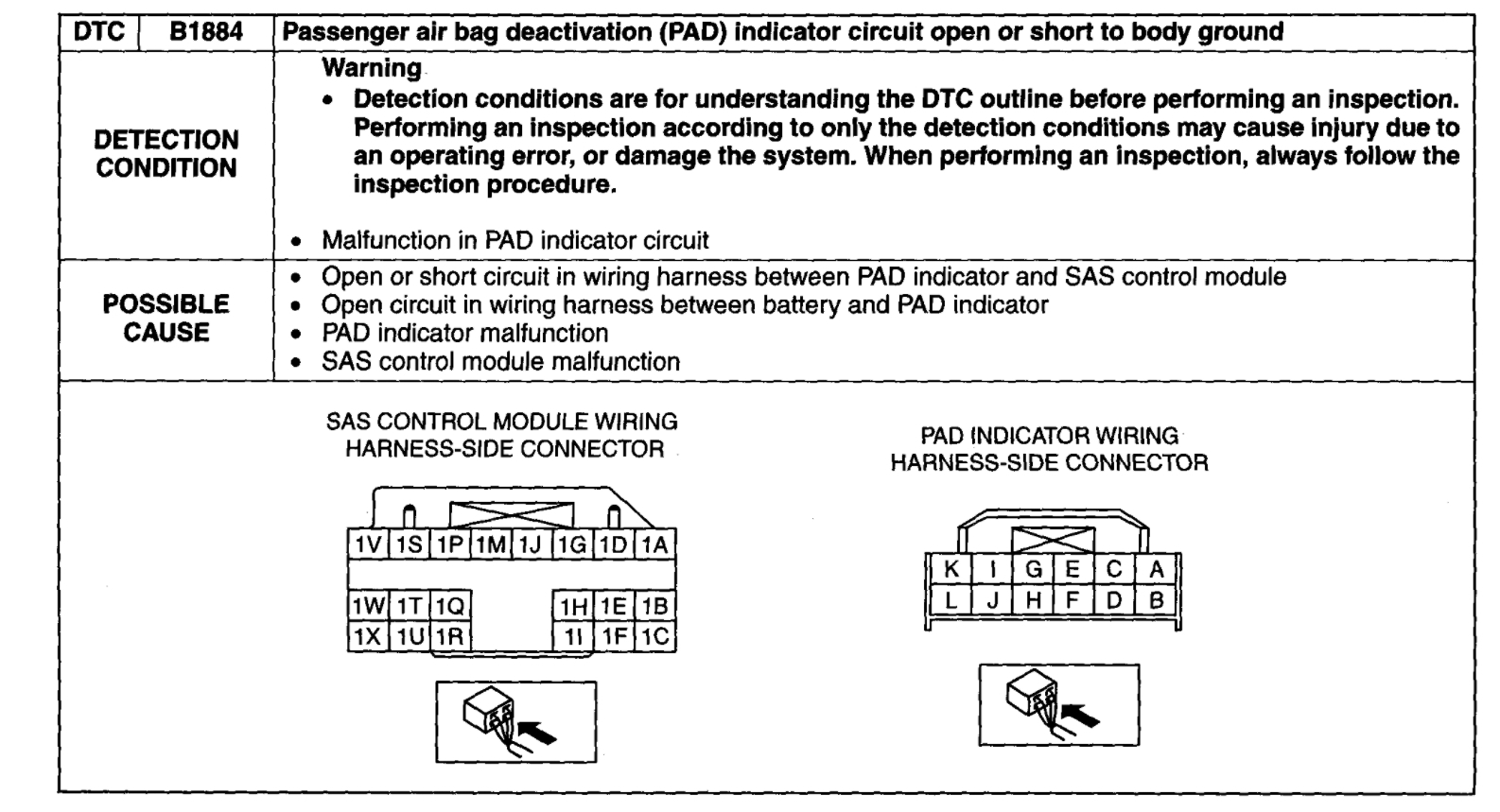

I attached the flow charts for both codes below. Follow the carts and let me know if you need any other help.

The 131 code has nothing to do with the B codes.

Roy

Images (Click to enlarge)

Jul 19, 2021 at 6:14 PM
