A/C will not work

2008 JEEP COMPASS
100,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
NAPENA
  • MEMBER
  • 3 POSTS
The a/c will not engage. Pressure is just fine. There is no electrical current going to the compressor itself. What could be the cause? Please advise.
Aug 31, 2015 at 12:13 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

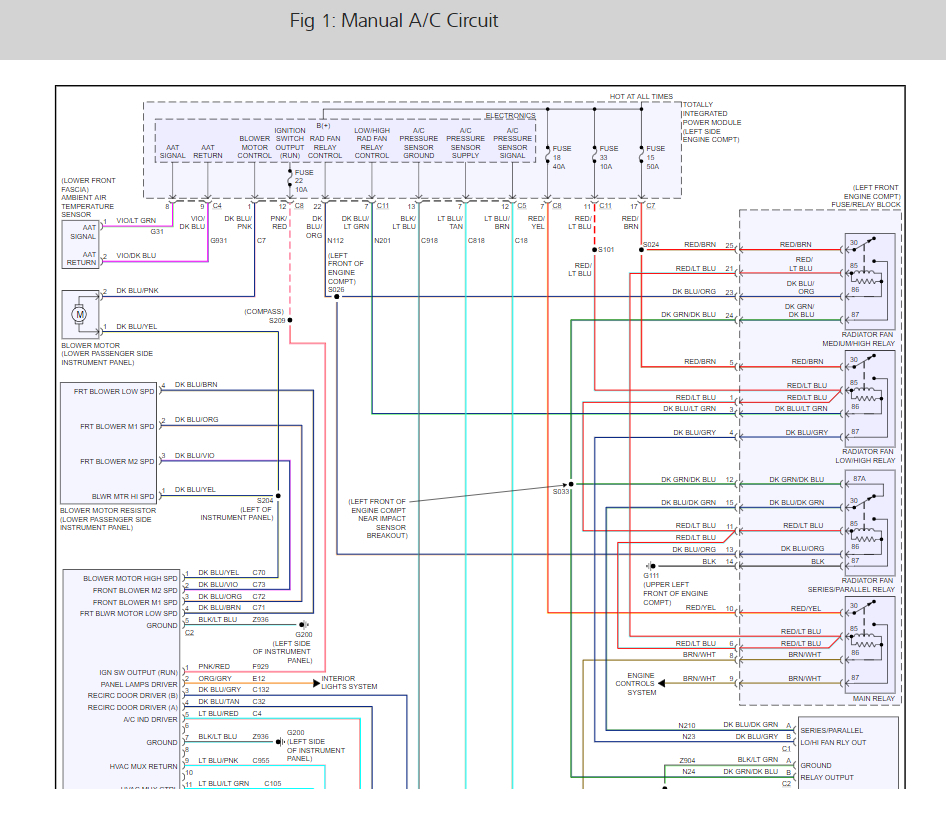

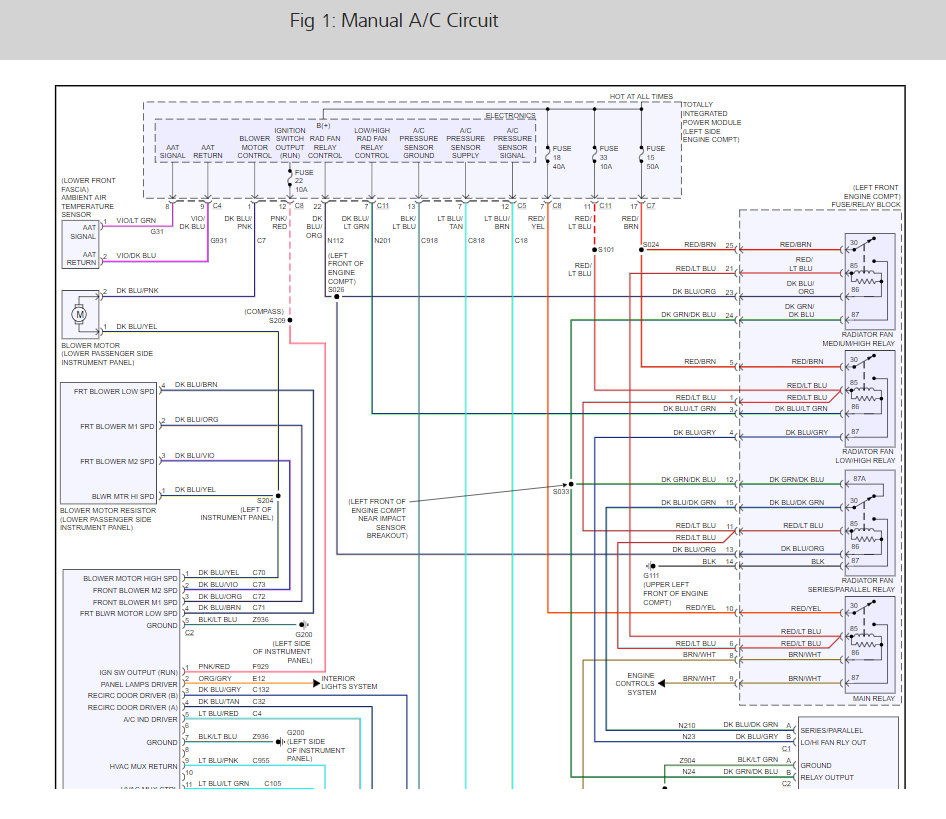

It sounds like the TIPM is out but to be sure lets check the powers (fuses) and grounds for the system which you can do using this guide and the air conditioner wiring diagrams below.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

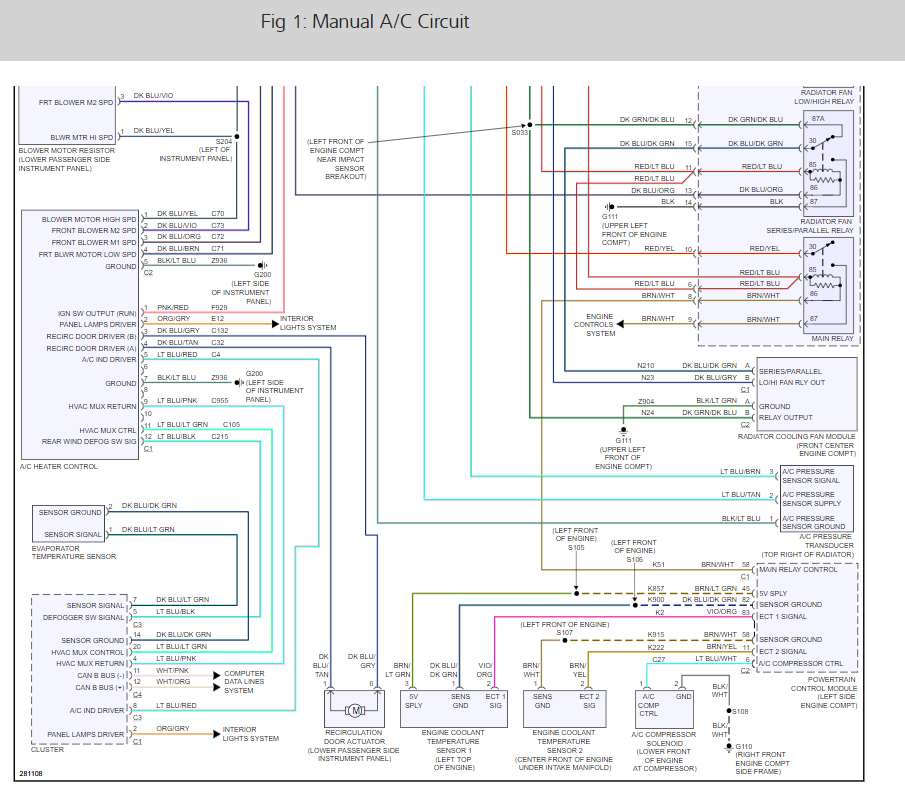

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Sep 1, 2015 at 6:15 AM
Avatar
NAPENA
  • MEMBER
  • 3 POSTS
Thank you for the response. I took it to a A/C - Electrical shop in town and they check the pressure and it was fine and they scan for codes and there was none. They told me that compressor could be broken inside and that was why it would not engage. However, I took it to another shop and they said that the compressor is not getting any current. Can I connect the compressor directly to the battery and test it this way?
Sep 1, 2015 at 6:19 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

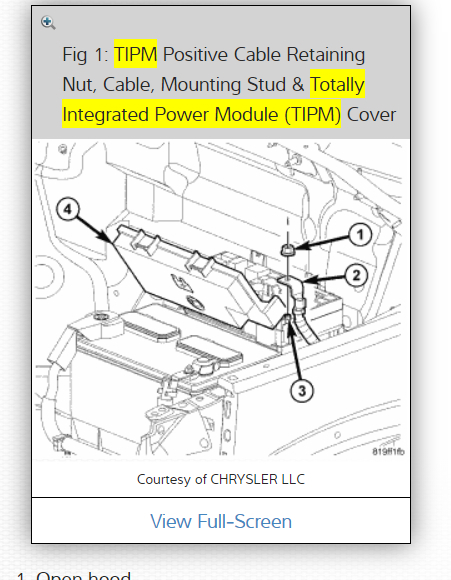

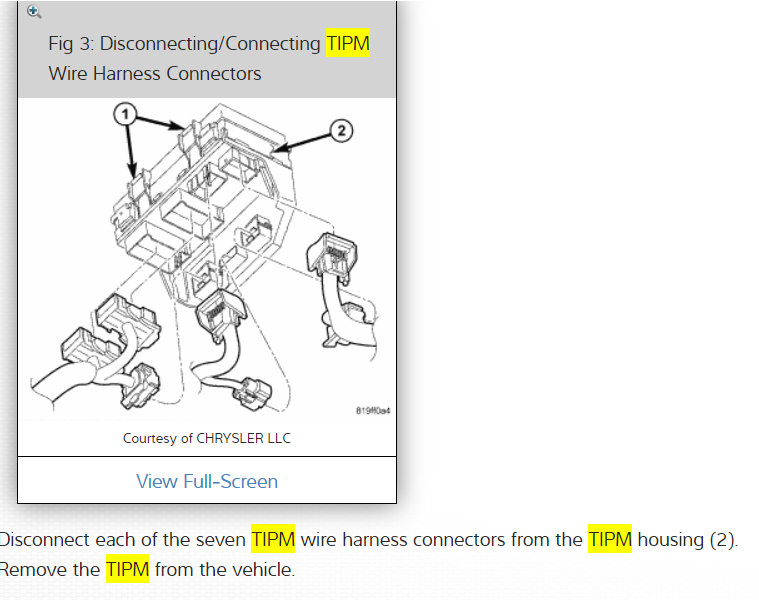

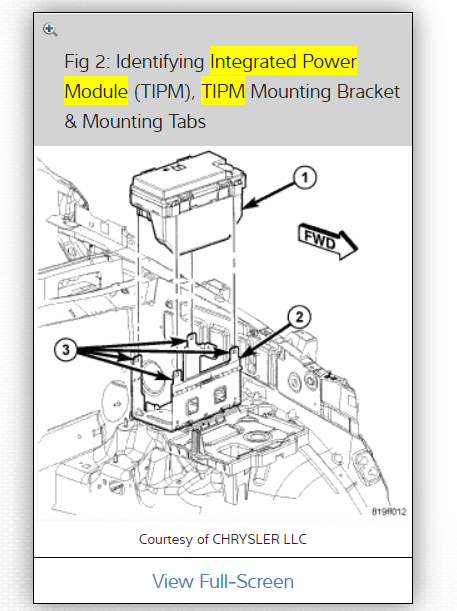

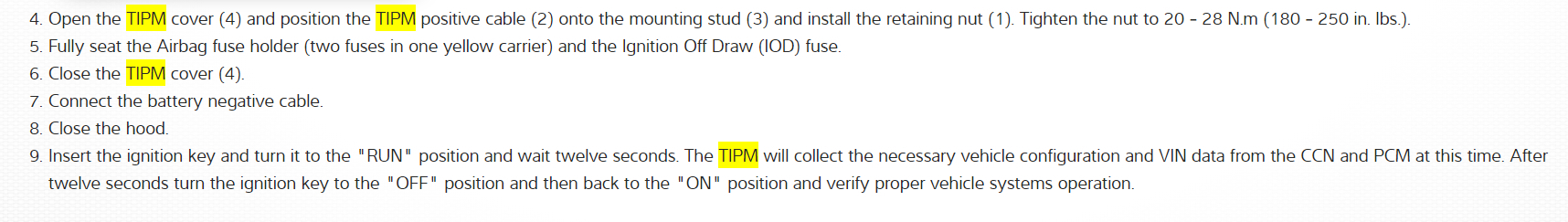

The tipm module tells the pcm to turn it on so as long as the connector is disconnected from compressor yes. if you took it to an auto parts they can't read the codes with their scanner that only does engine/trans codes nothing else. it may be a wiring issue between either hvac module to tipm then to pcm. something is n't getting a signal to run. I would try to replace the TIPM because its easy and self initializes. Here are the diagrams and instructions to do so.

Check out the diagrams (Below). Please let us know what you find.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Sep 1, 2015 at 7:00 AM
Avatar
NAPENA
  • MEMBER
  • 3 POSTS
I got a new TIPM for $246.00 and installed it worked great! I love this site.
Sep 1, 2015 at 7:09 AM
Avatar
GETINTHEVAN315
  • MEMBER
  • 1 POST
How do you know it’s TIPM and not PCM? My mechanic said the latter also with a brand new fully charged A/C compressor that doesn’t engage. This is a 2007 4WD compass. Not sure what to buy or how to test. I also saw the relay boxes on these models can be horrendously corroded. Any tips would be much appreciated.
Nov 3, 2021 at 7:19 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

Are you getting power to the compressor? The TIPM (totally integrated power module) is what provides power. If there is no power, then I would check at the TIPM to see if there is an issue with the connector. They are known to have pins break, corrode, and just fail.

Check for power first and let me know what you find.

Joe
Nov 5, 2021 at 9:46 PM
