Blower switch will not operate?

2008 GMC SAVANA
132,283 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
Blower switch will not operate, level of antifreeze restored, resistor replaced, fan motor tested and runs when 12volts applied . Fuses checked HVAC (3) under drivers seat... What up.
Jan 7, 2013 at 12:41 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

It sounds like you either have a bad blower switch or a faulty wiring.

First check the blower switch and make sure it is getting power. Also check for any carrion or burnt connectors.
It is a good change that the wiring for the switch could be shorted.

Here is a helpful article on checking wiring:

https://www.2carpros.com/articles/how-to-check-wiring

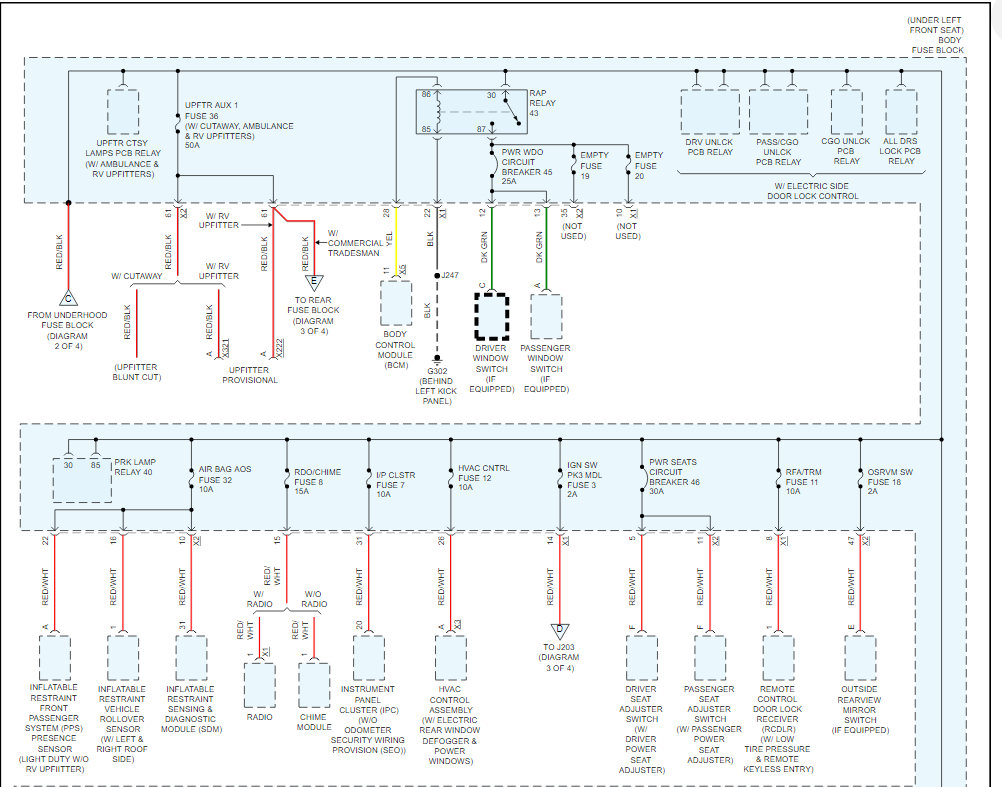

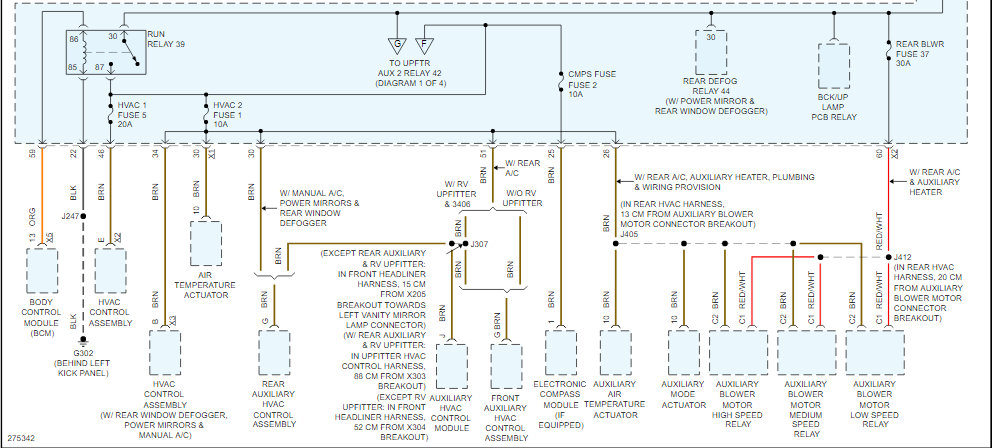

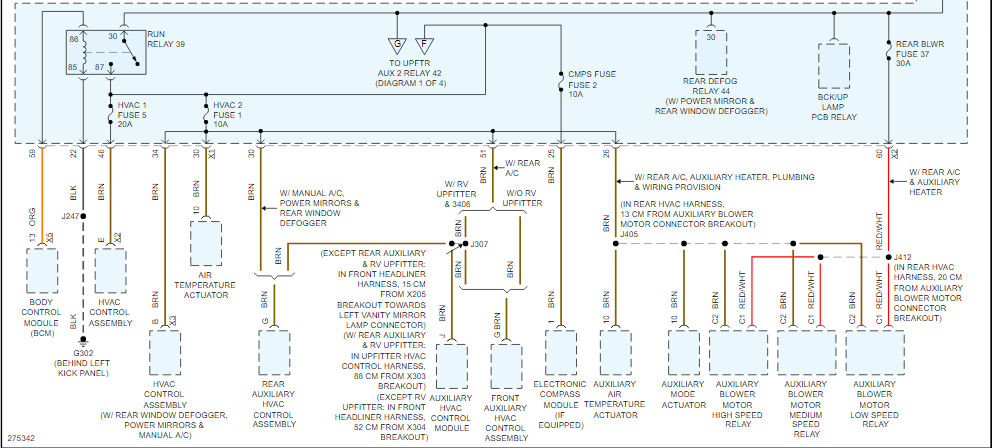

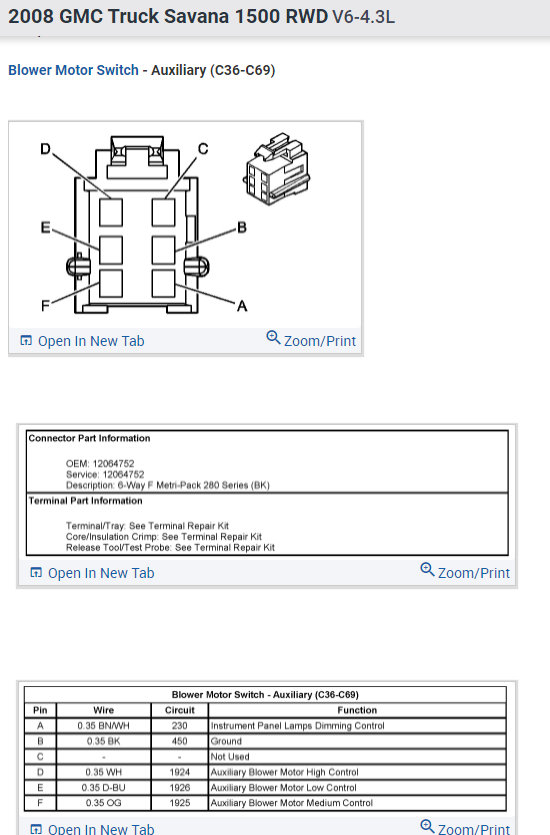

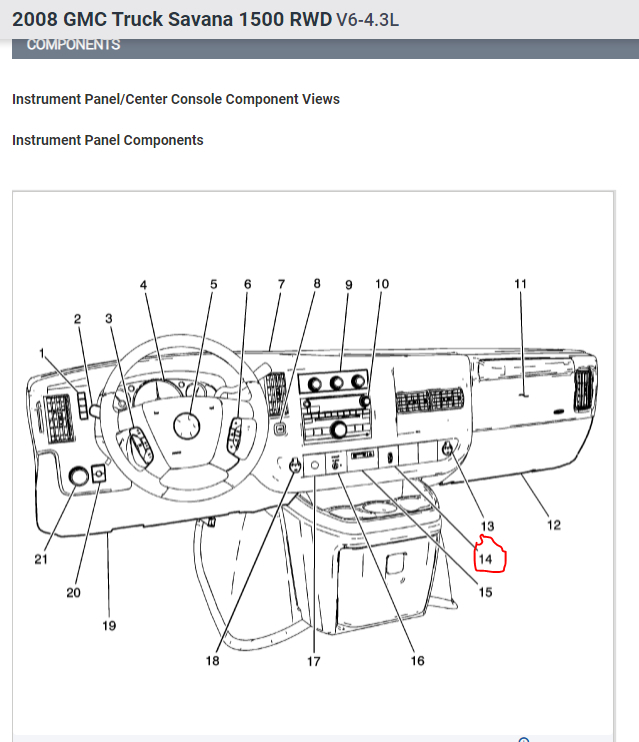

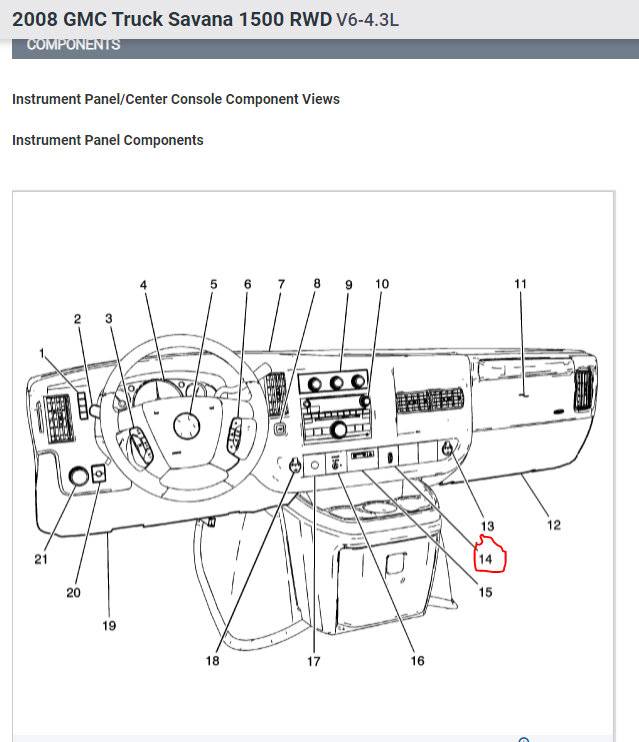

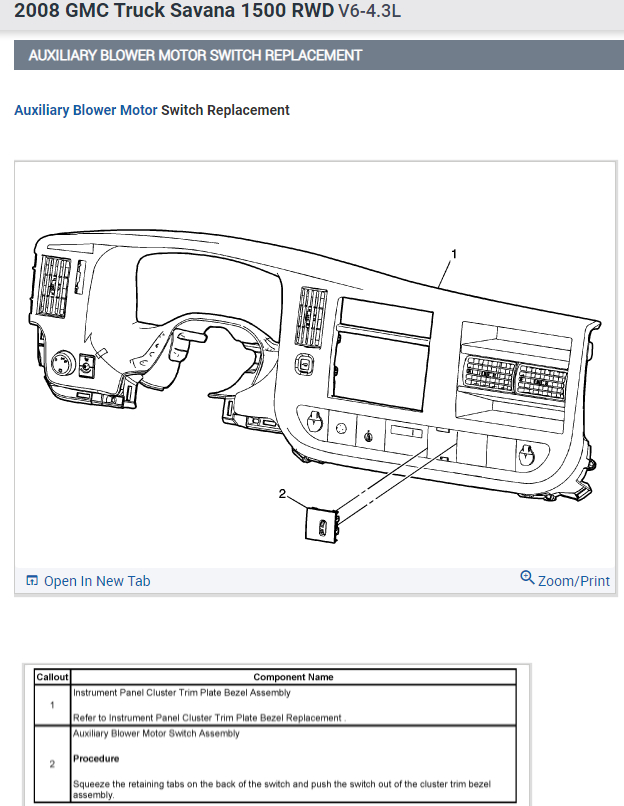

I have attached diagrams for your reference.

Please let me know of any questions.
Thank you.
Sep 30, 2021 at 7:03 PM
