2008 Ford F-350 alternator replacement

2008 FORD F-350
77,000 MILES • 6.4L • V8 • TURBO • 4WD • AUTOMATIC
Avatar
GLAIVEN
  • MEMBER
  • 1 POST
I recently had a short in my alternator and afterwards i had no electrical power in the truck. I replaced the alternator and charged the batteries still no power, not even the dome light has power. is their a fusable link or fuse that would cause everything to be dead in the truck.
Sep 23, 2015 at 8:10 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

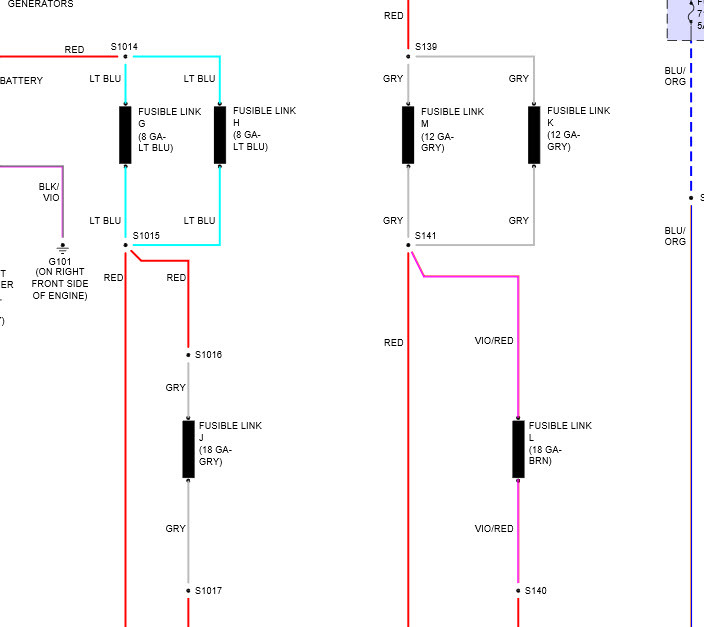

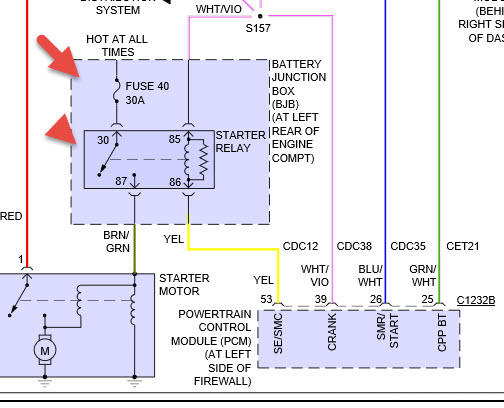

check items in pic as well as fuse 27 in smart junction box.
Sep 24, 2015 at 8:42 AM
