Lift-gate will not open

2008 FORD ESCAPE
68,000 MILES
Avatar
LOUISGOLDSMITH
  • MEMBER
  • 1 POST
The rear liftgate will not open by its button or by the remote on key.
The glass on the gate does open with no problem.
Sep 18, 2012 at 1:06 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

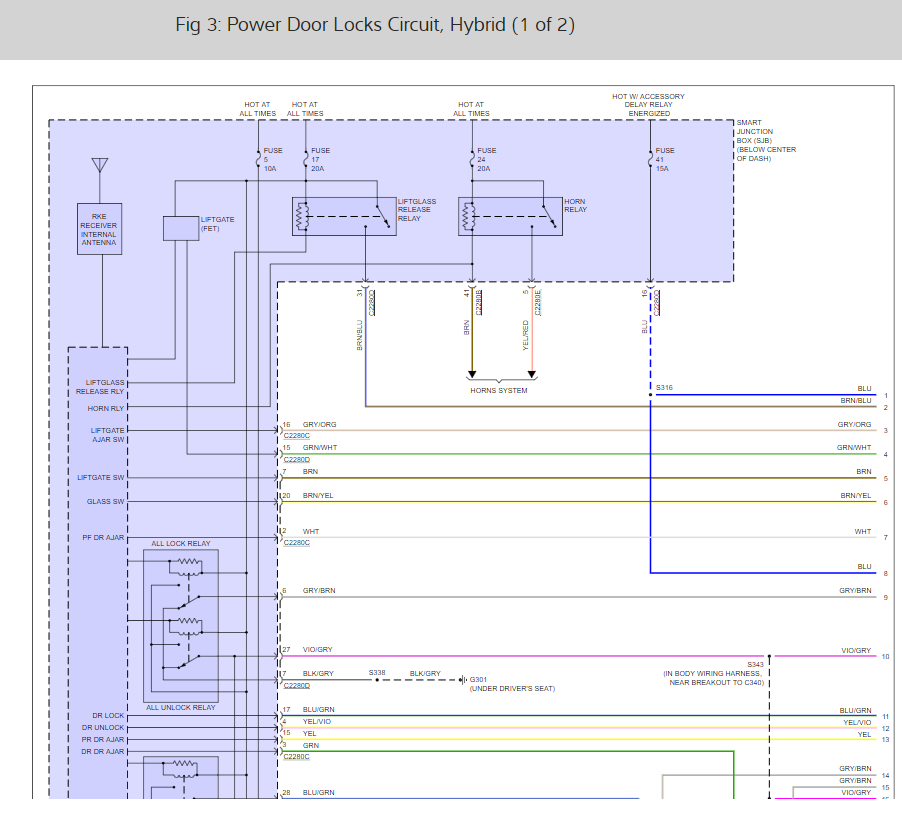

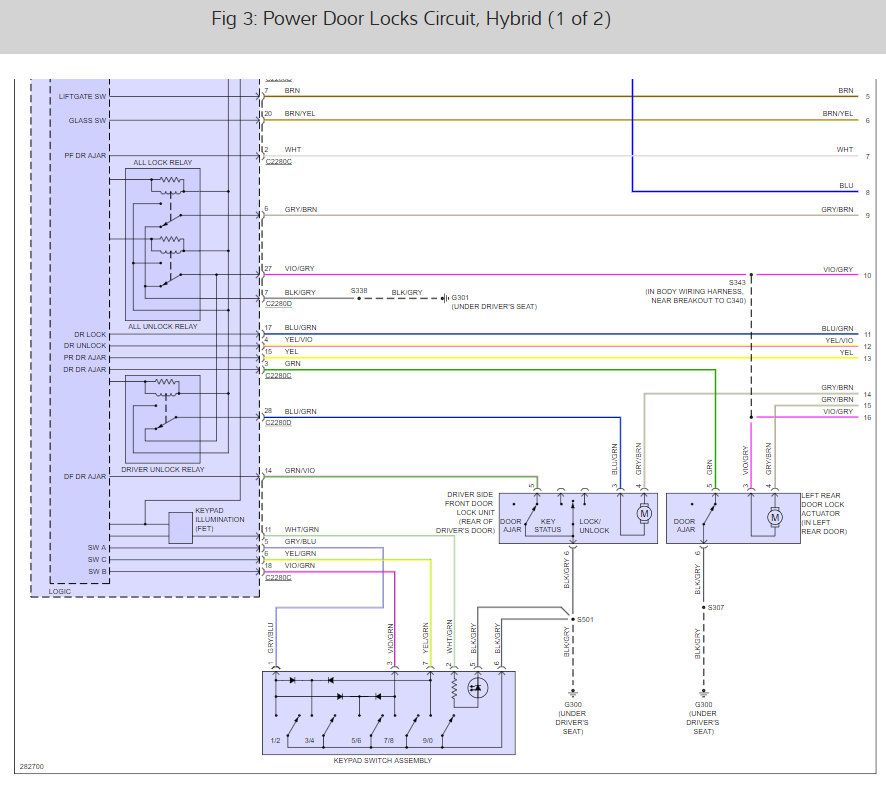

It sounds like the rear latch actuator has gone out and will need to be replaced. From inside the car remove the door panel to release or remove the actuator. But first let's check the fuse #17 and relay. Here are wiring diagrams to show you which ones to test:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

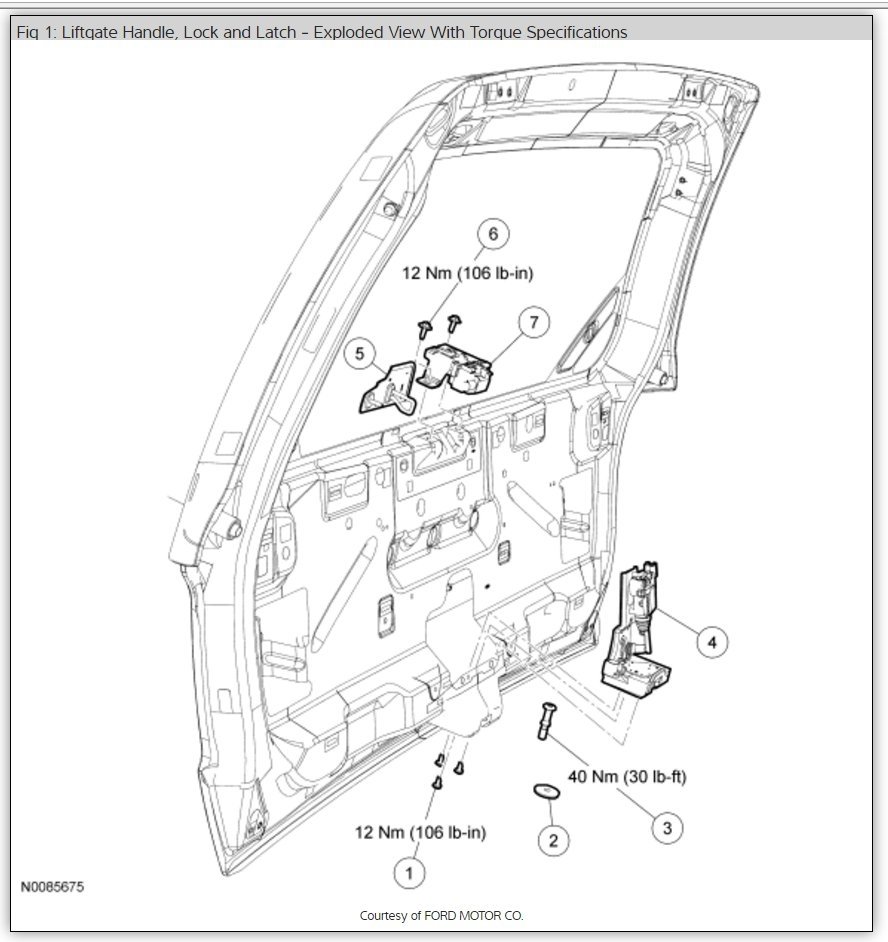

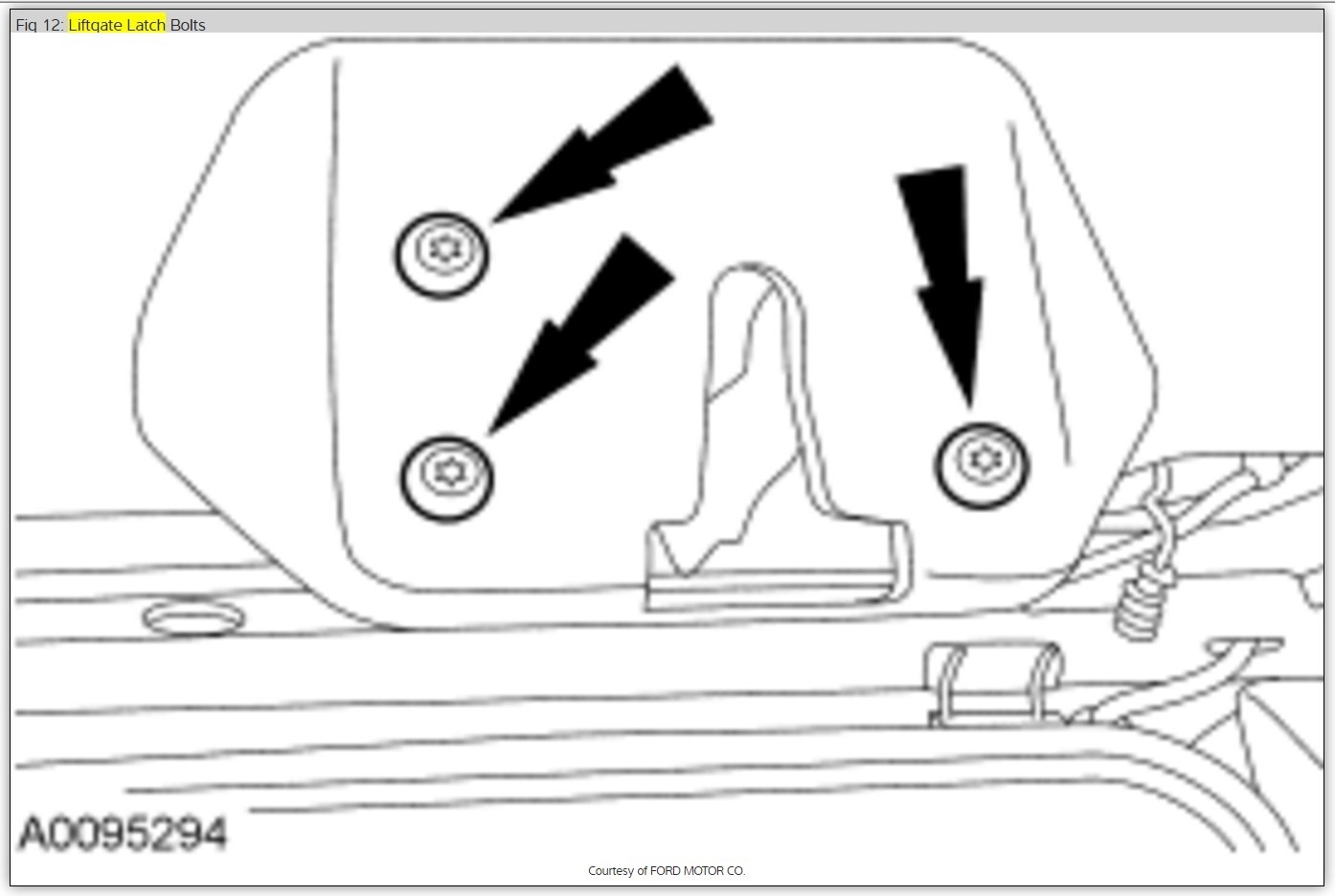

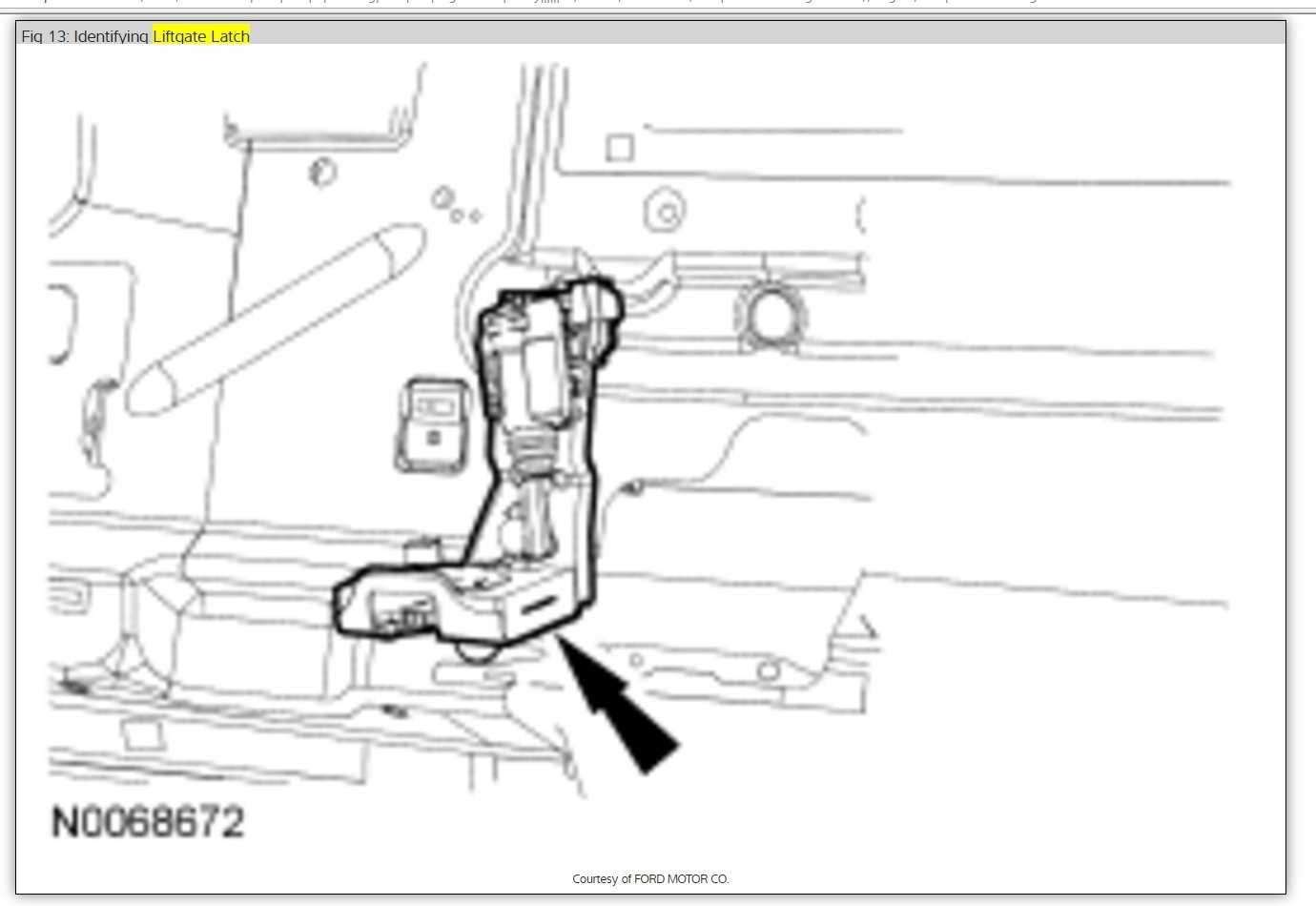

Here are some guides and diagrams to help you get the job done:

https://www.2carpros.com/articles/door-panel-removal

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Apr 11, 2017 at 10:55 AM
Avatar
TY
  • MEMBER
  • 1 POST
Thanks for the guide. The relay was the issue. :)
Aug 2, 2018 at 2:21 PM
