Cooling fans

2008 FORD ESCAPE

160,000 MILES • 4.3L • 6 CYL • 2WD • AUTOMATIC

CSPRADLEY

MEMBER
1 POST
FOLLOW

Both aux and main cooling fans have stopped working. Turning on A/C or elevated engine temp doesn't make either fan come on. I have replaced the Main cooling fan relay but didn't help. Not sure if there is anything else that controls both fans or would cause them both to fail.

Jun 17, 2014 at 10:19 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

Hey CSPRADLEY

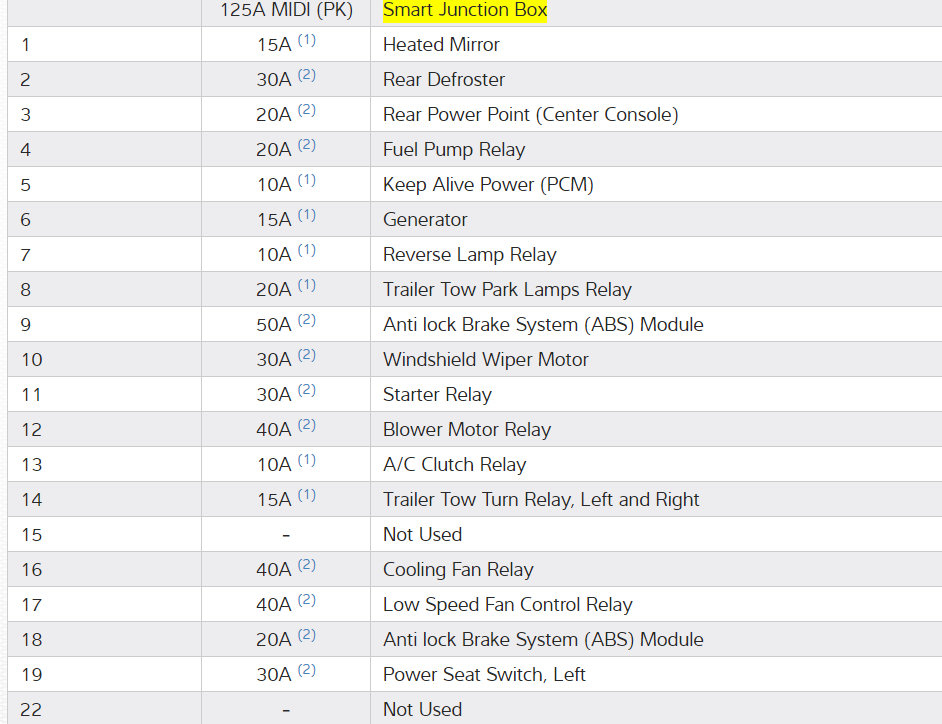

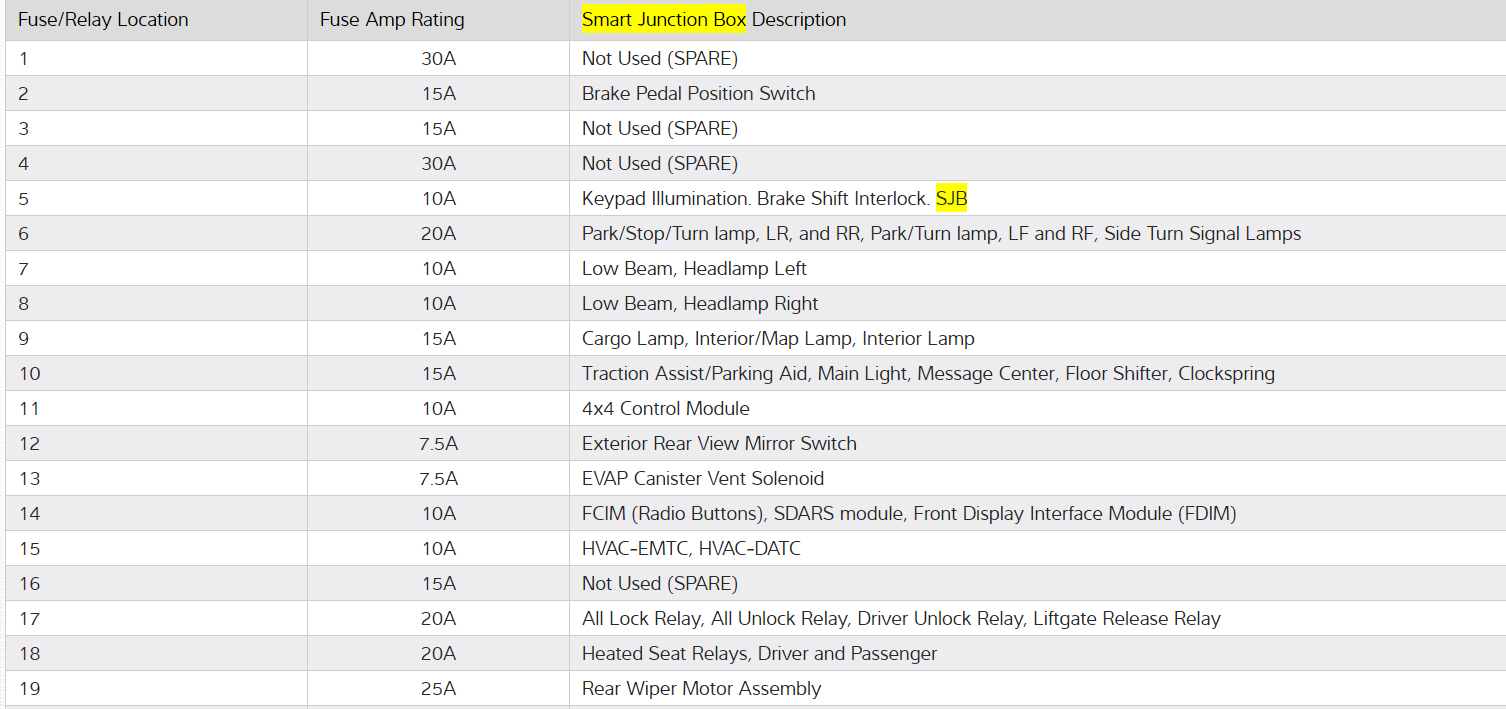

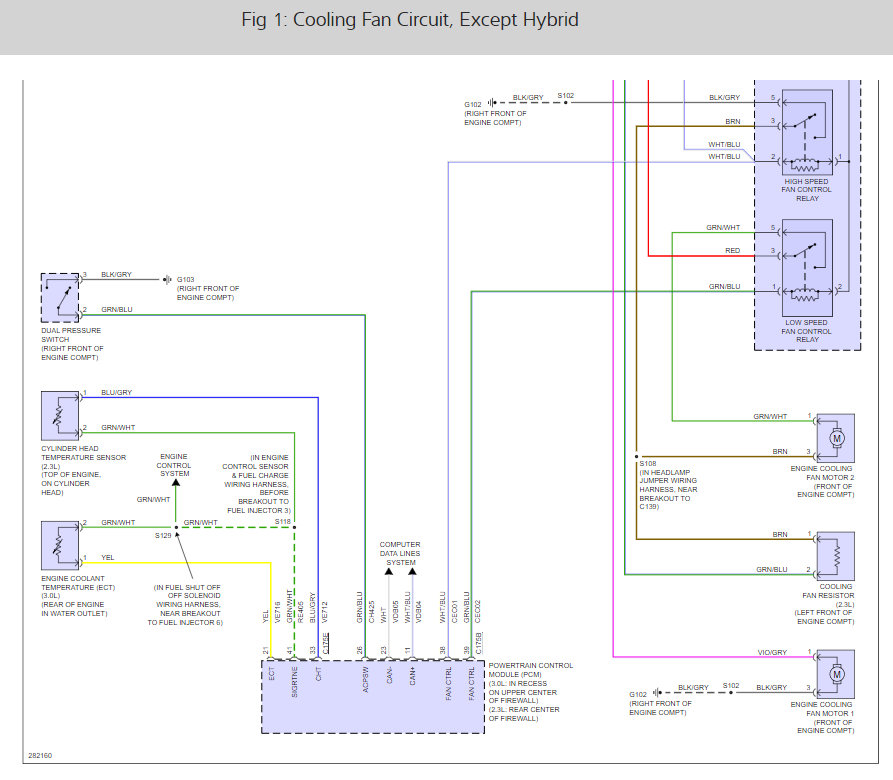

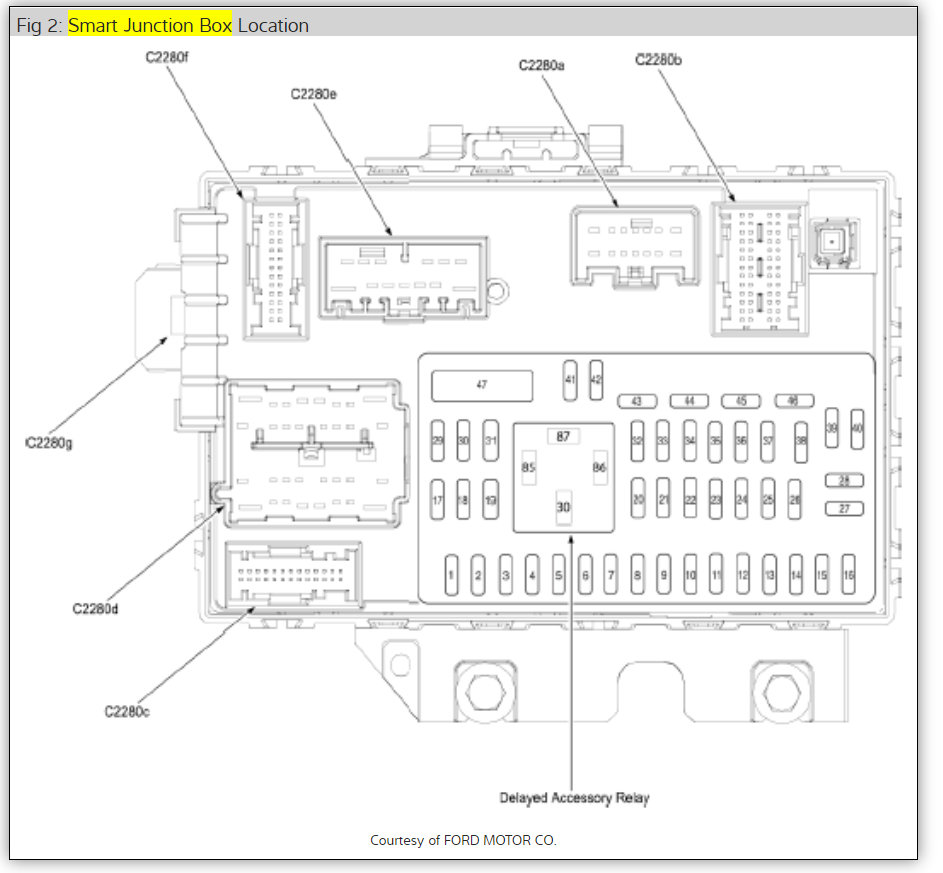

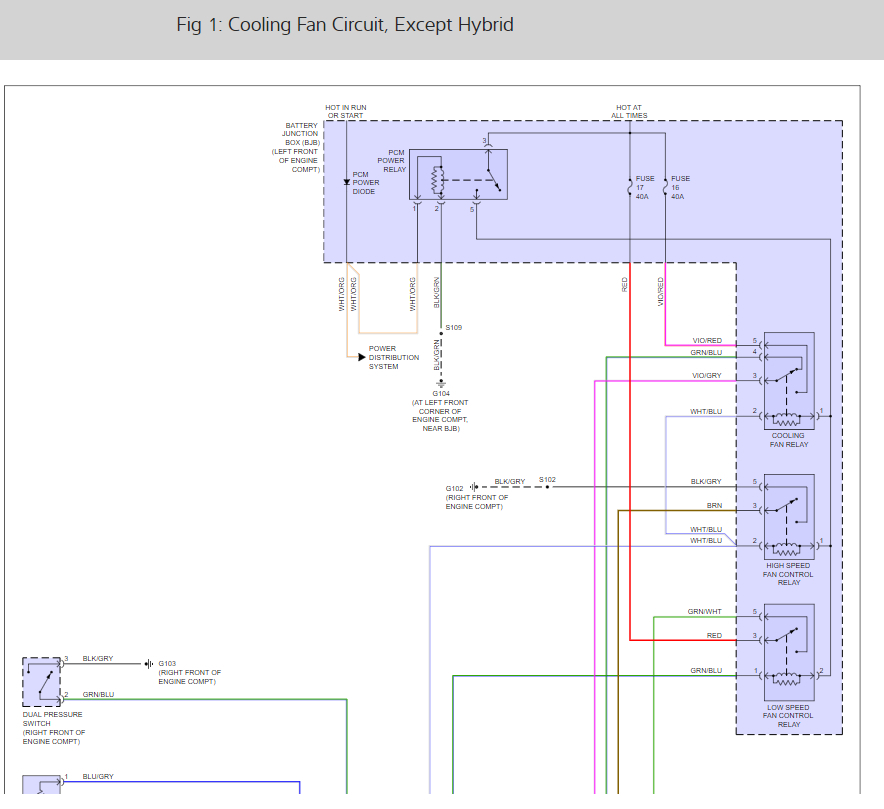

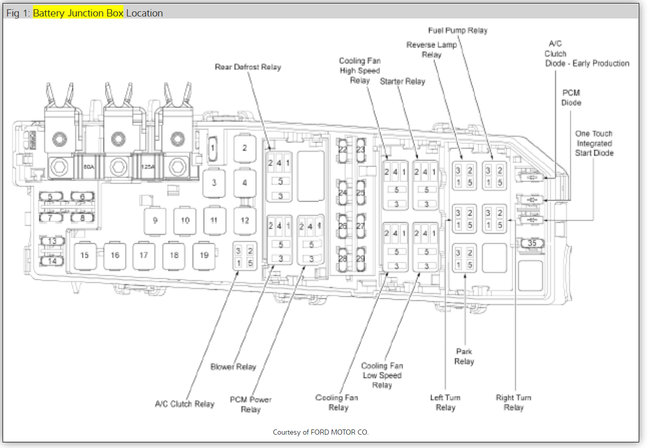

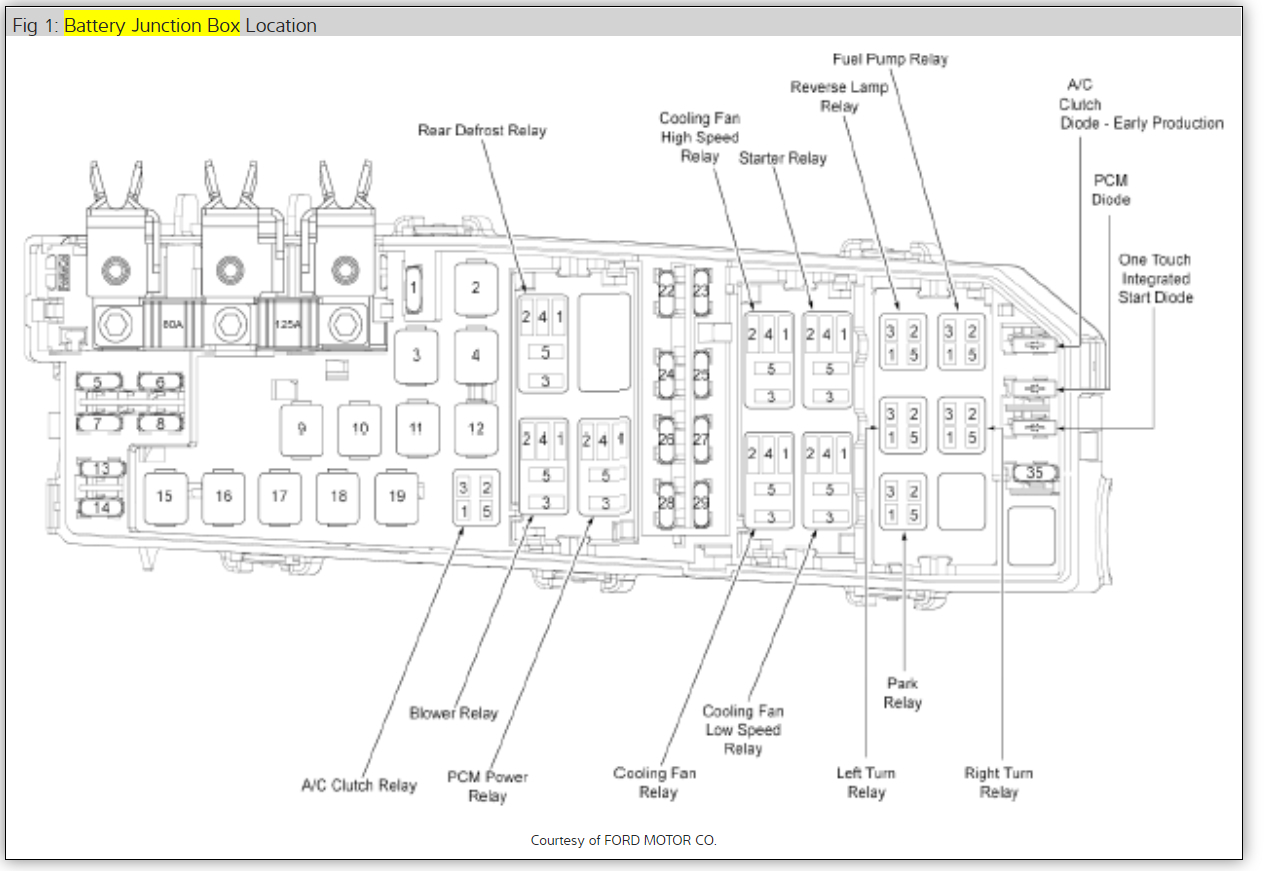

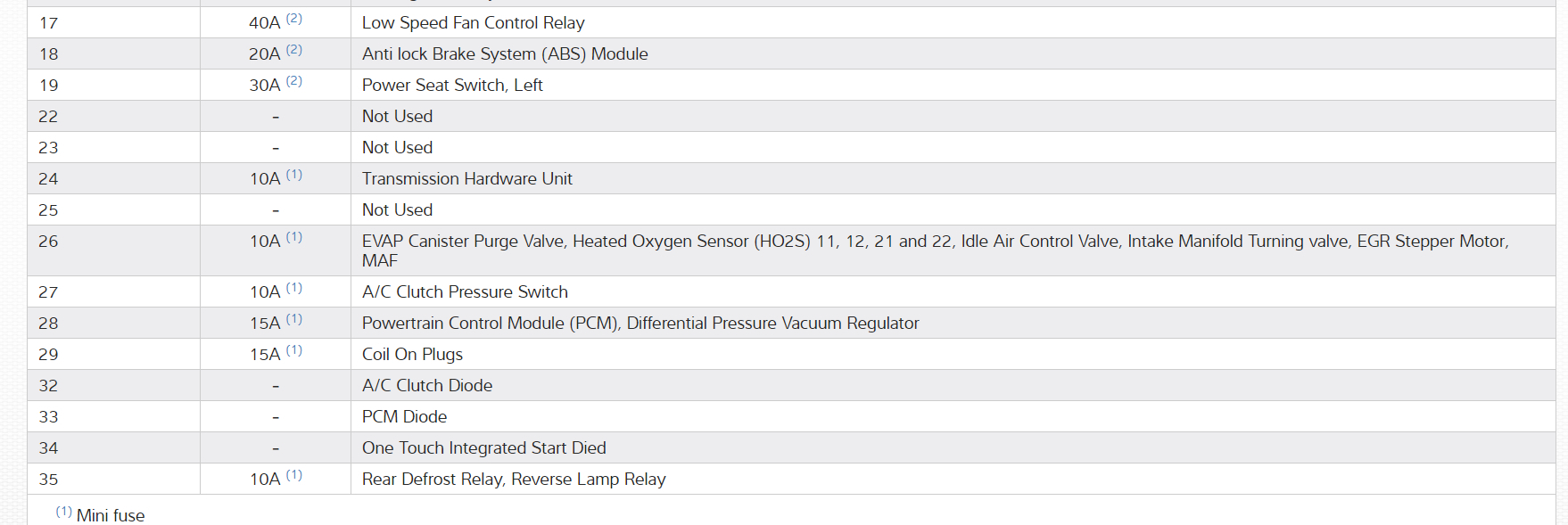

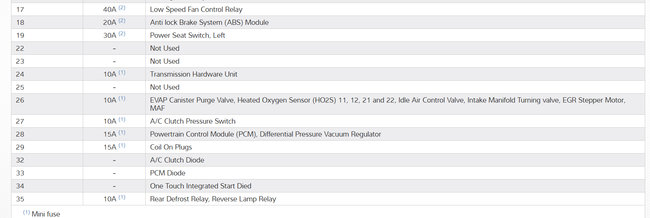

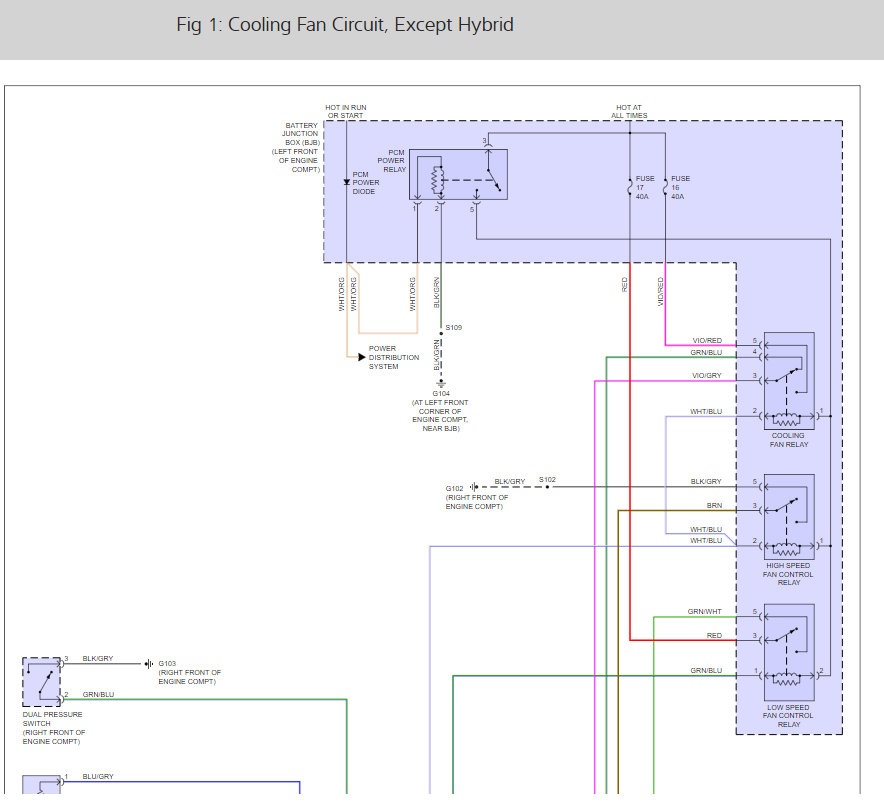

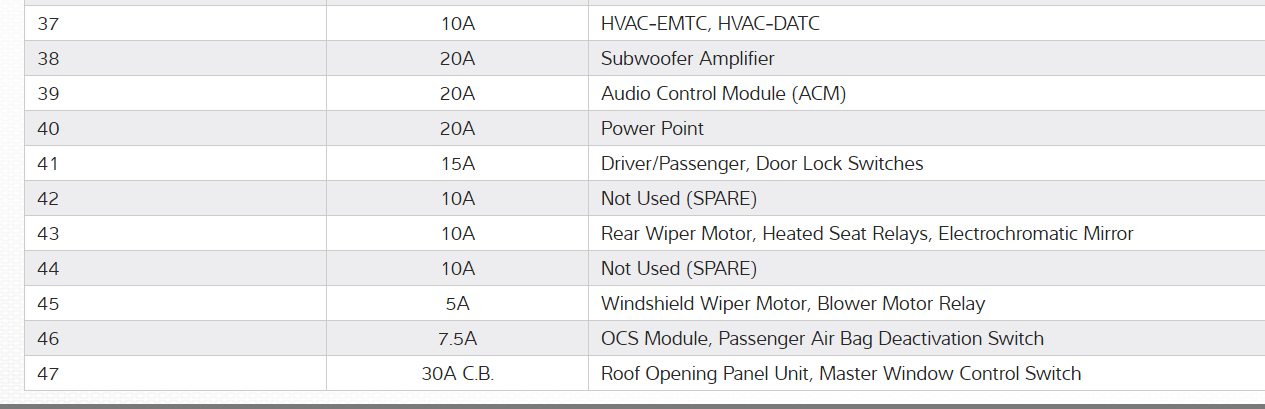

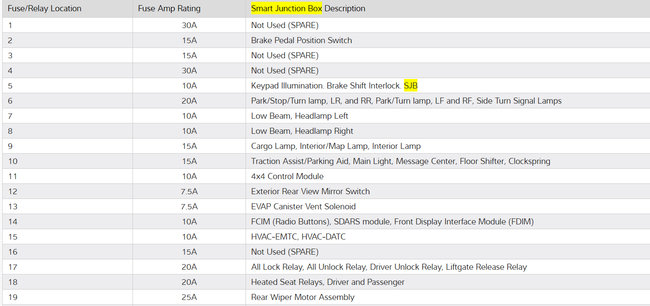

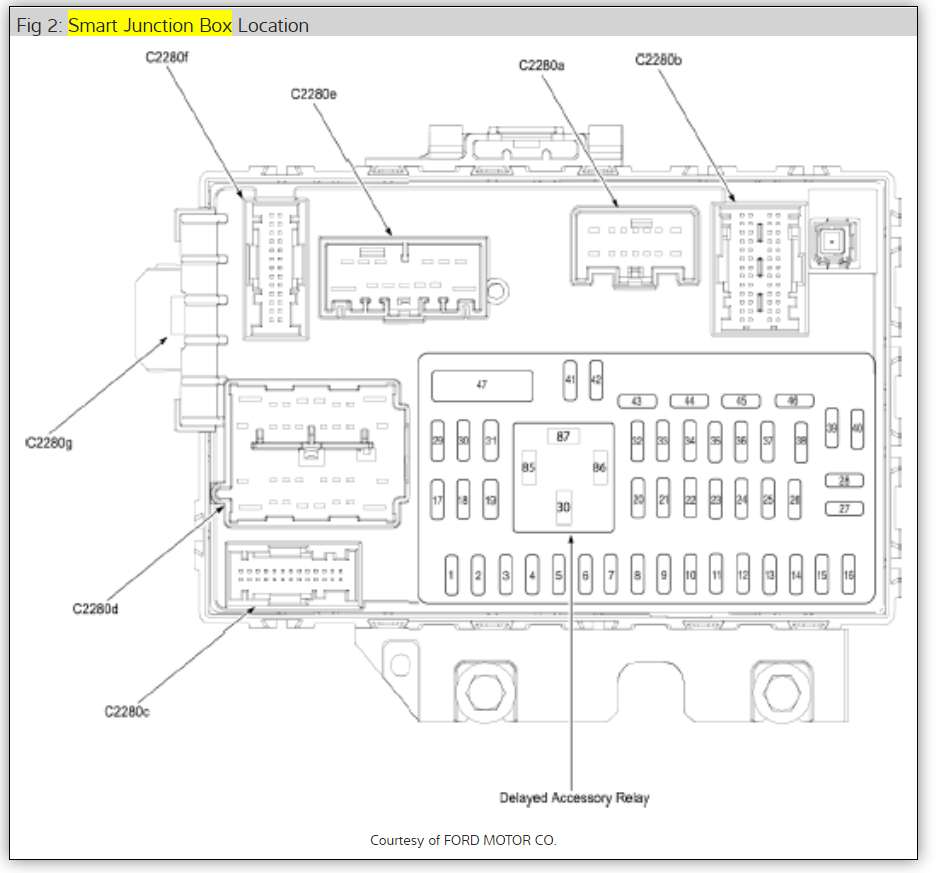

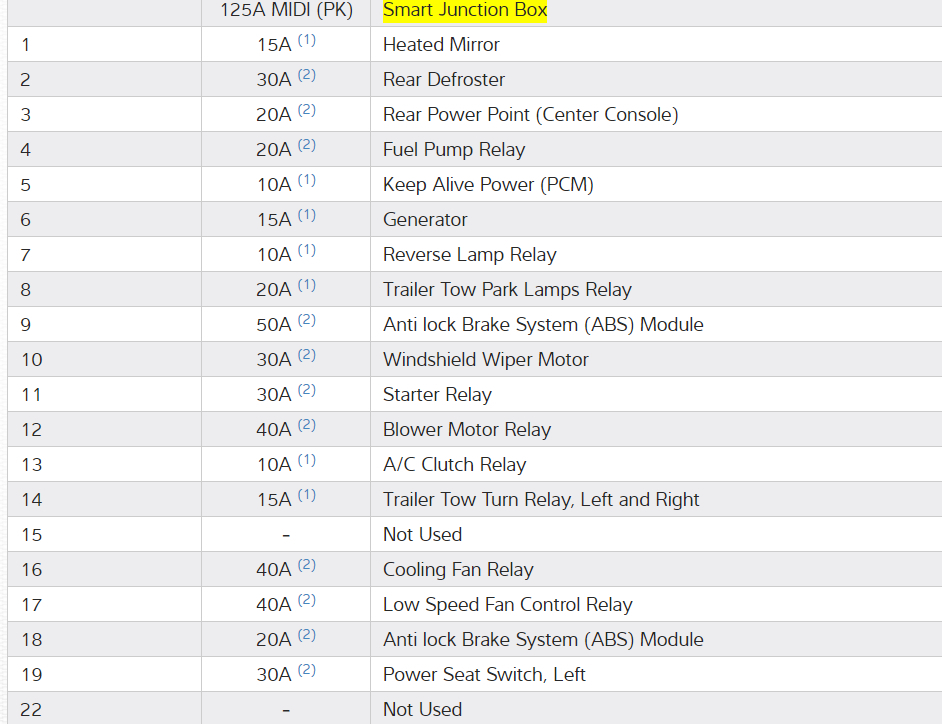

There are two fuses #17 and #16 that work the system check those for power first, here is a guide and the location of the fuses are below along with the wiring diagrams for the system so you can see how it works.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check the fan motor grounds as well as that can cause the problem. Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

Cheers

Images (Click to enlarge)

Jun 17, 2014 at 3:12 PM

BOOPERIII

MEMBER
1 POST

Thanks for the post It was the fuse in my car I had to replace the fan motors as well there where hard to turn I used this guide to help me.

https://www.2carpros.com/articles/replace-electric-fan-motor

Sep 1, 2018 at 12:17 PM
