fuse box?

2008 FORD CROWN VICTORIA
Avatar
JESSE SINGH
  • MEMBER
  • 1 POST
where is the fuse junction box located?
Mar 14, 2011 at 7:47 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
That would be the fuse box located under the dash on the driver's side. Here is a guide to help test with diagrams below for the fuse panels.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

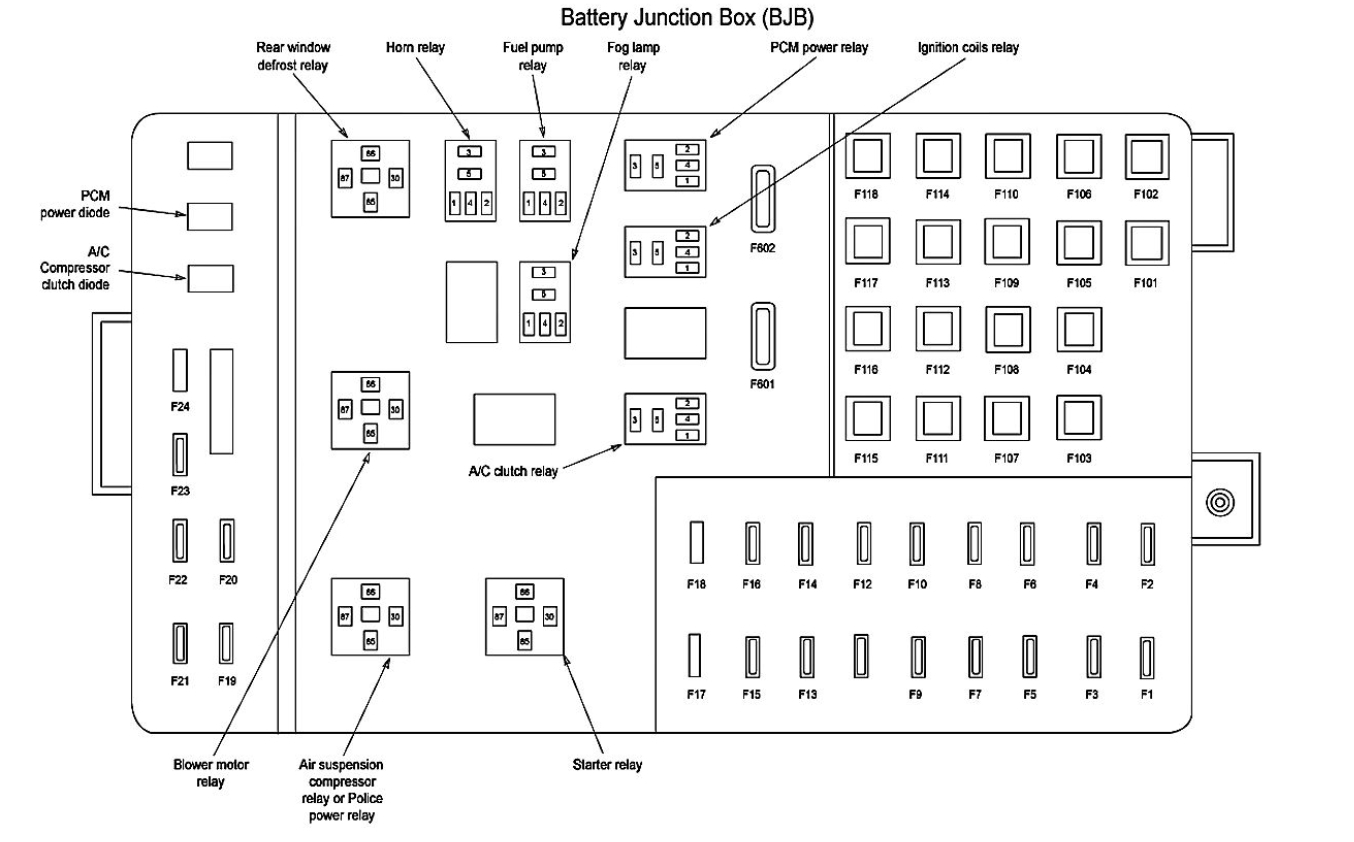

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Dec 4, 2018 at 5:51 PM
Avatar
J.STIEG
  • MEMBER
  • 361 POSTS
I need a fuse panel diagram, lower driver side kick panel. Thanks
Jun 18, 2020 at 2:41 PM (Merged)
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

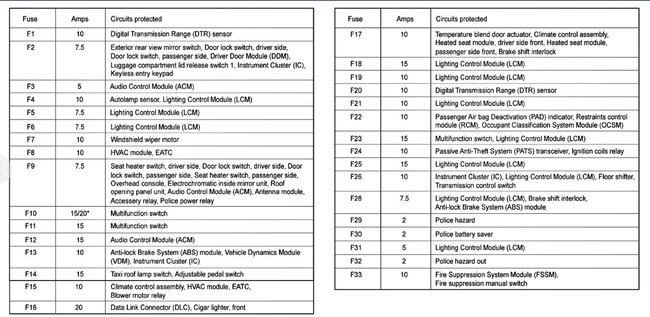

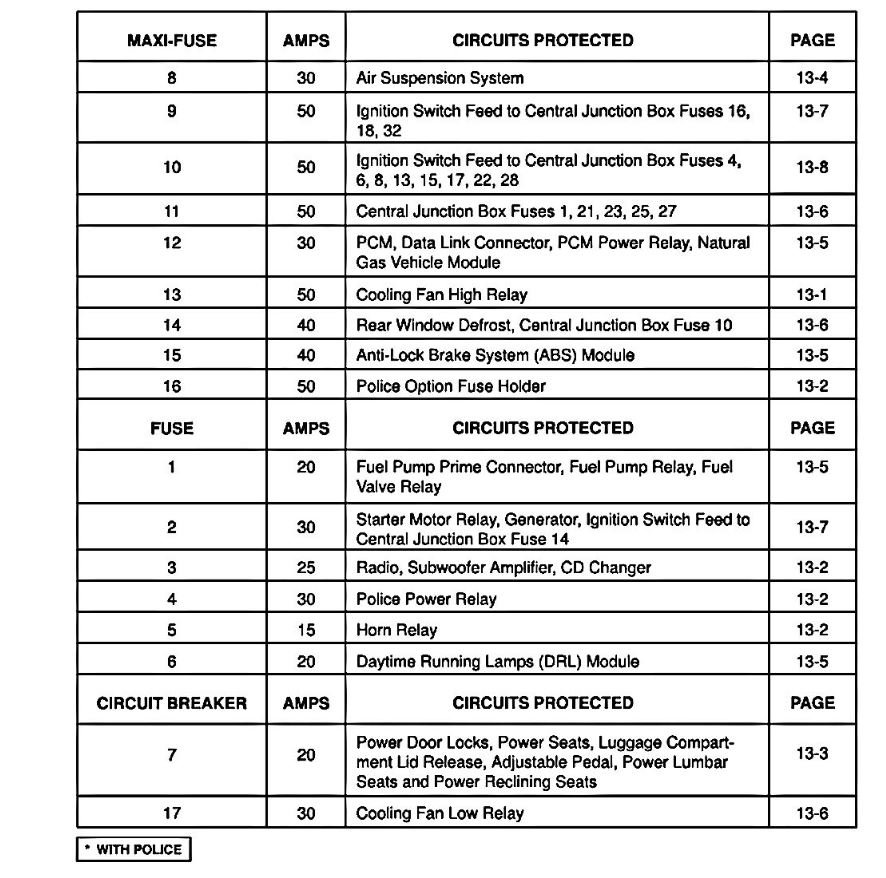

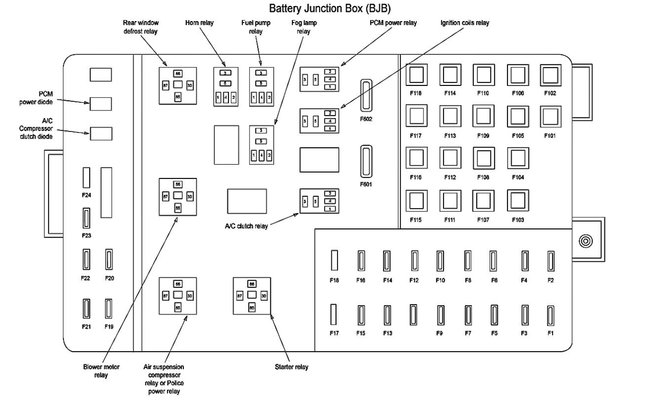

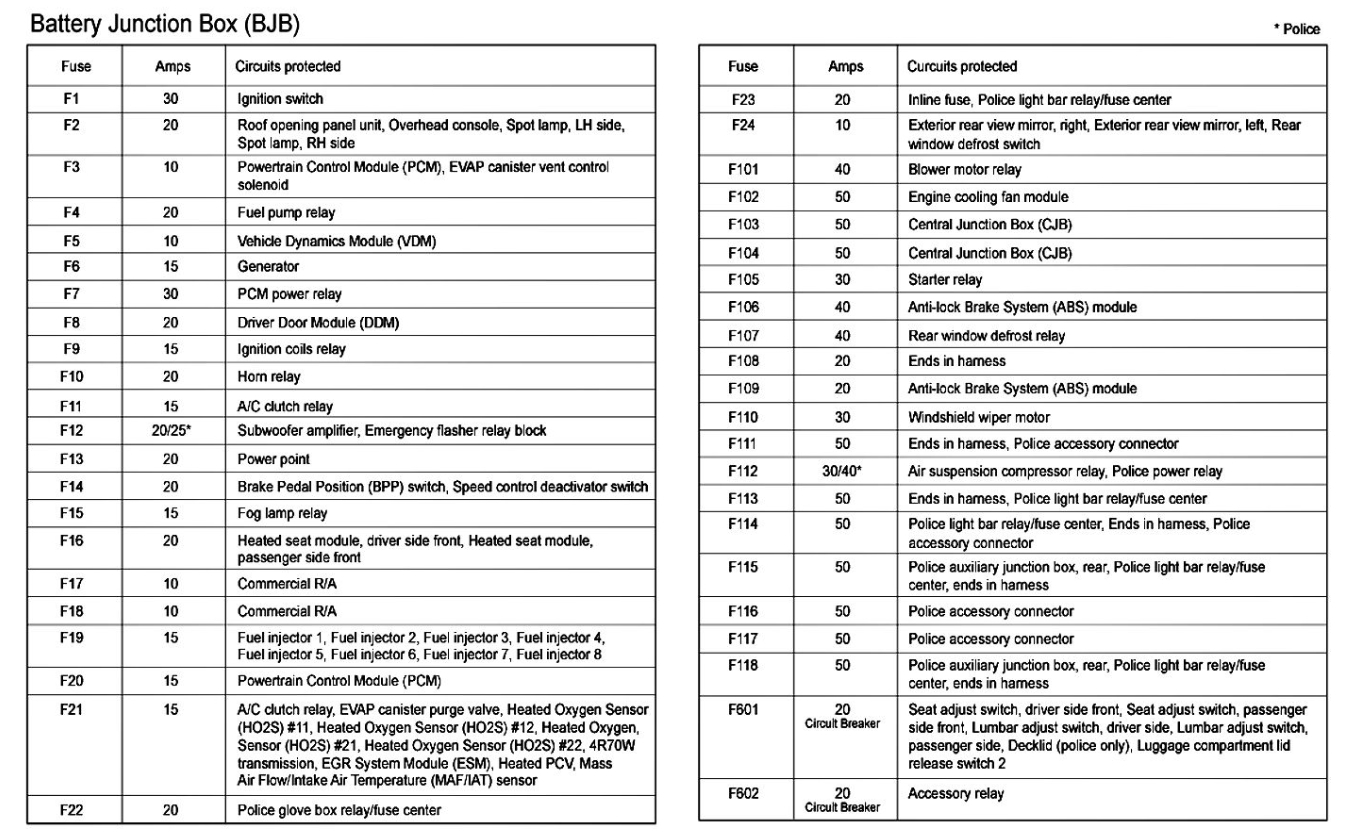

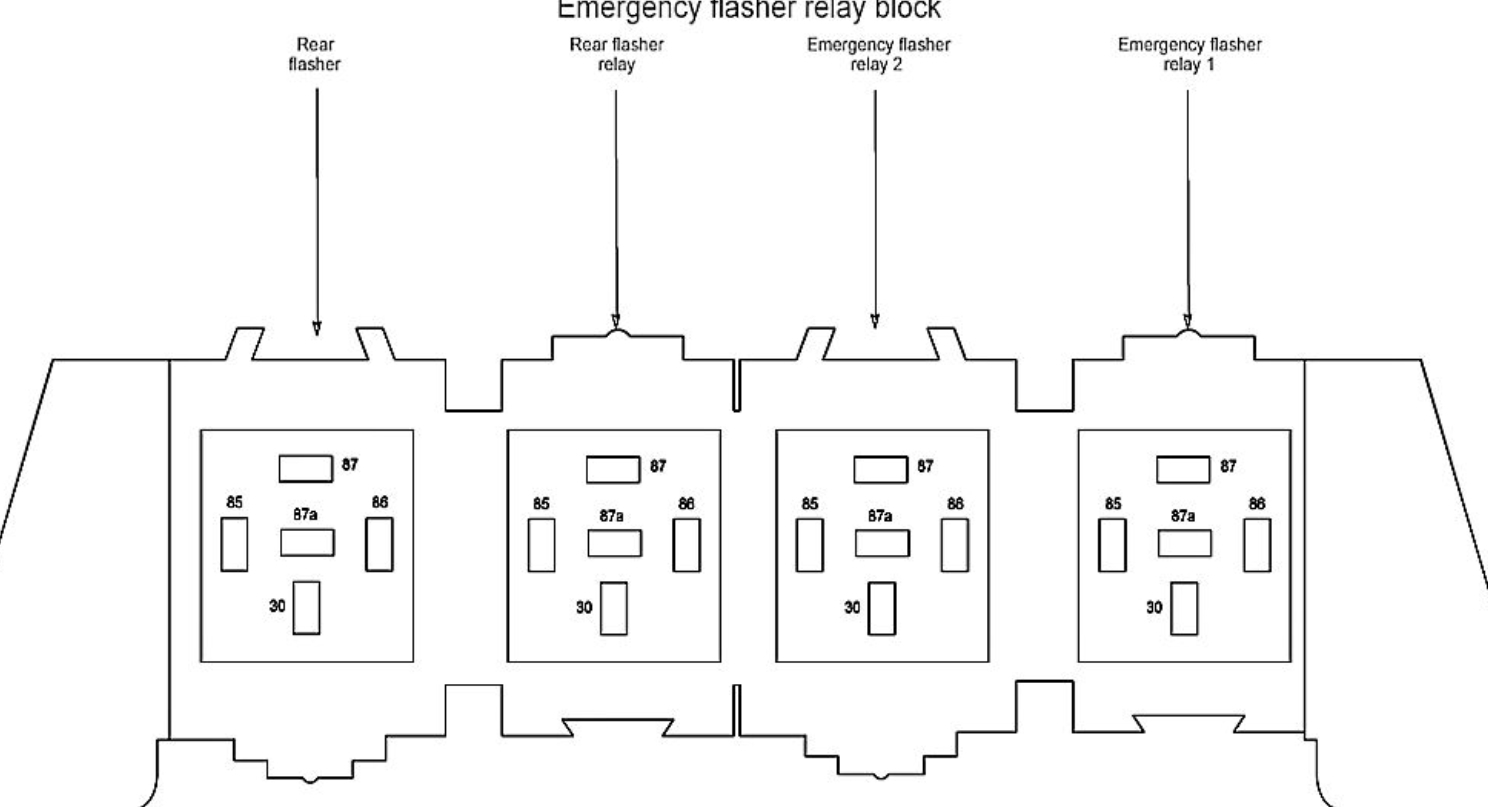

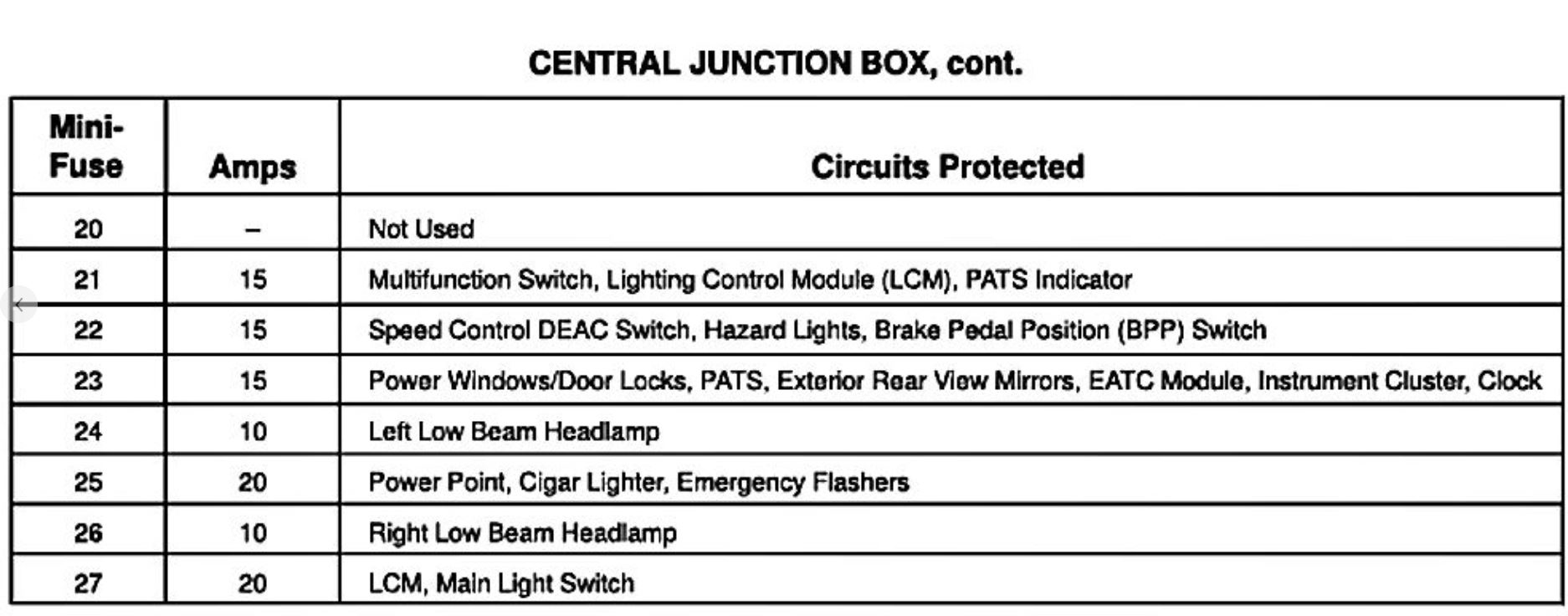

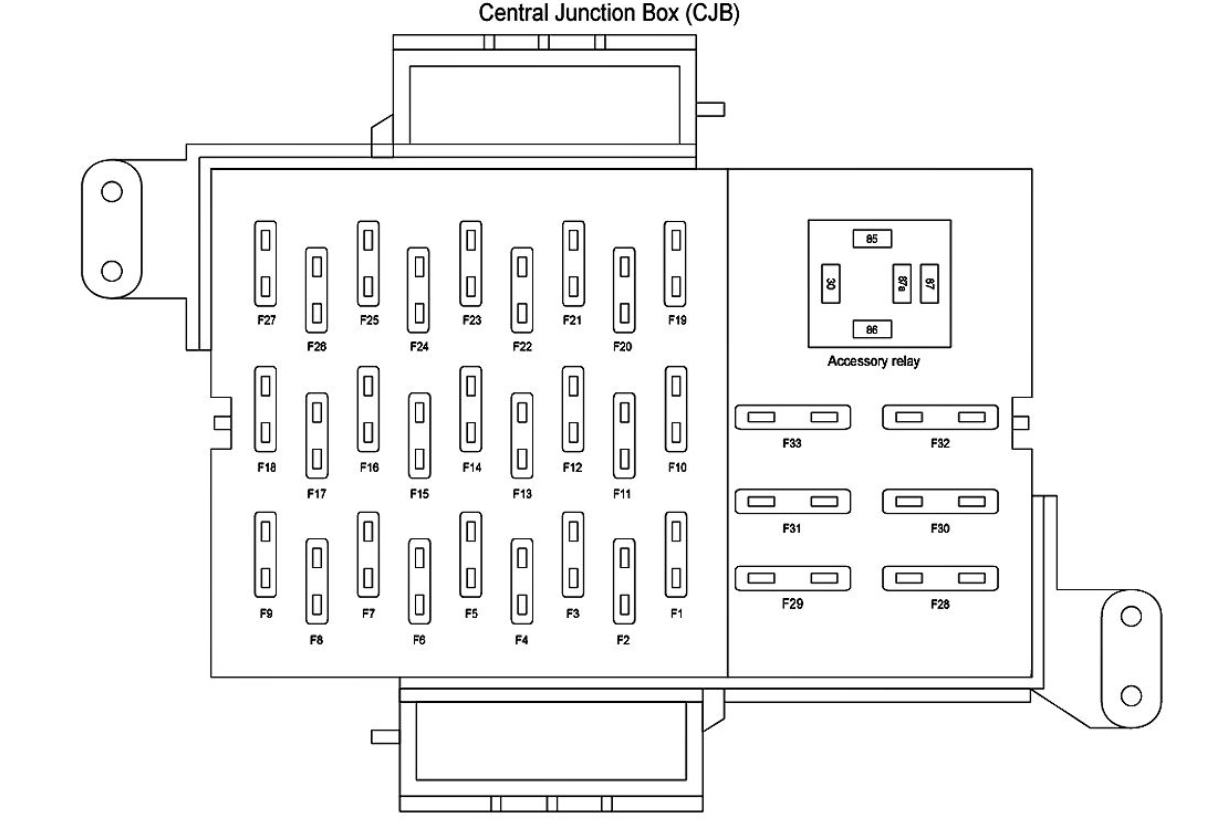

Here are the diagrams for both fuse blocks
Jun 18, 2020 at 2:41 PM (Merged)
Avatar
J.STIEG
  • MEMBER
  • 361 POSTS
I am putting fuses back in the box and I need to know where they go.
Located: Interior lower front left.
Jun 18, 2020 at 2:41 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

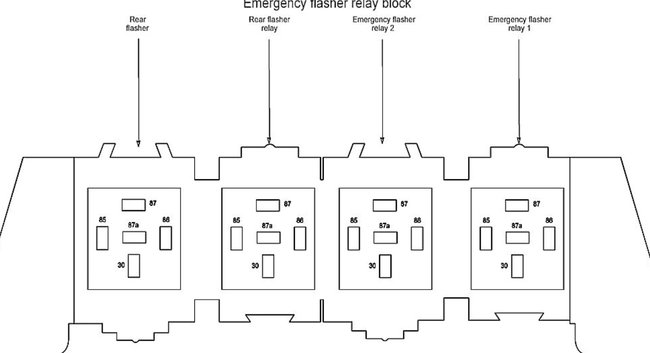

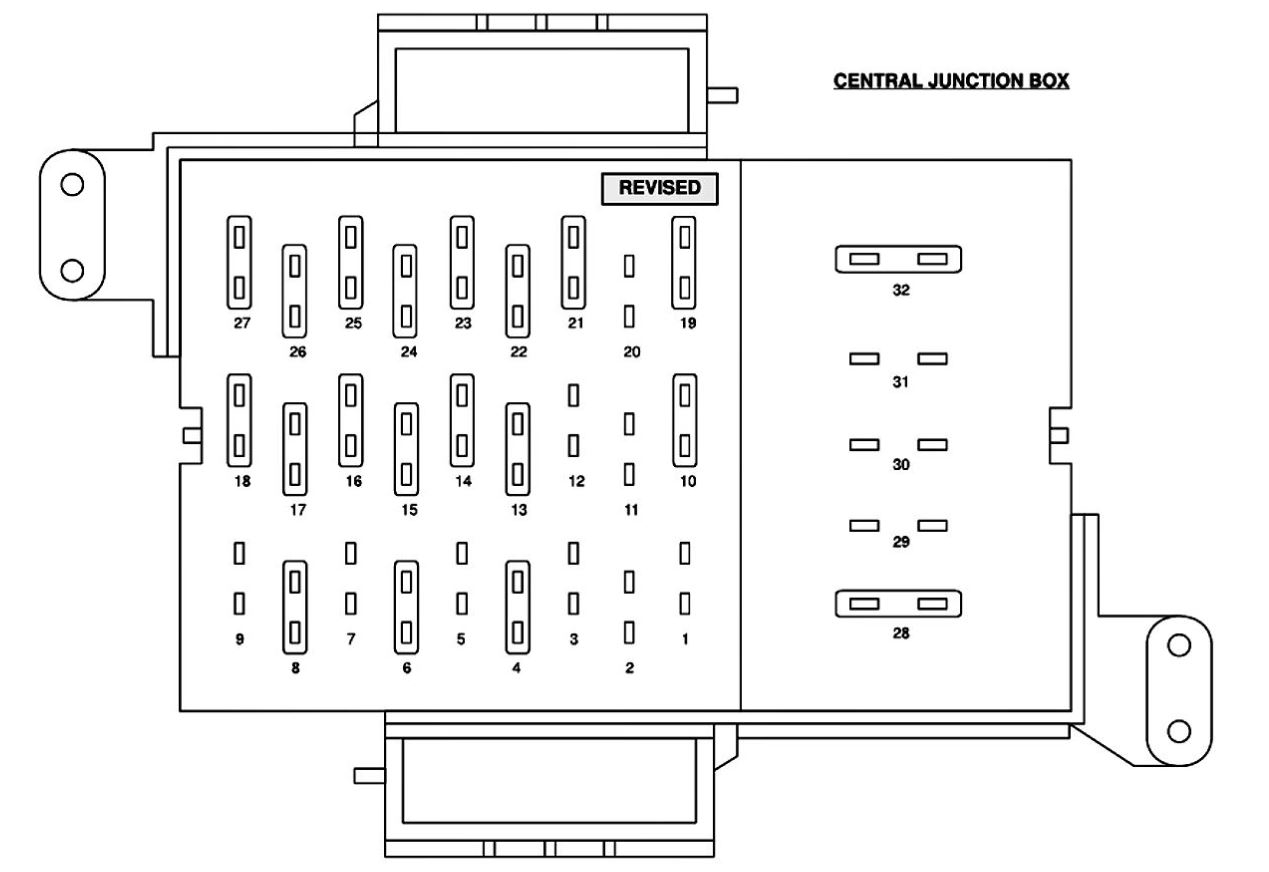

Sorry, I thought I already sent this.
Jun 18, 2020 at 2:41 PM (Merged)
Avatar
HILLCOUNTRY
  • MEMBER
  • 1 POST
Electrical problem
2001 Ford Crown Victoria V8 Front Wheel Drive Automatic

where is the fuse box located?
Thank you.
Jun 18, 2020 at 2:41 PM (Merged)
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS

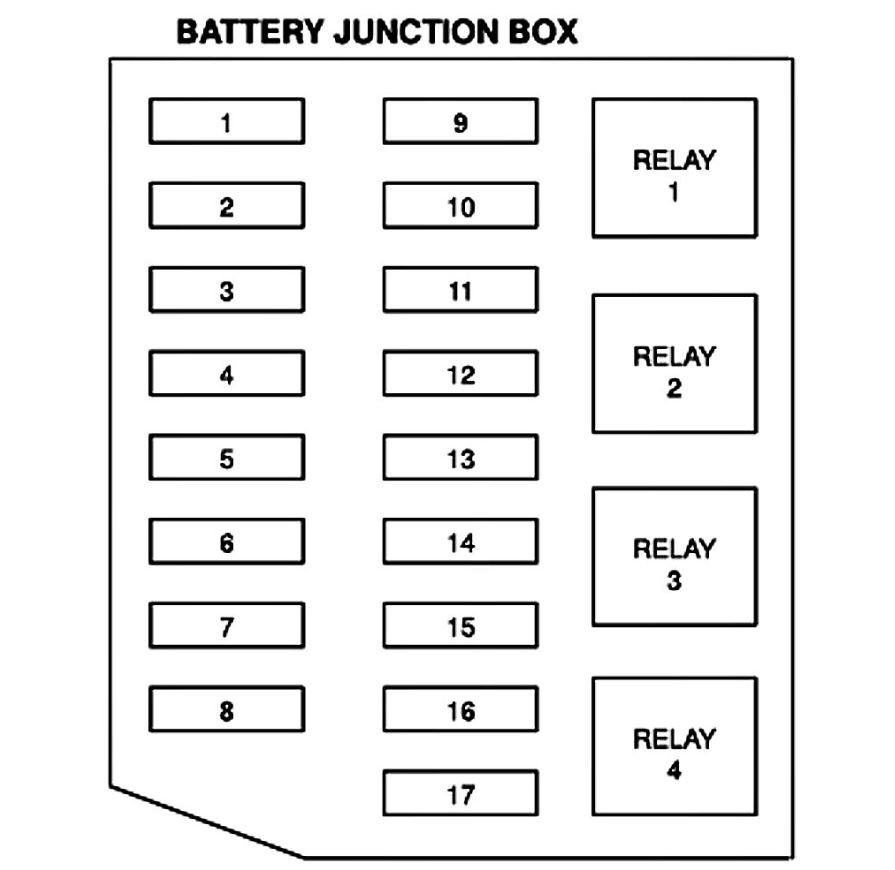

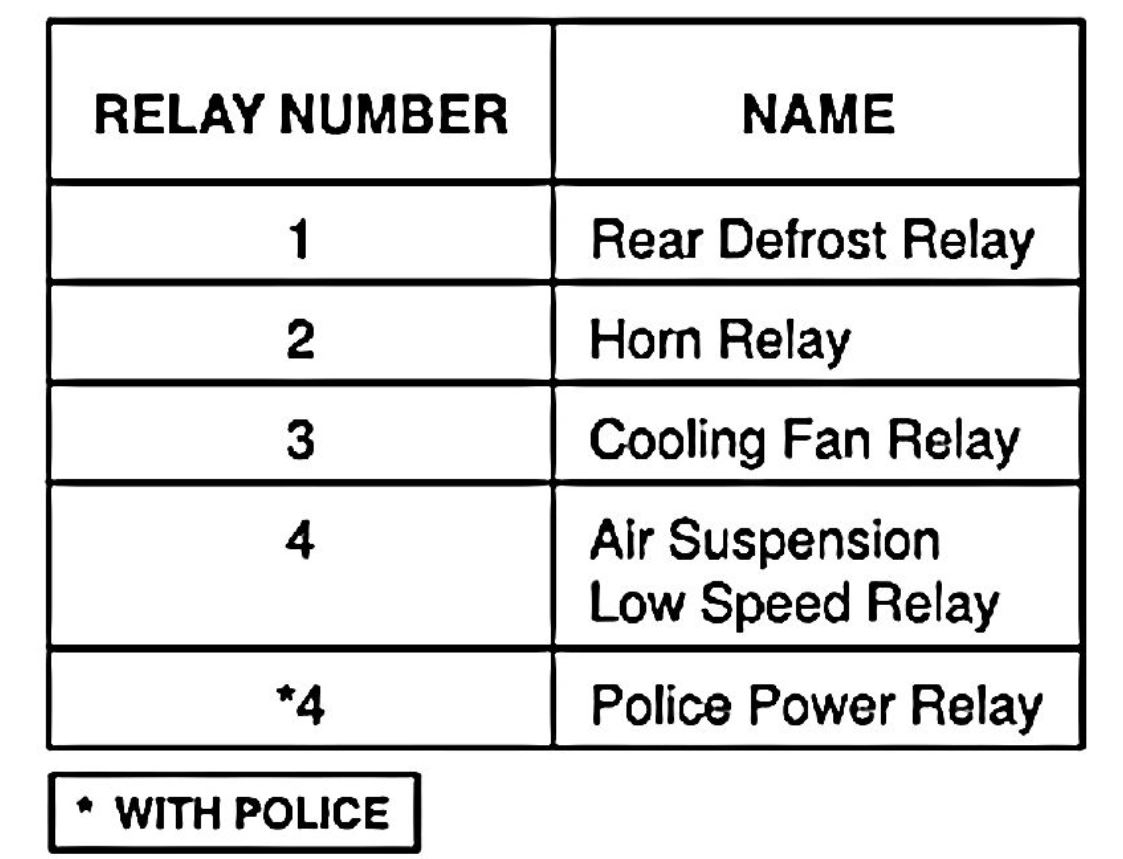

Battery Junction Box.........In right front of engine compartment, behind battery.

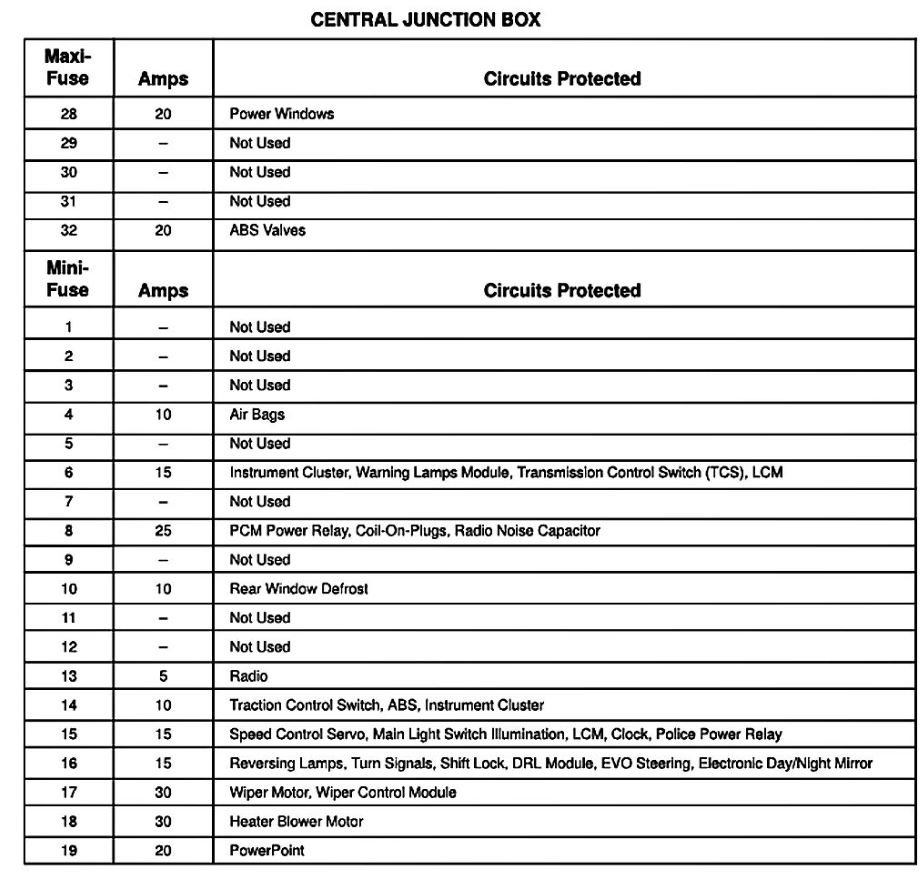

Central Junction Box.......Below dash, left of steering column.
Jun 18, 2020 at 2:41 PM (Merged)
