I am trying to figure out the order of the coils. If I am standing in front of the car, can you send me a diagram of the firing order?
Dec 31, 2014 at 11:34 AM
firing order?
2008 DODGE CHARGER
BECCA1974
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,

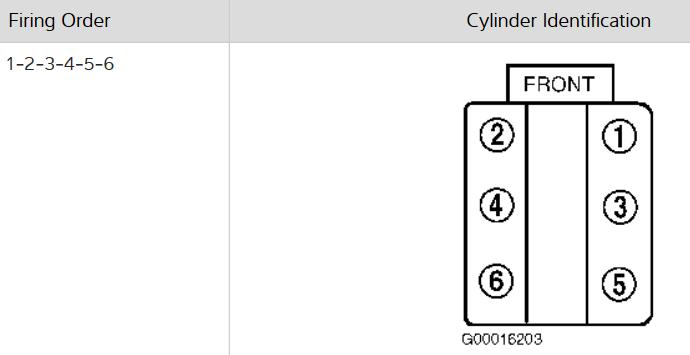

Here is the engine firing order. Check out the diagram (below). Please let us know if you need anything else to get the problem fixed....................
Cheers
Here is the engine firing order. Check out the diagram (below). Please let us know if you need anything else to get the problem fixed....................
Cheers
Image (Click to enlarge)
Dec 31, 2014 at 12:11 PM
I was wondering if you could tell me the firing order for the spark plugs?
Jan 18, 2021 at 11:02 AM
(Merged)
Advertisement
2.7L and 3.5L engines.
Jan 18, 2021 at 11:02 AM
(Merged)
Can some one help me out and send a picture of firing order diagram to my car listed above?
Jan 18, 2021 at 11:02 AM
(Merged)
Good morning.
You did not specify the engine and there are three options.

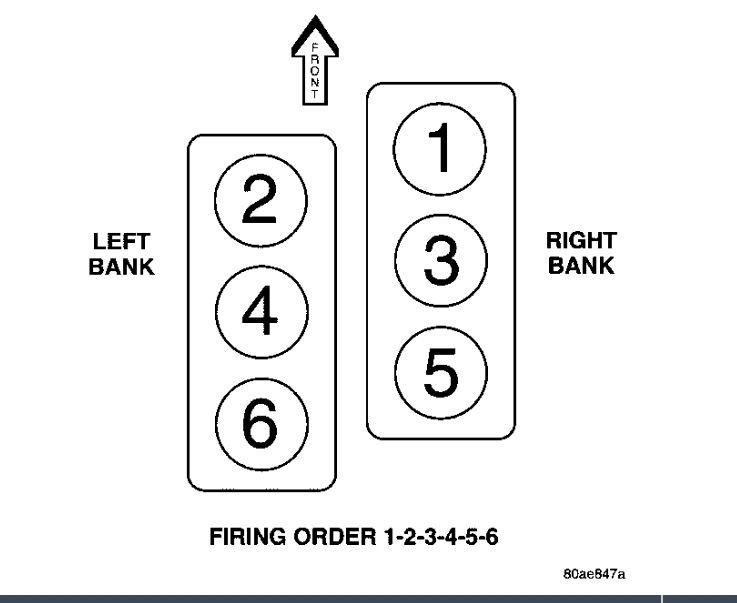

I attached all three for you to view.
Roy
5.7
.................... 1-8-4-3-6-5-7-2
The cylinders are numbered front to rear:
Left Bank .................... 1-3-5-7
Right Bank .................... 2-4-6-8
You did not specify the engine and there are three options.
I attached all three for you to view.
Roy
5.7
.................... 1-8-4-3-6-5-7-2
The cylinders are numbered front to rear:
Left Bank .................... 1-3-5-7
Right Bank .................... 2-4-6-8
Images (Click to enlarge)
Jan 18, 2021 at 11:02 AM
(Merged)
Firing order for a 2006 2.7 dodge charger
Jan 18, 2021 at 11:02 AM
(Merged)

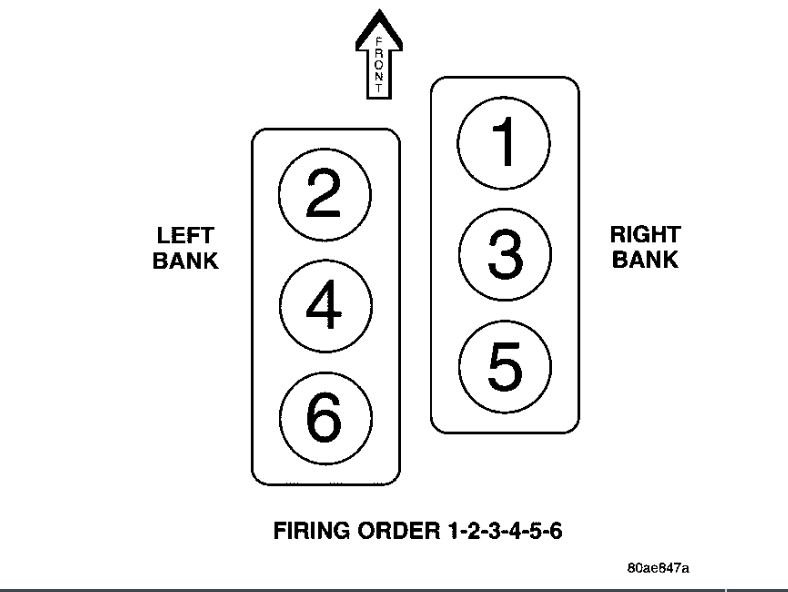

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Jan 18, 2021 at 11:02 AM
