Taillights are not working?

2008 CHRYSLER PT CRUISER
111,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
DAVE1960
  • MEMBER
  • 1 POST
I turned on the headlights, and all the lights (head, dash, tail, ect) came on for 2-3 seconds, then flashed on and off 4-5 times. Then the headlights stayed on, brake lights and turn signals work ok. Dash lights, tail lights, marker lights remain off. Is this an "error msg", or what should I check out?
Feb 6, 2015 at 11:08 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
This sounds like a TIPM issue. The TIPM is what controls all these functions so we need to find out what the voltage is coming from the TIPM on the circuit to the lamps.

Here is a guide that will help with this type of testing:

https://www.2carpros.com/articles/how-to-check-wiring

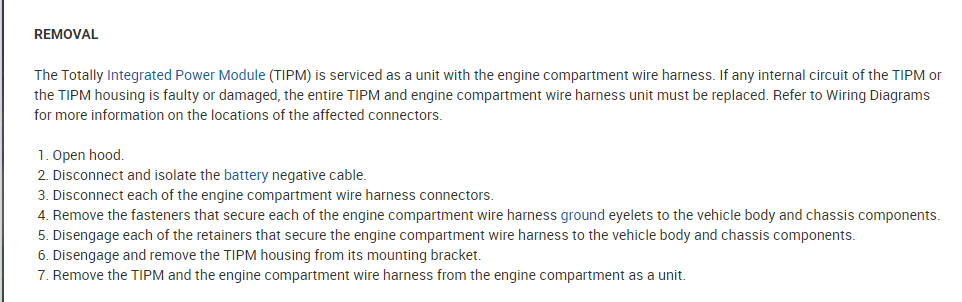

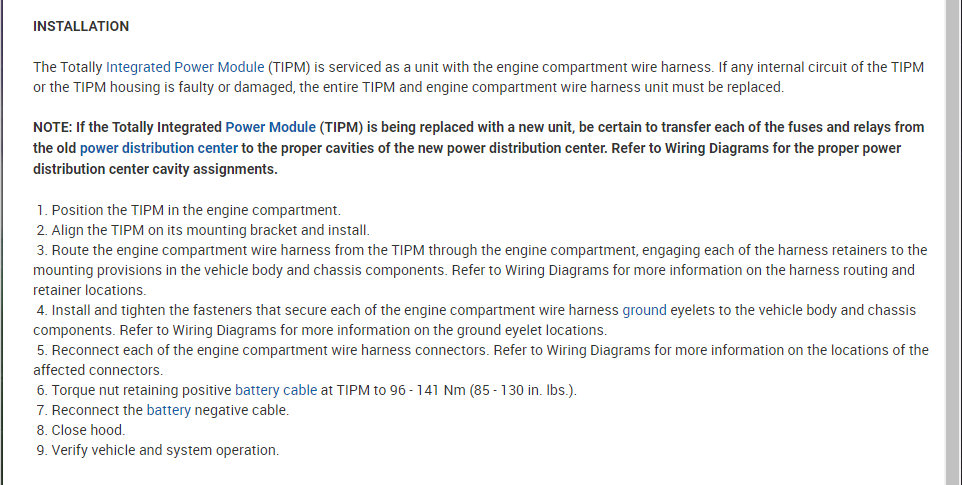

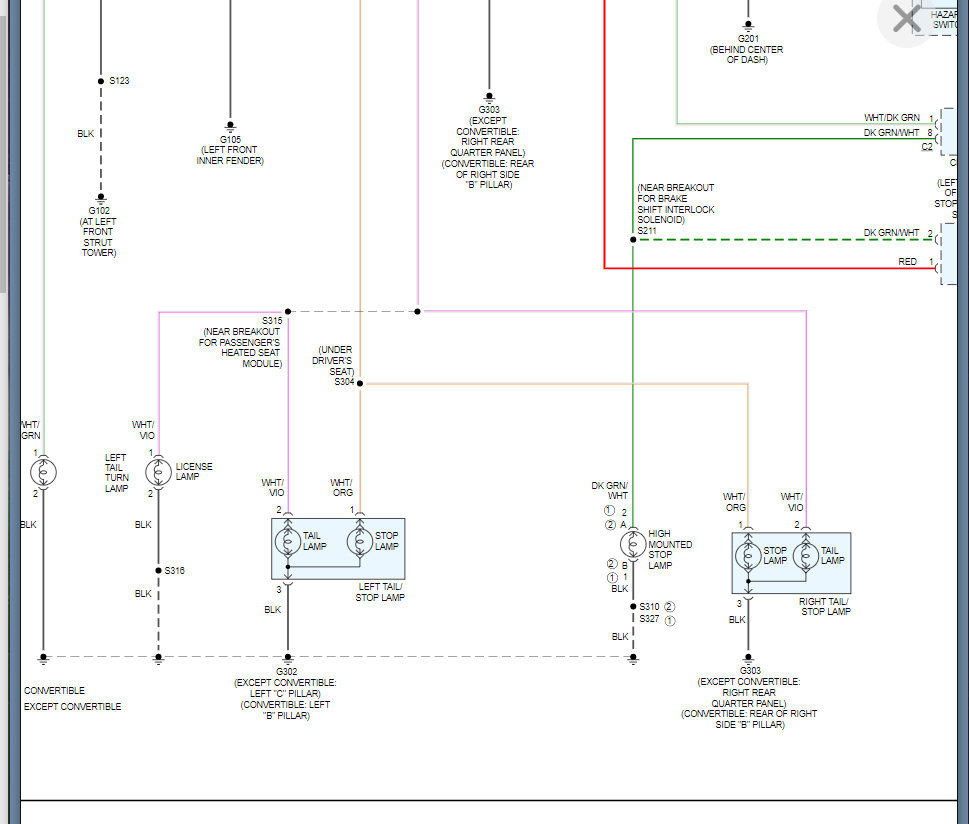

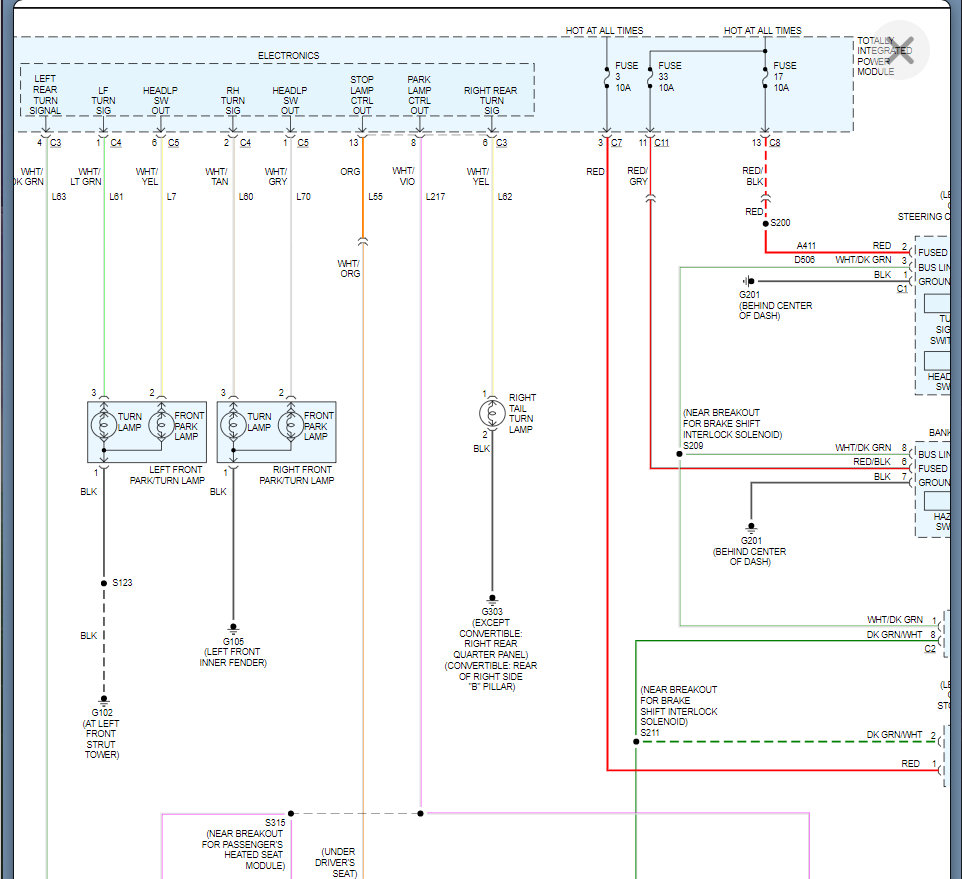

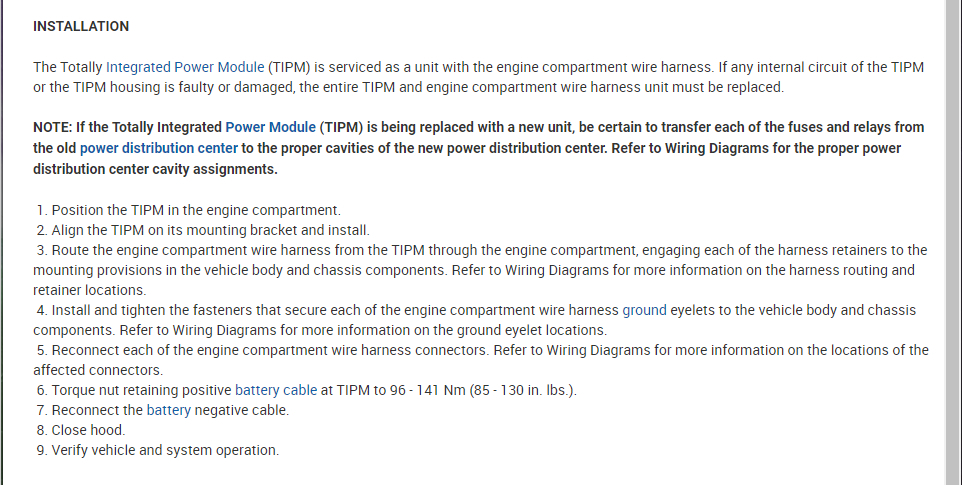

Below is the wiring diagrams for testing for voltage. Also, the process to replace the TIPM is included as I suspect this is the issue.

Please let us know if you have other questions. Thanks
Jun 10, 2021 at 6:46 PM
