where is my cabin air filter on my chrysler 2008 300c 5.7 hemi
Jan 29, 2011 at 7:34 PM
2008 chrysler cabin filter location
2008 CHRYSLER 300
STANBANAS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Some models are equipped with a particulate air filter (1) that helps purify the outside air entering the HVAC housing. The filter is mounted in the engine compartment, inside of the fresh air inlet housing of the heating-A/C system.

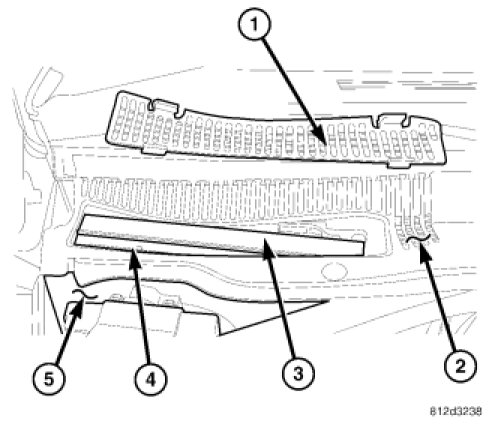

1.Remove the air inlet grille (1) from the wiper module screen (2) located near the dash panel in the engine compartment.
2.Open the filter door (3) on the top of the particulate air filter housing (4) located inside of the dash panel plenum (5).
1.Remove the air inlet grille (1) from the wiper module screen (2) located near the dash panel in the engine compartment.
2.Open the filter door (3) on the top of the particulate air filter housing (4) located inside of the dash panel plenum (5).
Image (Click to enlarge)
Jan 30, 2011 at 1:26 AM
