Dashboard?

You will have to remember your milage and take it to a dealer to program it in. Some that sell or rebuild these units can do it when you order it.

thankyou

Your welcome!

want to clean dash how do i remove the dash

Dash removal is not an easy job and for the sake of cleaning, I would not want to attempt it as it involves a lot of removal, including disconnecting wireharness etc. If the job is not done correctly, you would likely be causing a lot of unnecessary trouble shooting later.

dash doesnt work have replaced with gm reman

does it have power??

Roy

yes will light up intermittly

2002 Chevy Silverado V8 Four Wheel Drive Automatic

I need to replace the dash accessory plugs, how do I remove the old ones?

What plugs are you refering to?

I need to remove and replace my ignition because it is sticking I do not know how to remove it ,do I need to remove the whole dashboard. I don't know what else to ask here because I don't understand any more, could you send me pictures

Here are the instructions to replace the dash in the post below.

I am trying to access the cup holder for removal. I want to be certain I don't break the dash panels. They appear to be held on by a series of screws and clips.
Thanks,

are you talking about the center section of the Dash? are you trying to install a original original cup holder,or an aftermarket?

I am trying to repair or replace the existing factory cup holder. The swingout for the 2nd cup became jammed and I removed it. The cup holder was then stuck 'out'. It got pushed in and is now stuck in. The cup holder will only move in and out about 1 inch. I am trying to access the cup holder track so I can repair or replace it.
Thanks

that particular dash in the center section snaps together, make sure you remove the glove box door first, so you don't break the little hinge that's connected to the center section, the instrument cluster cover is held on with 4 torx screws

Thank you

Would like to find out the proper steps for removal and replacement of a complete dashboard? I am removing the complete dash because it is cracked and unserviceable. Also, after being in storage there could and probably is some mouse nests behind which need to be removed?

Instrument panel assembly replacement Remove or Disconnect Negative battery cable(s). Disable SIR system. Three relay center bolts from inside wheel opening and set aside. Bulkhead connector. Two screws retaining Convenience Center to cowl. Cruise control harness (if equipped). Forward lamp harness. Rear lamp harness. SIR system harness. Relay center. Antenna lead-in. Steering shaft bolt.

Left and right hinge pillar trim panels. Brake release handle from the cable. Clip releases handle from cable.

Four lower bolster screws. Unsnap bolster. Twist brake release cable to disengage. Lap cooler hose. Reaction plate assembly. Tie bar. 8-way column connector. 48-way connector retainer to access two lower column nuts. Shift cable (automatic transmission). Steering column from the vehicle. Shift levers. Transfer case knob by pulling straight up. Four wheel drive models must be in 4-LO range. Manual transmission (if equipped).

Left and right lower I/P pivot bolts.

Center support screw. Three upper I/P support screws. I/P from the cowl. Park brake release cable. Electrical connectors (as necessary). DERM HVAC 22-way engine harness Stoplamp switch VSS calibrator module Clutch or Brake release switches Electronic accelerator (Diesel) HVAC control cables (if equipped). I/P from the vehicle. At this point, I/P removal is complete. Reverse removal process

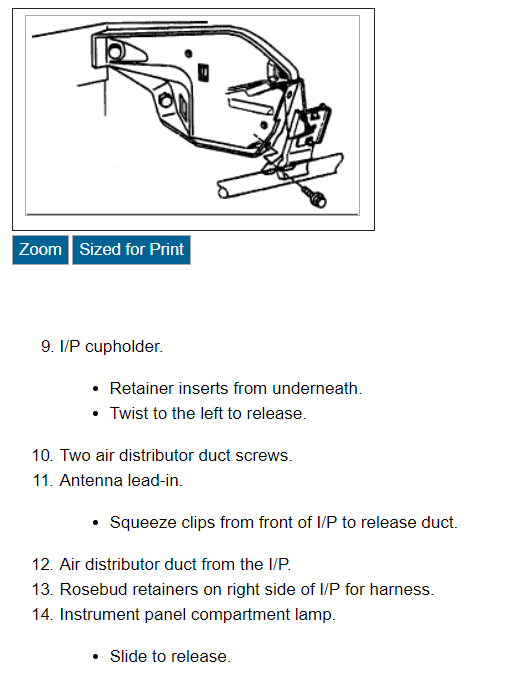

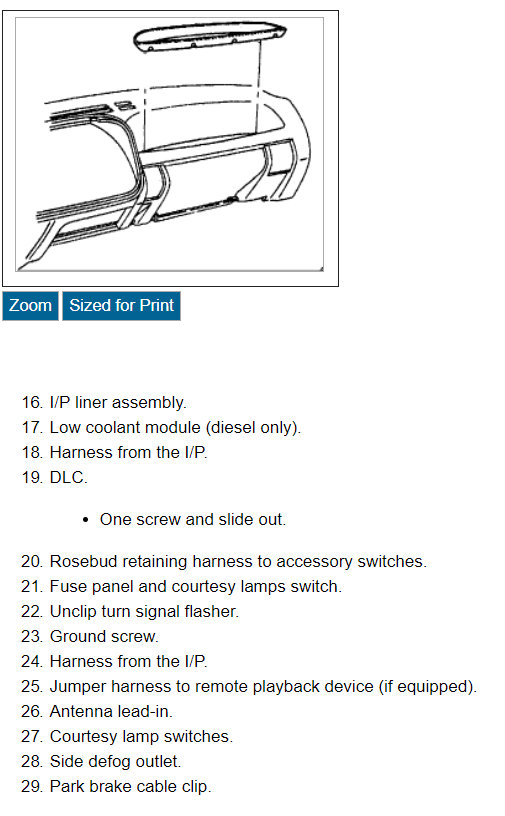

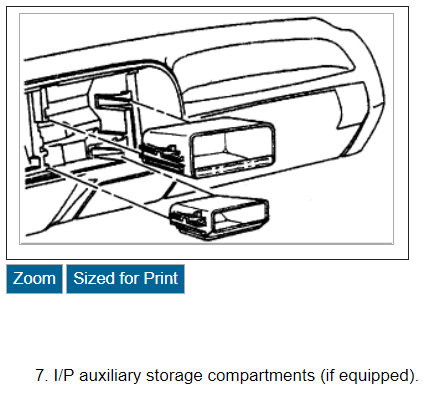

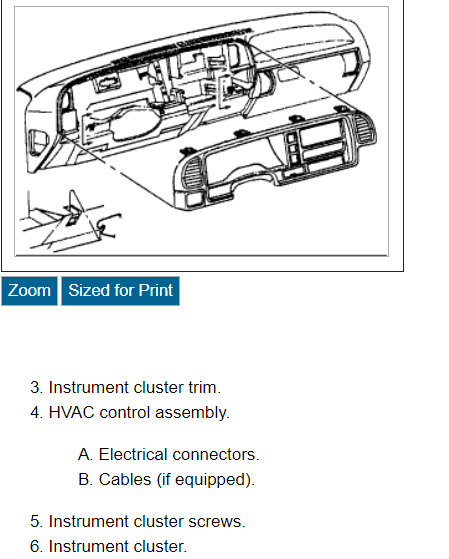

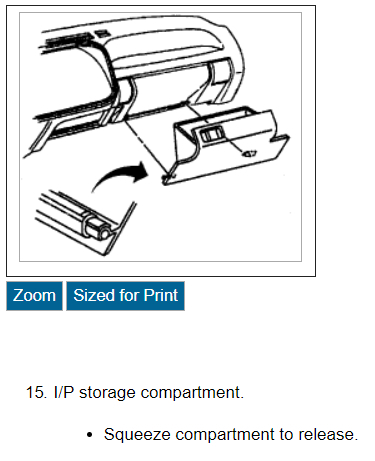

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed. Cheers

Where can I find a replacement dash for my 92 chevy truck. It is too old to buy an OEM one from GM. Is there an aftermarket maker or can I find a USED 92 dash ????

Hello,

GM parts has it for $414.00

https://www.gmpartsbin.com/p/Chevrolet__Silverado-1500/Dashboard-Panel/65124921/19331331.html?partner=googlebase_adwords&kwd=&origin=pla&partnerDevice=c&userLocation=9031538


Please let us know if you need anything else to get the problem fixed.

Looking for a dash board for a Chevy c3500 1991

Did you try clicking the link above? They have dashboards and covers.

hello,
i was wondering if anyone has the instructions to remove/install an entire dashboard on a 1992 chevy c1500.
thank you

1. Disconnect negative battery cable.
2. Remove center trim panel next to the compartment door by lifting from the bottom.

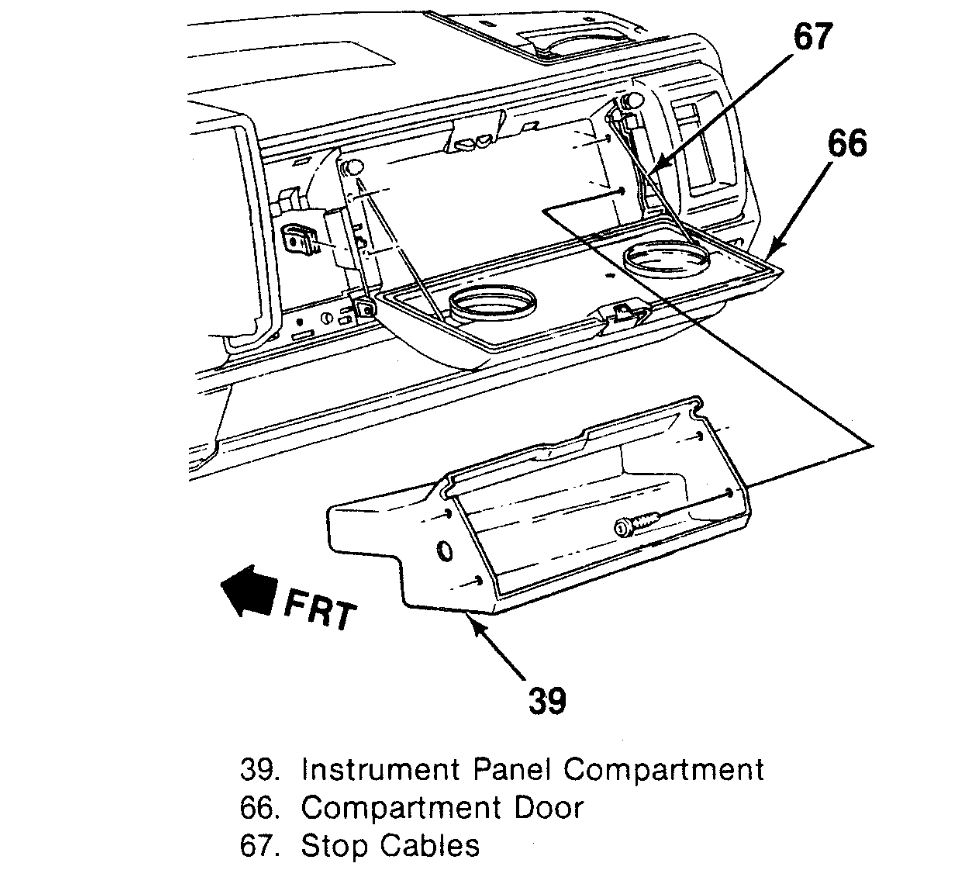

3. Glove Box.
? Remove the bolt attaching the lower left part of the glove box door to the carrier.
? Remove glove box door.
? Remove four bolts holding the interior glove box to the carrier.
? Remove interior glove box.

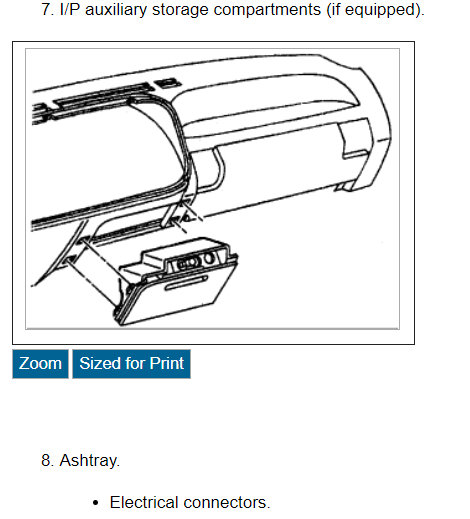

4. Ash tray assembly.
? Open ash tray.
? Remove screws holding assembly to the carrier.
? Disconnect wiring from the back of the assembly.
? Remove assembly.
5. Instrument panel.

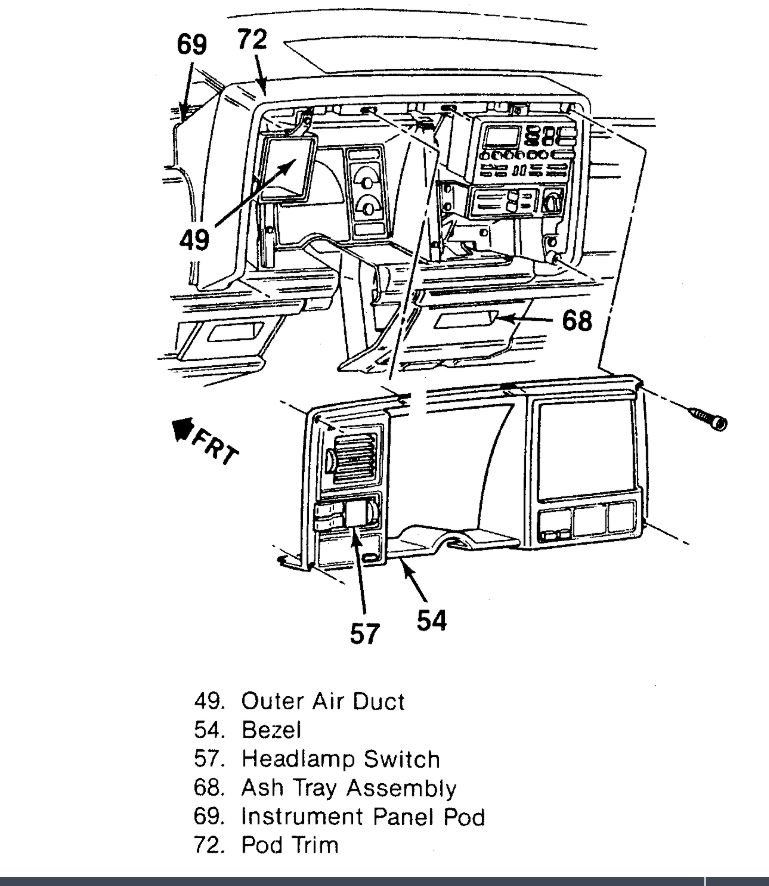

Instrument Panel Bezel
? Remove 4 screws (T20 Torx) holding the instrument bezel to the instrument panel carrier
? Pull bezel slightly away from assembly – reach behind and disconnect headlamp switch connectors (2)
? Disconnect cargo lamp connector (if present)
? Remove Bezel
Radio Control
? Remove 4 screws retaining the radio control
? Pull control slightly away from assembly – reach behind and disconnect wiring connector(s)
? Remove radio control
? Push the wiring connector through the assembly
HVAC Control
? Remove 4 screws retaining the HVAC control
? Pull control slightly away from assembly – reach behind and disconnect wiring connector.
? Remove HVAC control
? Push the wiring connector through the assembly

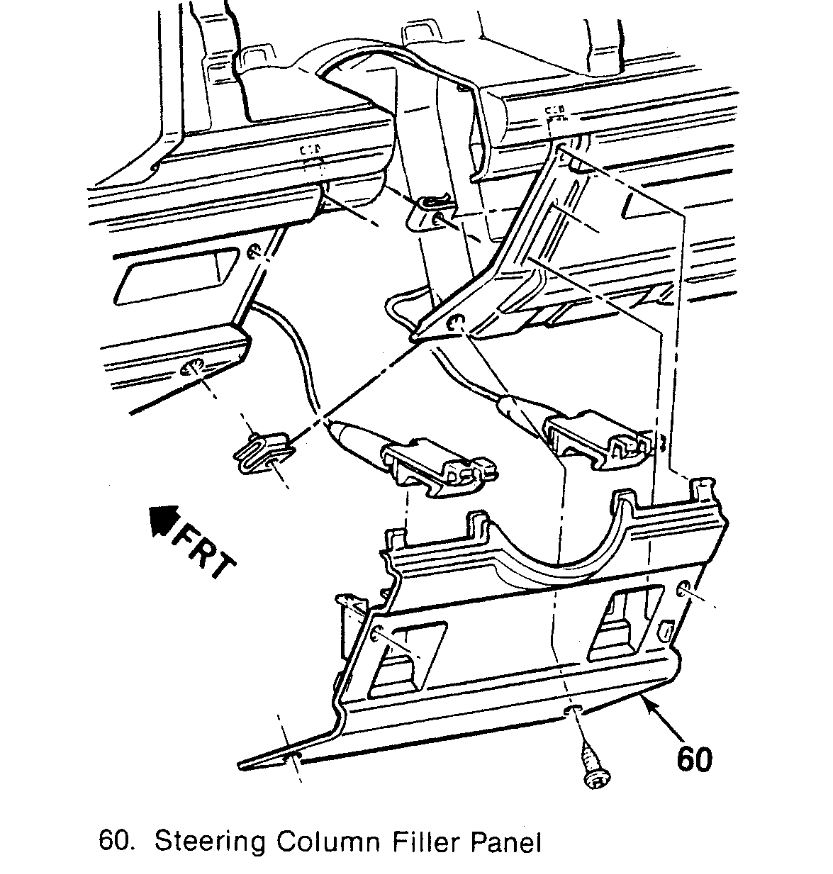

Steering Column Filler Panel
? Remove 2 screws retaining the steering column filler panel - remove panel
Instrument Cluster
? Disconnect shift indicator cable (connects to steering column) from behind cluster
? Remove 4 screws retaining the instrument cluster – remove cluster
? Slide pin connector in dash assembly to the left and push through the assembly.
Air Duct
? Remove 2 bolts retaining air duct on the left side of the instrument panel pod – remove duct
Instrument Panel Pod and Trim
? Remove 8 bolts retaining the instrument panel pod and trim – remove panel
6. Lower Trim Panels
? Remove 2 padded trim panels by gently prying with a wide, thin, soft tool (e.g. plastic putty knife)
? Each panel is attached with 4 press in retainers.
7. Speaker Covers
? Remove speaker covers by prying up
? Each cover is attached with 2 press in retainers
8. Parking Brake Cable
? Disconnect parking brake cable from ratchet assembly
note: The parking brake handle and cable assembly is retained by clips accessed from behind the panel. This assembly is easily removed after the dash has been removed from the vehicle, should you choose to do so.
9. Hood Release Handle
? Remove 2 screws retaining hood release handle – allow to dangle
10. ALDL Connector
? Remove 2 screws retaining the Assembly Line Diagnostic Link (AKA ALDL or OBD1 port) – allow to dangle
11. Door Jam Switch
? Disconnect the wire connector from the door jam switch – allow to dangle
12. Remove the fuse box cover
13. Unclip the fuse box and push through the carrier – allow to dangle
14. Remove the screw holding the carrier to the dash support [this is the support that is also the mount for the radio (7X4.25” silver box with fins)].
15. Remove 2 nuts from each side of the steering column
? Lower the steering column
16. Remove left and right kick pads by prying them off

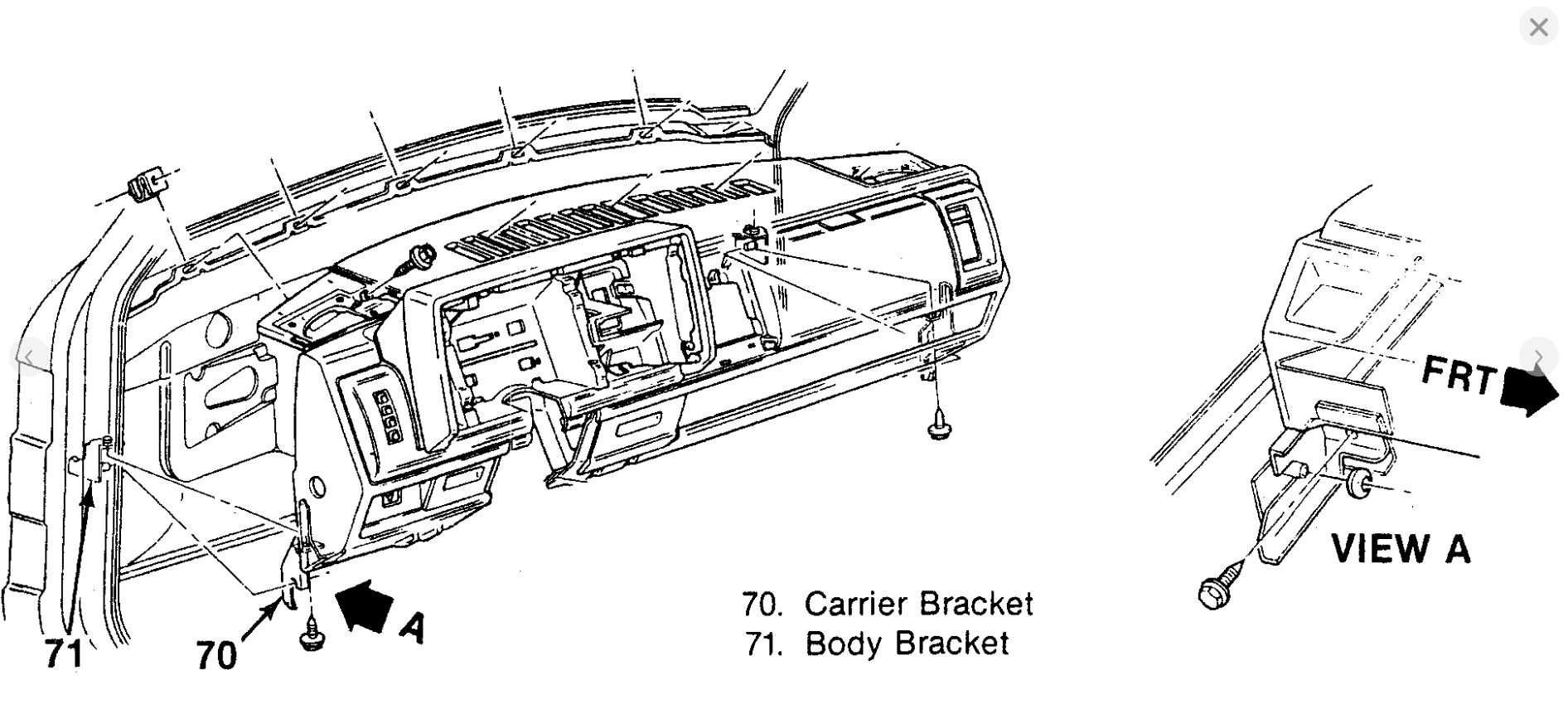

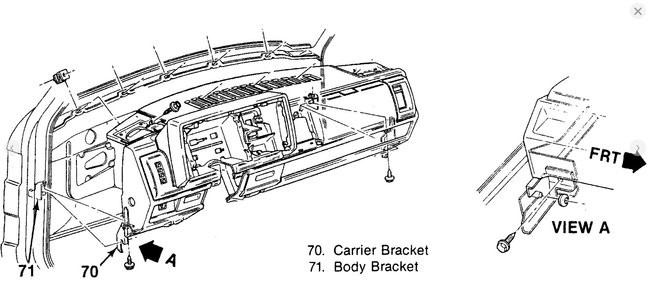

17. Remove bolts from left and right bracket mounted studs supporting the carrier (front lower left and right)
18. Remove 5 upper carrier screws
? One from each speaker housing
? Three in defroster vent (left, center, right)
19. Disconnect Harness
? Remove 2 bolts retaining harness behind carrier at instrument cluster
? Remove harness from loom behind carrier (accessed through glove box and area covered by center trim panel)
? Remove ground wire at the back of the carrier
note: As an alternative, the wiring harness can be removed with the carrier, however, this approach requires disconnection of the convenience center through the firewall on the left side of the cab, the connection to the HVAC harness attached to the heater/AC box, and connections to the engine compartment through the right side of the cab.
20. Remove the carrier from the vehicle

Good information.

Thank you for the post.

Roy

How do you remove the upper part of the dash? step-by-step. Thanks

I suggest you take pictures with your phone or camera during the process, it helps with reassembly.

Below is a guide for replacing a heater core, this requires dash removal so it will help you.

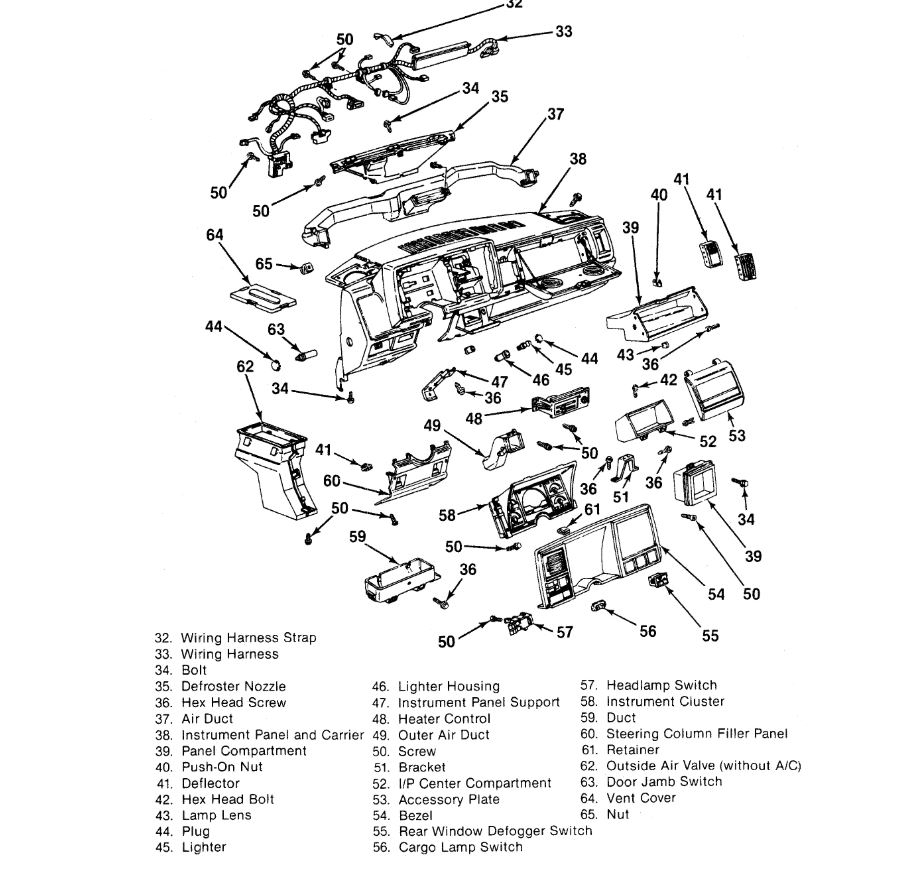

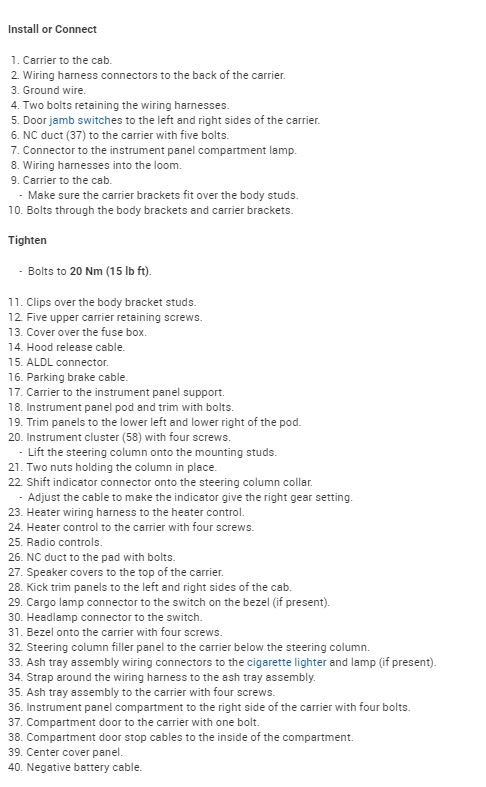

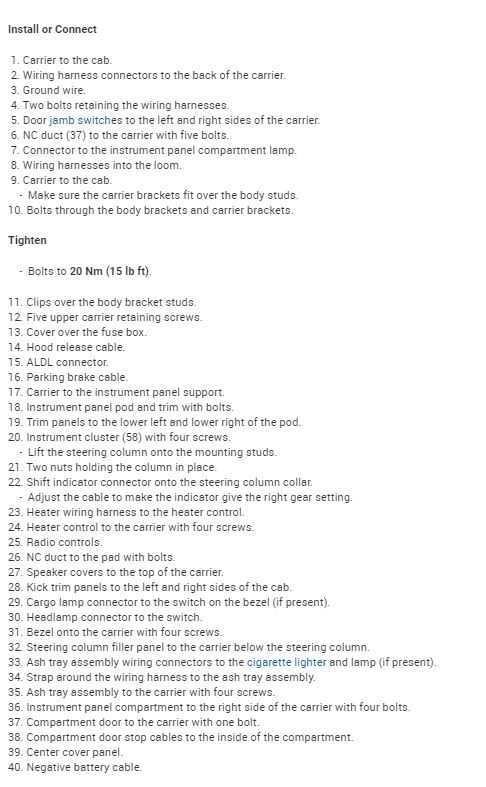

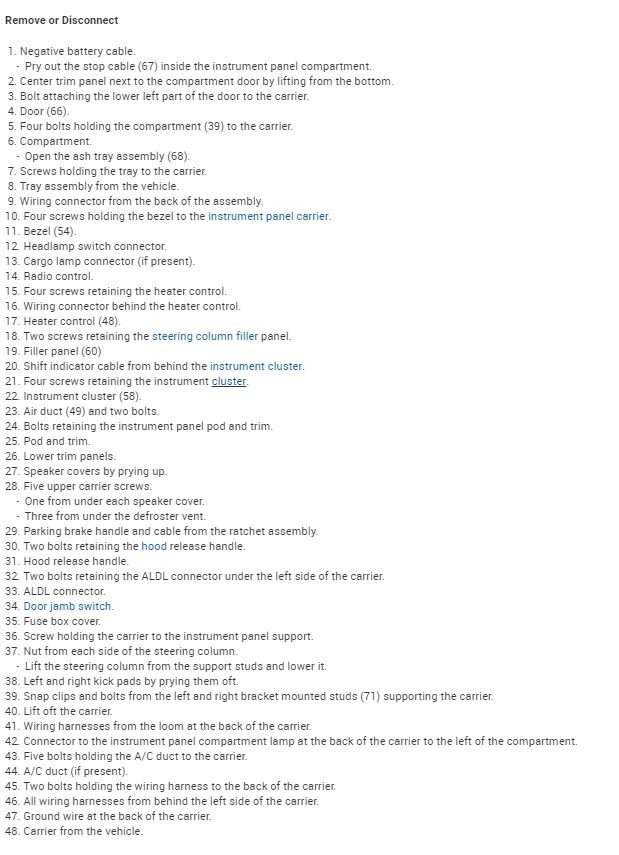

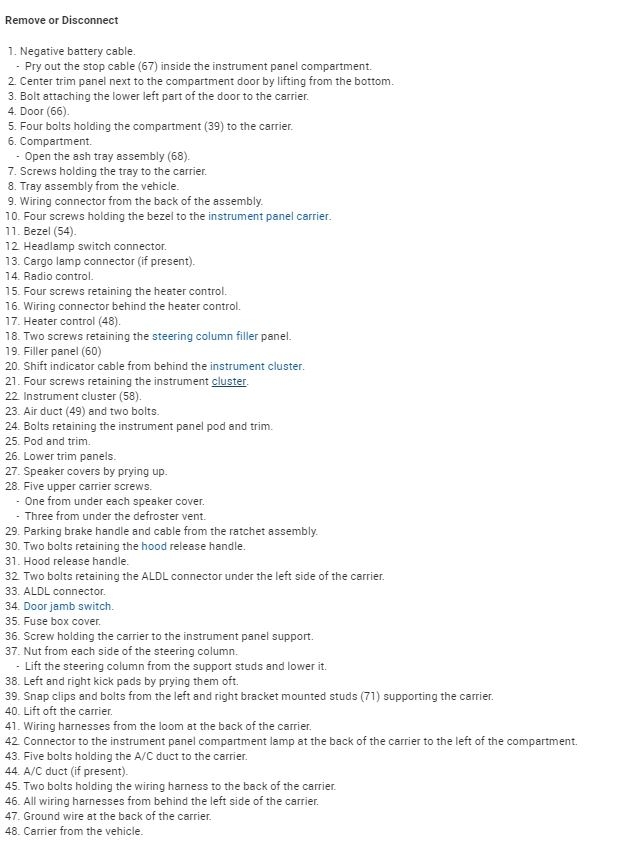

Also attached below are diagrams and instructions for dash removal.

https://www.2carpros.com/articles/replace-heater-core

i had a friend replace the dash of my truck and when he un done the wires he did not remember how they went now my truck wont crank or anything

The connectors and wire color should make identification rather easy.

You would have to recheck the wires and also ground circuit connections.

https://www.2carpros.com/articles/car-cranks-but-wont-start

Click the above link to get an idea what to look for.
