2007 Toyota Tundra cerpentine belt change

2007 TOYOTA TUNDRA
50,000 MILES • 4.0L • 2WD • AUTOMATIC
Avatar
CPUCHO43
  • MEMBER
  • 2 POSTS
how to change a serpentine belt for a 2007 tundra 4.0.
MY SERPENTINE BELT WAS PLACE INCORRECTLY AFTER AN ALTERNATOR REPLACEMENT,
WHICH CAUSED BELT WEARING.
I'll appreciate if you can supply me with the correct belt diagram for this model.

Thank you.
Jan 17, 2014 at 11:20 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
While turning the belt tensioner counterclockwise, align the holes, and then insert a bar of ø 6 mm (0.236 in.) into the holes to fix the belt tensioner.

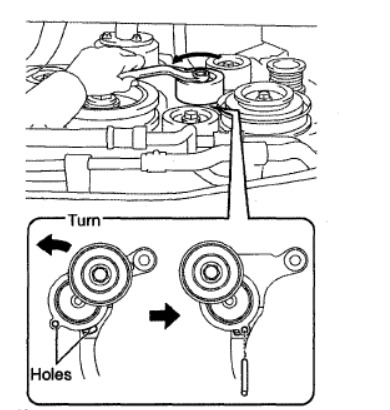

Fig. 16: Turning Belt Tensioner Counterclockwise
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Install the fan and generator V belt.

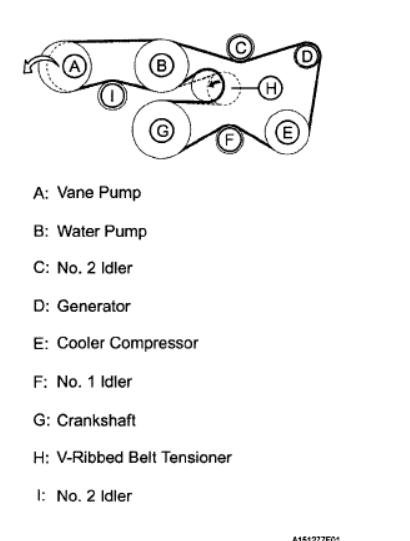

Fig. 17: Installing Fan And Generator V Belt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
If it is hard to install the fan and generator V belt, perform the following procedures.
Put the fan and generator V belt on all parts except the vane pump, as shown in the illustration.
While releasing the belt tension by turning the belt tensioner counterclockwise, put the fan and generator V belt on the vane pump.
While turning the belt tensioner counterclockwise, remove the bar.
NSTALL NO. 1 ENGINE UNDER COVER
Install the engine under cover with the 5 bolts and 3 screws.
Torque:
for bolt
29 N*m (296 kgf*cm, 21 ft.*lbf)
for screw
5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL V-BANK COVER (See INSTALLATION )
Images (Click to enlarge)
Attached Media
Attached Media
Jan 17, 2014 at 12:20 PM
Avatar
CPUCHO43
  • MEMBER
  • 2 POSTS
I've solved my problem.
Thank you so much.

Charles Carey.
