2007 Toyota Tacoma timi g chain install

2007 TOYOTA TACOMA
150,000 MILES • 4.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
BREWPOT
  • MEMBER
  • 1 POST
Started to do just the timing chain, but removed the cam chains also. Reinstall with no start no bad noises. Sounds out of time.

Got to start all over from a no chains installed situation
Feb 24, 2015 at 1:58 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

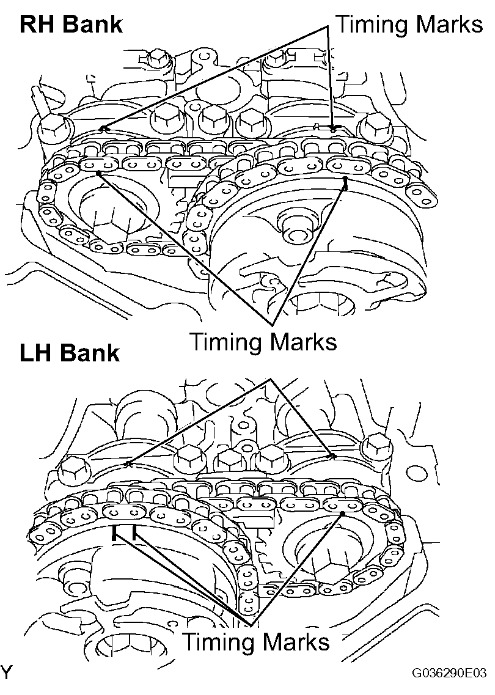

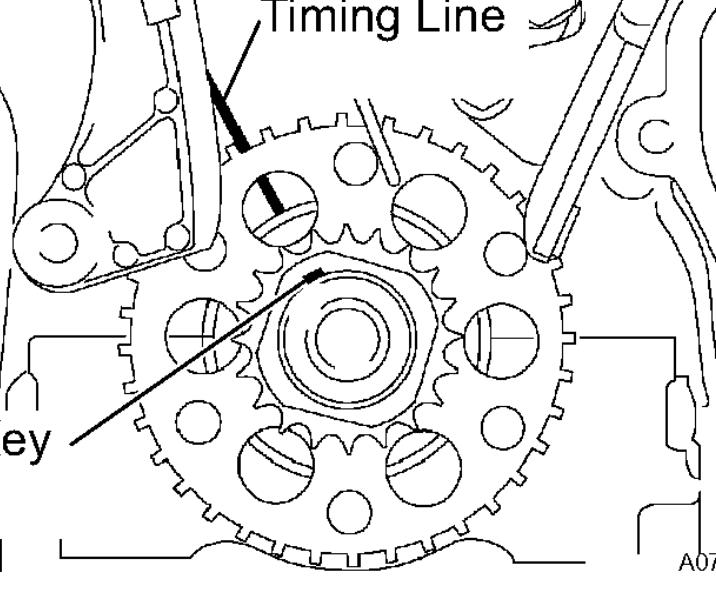

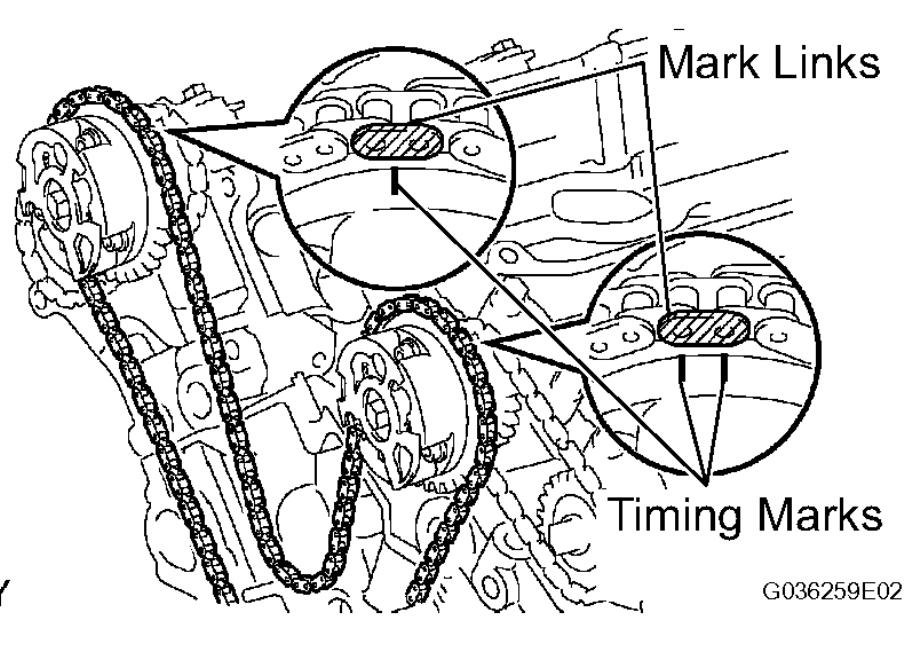

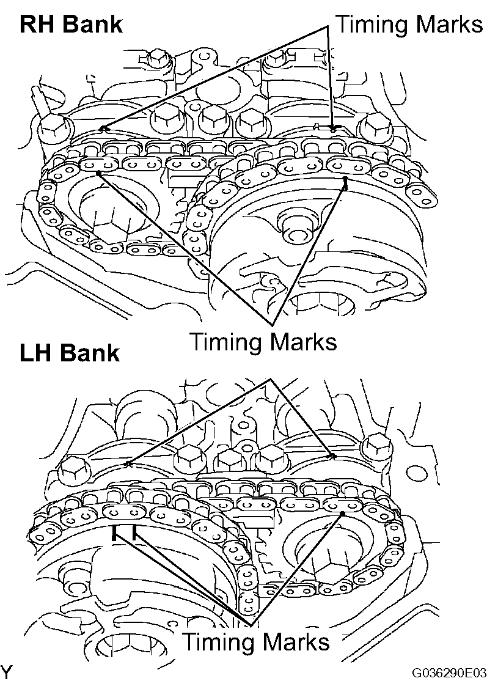

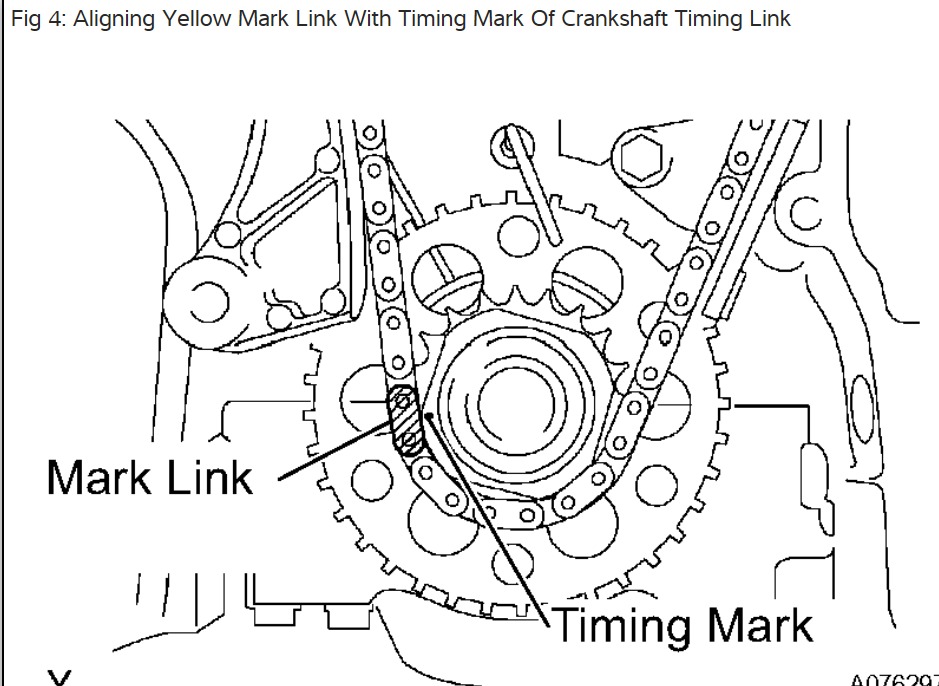

yellow marks to crank sprocket orange marks to cam sprockets. However, this may be a valve bender if out of time on cam. I am assuming you alredy know the rest of the stuff as it is to much to copy here so get a manual or rent one here for a week.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Feb 24, 2015 at 3:15 PM
