Toyota Rav4 Rear Turn Signal

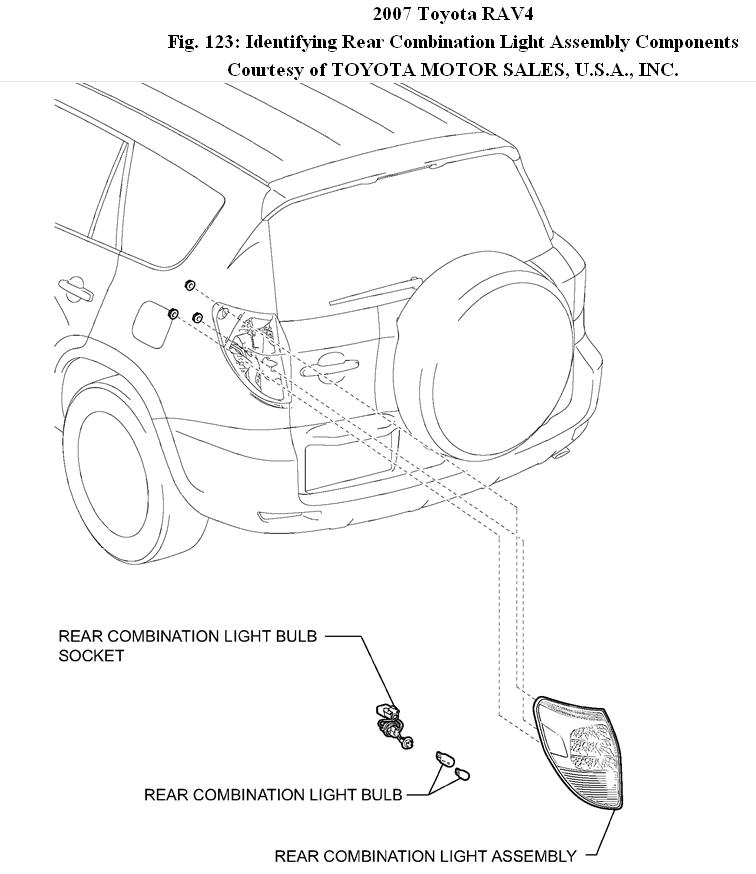

REAR COMBINATION LIGHT ASSEMBLY COMPONENTS

REMOVAL
HINT:
• Use the same procedures for the RH and LH sides.

• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt
pretensioner activation.

2. REMOVE REAR COMBINATION LIGHT ASSEMBLY

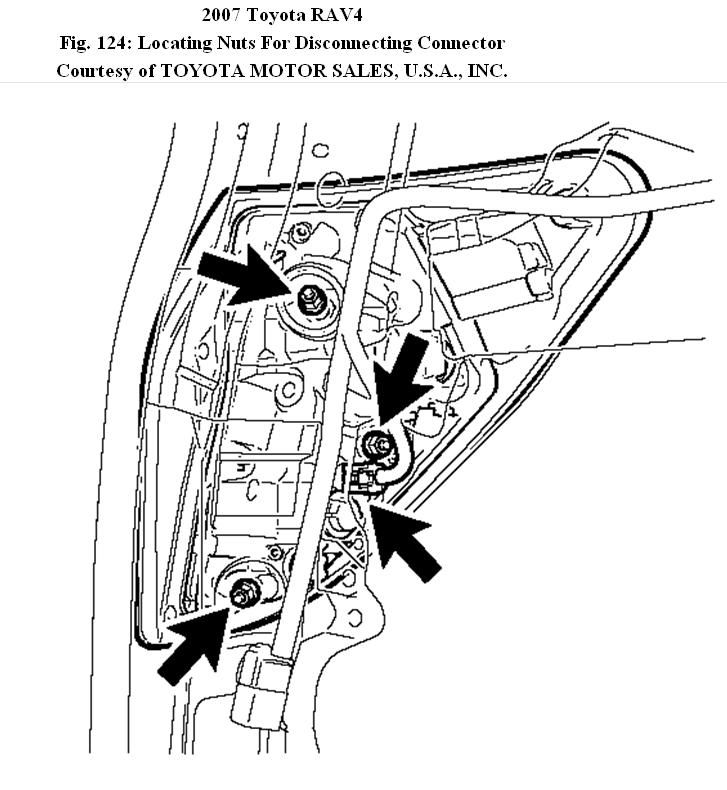

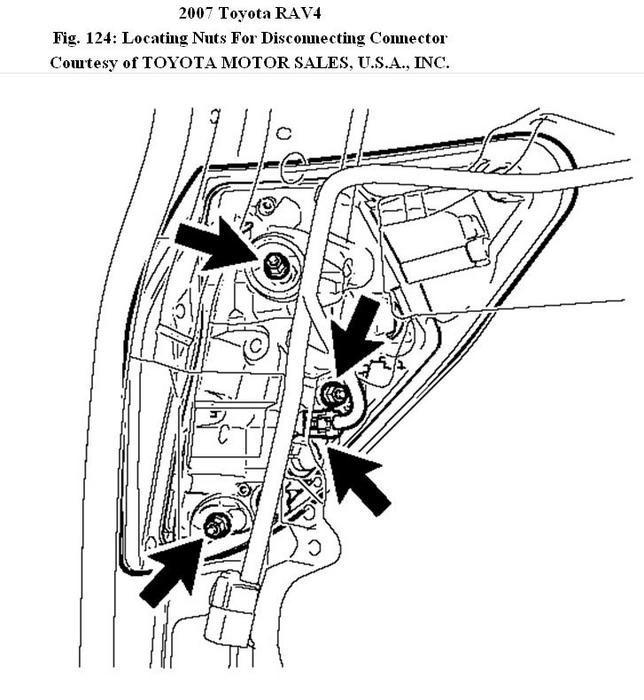

a. Remove the 3 nuts and disconnect the connector.

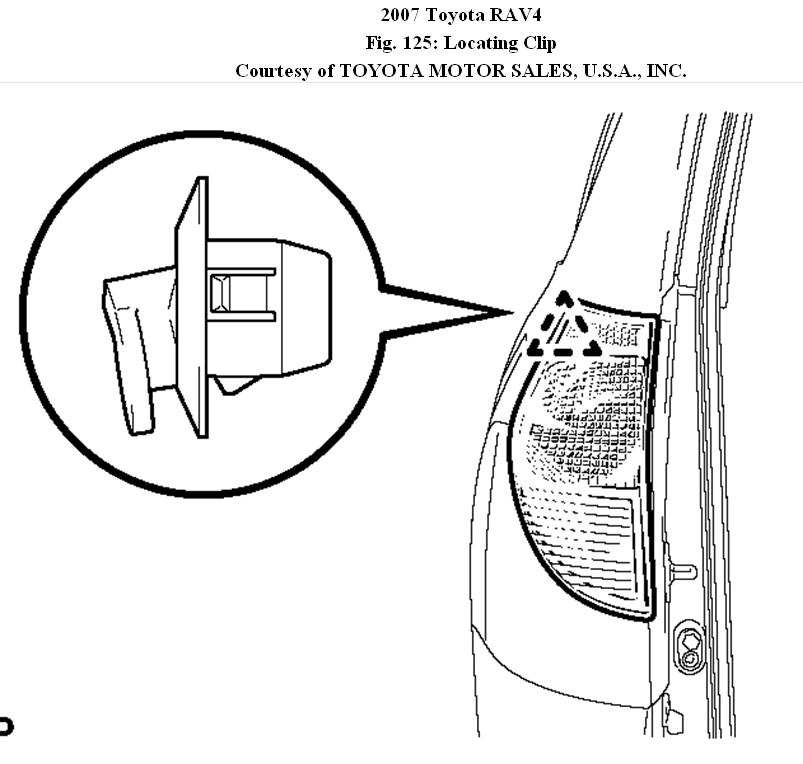

b. Detach the clip and remove the light.


DISASSEMBLY

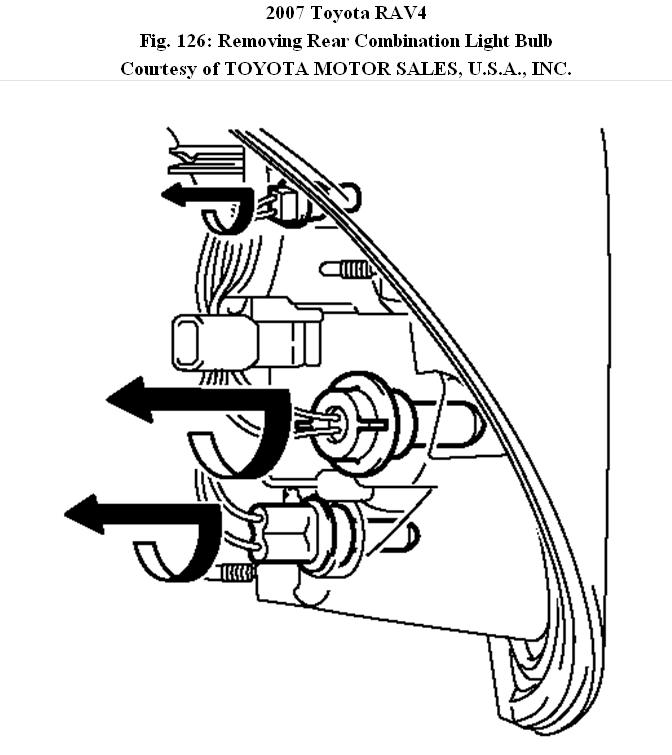

1. REMOVE REAR COMBINATION LIGHT BULB

a. Turn the 3 bulbs in the direction indicated by the arrows and pull to remove them.

REASSEMBLY

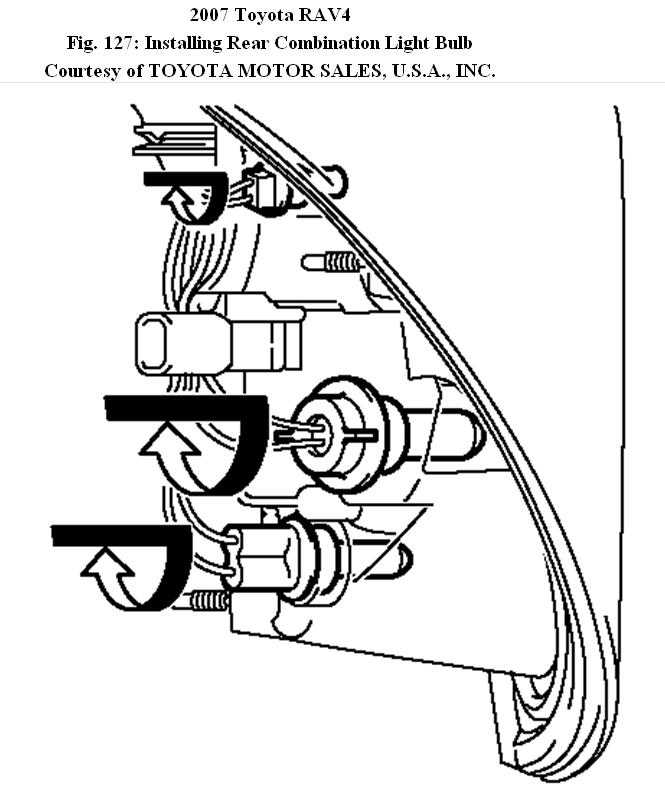

1. INSTALL REAR COMBINATION LIGHT BULB

a. Turn the 3 bulbs in the direction indicated by the arrows to install them.

INSTALLATION

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY

a. Attach the clip to install the light.

b. Install the 3 nuts and connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
