aligning headlamps/adjust

2007 TOYOTA COROLLA
180,000 MILES
Avatar
BOBHEIDI
  • MEMBER
  • 1 POST
Just wanting to know how to adjust/align the headlamps? One is pointing up/too high and we need to know how to level this lamp?
Seeing how this could be a problem to oncoming traffic. Bought the car used and noticed at night the lights are not aligned properly. Thank you.
Aug 18, 2013 at 11:07 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

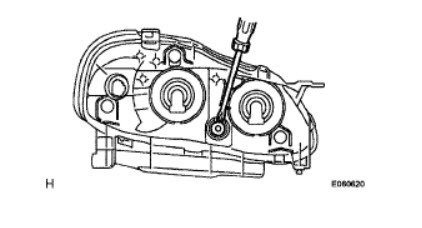

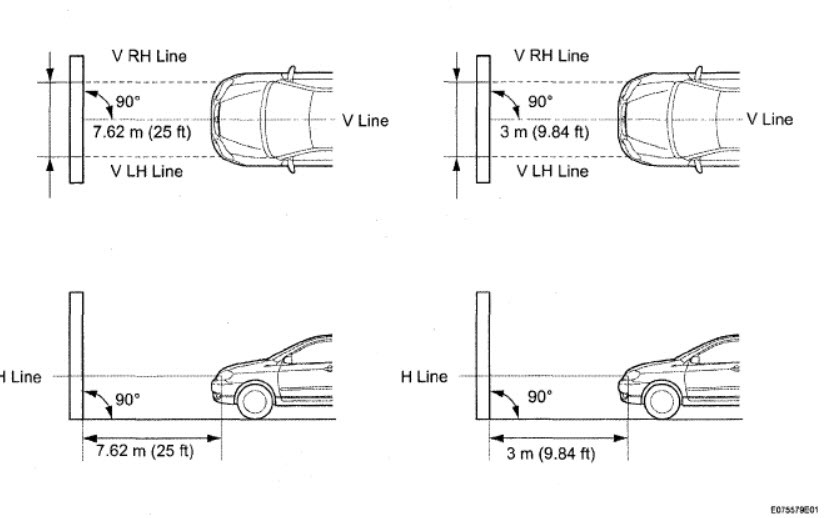

first check to see if there are any springs missing or if headlamp bucket is broken. this car may have been wrecked and not fixed properly. see pics for proper alignment. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 17, 2018 at 11:31 AM
