I need the timing marks.

2007 SUZUKI RENO
Avatar
YANNICRISANTOS
  • MEMBER
  • 132 POSTS
Hello I was replacing the timing belt but I guess I moved the pulley so I need to know the marks if I could get a diagram with all the marks of timing belt. It would be help full if I could get a full picture where the marks need to be.
Aug 13, 2013 at 7:06 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

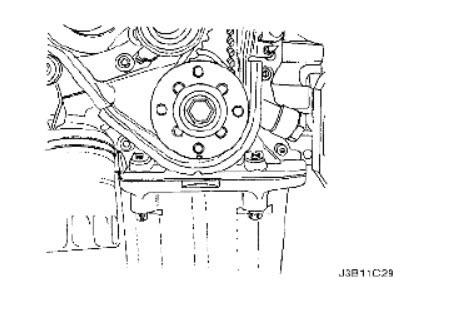

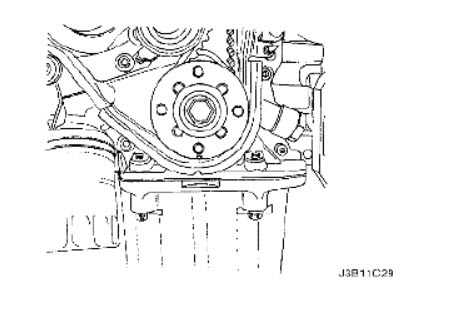

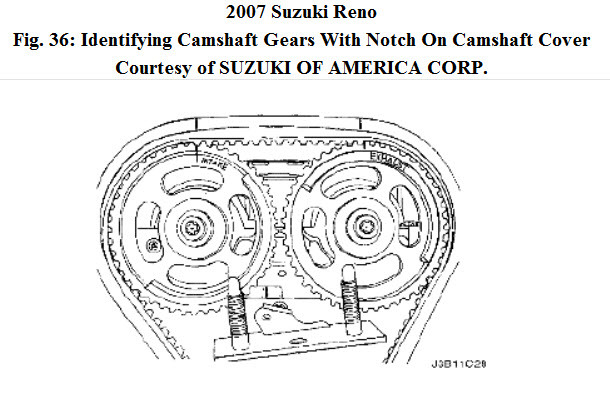

Hello here are the camshaft timing marks so you can get the engine back together. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
