camshaft position sensor location

Hello,

There are two camshaft sensors on rear of engine where head mates to block one for intake and one for exhaust. Here is a guide that will walk you through the repair and the location and instructions for your car below.

https://www.2carpros.com/articles/camshaft-angle-sensor-replacement

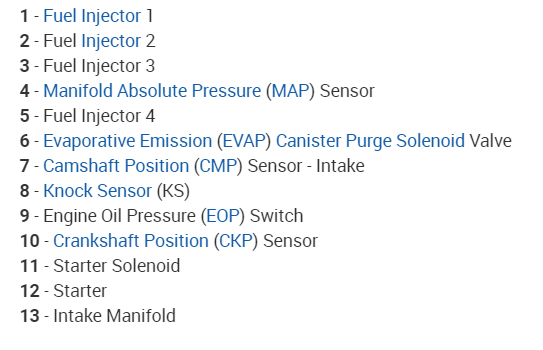

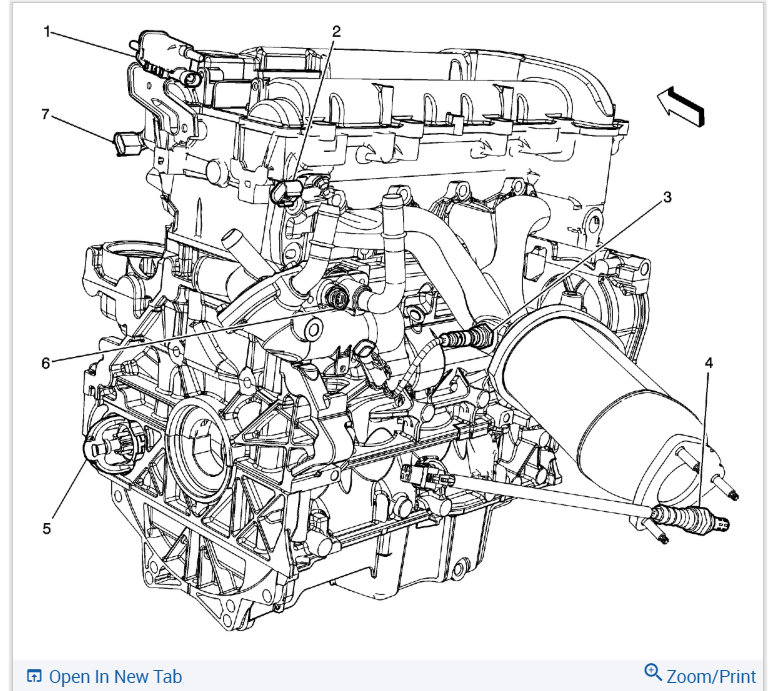

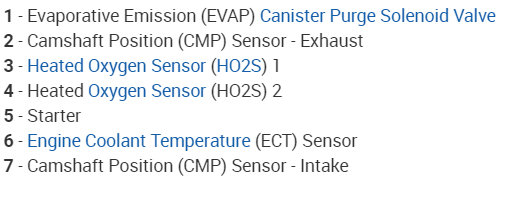

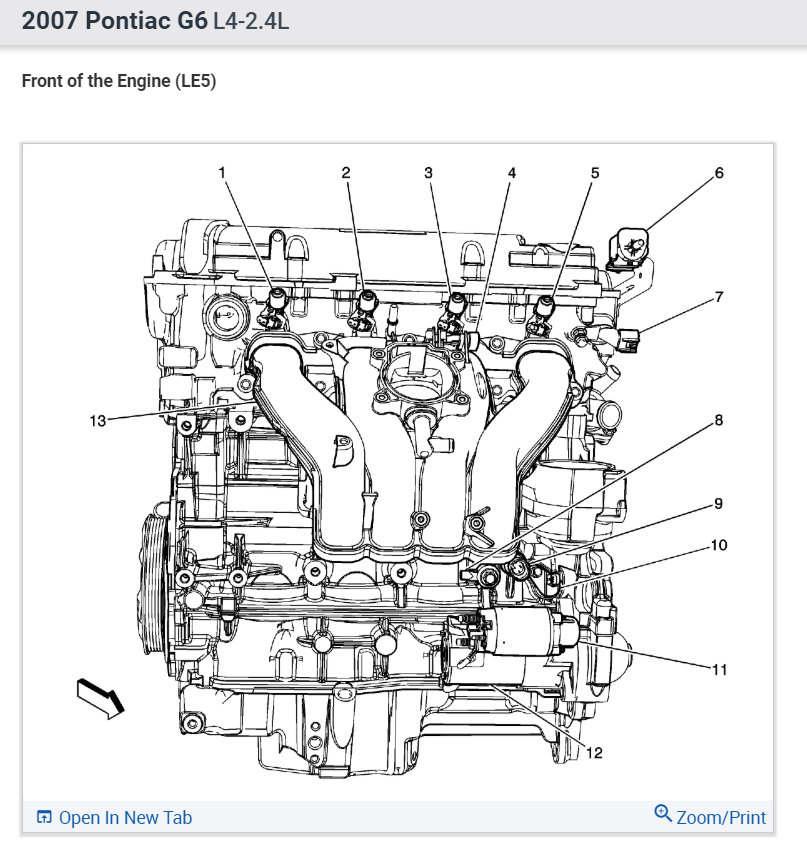

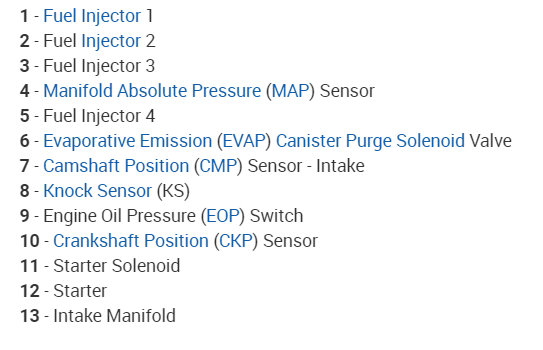

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
