Can you tell me where is igition coil B located?

2007 LEXUS RX 350
65,000 MILES
Avatar
ASK MECHANIC
  • MEMBER
  • 1 POST
Can you tell me where is igition coil B located on my Lexus 2007 RX350 ?
I have an engine light on my RX350. I plugged in OBD2 and it said PO352 Igition Coil B Primary/secondary.
Jul 31, 2012 at 12:13 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

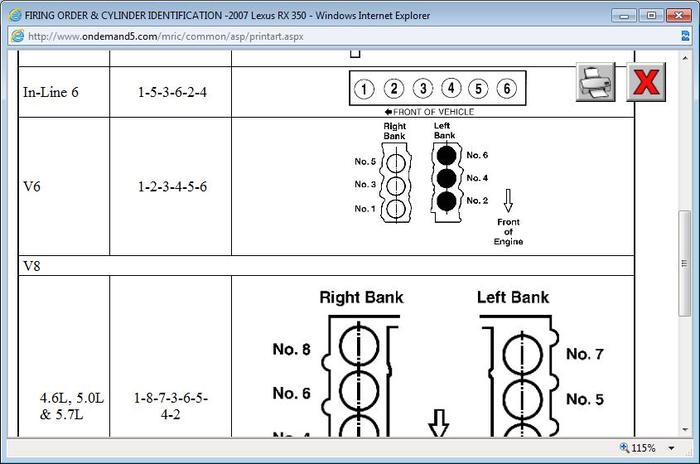

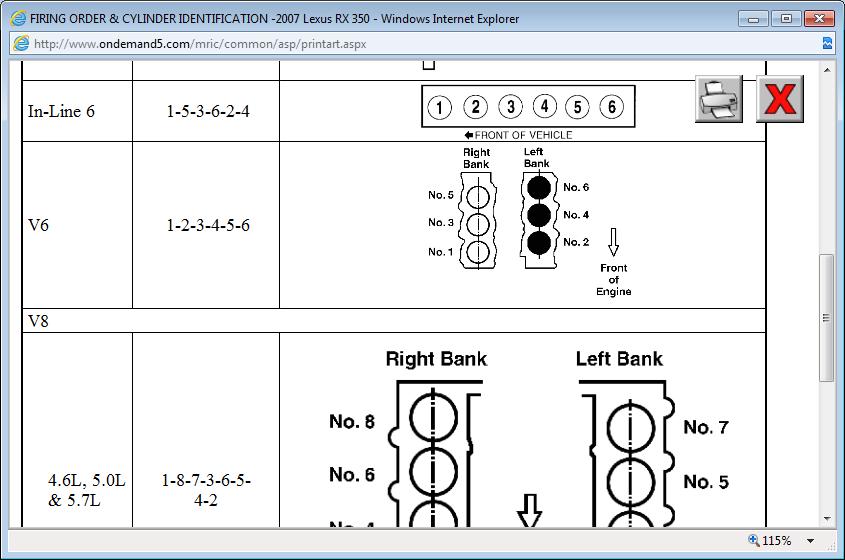

I posted a diagram for you its the ignition coil for the number 2 cylinder. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Jul 31, 2012 at 12:28 AM
Avatar
LINDA MAHONEY
  • MEMBER
  • 3 POSTS
Check engine light on and code is P0352. From what I have read this is ignition coil #2, want to know where located. Last year had replaced ignition coil #6 and was charged more for labor because mechanic said located in back and required more labor. From everything I have read #2,4,6 are locsted in front with easy access. Don't want to get beat out of more money for labor.
Mar 30, 2019 at 12:47 PM (Merged)
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

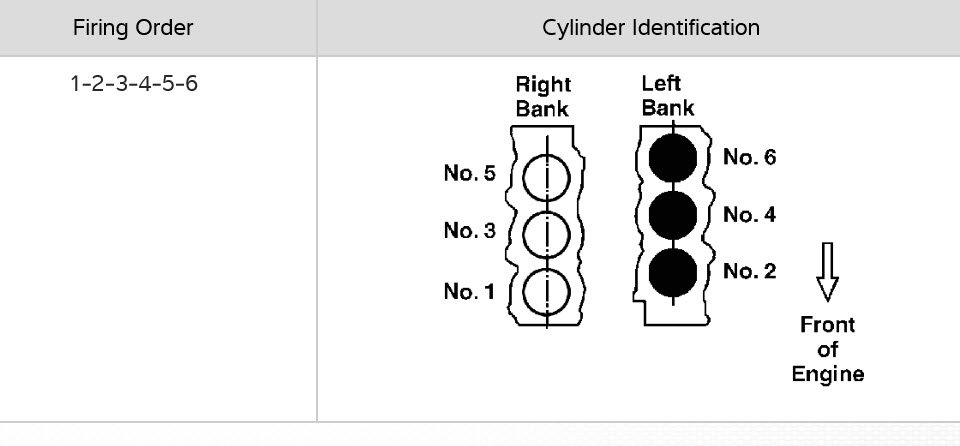

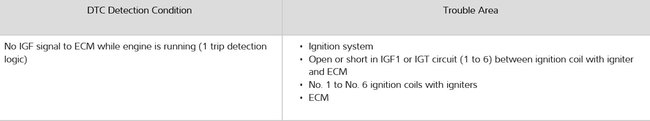

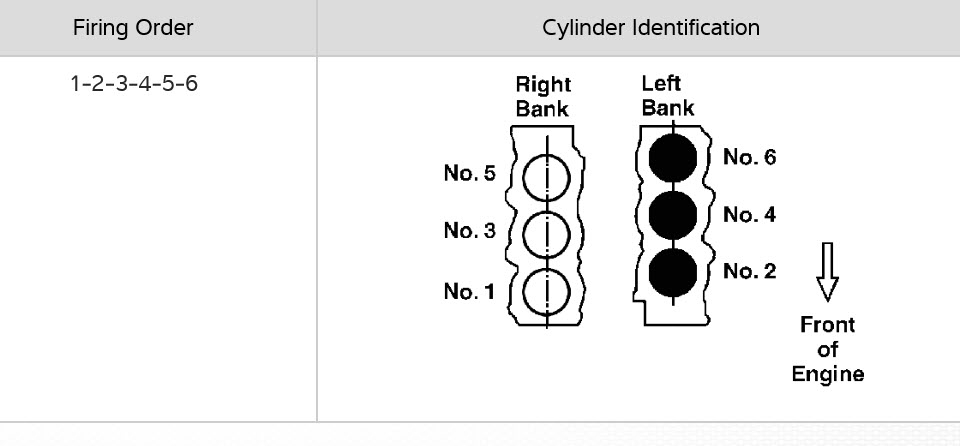

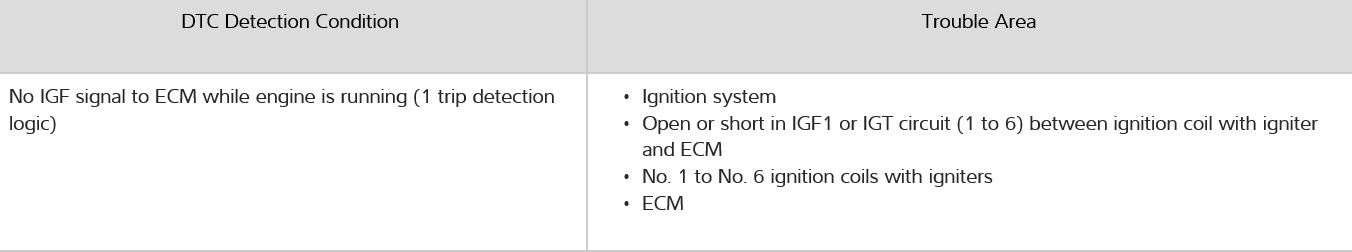

see pics first one is what can cause that code second of cyl id for a v6 because engine size does not come through on new system yet.
Images (Click to enlarge)
Attached Media
Attached Media
Mar 30, 2019 at 12:47 PM (Merged)
Avatar
LINDA MAHONEY
  • MEMBER
  • 3 POSTS
Can't tell from diagram. Is ignition coil #2 easy access or is more labor required to get to # 2 ignition coil
Mar 30, 2019 at 12:47 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
the ignition coil for #2 wold be on front side if engine is sideways in this vehicle. passenger side.
Mar 30, 2019 at 12:47 PM (Merged)
Avatar
LINDA MAHONEY
  • MEMBER
  • 3 POSTS
I Got it repaired this morning. You were a big help.
Mar 30, 2019 at 12:47 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Nice work, we are here to help, please use 2CarPros anytime.
