power window wiring diagram?

2007 HONDA ODYSSEY
56,000 MILES
Avatar
TNGUYENWA
  • MEMBER
  • 1 POST
The driver window works fine. All the other 3 windows will not roll down with either the driver side control or the passenger control. The child lock is not on and seems to work. I can hear a click when the child safety is off but the window does not roll. The fuses are fine. Any help? Thanks.
Jul 29, 2011 at 6:11 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello TNGUYENWA,

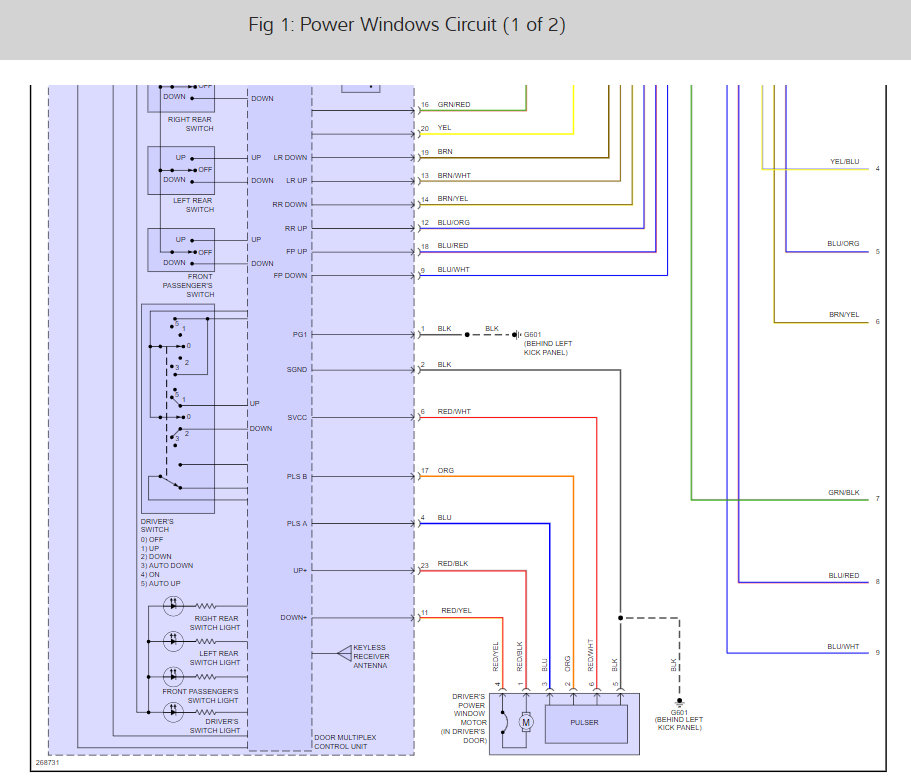

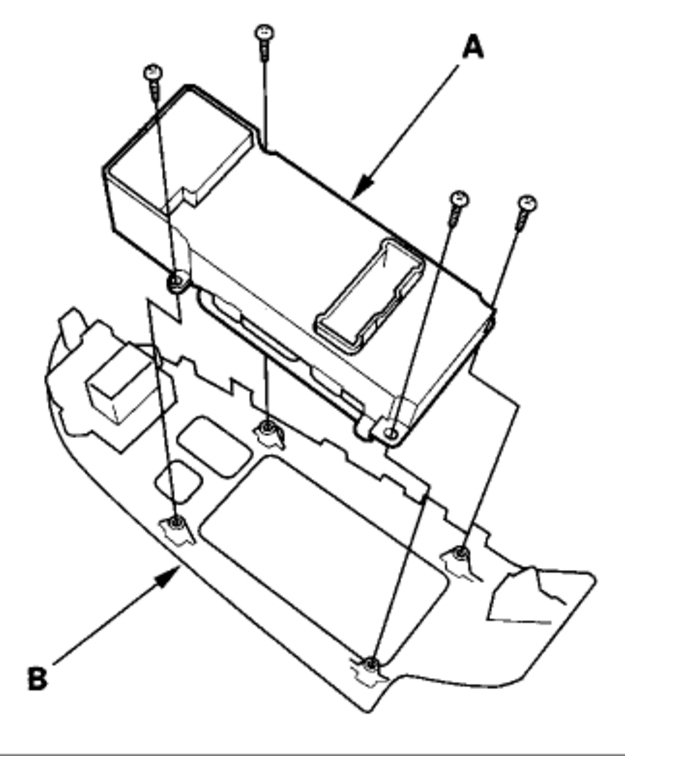

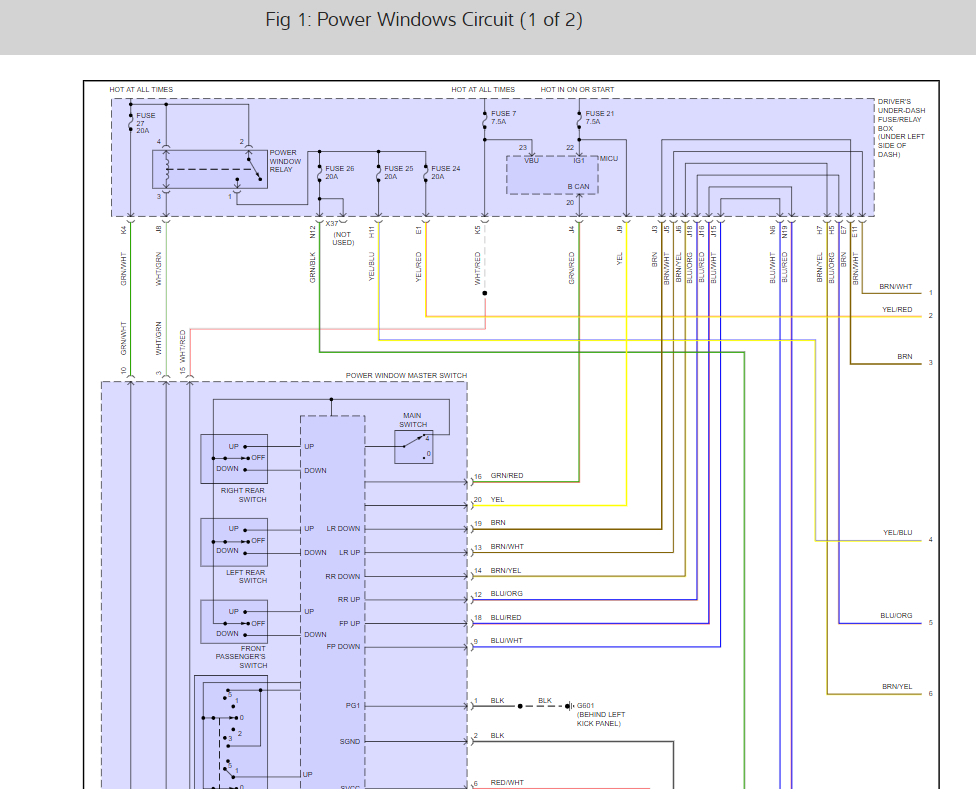

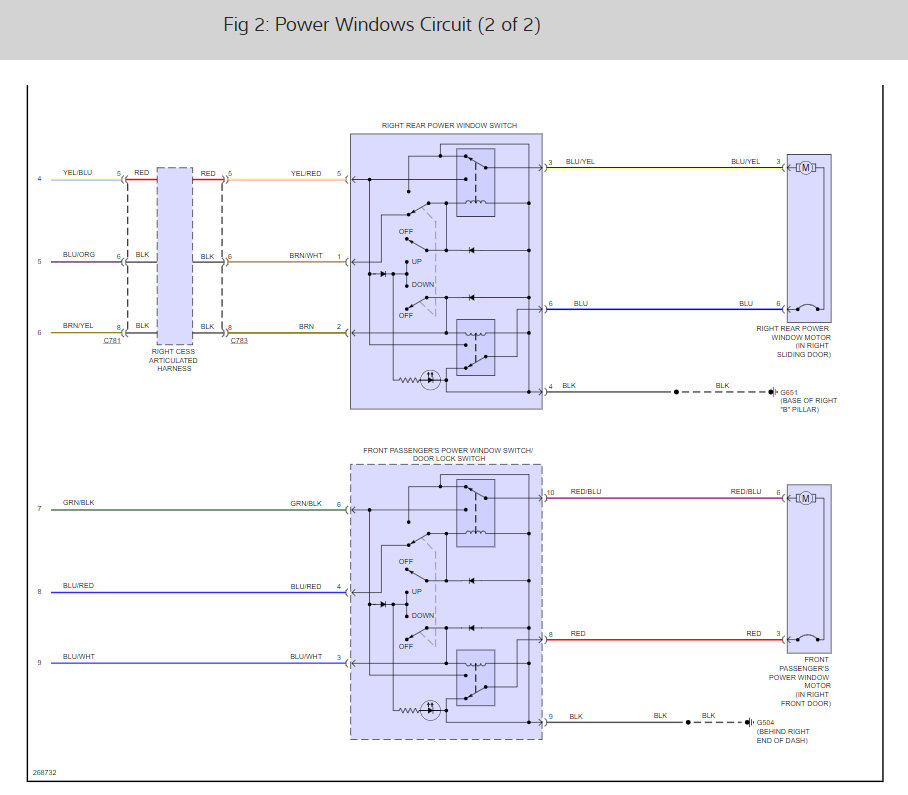

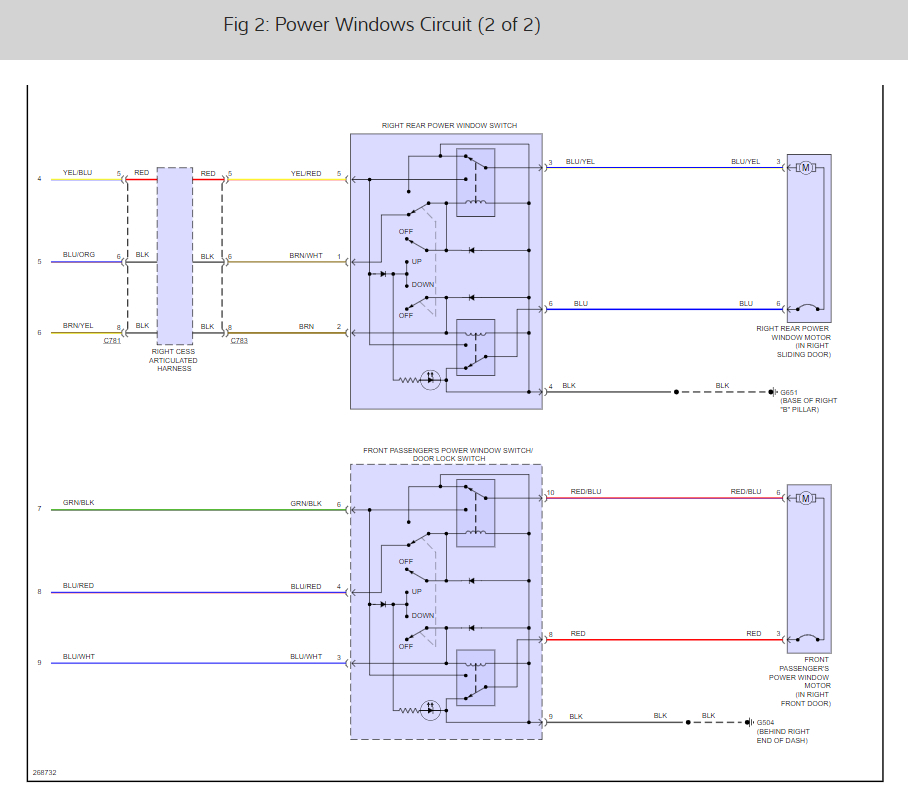

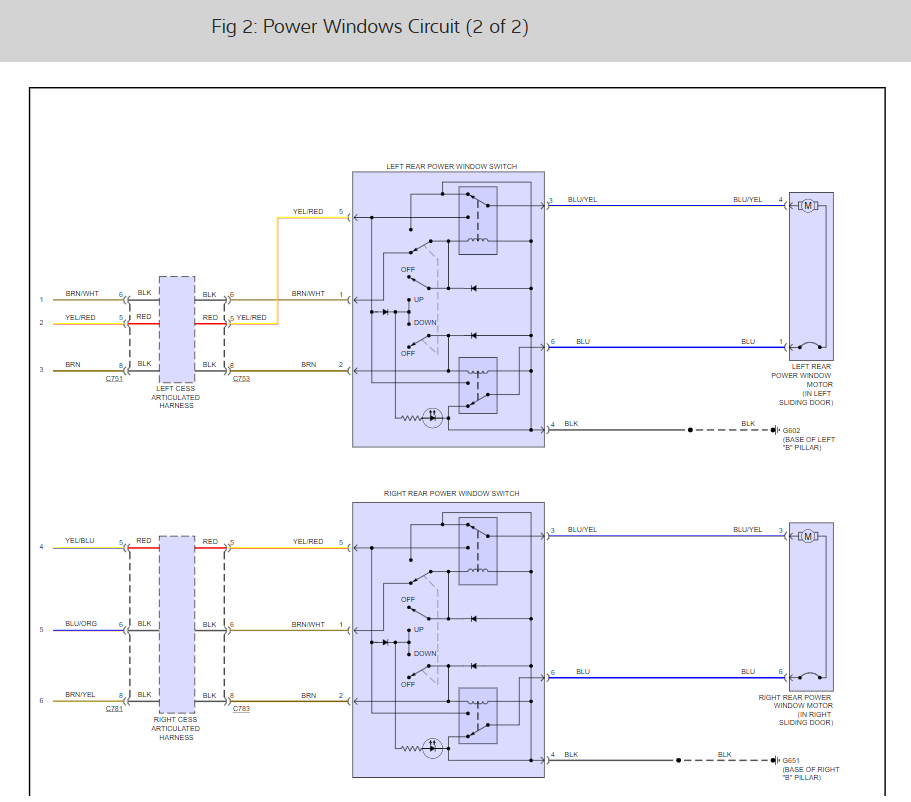

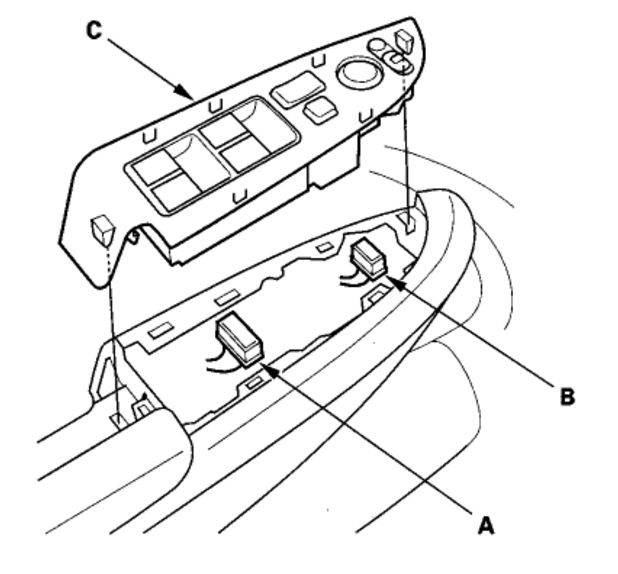

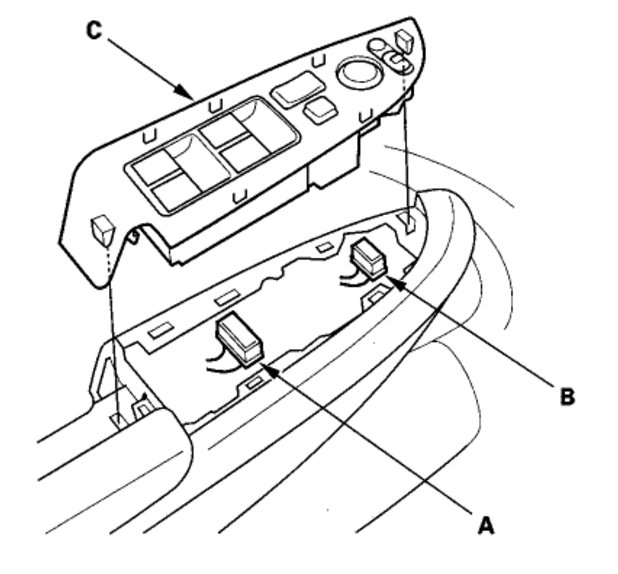

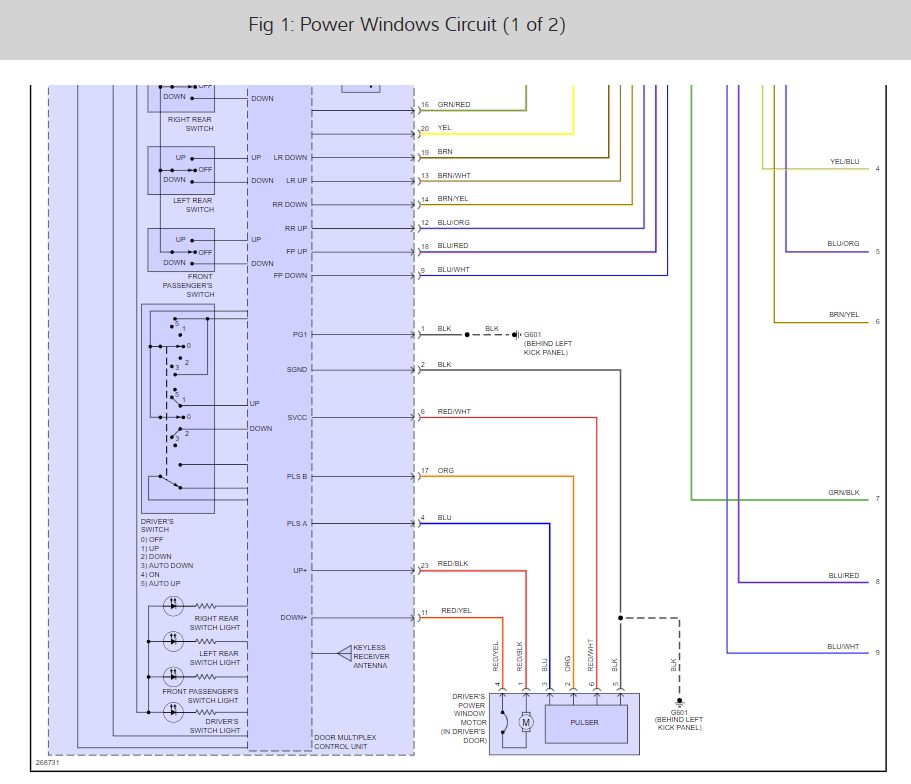

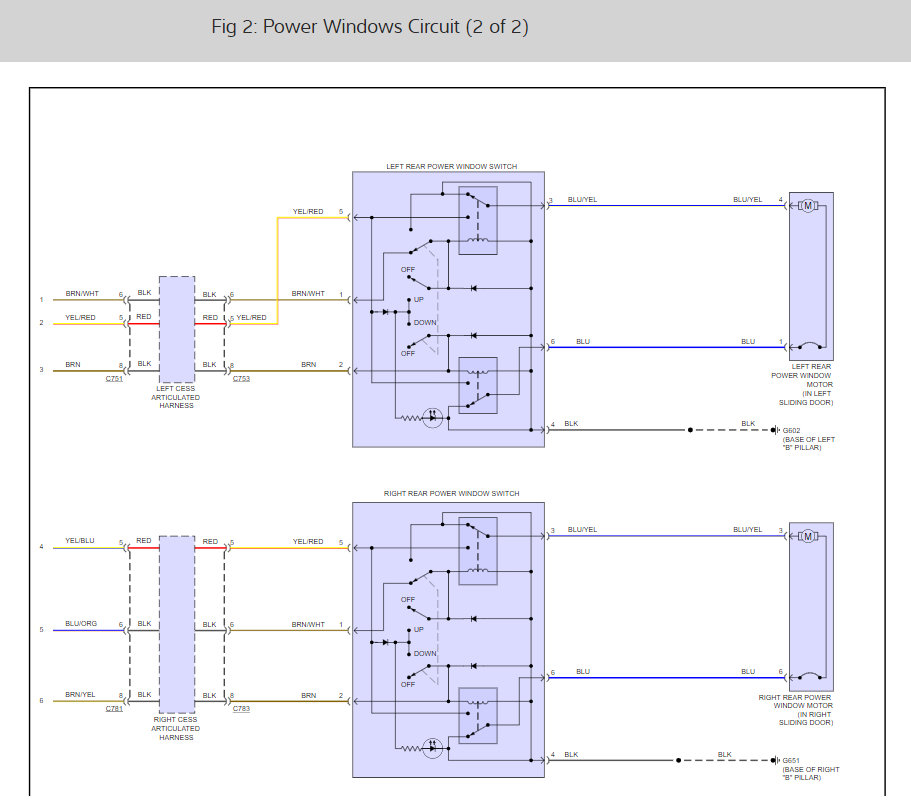

This sounds like a classic main window switch problem, what happens is the switch contacts become dirty and short not allowing power to get to the other windows. Here is a guide and diagrams will help you fix the problem. The controls (power) run through the main switch to feed the other windows this why the other windows dont work. Here is a guide to help you test for the problem and the wiring diagrams below so you can see how the system works.

https://www.2carpros.com/articles/electric-window-repair

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Dec 14, 2016 at 3:07 PM
Avatar
BJUDD
  • MEMBER
  • 1 POST
GLP. Thanks for the hard work and committed updates.

I have exactly the same issue as you did and solved with a new PMCU. My problem is, I cannot locate a PMCU. I have a 2004 EXL.

Can you (or anyone) give a link to a source for these?
Dec 14, 2019 at 2:13 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
PMCU ? I don't know what this is?
Dec 17, 2019 at 1:03 PM
Avatar
WILLWON155
  • MEMBER
  • 1 POST
Hold the key down for 2-5 seconds after the window is down.
Once your window is all the way down, hold the button down for 2-5 seconds. Release the button after you've held it down for a short period of time. On some vehicles, the required time to reset the window is 2 seconds.
