Heater fan works on high speed only?

2007 FORD RANGER
6 CYL • 2WD • AUTOMATIC
Avatar
ALPHONSUS
  • MEMBER
  • 2 POSTS
Heater fan works on high speed only. Replaced the resistor and checked fuses still not working. Is there a relay and where is it? What about the speed control switch, how do I check it or replace it?
Nov 16, 2010 at 1:24 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS

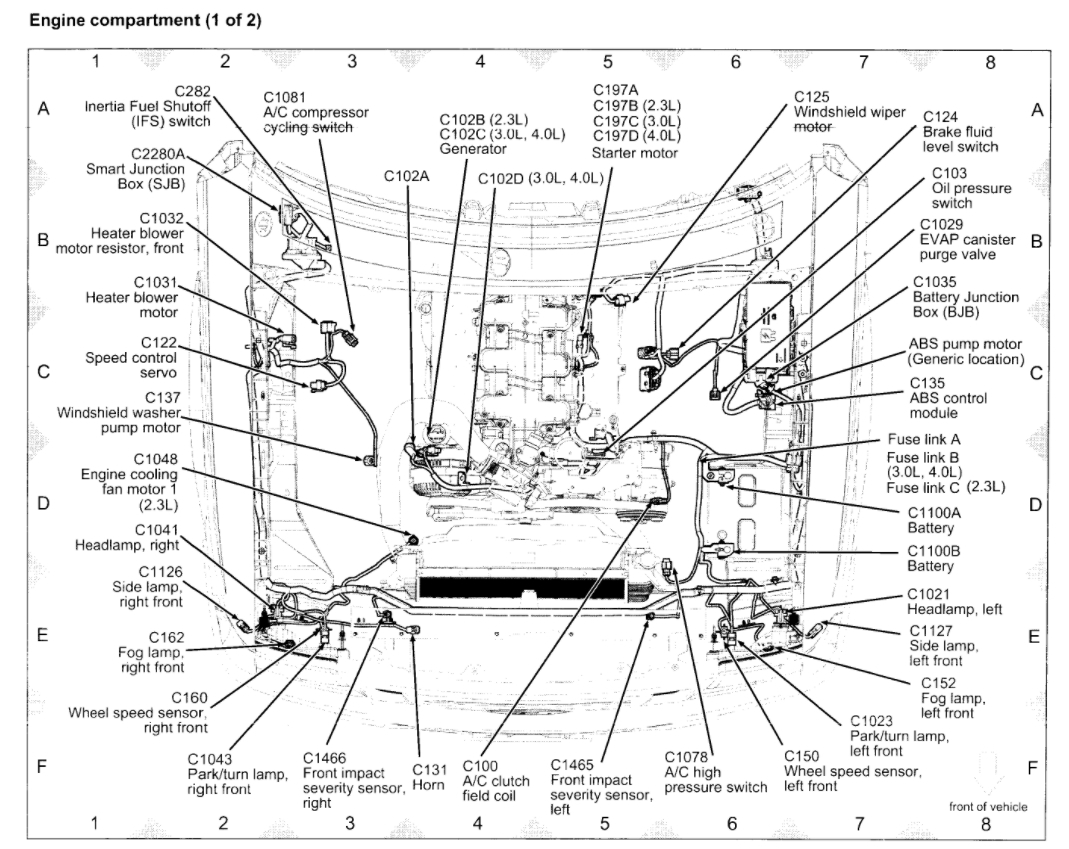

It has a relay but that supplies full time power. the speeds are controlled on the ground side by the switch and the resistor. Lets replace the blower fan resistor that should fix it. Check out the diagrams (Below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Nov 16, 2010 at 1:36 AM
