broken shifter cable we replaced it and it won't shift into park?

2007 CHRYSLER PT CRUISER
130,000 MILES • 4 CYL • 2WD • AUTOMATIC
Avatar
TOFFER99
  • MEMBER
  • 1 POST
I have a 07 PT cruiser had a broken shifter cable we replaced it and it won't shift into park the cable doesn't push far enough forward I can reach in and push it the rest of the way but it won't do it on it's own. Is there a way to adjust it or does it need to be in a certain gear.
Aug 9, 2014 at 9:55 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
First, make sure the cable is properly routed and not kinked.

If okay, then:

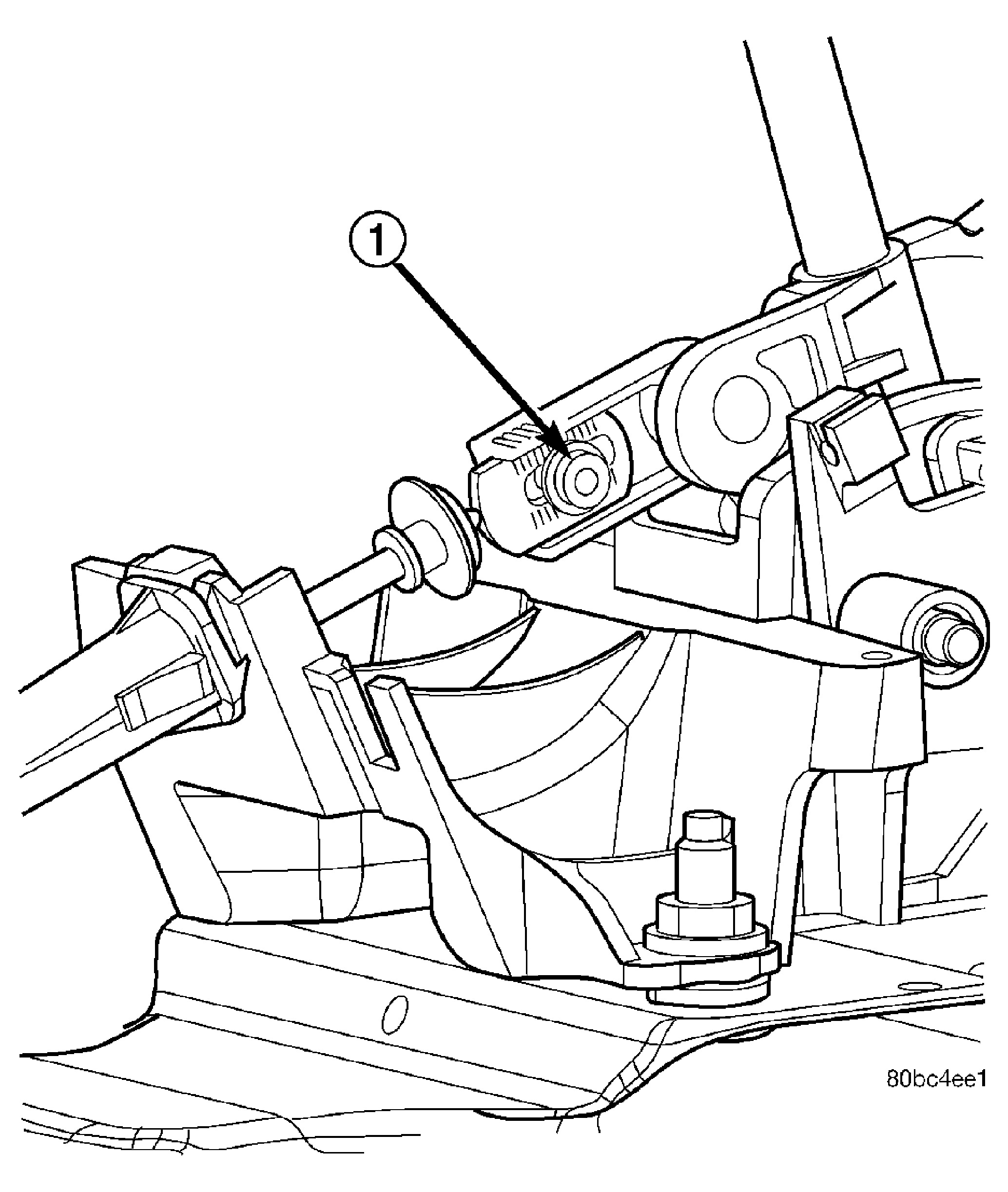

You need to first remove the shifter handle. There is a set screw on the shifter lever. Remove that and the shift handle will come off. Next, you need to remove the center console and the shift cover. Once that is removed, you can see the shift cable. There is an adjuster on the side of the cable. See pic.

Now, place the gear shift lever in park. Loosen the shift cable adjuster screw. Verify the transmission shift lever is in PARK. Tighten the adjustment screw to 70 inch pounds.

Let me know if this helps.

Joe
Oct 5, 2018 at 4:55 PM
Avatar
JIM SHIRLEY
  • MEMBER
  • 1 POST
My wife's car started to be difficult to put into park. During the extreme cold last week I pushed the car into park and the shifter broke free. The shifter would move freely without changing gears. I took the center console apart and discovered the shift cable was off the shifter. While I was reconnecting the cable I noticed that the plastic shifter assembly where the cable sits was broken. I have order a new shifter assembly due here by Friday. Should I also replace the shift cable as well? And how do I do that correctly? I have a very limited budget ( eight KIds, down to one car).
Jun 6, 2020 at 12:08 PM (Merged)
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
if the cable moves the shifter on trans by hand and hasn't broken out of holder at eithr end then you should still be able to use the old cable so check that first. we have nothing to show on cables and shifter however.
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
ARLENESALA
  • MEMBER
  • 1 POST
My shift goes from park all.the way to drive without stopping in between. I was told it was shifter cable. We checked on top transmission not messed up there so we figure it's at shift but I cannot get console off
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

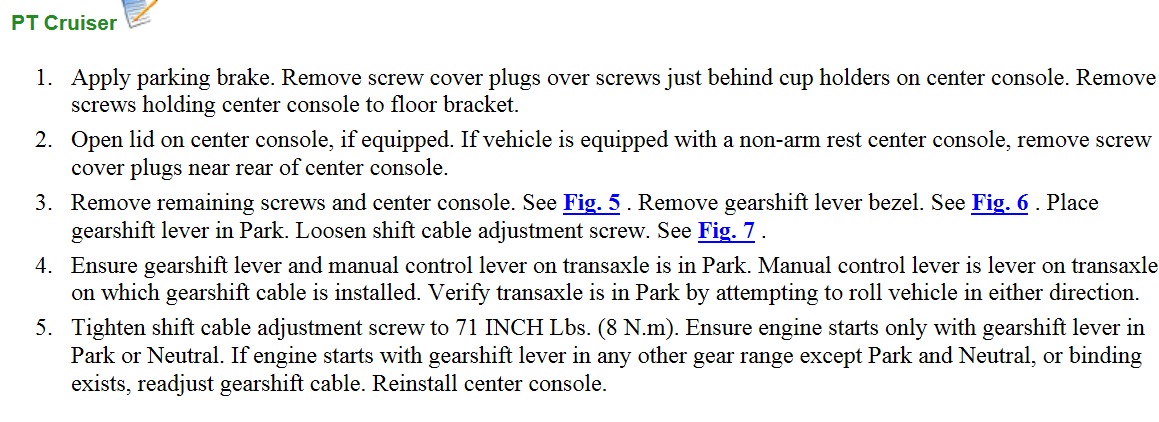

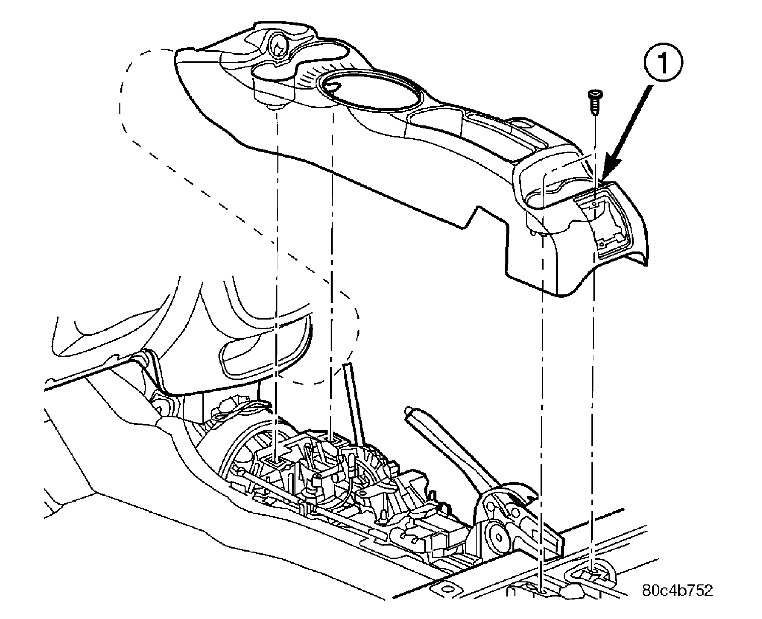

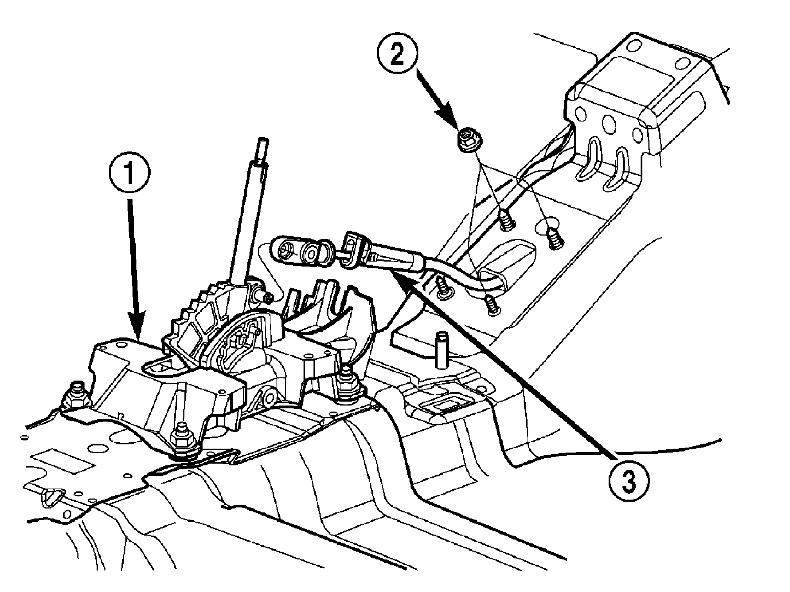

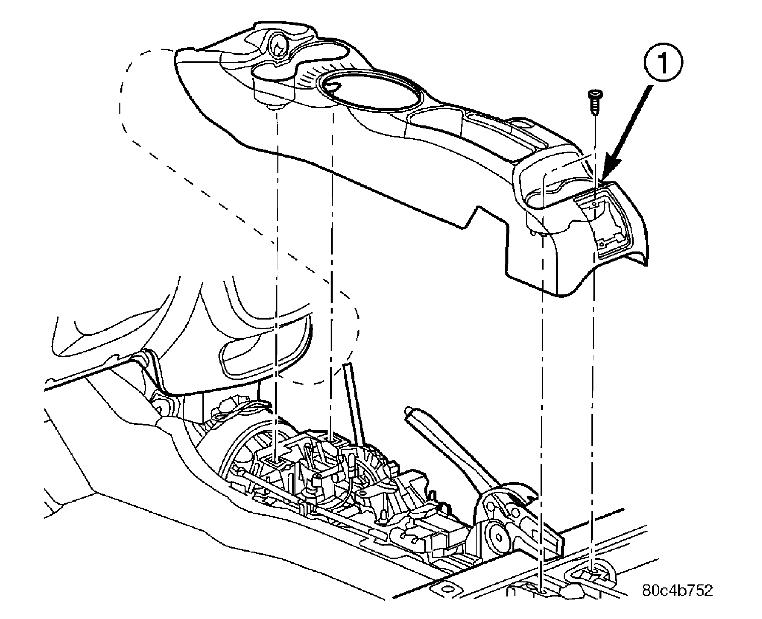

see pics for console removal and cable /shifter.
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
HENRYM5232
  • MEMBER
  • 1 POST
The gear is stuck in reverse. The shifter moves from where it would be in park down to 3rd gear. I can't find the linkage cable and I don't know how to fix it. Any advice?
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

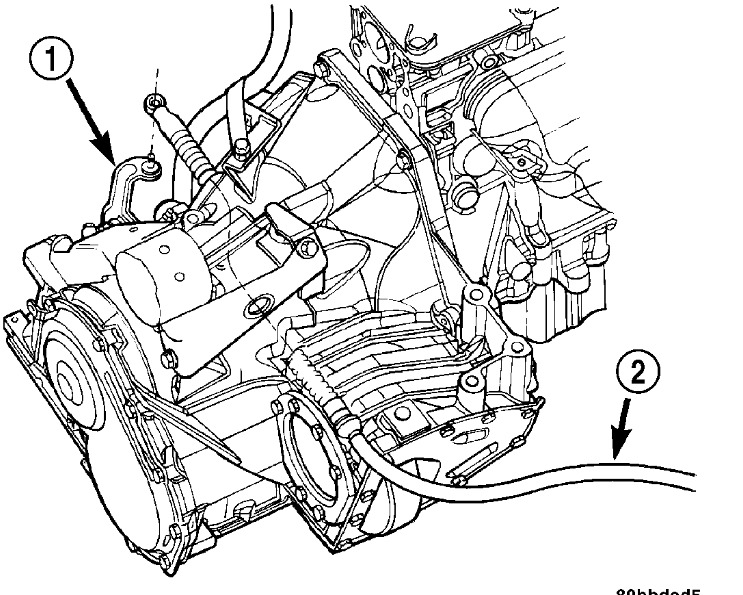

check for broken cable at either end first. item 2 in pic a lot has to be removed to fix this. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
DOPIKE01
  • MEMBER
  • 2 POSTS
my uncle and dad put a transmission in my car. we test drove it. once you start picking up speed it wont automatic shift to the other gear. did they hook something up wrong? how can i check my self without a mechanic to see if the cables are hooked up right? i need advice or options that would help me out i cant afford to go to mechanic right now....so is there anything i can do my self ...or check for...or any kind of trouble shooting i can do ??? help please
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Is the transmission they used from the same year, make, and model vehicle? Has the check engine light come on?

Jun 6, 2020 at 12:08 PM (Merged)
Avatar
DOPIKE01
  • MEMBER
  • 2 POSTS
i think its possibly a year older or younger....its for a chrysler pt cruiser, its just the year might be newer or older. i want to put my other tranny back in my car, it ran fine exept in my other tranny, if you go so far it will drop into a low gear or something, like it will try to stop short on the high way,,,and sputter...thats the whole reason why we got a new tranny...so if the tranny isnt the same year as my car...did i just waist a lot of money on a new tranny??
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
We only recommend direct fit parts because problems always come up when you change year make or model. Tell me, is the check engine light on? Is the speedometer working properly? Were any of the sensors switched from the old trans to the new one?

Also, I really need to know what year vehicle the new trans came from.
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
BUTCHH
  • MEMBER
  • 1 POST
dealer wants $210 for shifter cable. isn't their some kind of replcement bushing/clip or whatever availble, the rubber boot is missing
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Usually there are clips on the end that hold the outer piece in place. If those are broken then they can be replaced but the cable housing may have broke from one of these areas.
Jun 6, 2020 at 12:08 PM (Merged)
Avatar
SAMMYGIRL
  • MEMBER
  • 1 POST
A friend of my sons replaced my shift cable today but he cannot get it to go into park or reverse,
what is wrong?
Jun 6, 2020 at 12:09 PM (Merged)
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

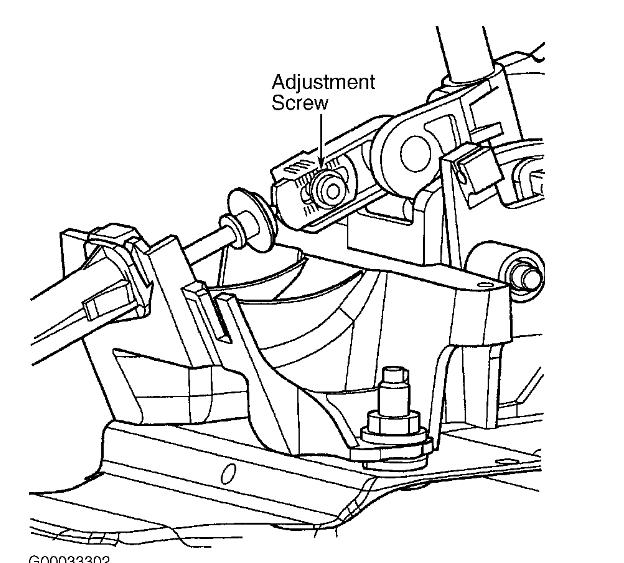

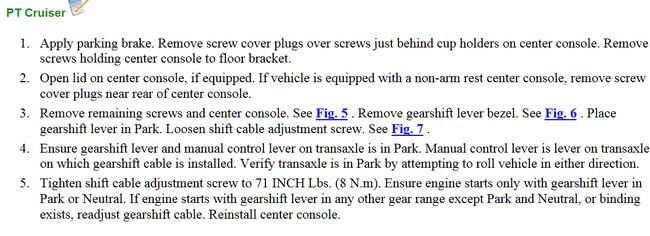

the cable needs to be adjusted see pic
Jun 6, 2020 at 12:09 PM (Merged)
