2007 Chevrolet HHR Seat Belts

2007 CHEVROLET HHR
115,000 MILES • AUTOMATIC
Avatar
GINNYOCT30
  • MEMBER
  • 1 POST
The driver's side seat belt does not retract. I paid to have a new one installed, now it does not retract. A friend told me he installed his own seat belt on a Honda and there was a small electrical switch that was involved. The dealership is telling me that there is no switch. I just Googled replacing the seat belt on a HHR and it mentioned disconnecting the electrical connector. This car has had electrical problems since I purchased it used, no one can ever figure them out. I want to be absolutely sure that if anything electrical is involved, I know about it. I think maybe it is a computer problem as the lights go out or dim on the speedometer, odometer and clock intermittently. I was told it was the coil under the light sensor, I had it replaced, but it still does it. It used to be the volume on the radio went way down intermittently and I was told I needed to buy a new radio and speakers. I am treated like I am crazy.
Apr 28, 2015 at 8:27 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
The electrical switch is for the seat belt light. It turns the light off when the belt is connected. As far as not retracting, there is nothing electrical with that. It has a mechanical recoil.
Apr 29, 2015 at 7:04 PM
Avatar
GINNYOCT30
  • MEMBER
  • 1 POST
This is not true. Every modern seatbelt has a pretensioner in it with an electrical connection.
Feb 2, 2023 at 4:14 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

That is correct. A pretensioner is actuated in the event of an accident that deploys the airbags. It is designed to tighten the belt to help hold you in place. However, it isn't actuated until that happens.

The basic tensioner or retractor is mechanical.

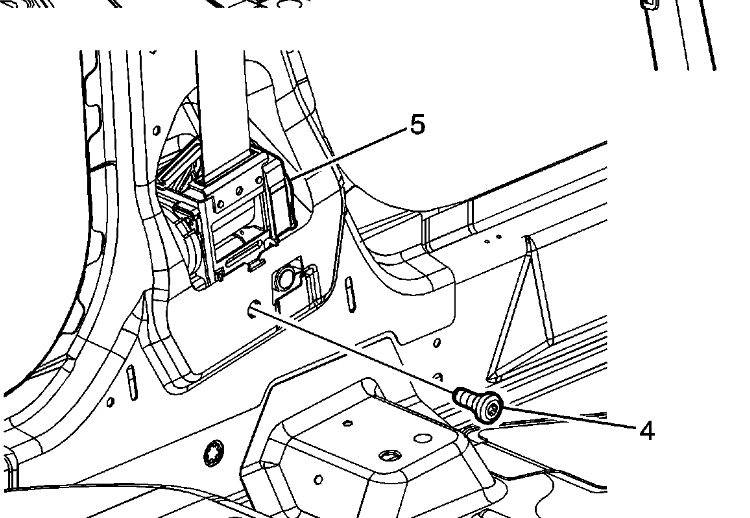

Let me know if that answers your question. Also, you are correct about the positioning of the sensor. See pic 1 below.

Take care,

Joe

See pic below.
Feb 2, 2023 at 7:37 PM
