Voltage drops below 13 volts under normal driving condition and no accessories on, on my 07 Equinox

2007 CHEVROLET EQUINOX
68,000 MILES
Avatar
JOHNAB
  • MEMBER
  • 1 POST
while driving my equinox the voltage drops to below 13 volt, even though I turned off all accessories. I have replaced the battery but the problem still exists.
Apr 29, 2012 at 10:43 PM
Advertisement
Avatar
RULEY73
  • MEMBER
  • 1 POST

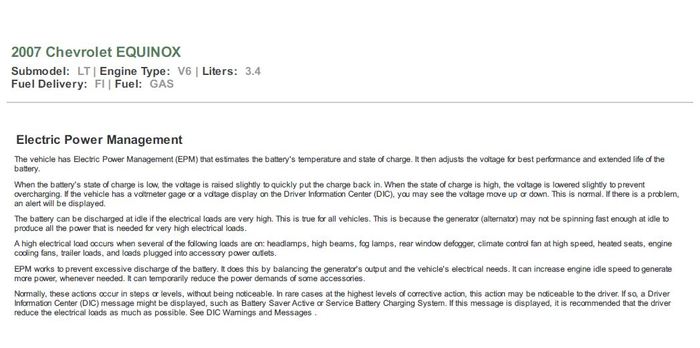

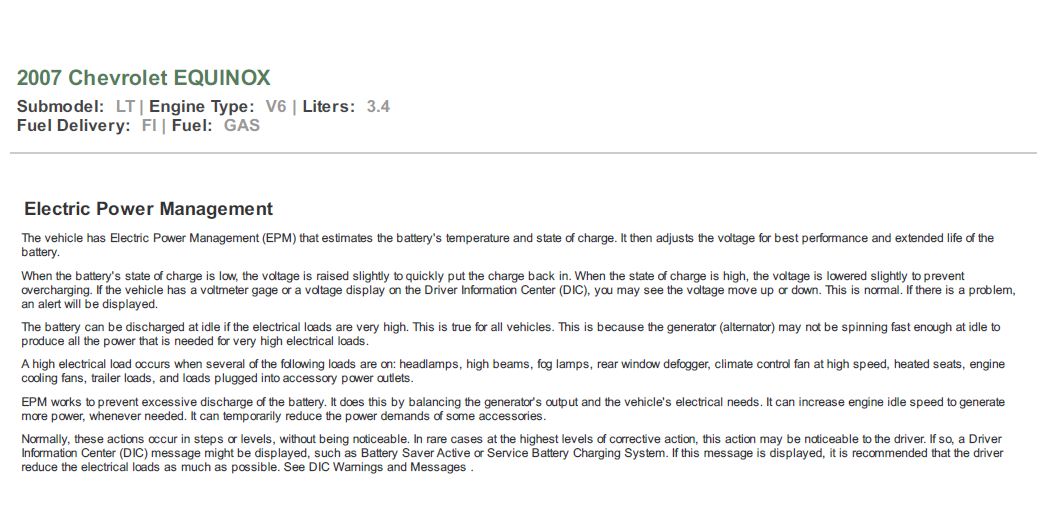

I've noticed this on our 2007 Equinox too, but this is actually normal operation and nothing to be worried about. I was first very concerned since I saw the voltage meter go down to 12.6 volts while the engine is running. I noticed this occurs more during long trips. The dealership reassured me that this is normal operation due to the Electric Power Management feature. I've attached an excerpt from the service manual which explains this feature.
May 20, 2012 at 8:59 PM
