So the fuses panel I cant find and where do the fuses go?
Nov 26, 2011 at 2:46 PM
Fuse panel where do the fuses go?
2007 CHEVROLET EQUINOX
MARE112
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Here is a guide to help you check the fuses with the fuse panel location and identification in the diagrams below:
https://www.2carpros.com/articles/how-to-check-a-car-fuse

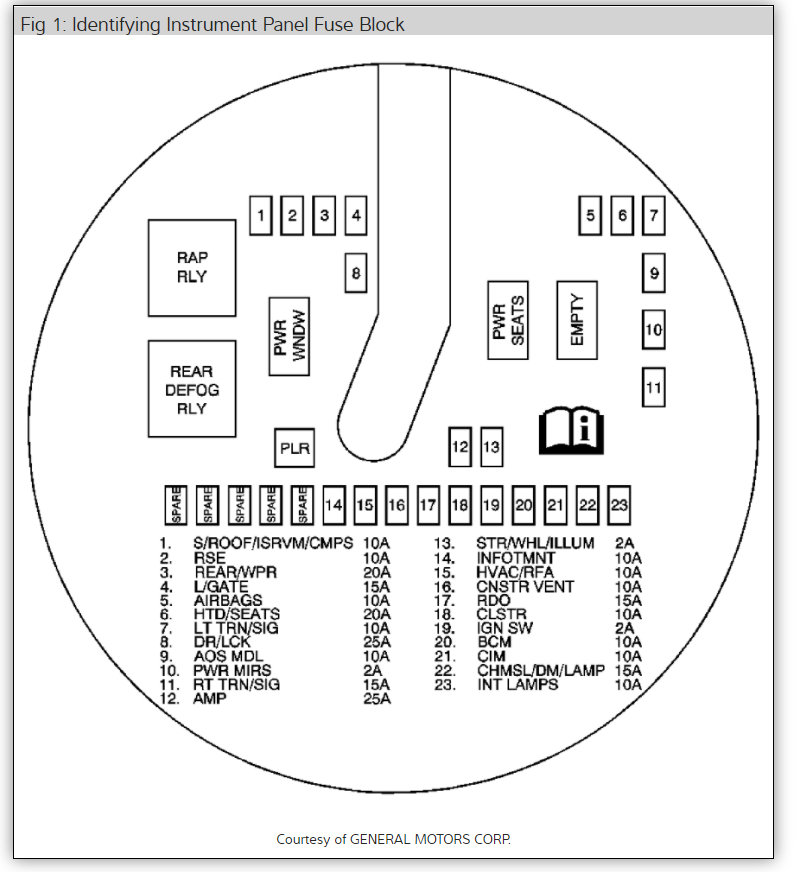

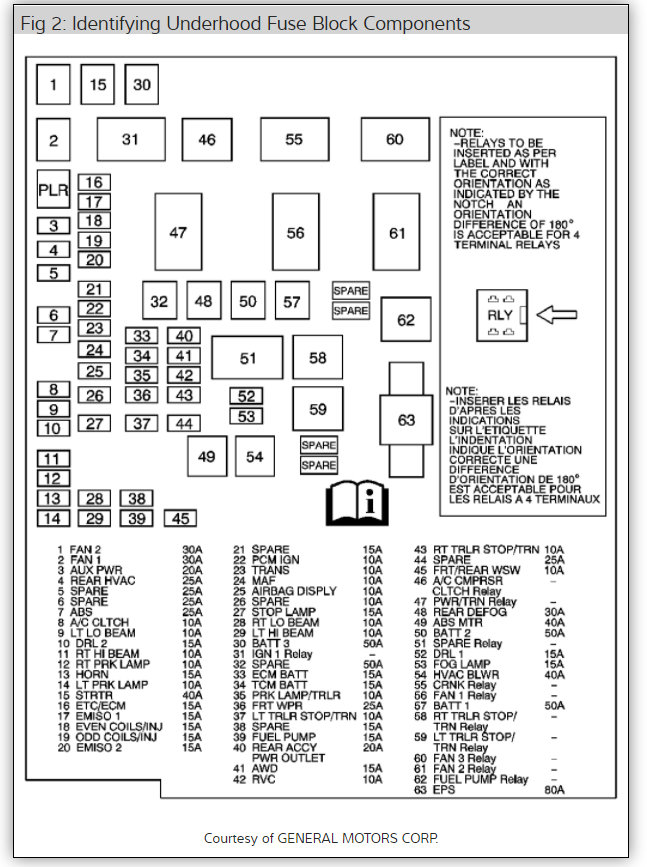

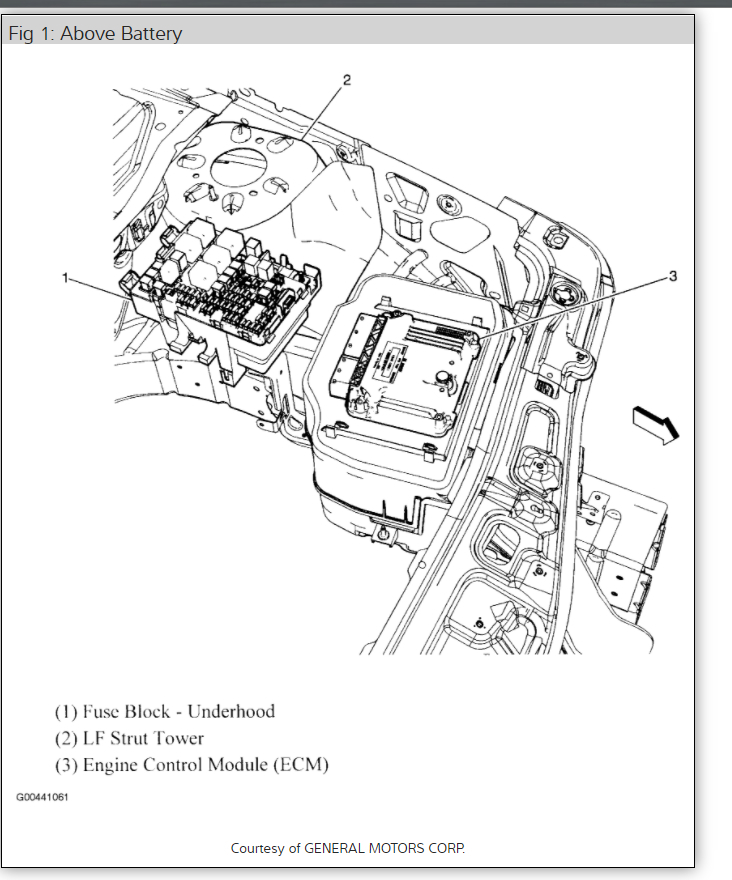

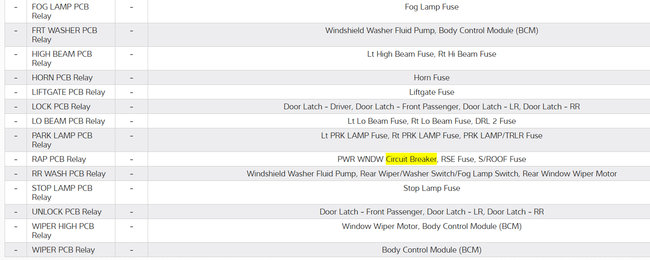

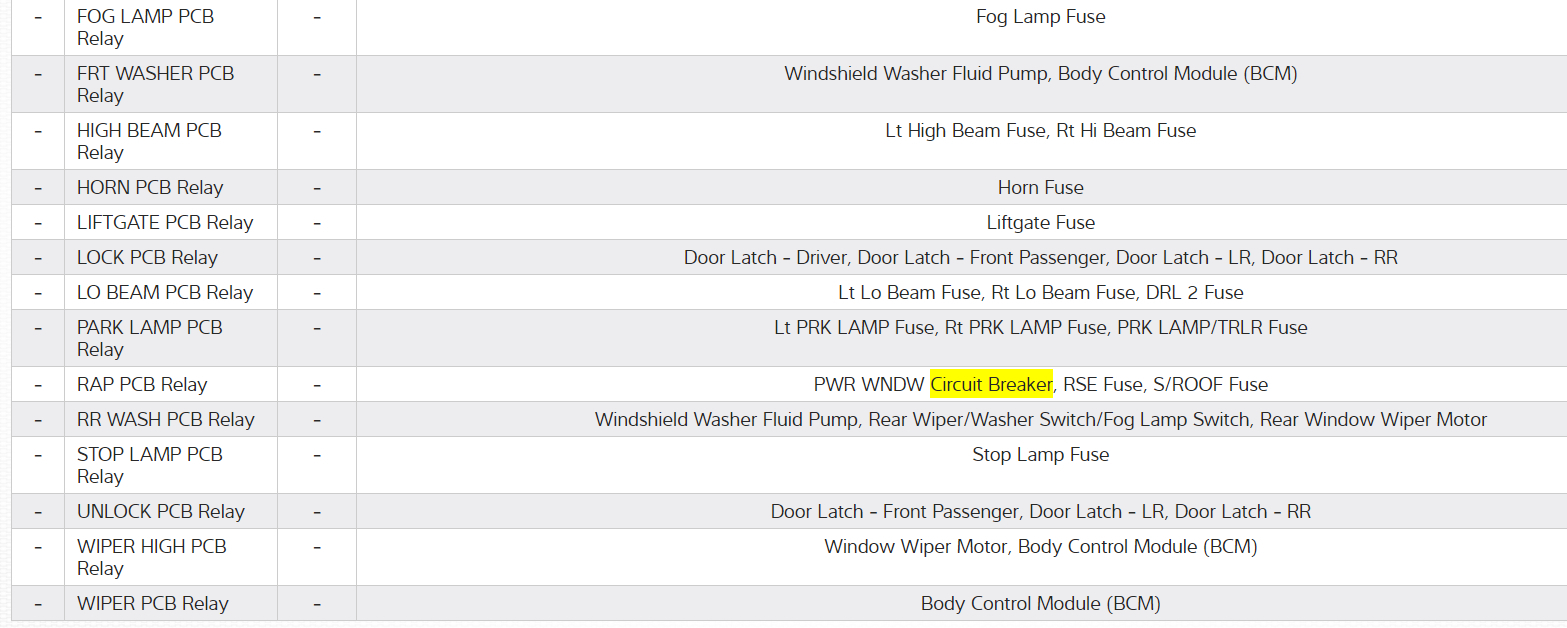

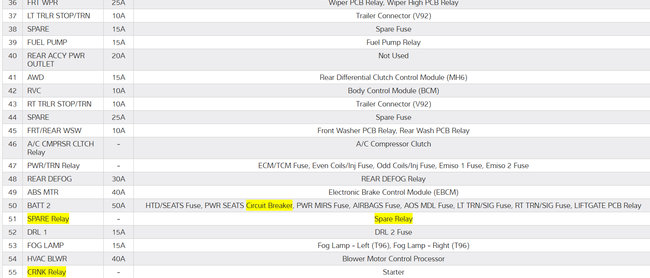

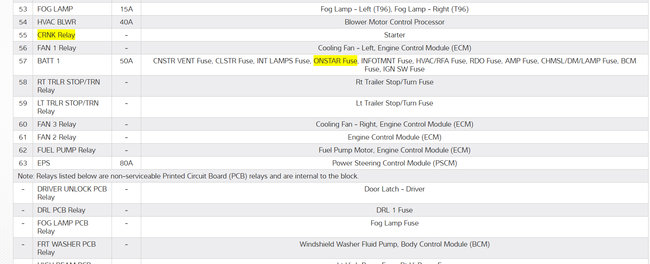

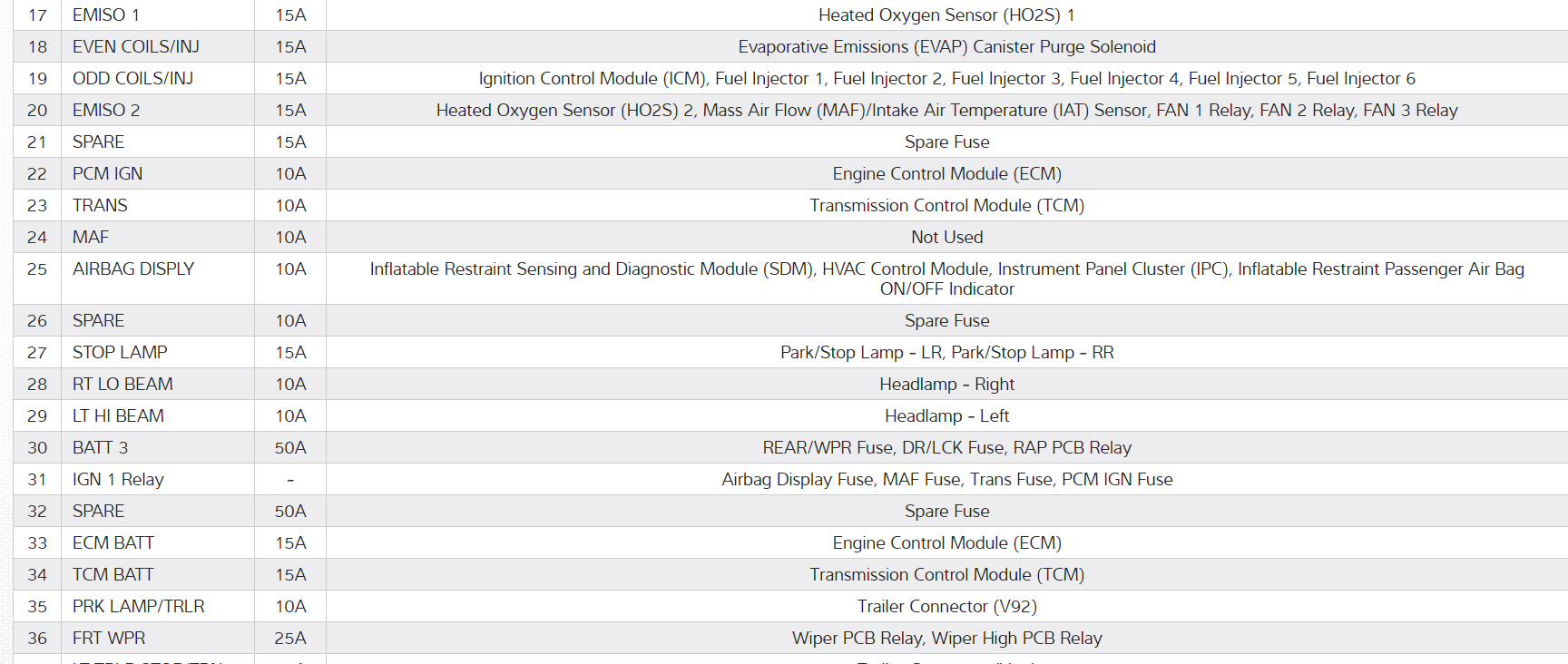

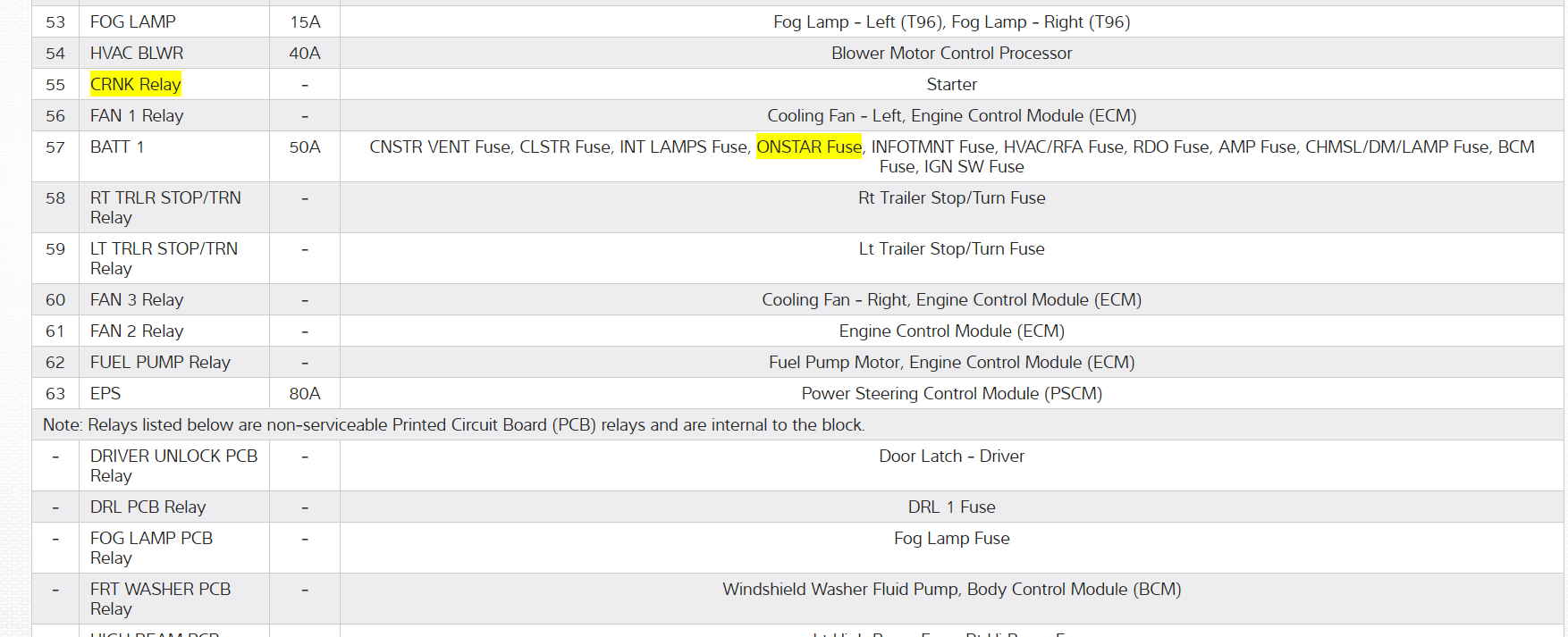

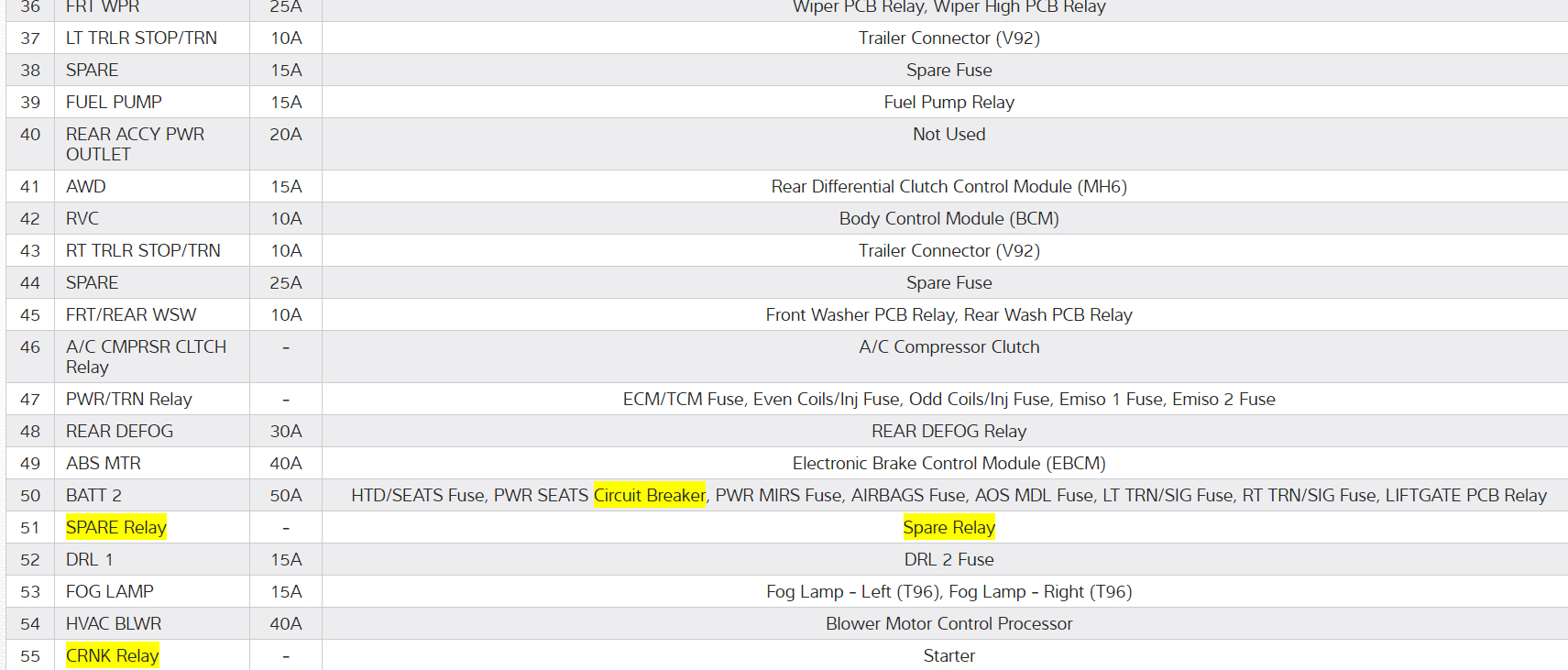

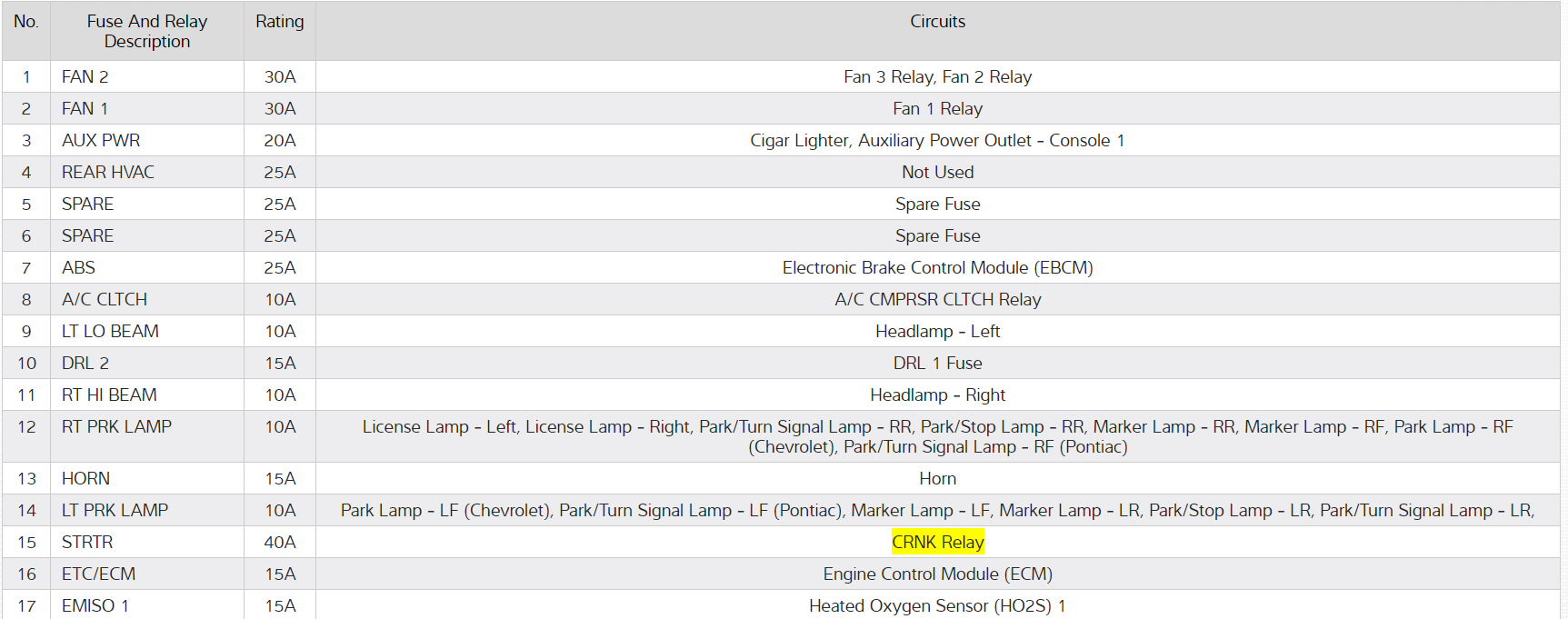

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Jun 14, 2021 at 7:00 PM
