2007 CHEVROLET COBALT
75,000 MILES
Avatar
MUSTANGXXX
  • MEMBER
  • 27 POSTS
where is the oil filter located and how do i install i bought the new filter and it is not a traditional oil filter it is different than normal filters is it right in front of the oil pan and has a rubber sheathing?
Oct 20, 2012 at 9:10 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

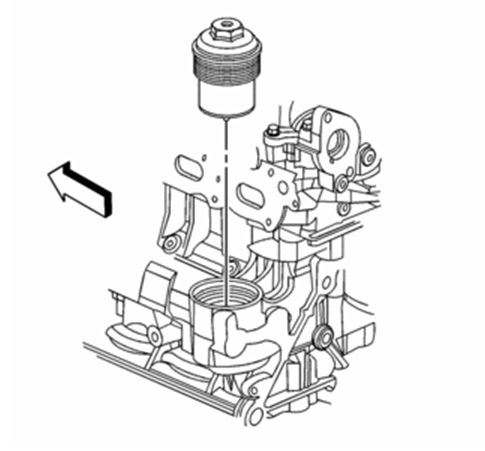

I'd have to look for it myself. I found this picture. I'm used to oil filters going down, not up. You can use a filter wrench on it or 32mm/1 1/4 inch socket. 18 ft lbs is max on tight.
Image (Click to enlarge)
Attached Media
Oct 20, 2012 at 9:30 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Just to add, I believe the arrow is pointing to the drive-belt end of the engine, not the front of vehicle. Oh well, If I'm wrong it wouldn't be the first time.
Oct 20, 2012 at 9:45 PM
Advertisement
Avatar
MUSTANGXXX
  • MEMBER
  • 27 POSTS
thank you for your response but the oil filter is nmot a normal filter that you just scre on and off this one looks like an round air filter that has to go into something
Oct 20, 2012 at 10:02 PM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Just to add to this one its to the right of the intake the snaps into oil filter cap.
Oct 20, 2012 at 10:52 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

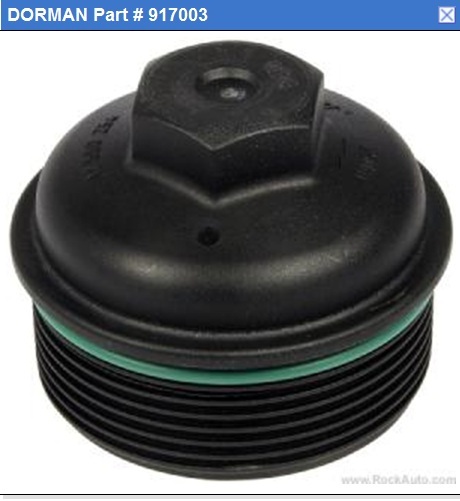

Yes, I understand. the filter probably fits the cap in the picture. Here is what the cap looks like.
Image (Click to enlarge)
Attached Media
Oct 21, 2012 at 4:06 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Thanks saturntech9, I didn't exactly know where it was located. Have a good day.
Oct 21, 2012 at 4:07 PM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
You two my friend take care.
Oct 23, 2012 at 3:25 AM
