Dash lights not working

2007 DODGE CALIBER

147,000 MILES • 2WD • AUTOMATIC

MARCUS BRAWNER

MEMBER
1 POST
FOLLOW

Started my car up tonight, all exterior and interior lights work but not the speedometer, therm, or rpm on the dash will not light up.. used dimmer, over comes on and radio lights work but not the dash, fuse issue?

Jan 18, 2020 at 11:52 PM

KASEKENNY

CERTIFIED EXPERT
18,907 POSTS

Unfortunately these lights are LED's and are part of the cluster. The only way to fix the back lighting on these is to replace the cluster.

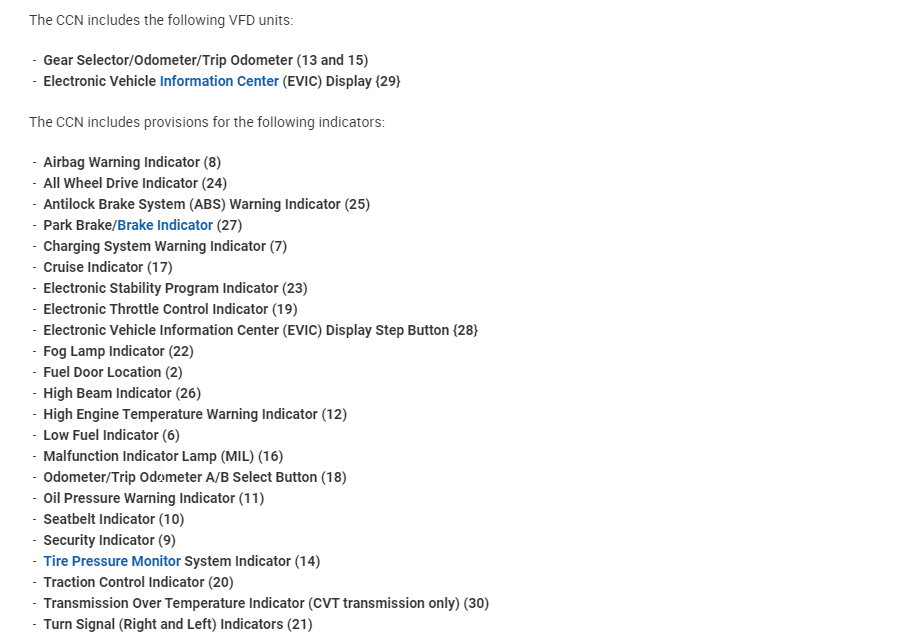

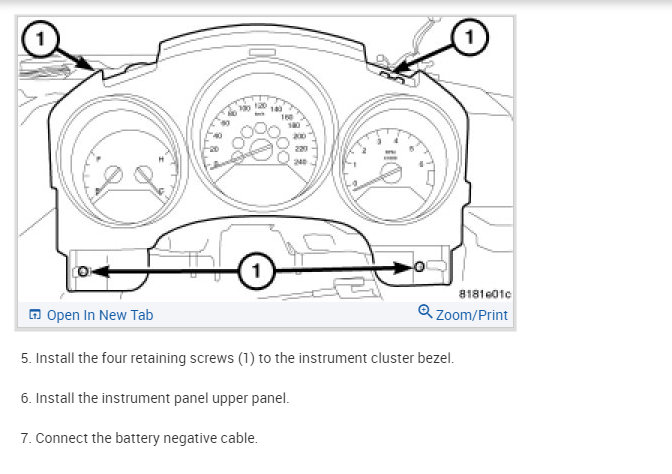

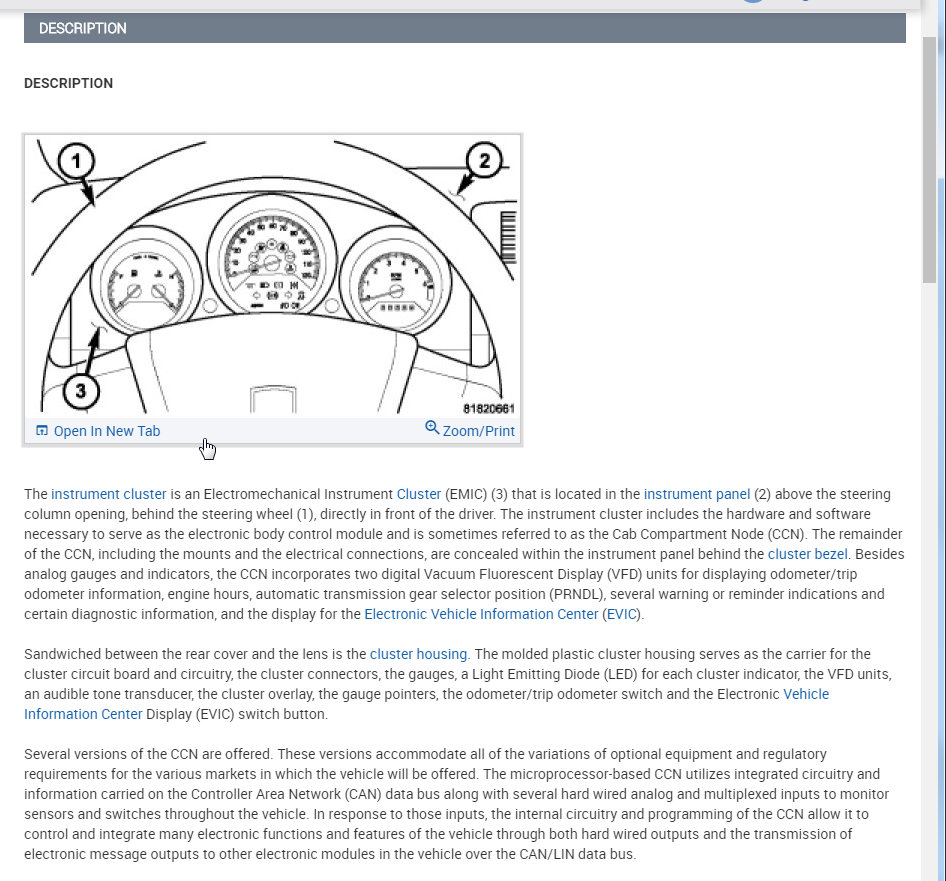

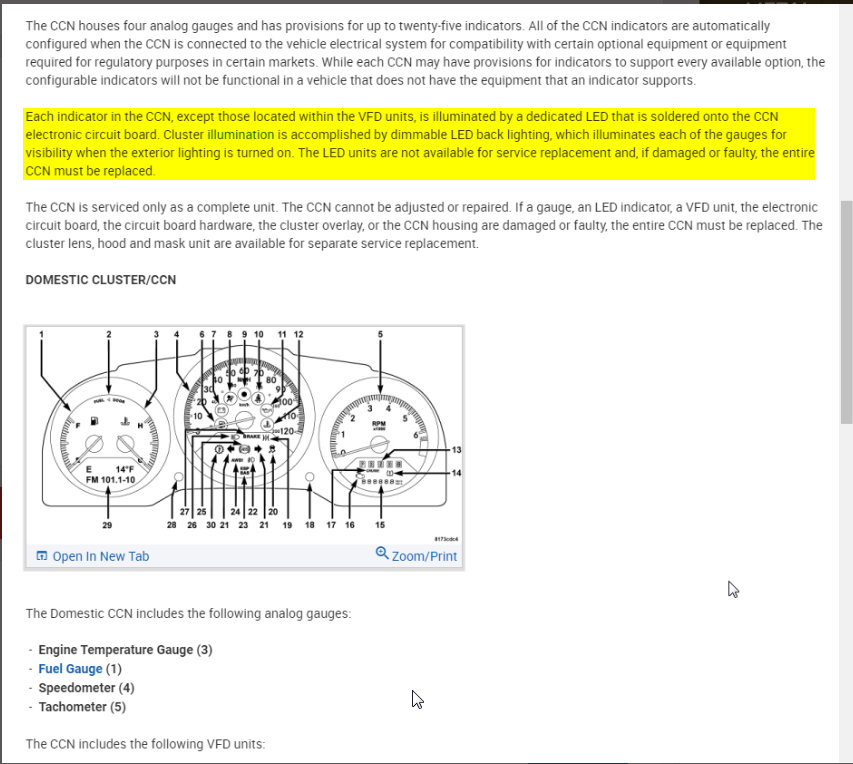

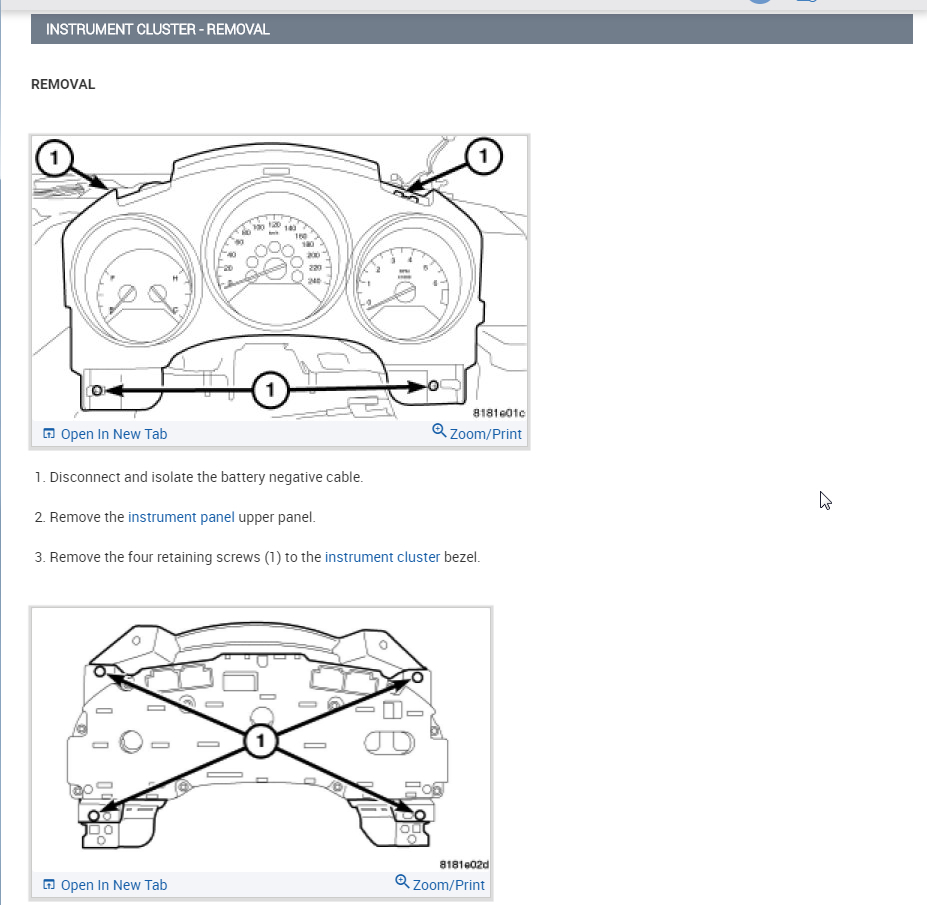

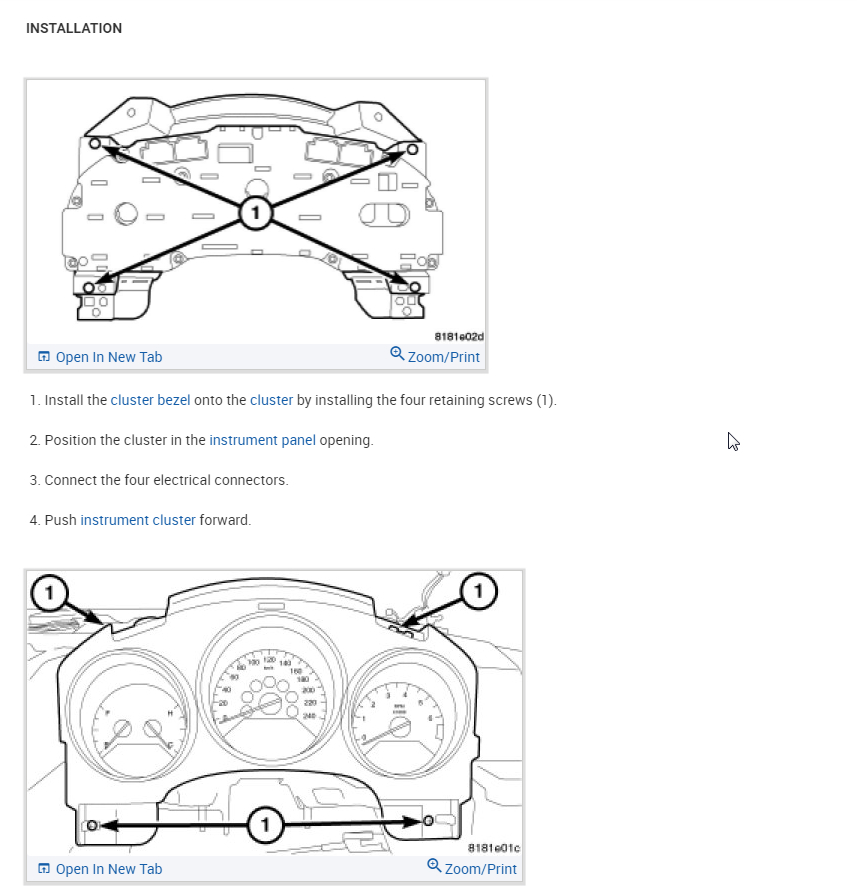

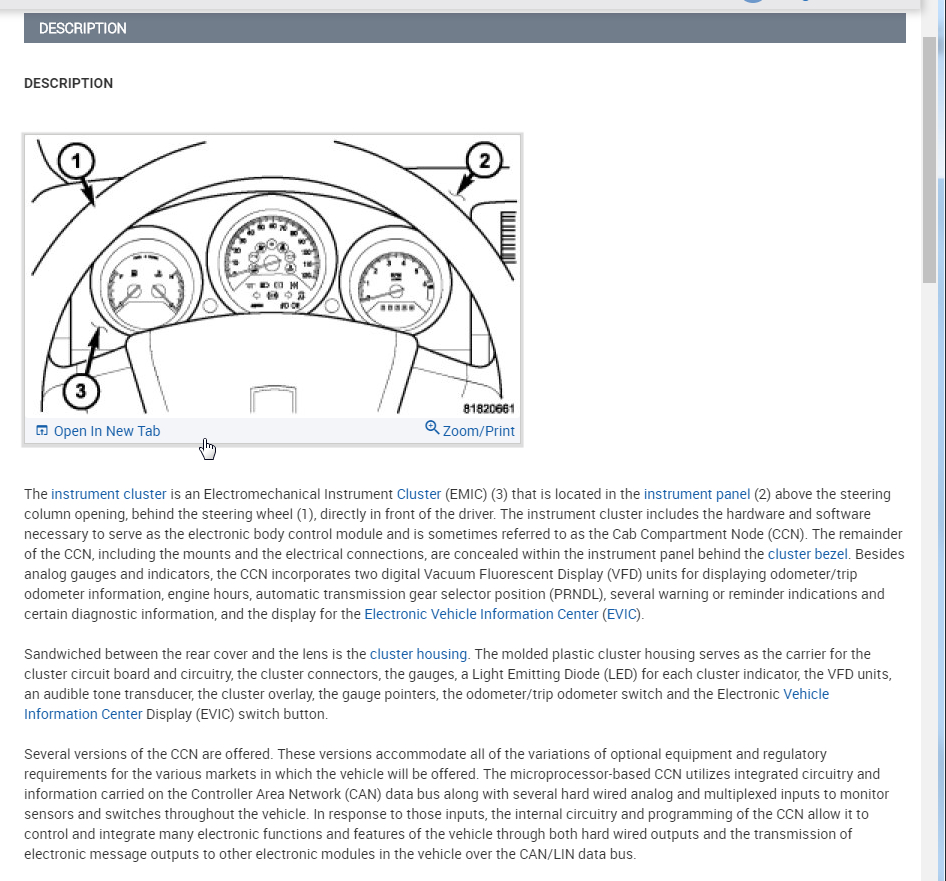

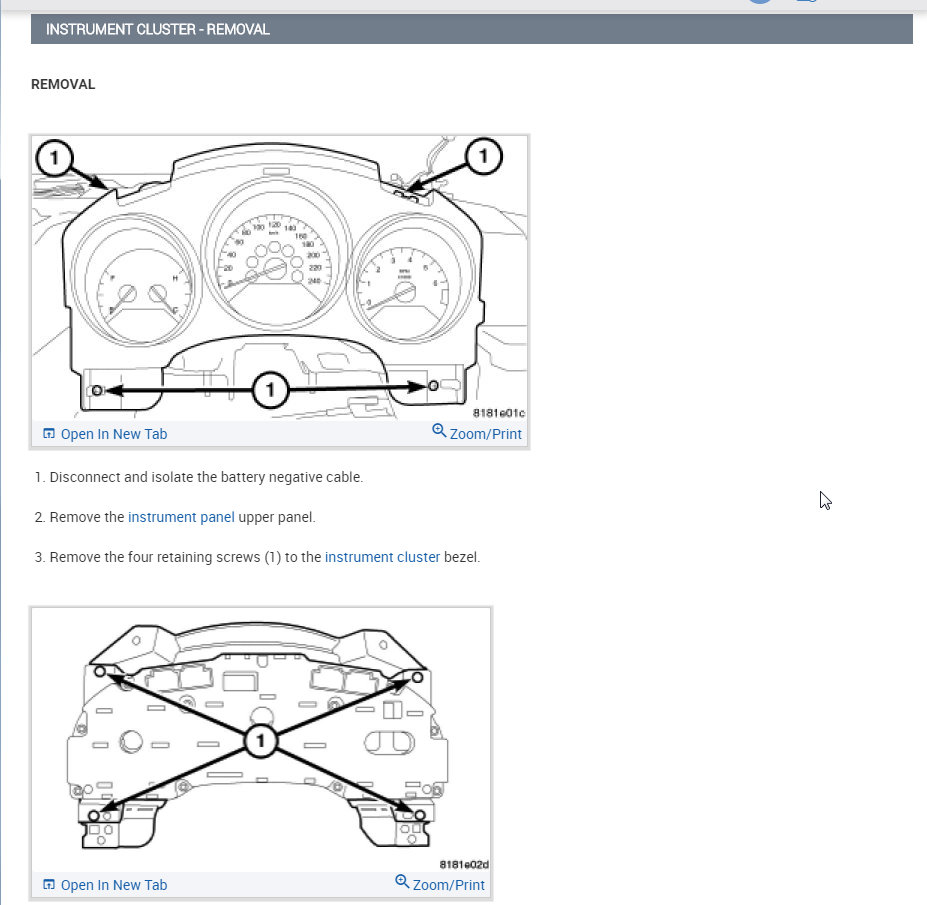

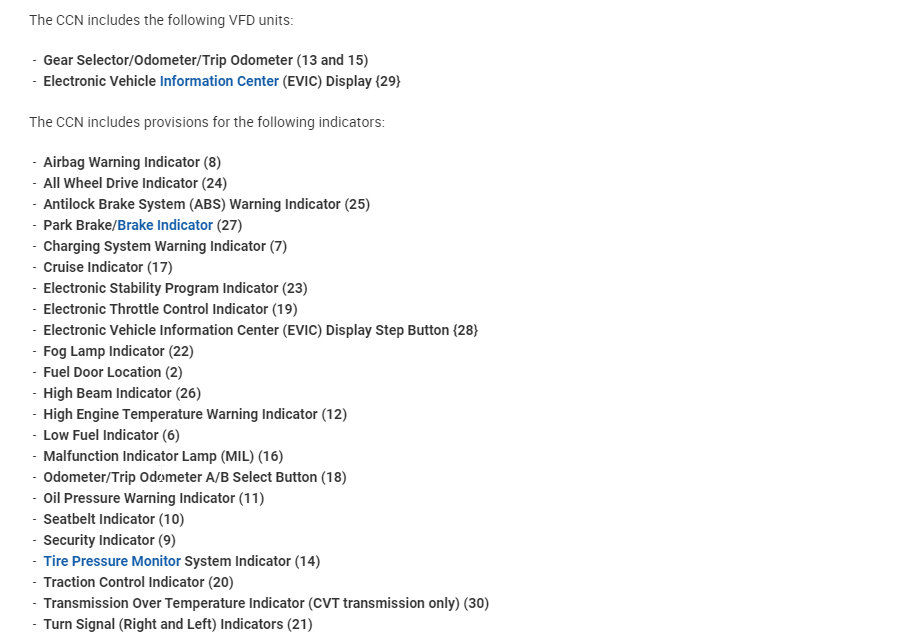

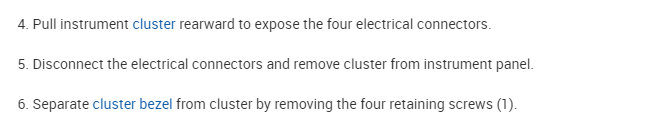

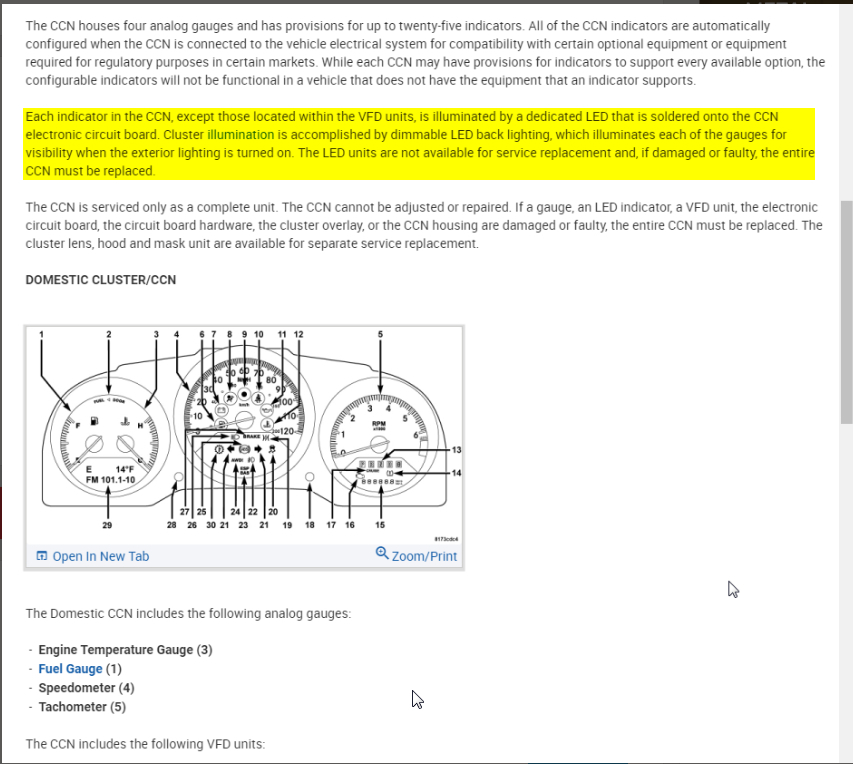

I attached the info about this and highlighted this portion.

Let me know if you have questions. Thanks

Images (Click to enlarge)

Jan 19, 2020 at 2:00 PM
