Ignition switch stuck

2006 VOLVO XC90
130,000 MILES • 4.4L • V8 • 4WD • AUTOMATIC
Avatar
[email protected]
  • MEMBER
  • 1 POST
ignition switch will not go beyond position one, steering wheel will not get out of detent position, and the transmission cannot be removed from park. The ignition keys two will work in the door. I suspect it to be a faulty ignition column lock but may be wrong. How do I remove the ignition column lock if it is defective? Will I have to drill out the two attachment rivets?
Jan 19, 2018 at 12:55 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

You might what to try moving the wheel back and forth while trying to move the key. Here is a guide that can help:

https://www.2carpros.com/articles/ignition-switch-wont-turn-stuck

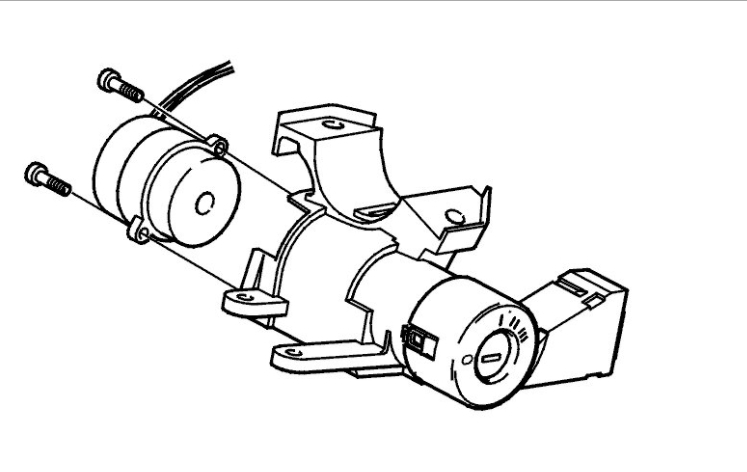

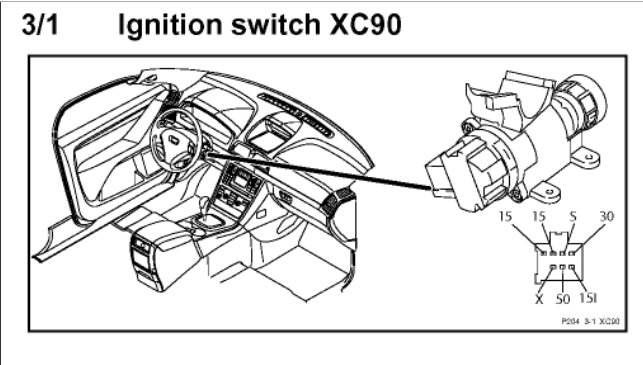

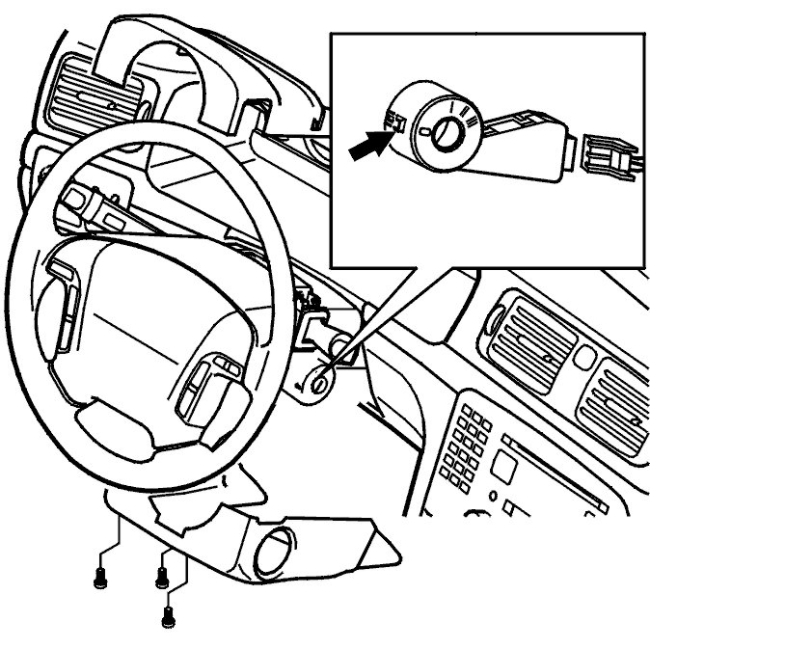

Here are some diagrams to help you change the ignition lock tumbler out. (below) you will need to drill the bolts out or see if you can catch the side with a sharp chisel.

Check out the diagrams (below).

Let us know what happens and please upload pictures or videos of the problem.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 20, 2018 at 1:29 PM
