overhead console

2006 TOYOTA TACOMA
Avatar
MRMIKE14733
  • MEMBER
  • 1 POST
How do you remove the console on a 2006 Tacoma to get compass repaired
Dec 9, 2010 at 2:23 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

REMOVE ROOF CONSOLE BOX ASSEMBLY

a. Remove the screw.
b. Disengage the 2 clips and 3 claws.
c. Disconnect the accessory meter connector and map lamp connector, and remove the roof console box.

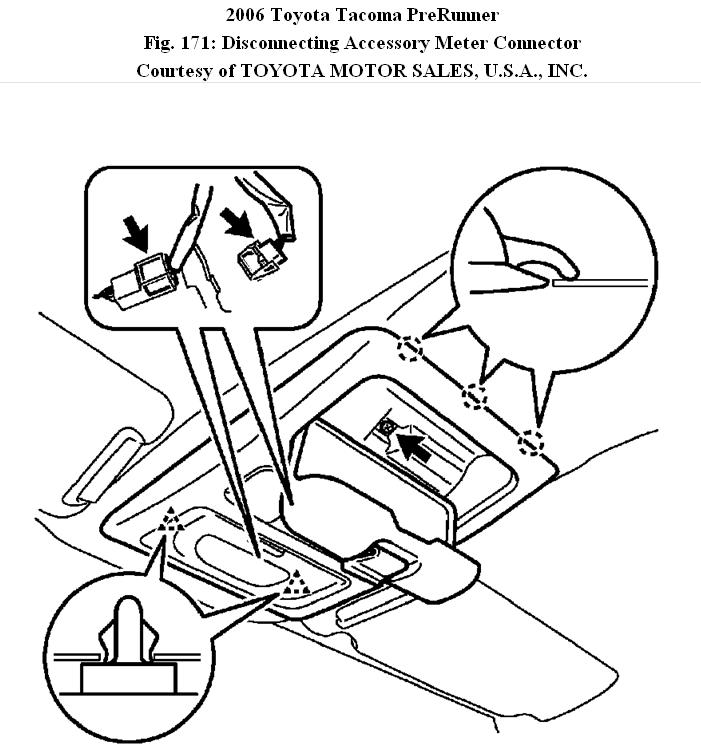

Fig. 171: Disconnecting Accessory Meter Connector & Map Lamp Connector

d. Using a clip remover, remove the wire harness clamp.

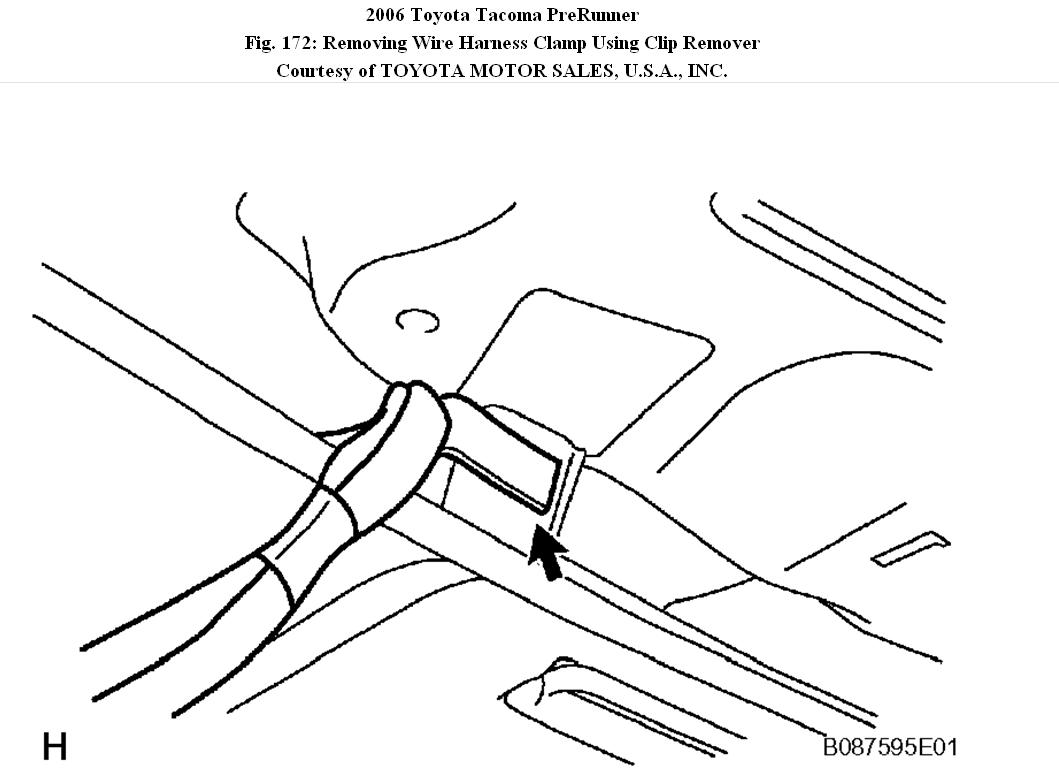

Fig. 172: Removing Wire Harness Clamp Using Clip Remover

Images (Click to enlarge)
Attached Media
Attached Media
Dec 9, 2010 at 3:07 PM
