starter location

Disconnect battery, remove nut that holds ground by starter remove bolts and electrical connectors from starter. The starter is under the intake manifold near the bell housing.

Here is a guide to help you see what you are in for when doing the job.

https://www.2carpros.com/articles/how-to-replace-a-starter-motor


Tighten: Tighten the starter solenoid terminal-to-battery cable terminal nut to 12 Nm (106 in. lbs.) , and the starter solenoid terminal-to-ignition solenoid terminal nut to 6 Nm (53 in. lbs.) .

Tighten the starter lower mounting stud ground wire nut to 12 Nm (106 in. lbs.) .

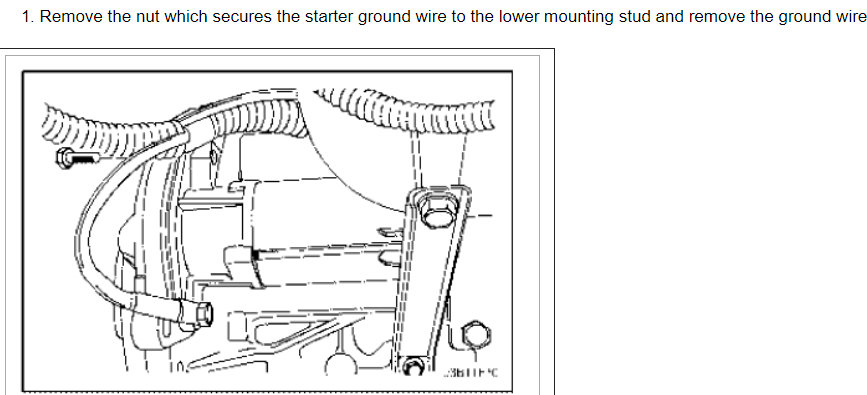

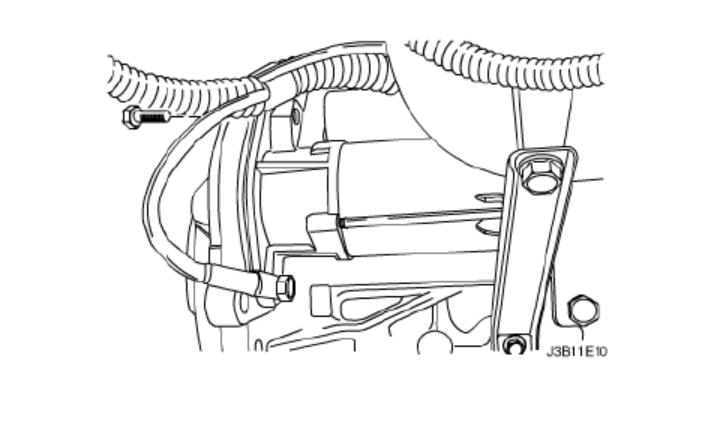

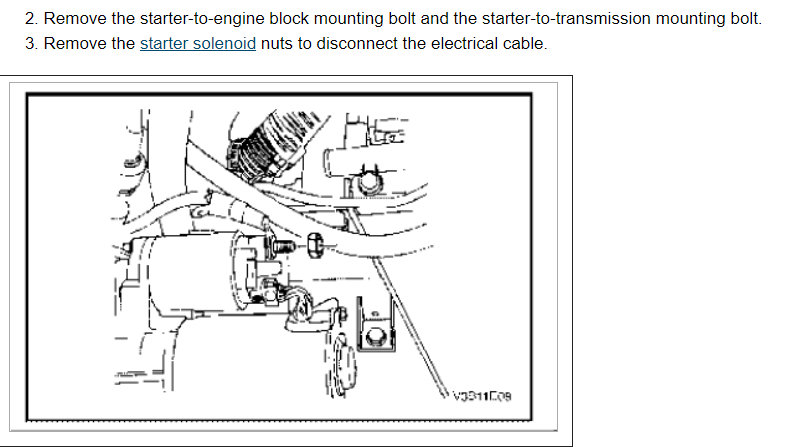

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers

This was great thank you!
