change thermostat - 2005 scion xa

2006 SCION XA
50,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
GRASCLE
  • MEMBER
  • 3 POSTS
where is the thermostat located on a 2006 Scion xA. I am flushing the coolant. Thought it would make sense to change the thermostat at the same time. 50k miles. Thank you.
Jan 18, 2011 at 6:05 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

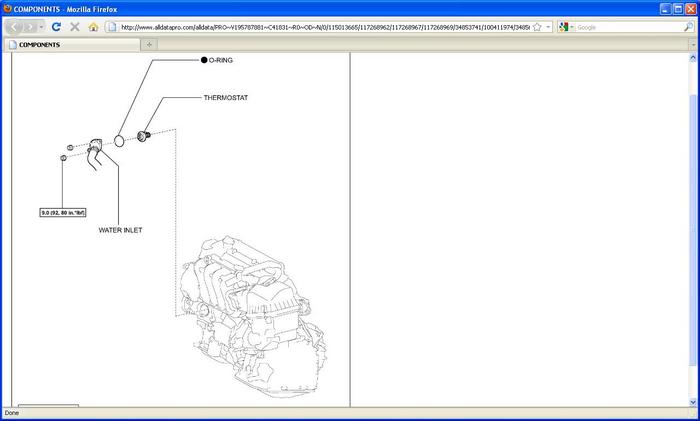

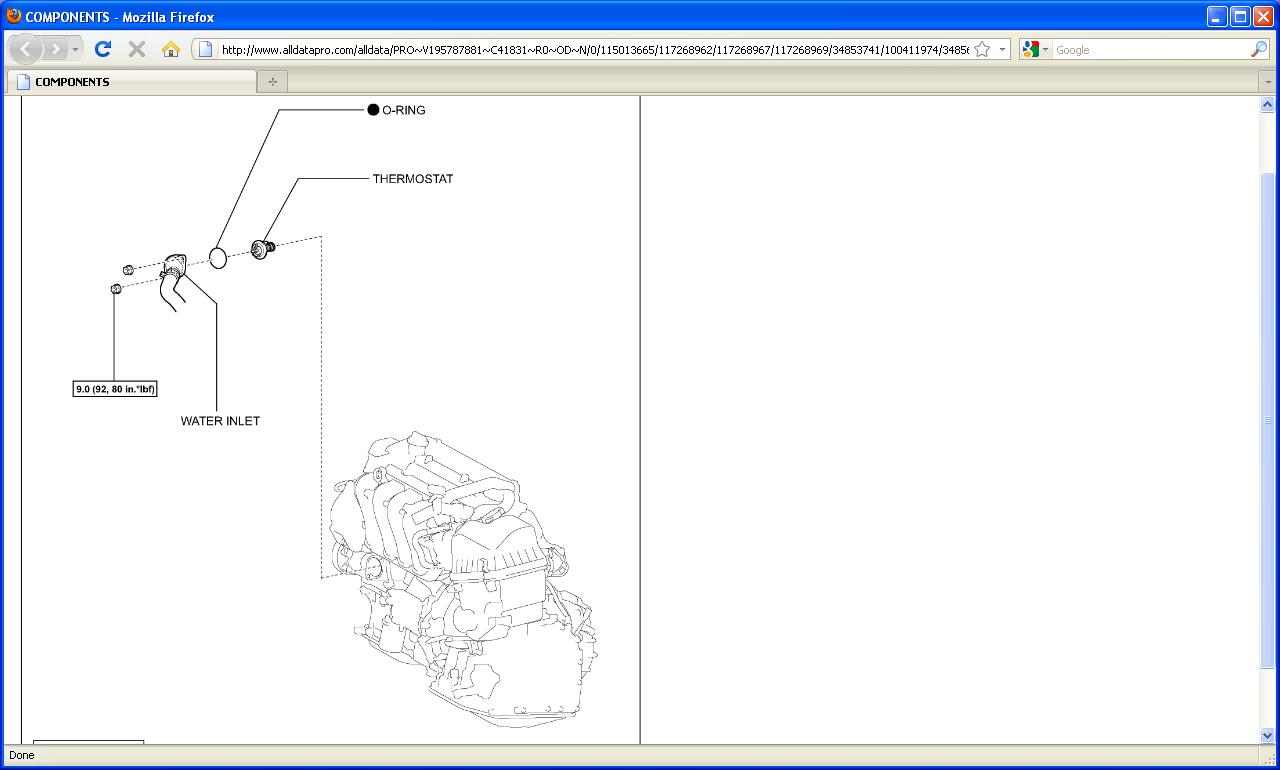

There you go i posted a diagram showing you where the thermostat is.Also you are right it's a good time to change the thermostat.
Image (Click to enlarge)
Attached Media
Jan 18, 2011 at 8:53 PM
Avatar
GRASCLE
  • MEMBER
  • 3 POSTS
Thanks - used to standard American cars where they are usually right up front on top. It is so tight under the hood you really can not see it until you know it is there. I never expected to be at that end of the system.
Jan 18, 2011 at 11:12 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
your welcome yeah the new car's they can really make thing's tight in there.Not like the good old day's when i had my 1969 caddy sedan deville i used to sit on the fender and work on the engine lol.
Jan 18, 2011 at 11:27 PM
