the serpentine drive belt is broken and the battery light is on how do i replace the serpentine drive belt can you send me some pictures?
Jun 15, 2015 at 8:13 PM
Advertisement
JACOBANDNICKOLAS
CERTIFIED EXPERT
110,175 POSTS

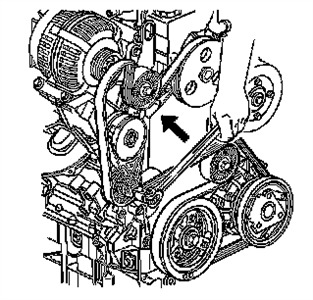

I have attached a pic of what you should be dealing with. There is a belt tensioner that will need turned to install the new belt. What to do is rout the belt so it is properly routed to each pulley. Once you do that, release the tension from the automatic tensioner and push the belt over the final pulley. On this engine, it is easiest to remove the air filter box and the inner fender on the passenger side. The inner fender will provide better access to the crank shaft pulley to help you get it started.
IF YOU WILL GO TO THE TOP OF THE PAGE, ON THE HORIZONTAL BLUE BAR
HOVER OVER "REPAIR AND SERVICE"
IT WILL DROP DOWN A LIST
CHOOSE "VIDEOS"
ANOTHER LIST WILL APPEAR
SCROLL DOWN TO THE HEADING "ENGINE MECHANICAL"
IN THIS SECTION NEAR THE BOTTOM YOU WILL SEE VIDEOS FOR A FEW OTHER SATURN CARS, MAYBE THEY ARE VERY SIMILAR
RETURN TO THIS THREAD WITH GOOD NEWS!
THE MEDIC
Jun 15, 2015 at 8:27 PM
Advertisement
JOE1953
MEMBER
772 POSTS
do I need a special tool to release tension? I couldn't get my 3/8 ratchet in there to the tension so what I did I put a piece of wire in there and tie it and then I pull up on the wire with a pipe and push the belt on was that ok to do it that way?
