The heat/ac buttons are loosing their finish. I bought a new set. I need to find out how to replace them.

2006 SAAB 9-3
80 MILES
Avatar
MCCORPSMAN
  • MEMBER
  • 4 POSTS
I can't find a Clymers or Haynes type of manual on the car. Is there somewhere I can find out how to replace them myself?
Nov 20, 2011 at 12:56 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Here for a cheap price: www.Mit1.com
Nov 20, 2011 at 1:03 AM
Avatar
MCCORPSMAN
  • MEMBER
  • 4 POSTS
Thanks to everyone for their help. Having a hard time navigating the site. Yes, those are the buttons I need to replace.
Nov 23, 2011 at 12:36 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Has the problem been resolved?
Nov 23, 2011 at 1:56 PM
Avatar
MCCORPSMAN
  • MEMBER
  • 4 POSTS
I think I've sussed how to reply correctly; no, I still can't figure out how to remove the necessary pieces to get the old buttons out and the new ones in. It's my wife's car and this will be her Christmas present.
Nov 23, 2011 at 6:28 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
KHLow -do you have any type of information on this-if you do can you take it. Wrong link above

https://www.2carpros.com/articles/mitchell1eautorepair-car-repair-manuals
Nov 23, 2011 at 8:14 PM
Avatar
MNTHNY4
  • CERTIFIED EXPERT
  • 612 POSTS
all u need to do is ,take acc panel out ,use a plastic tool or a very small pocket screw driver preferred ,to remove front panel cover ,put that aside ,now take the new ones that u bought & break the tabs off for each button one at a time ,so the same button that u took off that is the same one u will be replacing on the control panel just take your time ,the only 2 buttons that may be a little difficult to remove is the buttons for the temp adjustment this is where the pocket screw driver comes in handy to pry outer edge & wiggle next side loose,just remember to do them one at a time .good luck.
Nov 23, 2011 at 9:06 PM
Avatar
MNTHNY4
  • CERTIFIED EXPERT
  • 612 POSTS
oh by the way the acc panel is just pushed in place so this is where u use the plastic flat tool or even the same pocket screw driver to pry panel out & just unplug the 2 connectors at this back also use the screw driver to release connector locks,good luck again and sorry for the waiting time for the info ,sorry that i do not have pics to help u alone ,you may need to read post over a few time to get the picture of how to perform repairs .
Nov 23, 2011 at 9:13 PM
Avatar
MNTHNY4
  • CERTIFIED EXPERT
  • 612 POSTS
please post back if info help at all please ,thanks
Nov 23, 2011 at 9:14 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

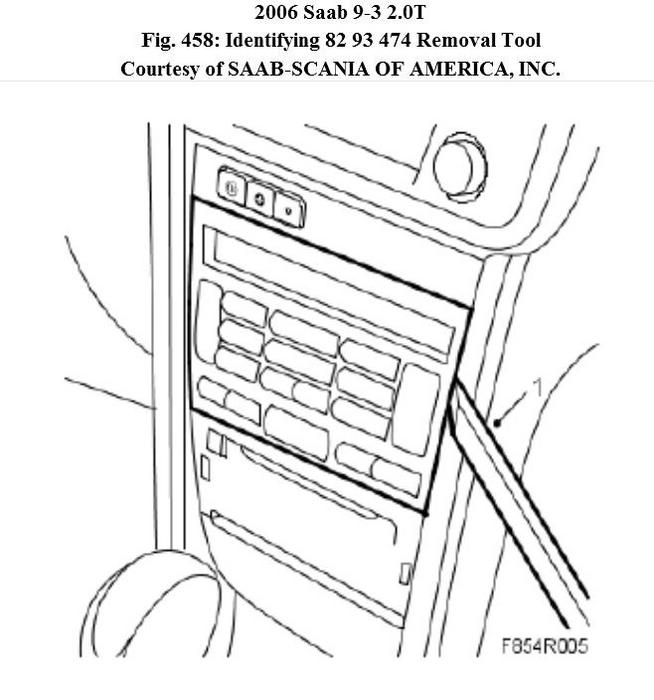

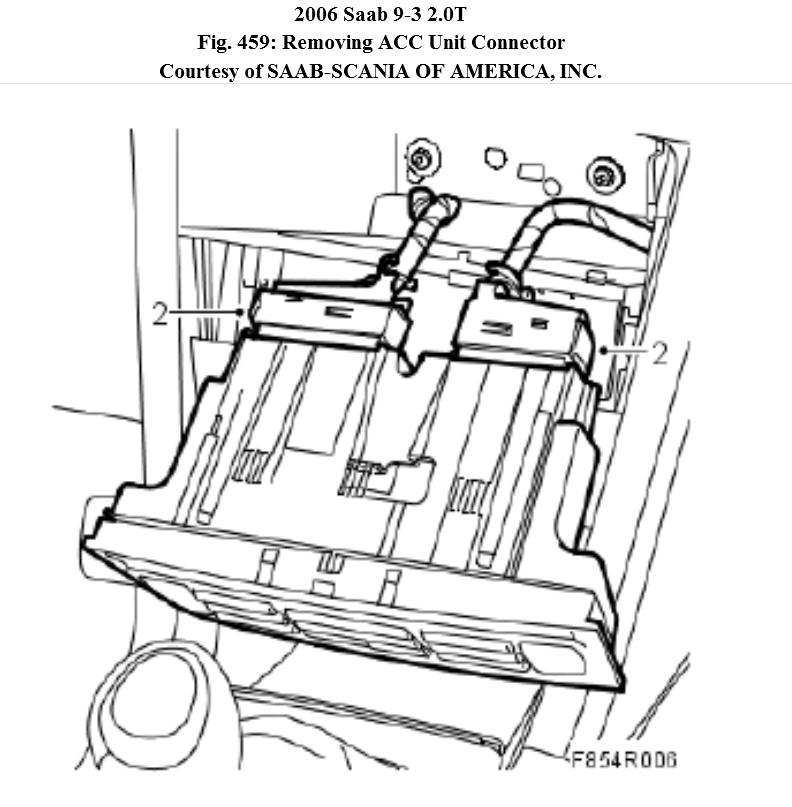

I could only find this 2 diagrams.
Nov 24, 2011 at 2:18 PM
