how to replace thermostat in a 06 pontiac g6 3.5L ?

2006 PONTIAC G6
232,000 MILES
Avatar
  • MEMBER
  • 1 POST
i need step by step and possibly pictures or a diagram of some sort ?
Nov 5, 2011 at 3:15 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Here is a guide that will show you what you are in for when doing the job along with a diagram (below) of what it will be like on your car.

https://www.2carpros.com/articles/replace-thermostat

Here is the instruction from the book

THERMOSTAT HOUSING REPLACEMENT (3.5L )

Removal Procedure

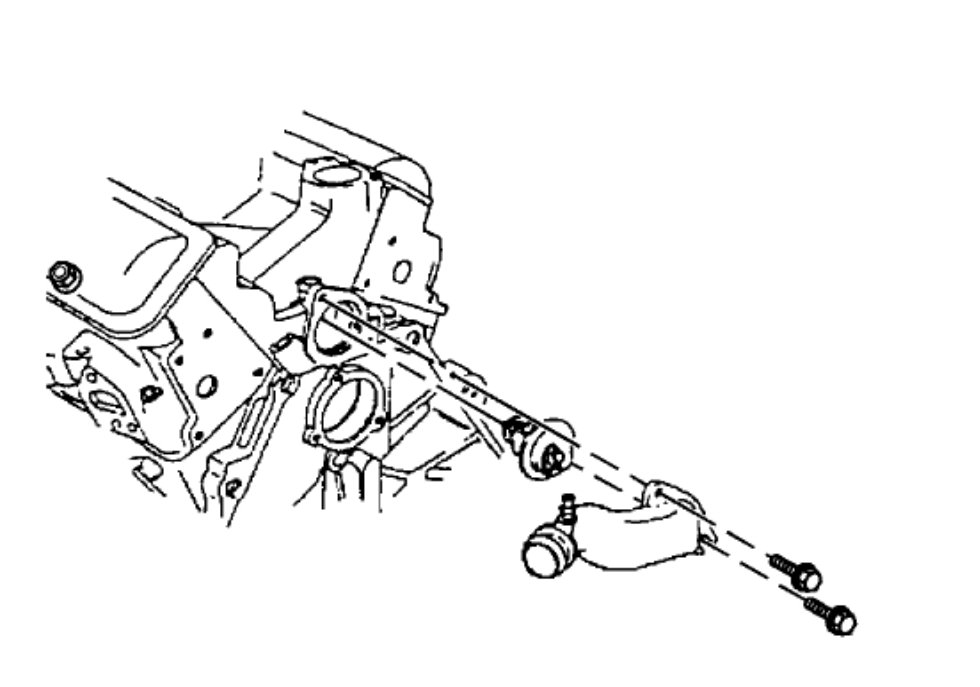

Fig. 114: Thermostat & Housing Outlet
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system. Refer to Draining and Filling Cooling System.
2. Remove the air cleaner outlet duct. Refer to Air Cleaner Intake Duct Replacement for the 3.5L engine.
3. Disconnect the surge tank hose from the coolant outlet.
4. Remove the thermostat housing to intake manifold bolts.
5. Remove the thermostat housing outlet and thermostat.

Installation Procedure

Fig. 115: Thermostat & Housing Outlet
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring
replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or
corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may
damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

1. Install the thermostat and housing outlet.

NOTE: Refer to FASTENER NOTICE .

2. Install the thermostat housing bolts.

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Oct 3, 2017 at 9:15 PM
Avatar
RICHANGLER
  • MEMBER
  • 1 POST
how do I change thermostat on 2006 Pontiac G6 six cylinder?
Oct 3, 2017 at 9:16 PM (Merged)
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
it depends on which one you have the 3.5L is on the end of the inlet manifold and the 3.9 is on the side by the water pump. both have hoses going to them. you need to drain the cooling system down, remove the hose from the housings, remove the bolts and remove the thermostat. REverse teh procedure for installation. torque bolts to 25nm or 18 ' lbs.
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
ELEEVAL
  • MEMBER
  • 1 POST
I need to replace the thermostat.
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
JIS001
  • CERTIFIED EXPERT
  • 3,412 POSTS
Remove the air cleaner housing and then remove house. Remove the bolts and to remove thermostat housing. When you fill, open bleeder valve on housing until coolant comes out. Re-tighten and warm up engine and open bleeder slowly until all air is out. Good luck.
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
HOOAH_90
  • MEMBER
  • 2 POSTS
I just had my 2007 pontiac g6 v6 in the shop. the thermostat gauge was stuck, wasnt rising as I was driving. it just stayed at 100. the check engine light was on aslo. The mechanic replace the thermostat and it was ok for 1 day. well the gauge dropped back down to 100 and the light came back on. my heater is working. not as strong as it use to. what should I do? take it back and trust the mechanic or take it to a dealership.
Also, Is it safe to drive or do you see a major problem with me driving it?
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
It sounds like it may have a defective thermostat but I would take it back to the guy that installed it so he can at least check for a problem. You might want to insist that he use OEM parts next time.
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
JSB429
  • MEMBER
  • 1 POST
Engine Performance problem
2007 Pontiac G6 6 cyl All Wheel Drive Automatic 62000 miles

how do I replace my thermostat on my 2007 pontic g6
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Do you have a 3.5 3.6 or 3.9L engine?Let me know so i can get you the correct information.
Oct 3, 2017 at 9:16 PM (Merged)
Avatar
RAMIROH
  • MEMBER
  • 1 POST
where is the thermostat on a pontiac G6
2007 3.5
Oct 3, 2017 at 9:17 PM (Merged)
Avatar
PROTECH1980
  • MEMBER
  • 901 POSTS
As your standing looking at engine follow radiator hose on your right from radiator to t stat housing.
Oct 3, 2017 at 9:17 PM (Merged)
Avatar
GMTECH
  • CERTIFIED EXPERT
  • 537 POSTS
Why is the engine light coming on. Usually wherever you go will have a package deal for the flush. 60 to 100 and depending on the price of the thermostat another 50 to 100 bucks
