2006 Pontiac G6 AC Evaporator

I'm going to try this for the 3rd time. I keep getting a blank page and it doesn't send. Ugh!

Remove HVAC module assembly

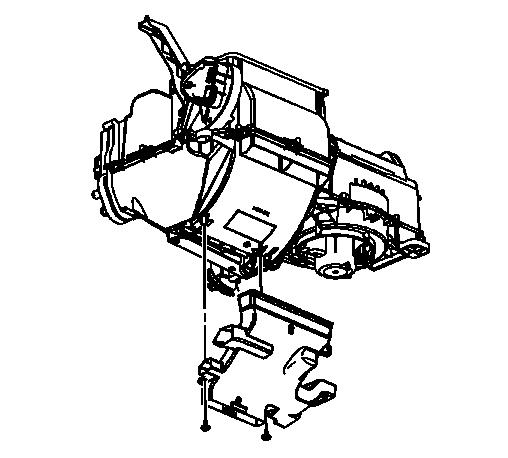

Remove the center floor air outlet duct screws (pic 1) (pic 2)
Remove the center floor air outlet duct

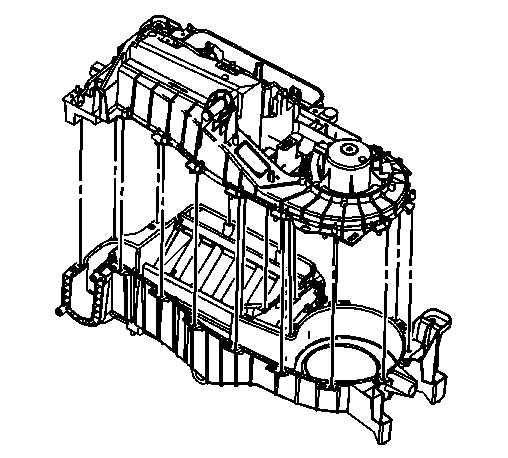

Drill out the lower HVAC module case heat stakes
Remove the lower HVAC module case

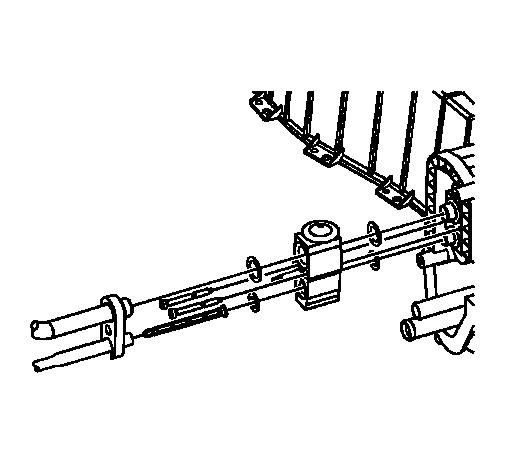

Remove the thermal expansion valve screws (pic 3)
Remove the thermal expansion valve
Remove and discard the sealing washers

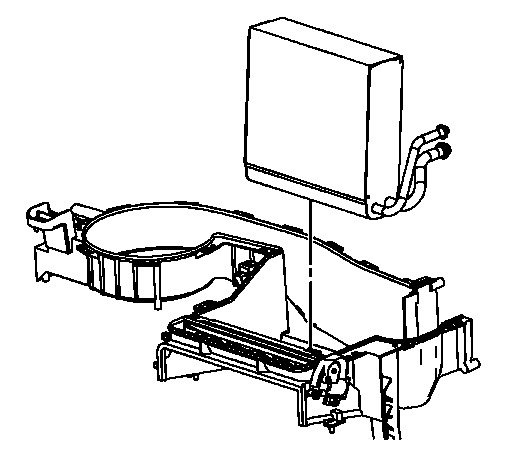

Remove the evaporator (pic 4)

NOTE: I have been having uploading pics. If you don't receive them, let me know. I will try to explain.

Thanks for the info. I have the heater core out and thermal expansion valve out along with 1/2 of the CenterFloor Outlet Duct apart but for some reason I can not get the back left side to drop down or come apart. I did some prying but heard the plastic making a not so favorable sound so I stopped. There is something holding it together next to the firewall. I looked everywhere for a hidden bolt or plastic stake but didn't see anything. Do you have an idea of what might be holding it together. If you get a change I can be reached during the day at 330-922-2026 or my home 330-812-0123 if you need addtional info. I have been working on cars for more than 35 yrs. and have never seen anything like this.

Thanks Tim

Tim:

Is it the floor duct work that you can't get apart?

Joe
