I am changing my car four calipers and brake pads now after fixing i am getting a trouble code for the ABS module I need to replace it.
Dec 30, 2014 at 6:51 PM
My ABS module is bad how can I replace it?
2006 NISSAN PATHFINDER
SHAFEEQ
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Here is a guide that will help with replacing this module:
https://www.2carpros.com/articles/how-to-replace-a-abs-controller
You will need to bleed the system after the replacement so here is a guide that will help with this as well:
https://youtu.be/w7gUsj2us0U

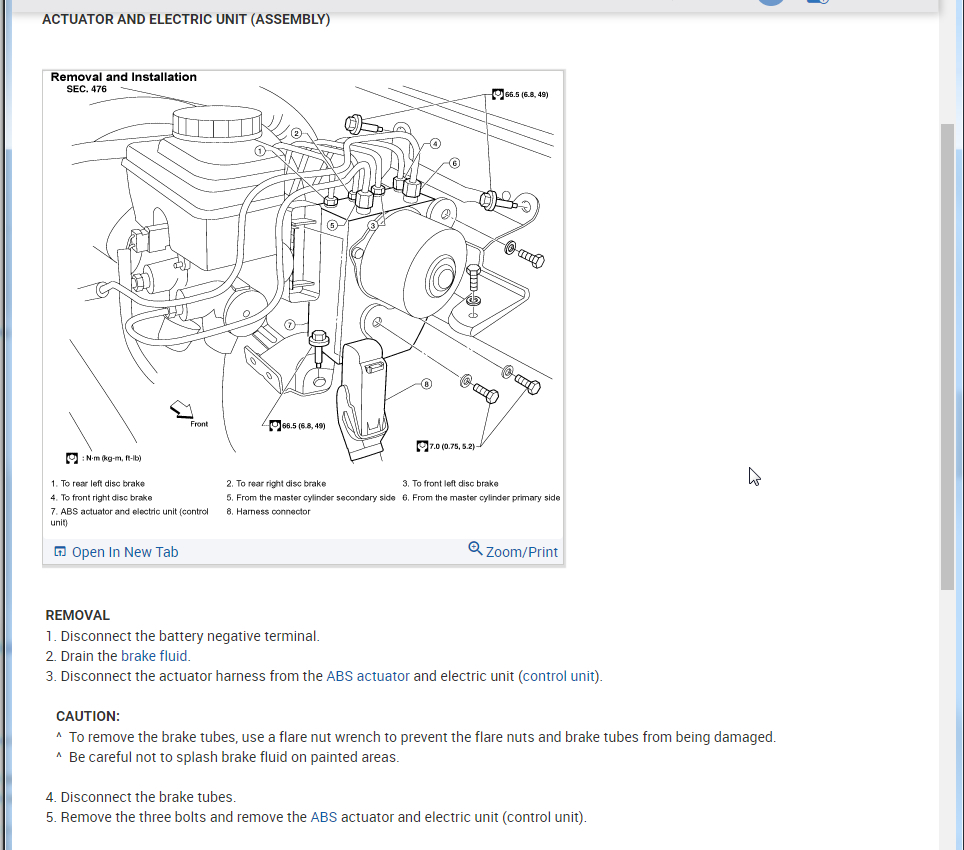

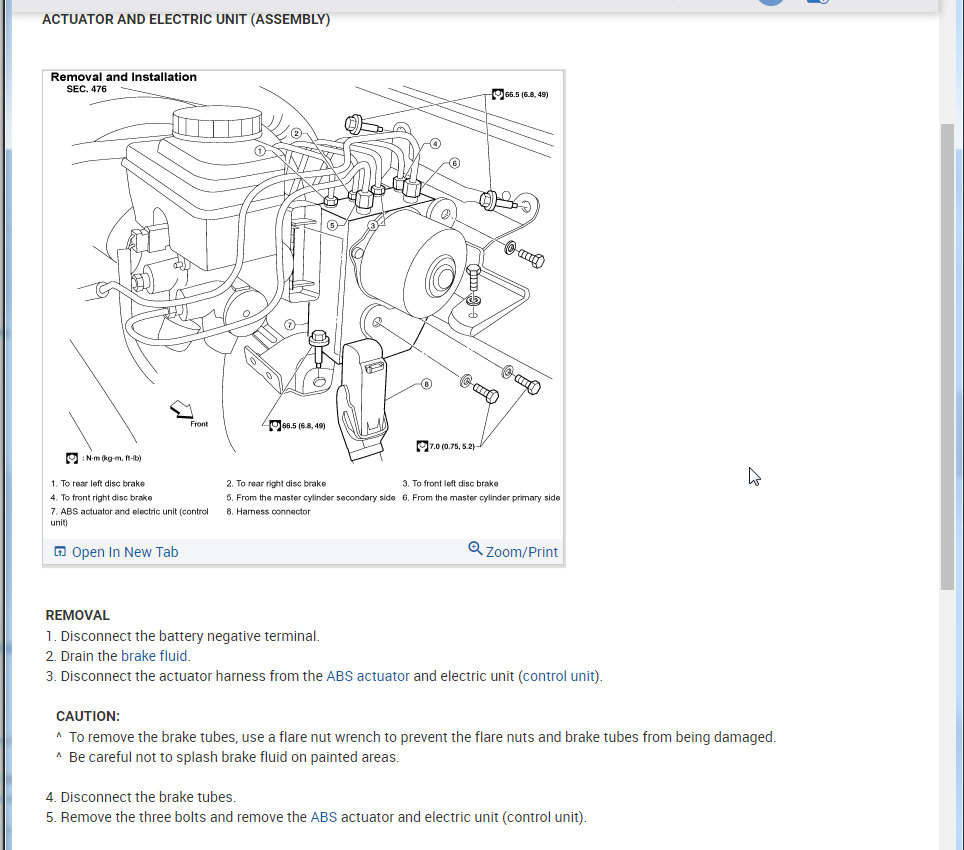

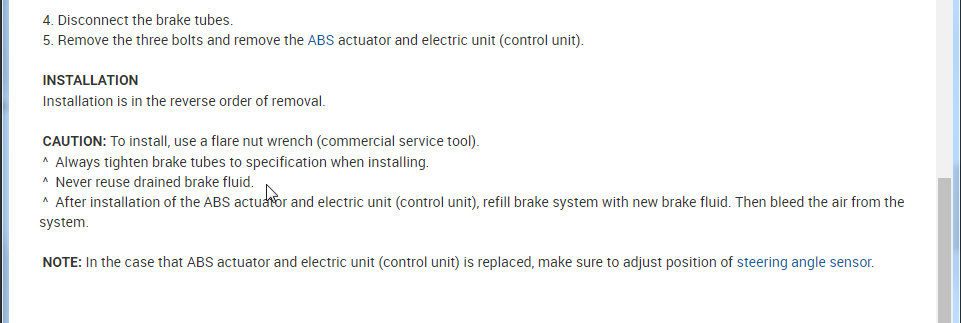

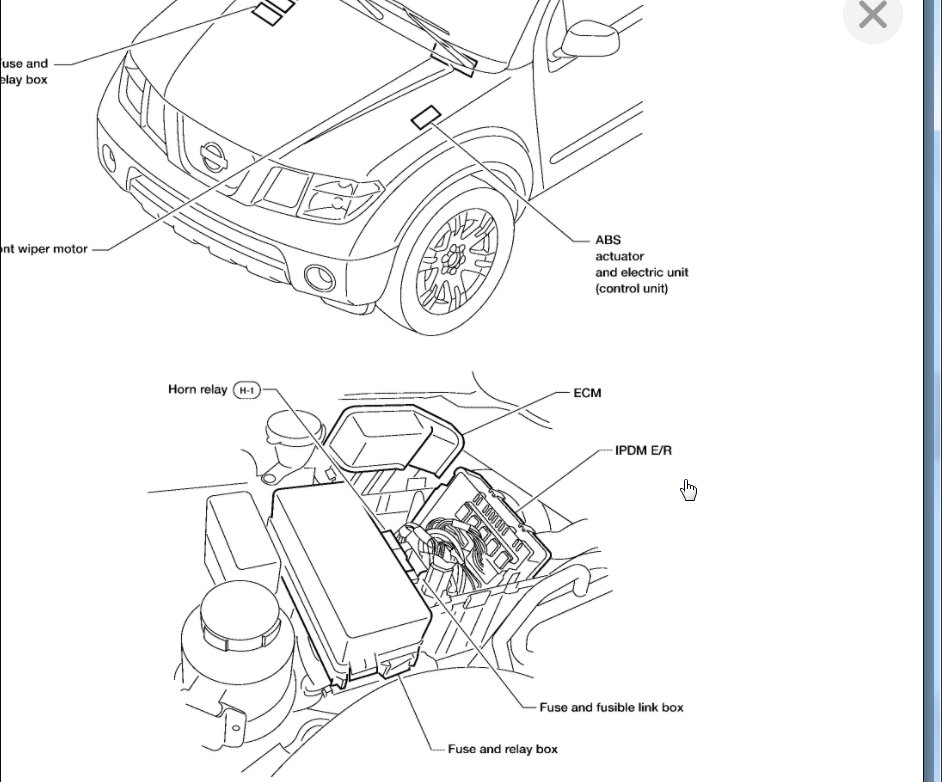

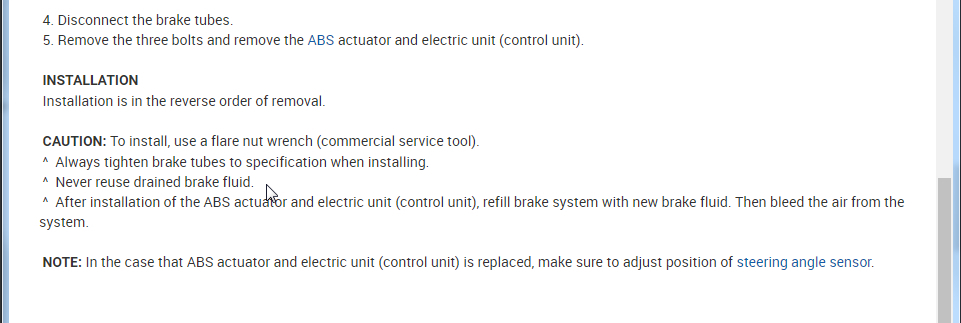

Below is the process from the manual that will help with this as well.
Please let us know if you have other questions. Thanks
https://www.2carpros.com/articles/how-to-replace-a-abs-controller
You will need to bleed the system after the replacement so here is a guide that will help with this as well:
https://youtu.be/w7gUsj2us0U
Below is the process from the manual that will help with this as well.
Please let us know if you have other questions. Thanks
Images (Click to enlarge)
May 11, 2021 at 3:11 PM
