spark plugs

2006 NISSAN MURANO
Avatar
WORRELD
  • MEMBER
  • 1 POST
how to change spark plugs?
May 17, 2011 at 10:32 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
It is a coil on plug system so you have to remove the coil cover and then each individual coil and the plugs are below. this guide should help as well

https://www.2carpros.com/articles/how-to-change-spark-plugs

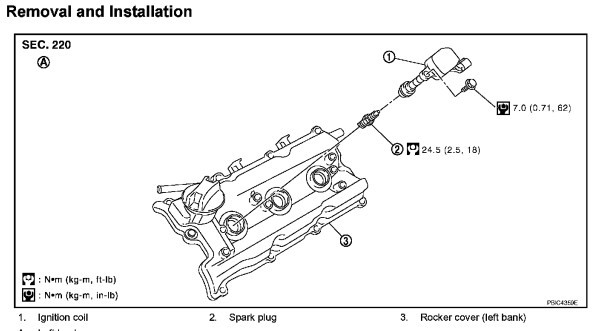

Check out the diagrams (Below). Please let us know what you find.
Image (Click to enlarge)
Attached Media
May 17, 2011 at 10:53 PM
