where is the output speed sensor located at. and is it a difficult process to get it changed?
Oct 18, 2012 at 7:43 PM
output speed sensor location
2006 MITSUBISHI GALANT
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,

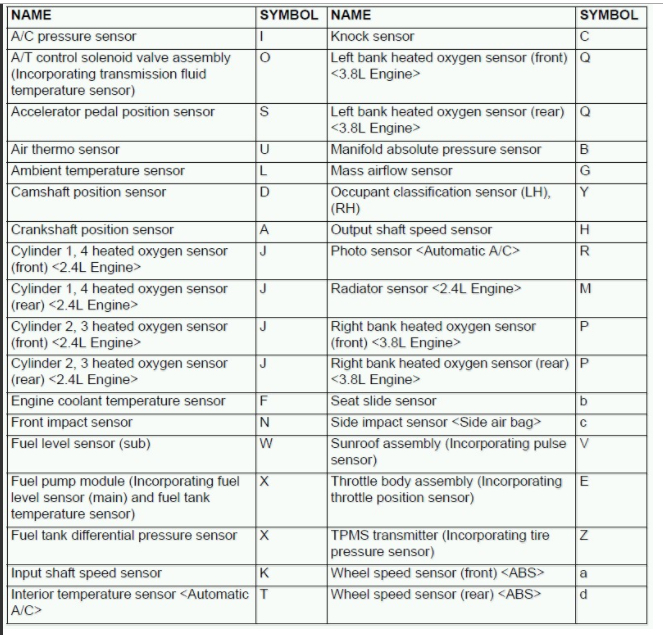

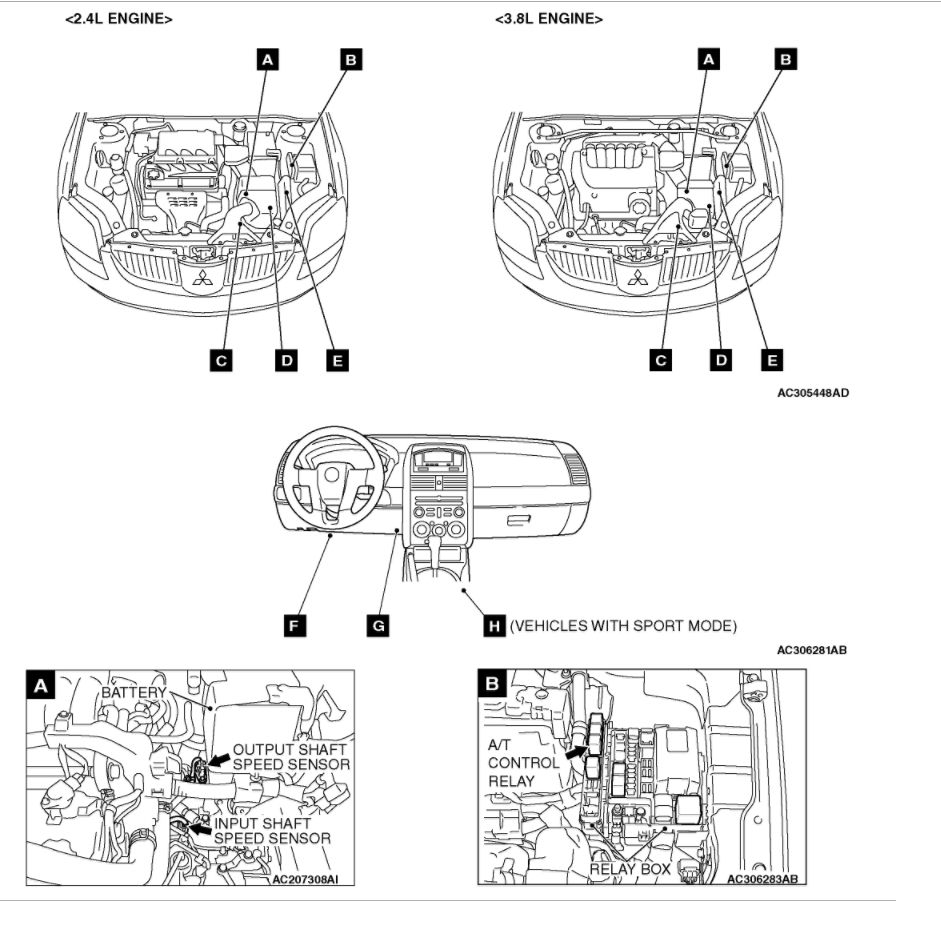

The output shaft speed sensor or vehicle speed sensor is mounted on top of transmission rear and easily accessible. Here are diagrams (below) of the input and output shaft speed sensors.
Check out the diagrams (Below)
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
The output shaft speed sensor or vehicle speed sensor is mounted on top of transmission rear and easily accessible. Here are diagrams (below) of the input and output shaft speed sensors.
Check out the diagrams (Below)
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Images (Click to enlarge)
