How many spark plugs do a 2006 Zephyr have and where are they located. I easily see three on top but I can not locate the others.
Jun 1, 2011 at 12:59 AM
Spark plugs
2006 LINCOLN ZEPHYR
MSJACK18
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hey MSJACK18

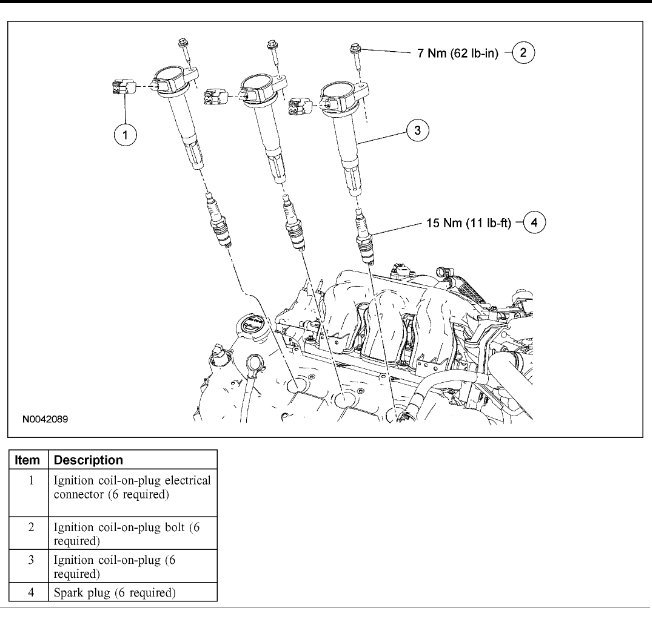

The other spark plugs are under the intake manifold. Here is a guide and some diagrams to help get the problem fixed with diagrams below to show you how on your car
https://www.2carpros.com/articles/how-to-change-spark-plugs
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
The other spark plugs are under the intake manifold. Here is a guide and some diagrams to help get the problem fixed with diagrams below to show you how on your car
https://www.2carpros.com/articles/how-to-change-spark-plugs
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
