Windows not working

2006 LINCOLN NAVIGATOR
157,900 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
My windows won't go up or down, the power mirror would work periodically then stop, the power locks would work then wouldn't. When I use the key fob to lock the Navigator it opens and locks! I know there is a 30 amp relay, I tried to replace it with a 10 amp relay but nothing happened! I will buy a 30 amp relay today and see what happens? I have no power to the drivers side window/door lock/pwr mirror control on door handle? Any suggestions? Maybe a short? Has anyone encountered this type of problem?
Apr 10, 2013 at 6:00 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

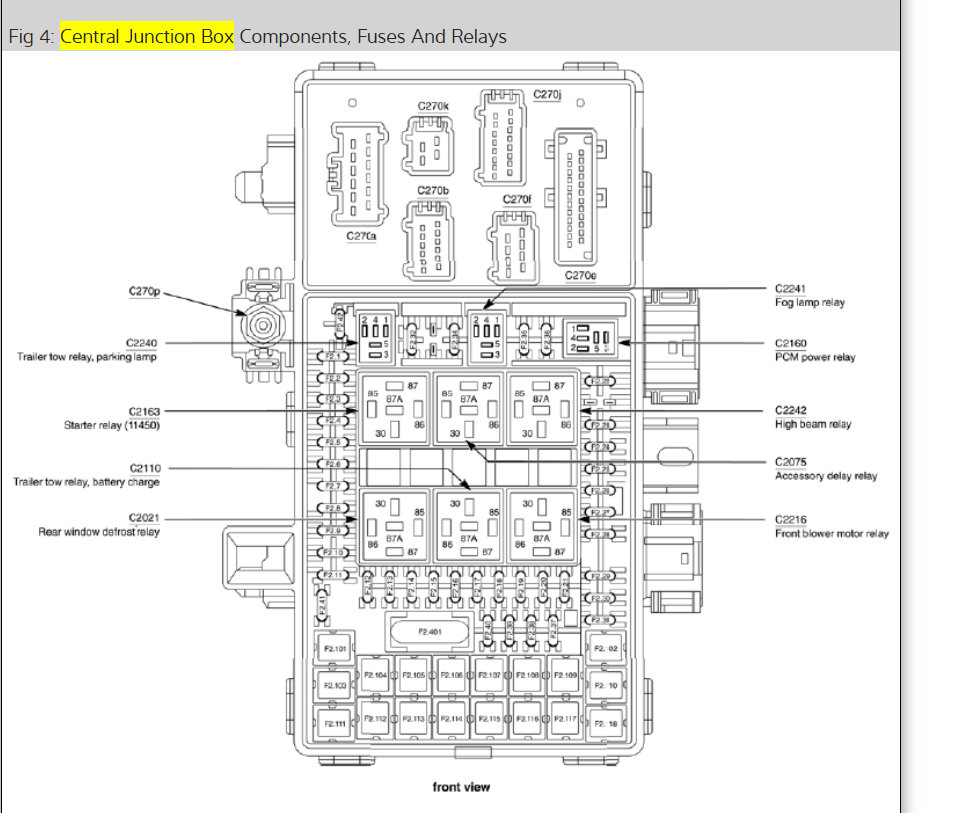

There is an accessory delay relay that needs to be checked here is a guide to help and the location of the relay so you can test it.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

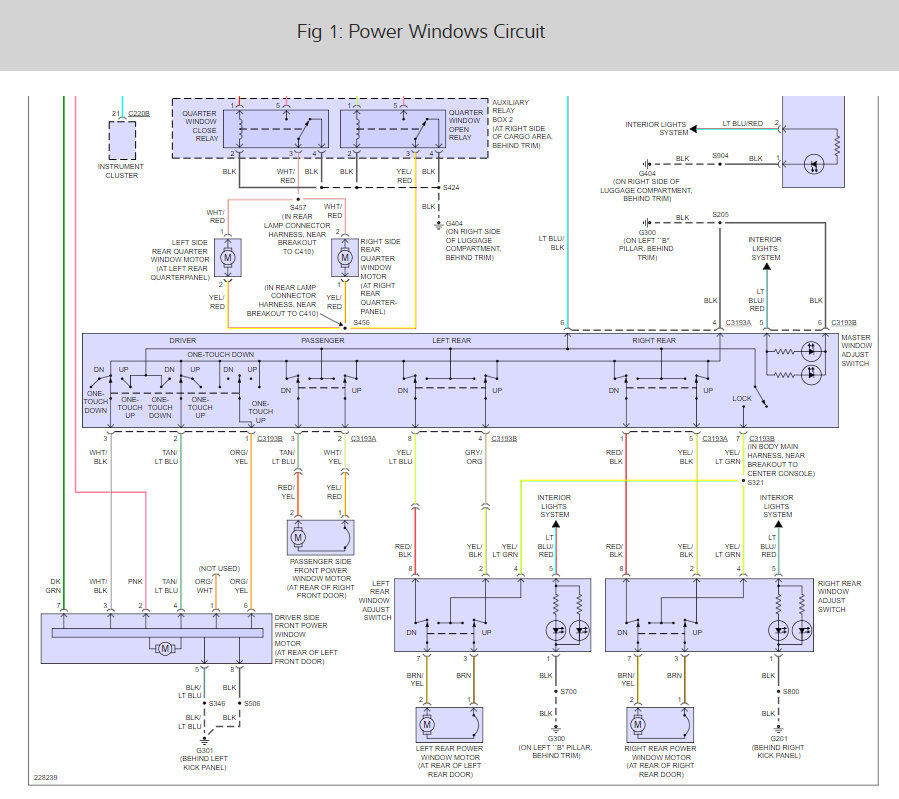

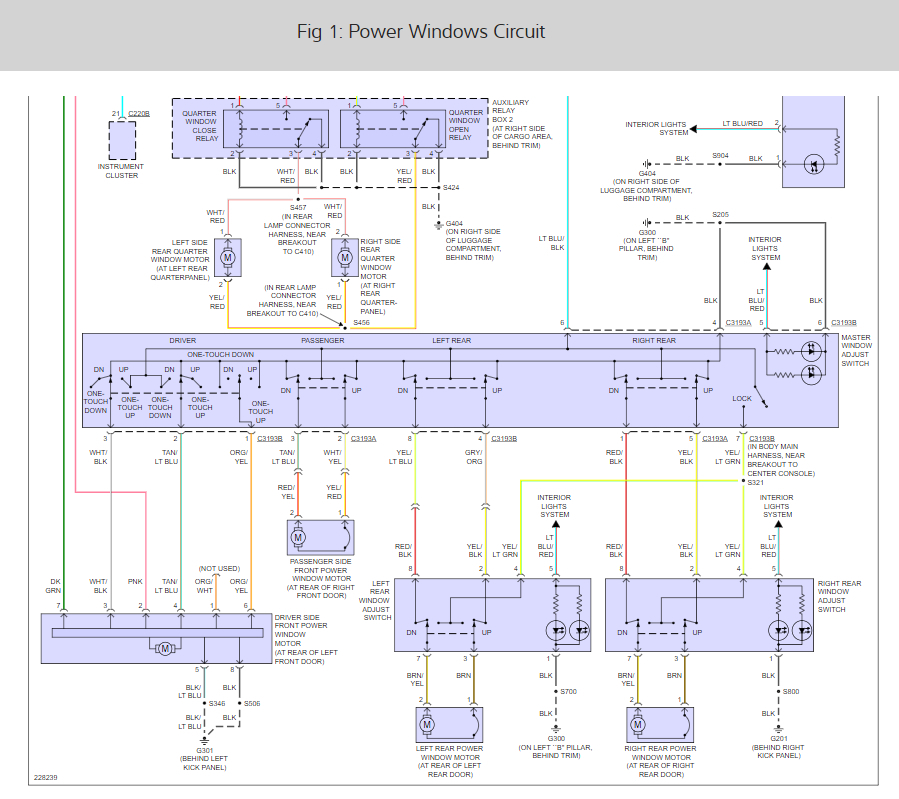

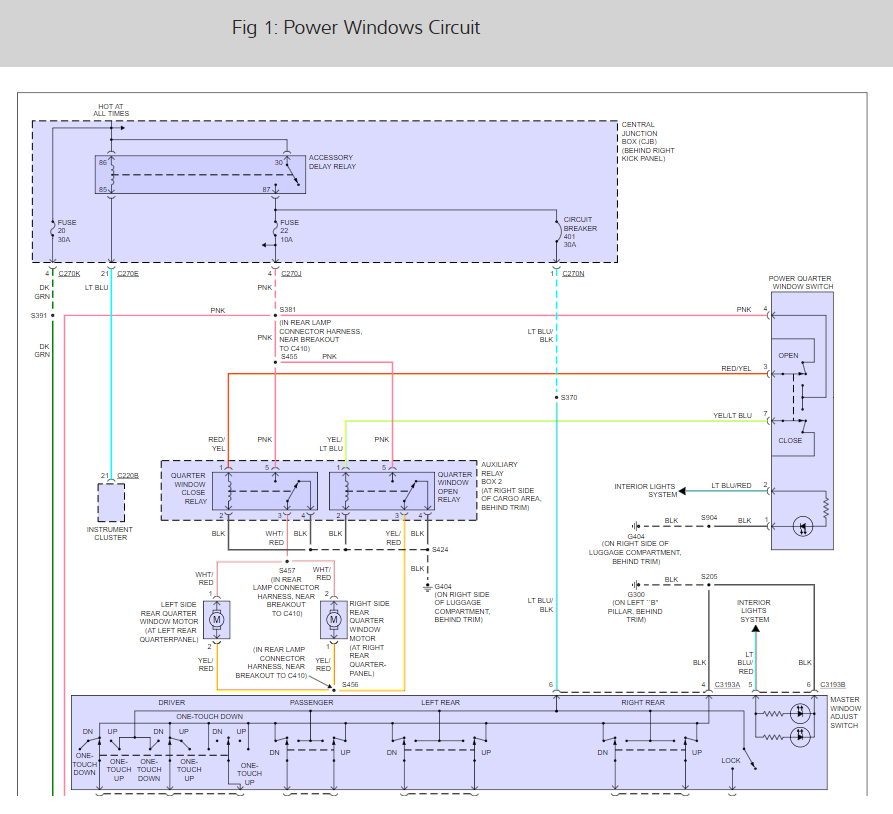

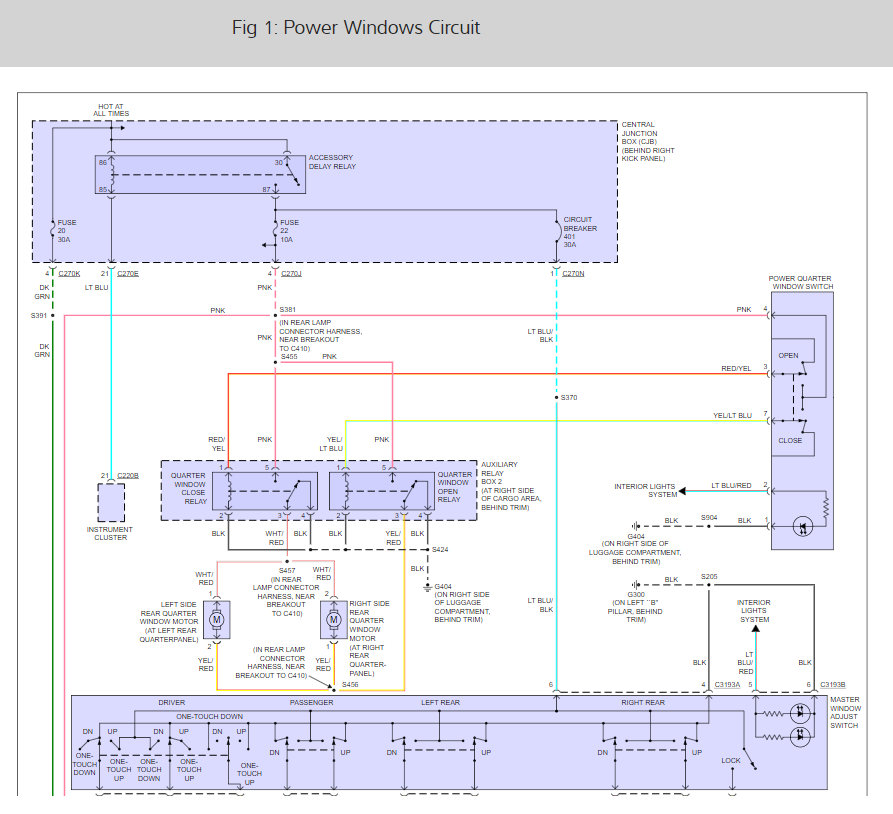

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

Apr 14, 2013 at 10:38 AM
Avatar
BOOPERIII
  • MEMBER
  • 1 POST
Thank you for this post I had this problem had to replace the relay cost me $34.00. I love this site
Feb 7, 2019 at 10:30 AM
