2006 KIA SPORTAGE
90,000 MILES
Avatar
NONNIE1888
  • MEMBER
  • 1 POST
trying to remove my rear brake discs, but they won't come off, they move out a little then move back in, i've tried hand brake on and off, and i'm at a loss.
is there a knack to it, or am i just missing something out?
any help plzzzz
Nov 11, 2012 at 10:56 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
The handbrake shoes are holding the rotor. You need to loosen the hadnbrake adjustments to allow the disc to come off.

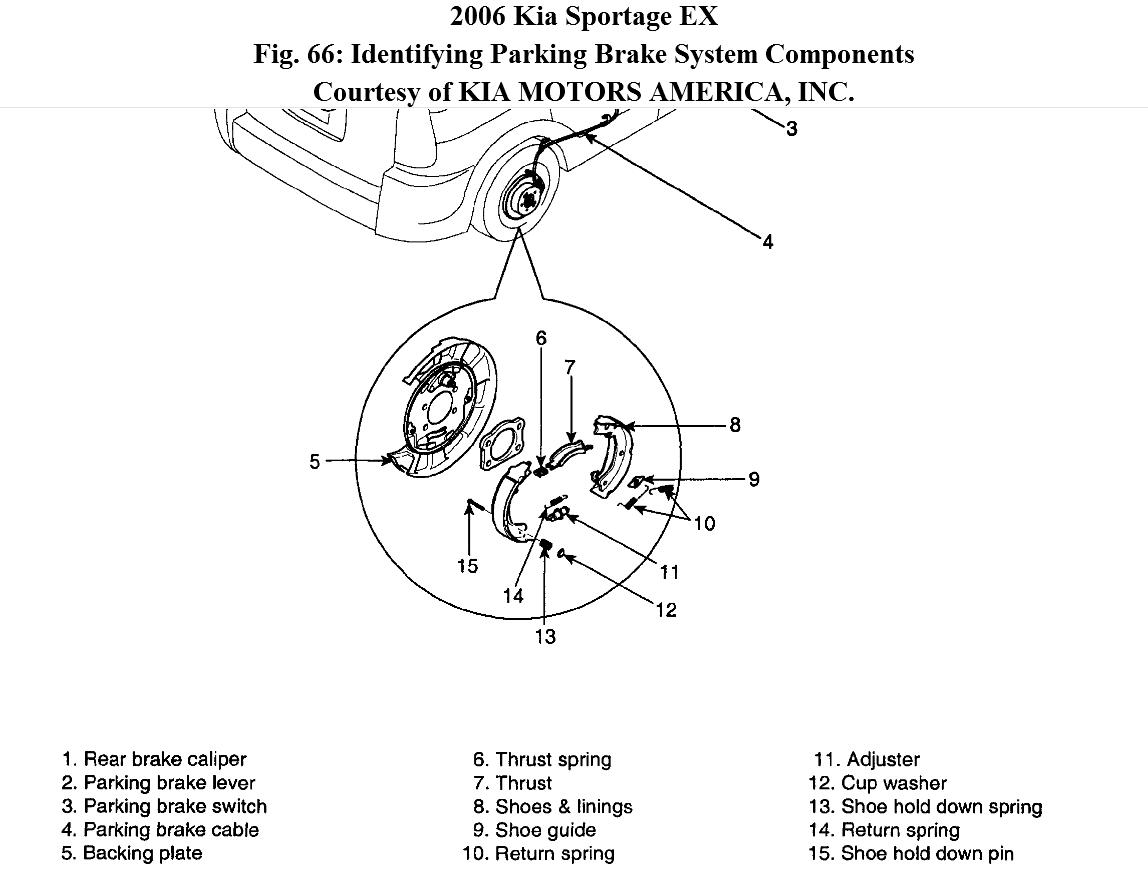

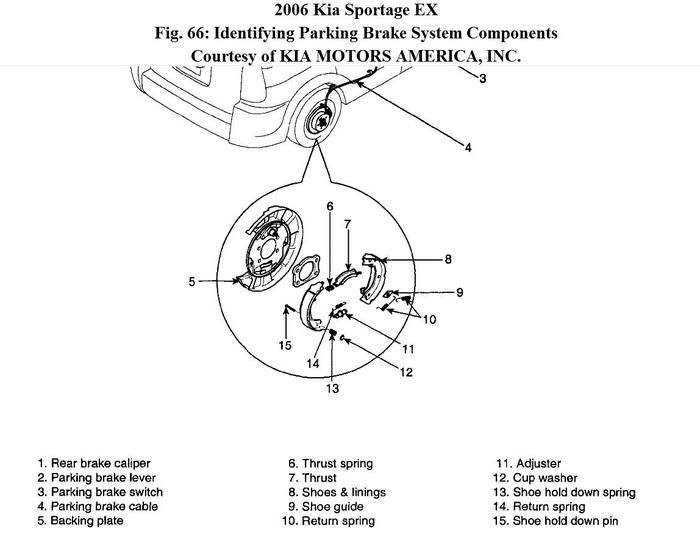

Turn the adjuster (item # 11) untill the shoes are free.
Image (Click to enlarge)
Attached Media
Nov 12, 2012 at 5:48 PM
