Where is the location of the crankshaft position sensor?

2006 KIA SPECTRA

90,000 MILES

A.HAMILTONIII

MEMBER
4 POSTS
FOLLOW

I'm working on replacing the crankshaft position sensor in my 2006 KIA Spectra EX, but i'm having trouble locating this particular sensor. Can you please show me or send me a picture showing the location of the crankshaft position sensor in my 2006 KIA Spectra EX? Thanks

Oct 15, 2011 at 4:17 PM

DRCRANKNWRENCH

CERTIFIED EXPERT
3,380 POSTS

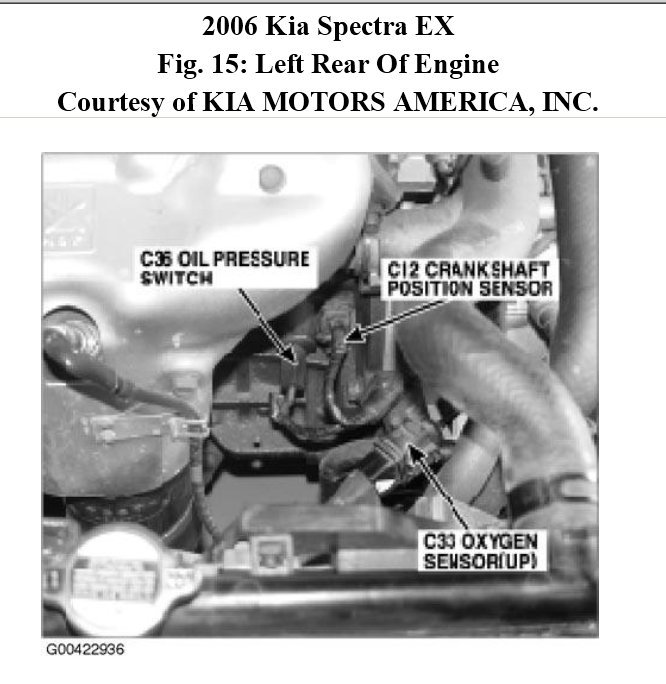

Here is an image, it is on the left rear of the engine block. Here is a guide to show you step by step how to replace the sensor and a diagrams click to enlarge it below.

https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers

Image (Click to enlarge)

Mar 27, 2021 at 11:48 AM
