Isuzu
NPR
Exterior Light
Headlight
Not Working
No headlights
2006 ISUZU NPR
84,000 MILES
ANONYMOUS
MEMBER
1 POST
FOLLOW
lost headlights no current to fuses where is the headlight relay?
Dec 20, 2012 at 5:48 PM
Advertisement
STRAILER
CERTIFIED EXPERT
53,854 POSTS

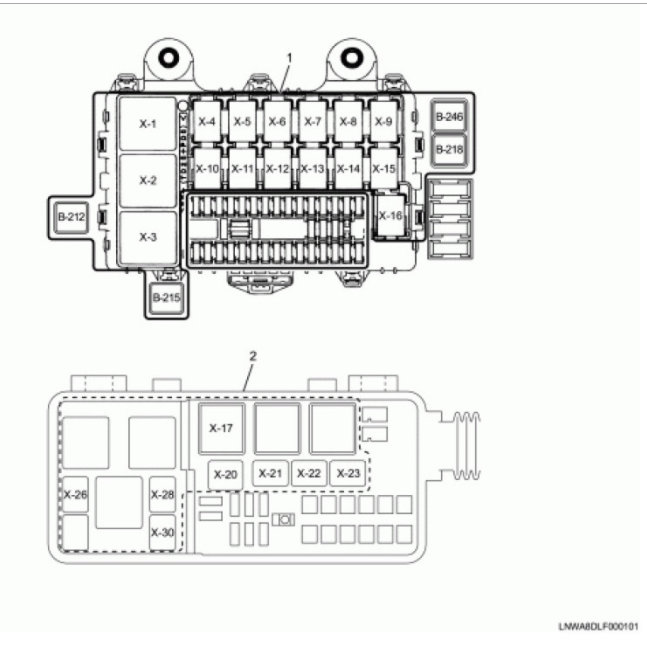

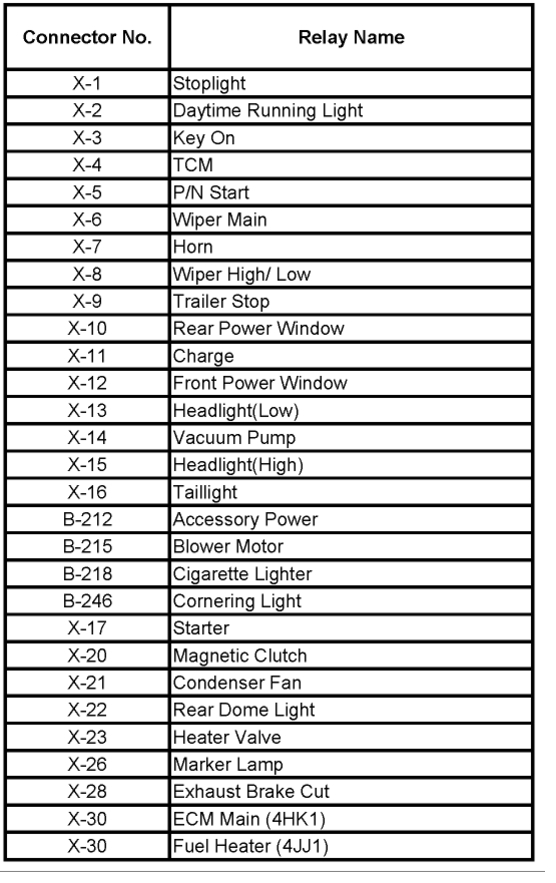

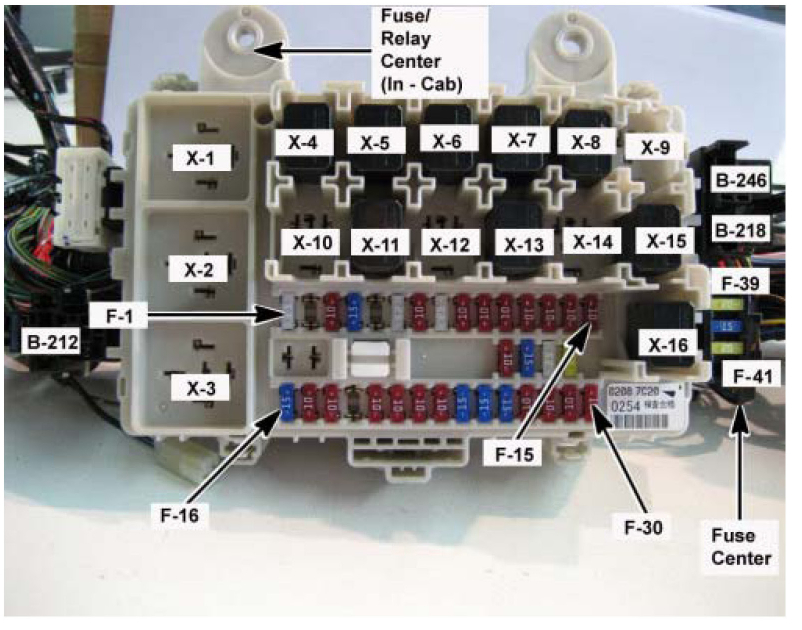

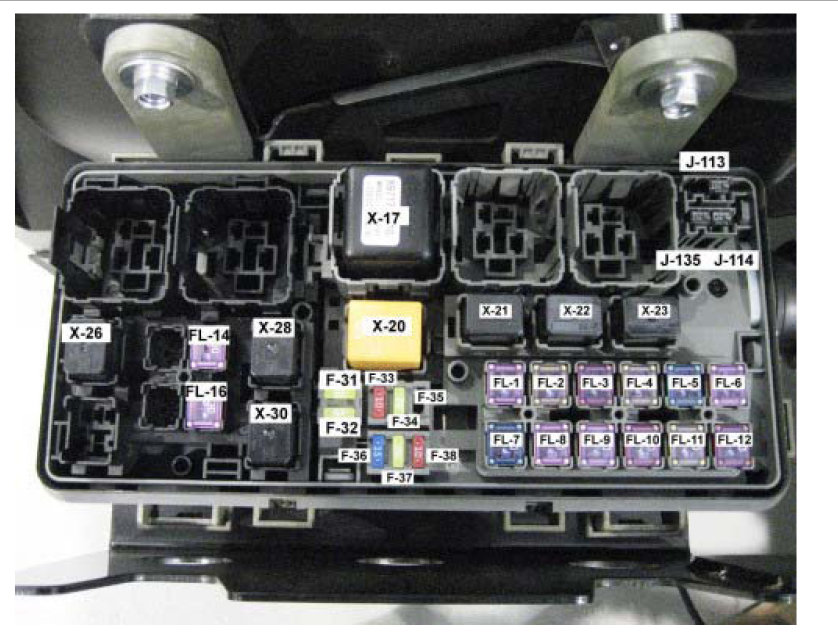

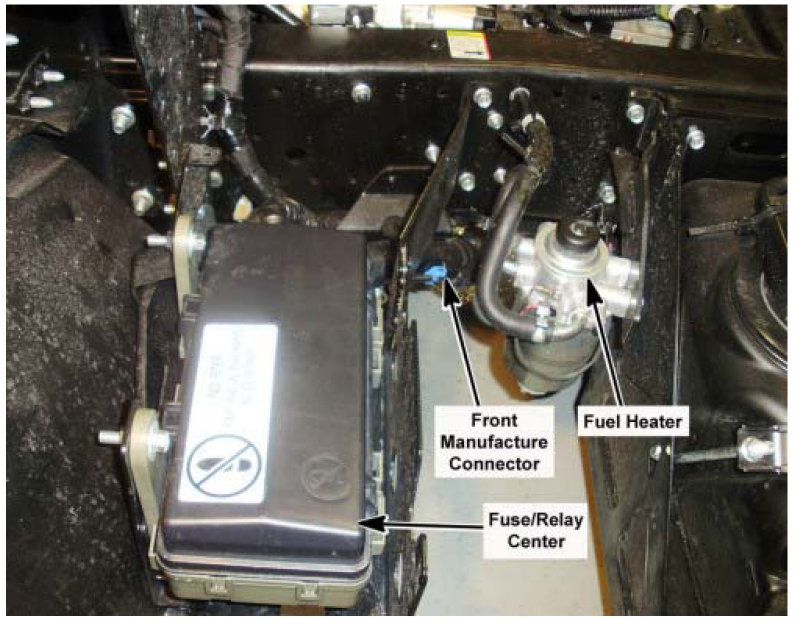

I have found this diagrams (below) and guides for you so you can do some testing and get the job done.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
and
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
and
https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Images (Click to enlarge)
Sep 8, 2017 at 12:47 PM
