2006 Hyundai Sonata horn not working

2006 HYUNDAI SONATA
116,401 MILES
Avatar
DENNISGADDY
  • MEMBER
  • 1 POST
The horn on my 2006 Hyundai Sonato is not working ,neither will the security activate sound .Which is connected to the horn. I have checked the fuses in the interior panel and hood panel. If the fuses are ok,could there be a bad relay ?
Jun 2, 2013 at 8:07 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

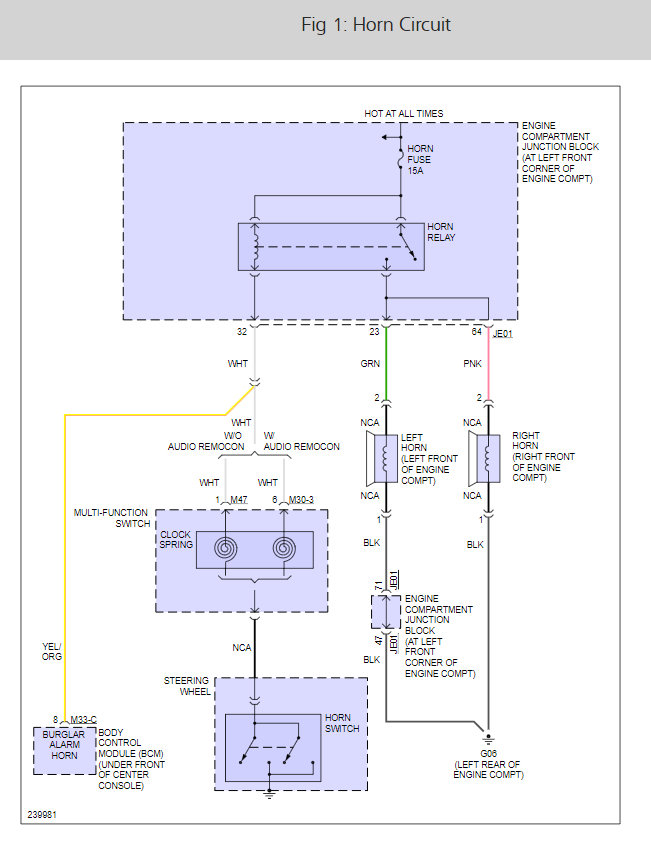

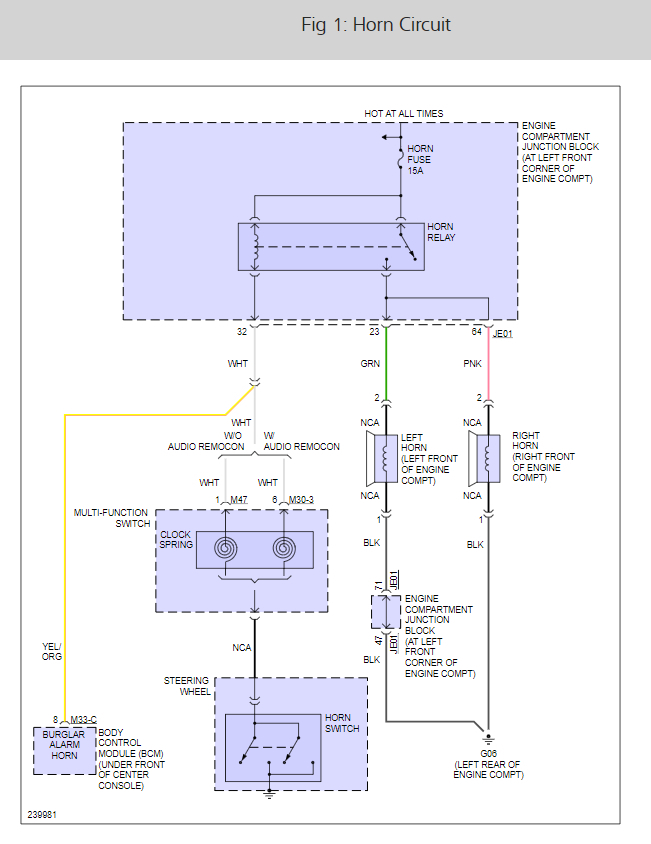

It sounds like you have a horn relay that is not working. Here is a wiring diagrams and a guide so you can check for power.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

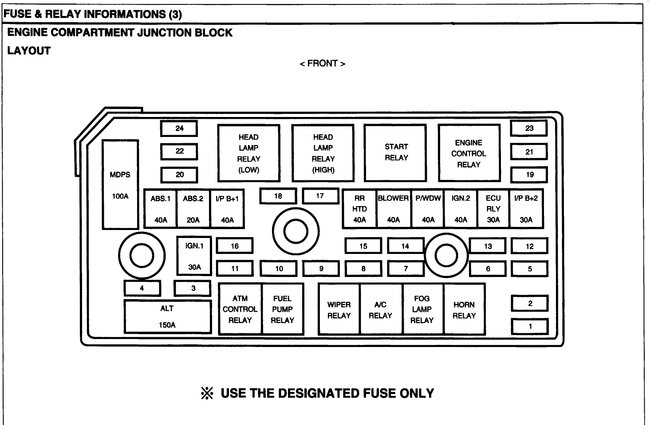

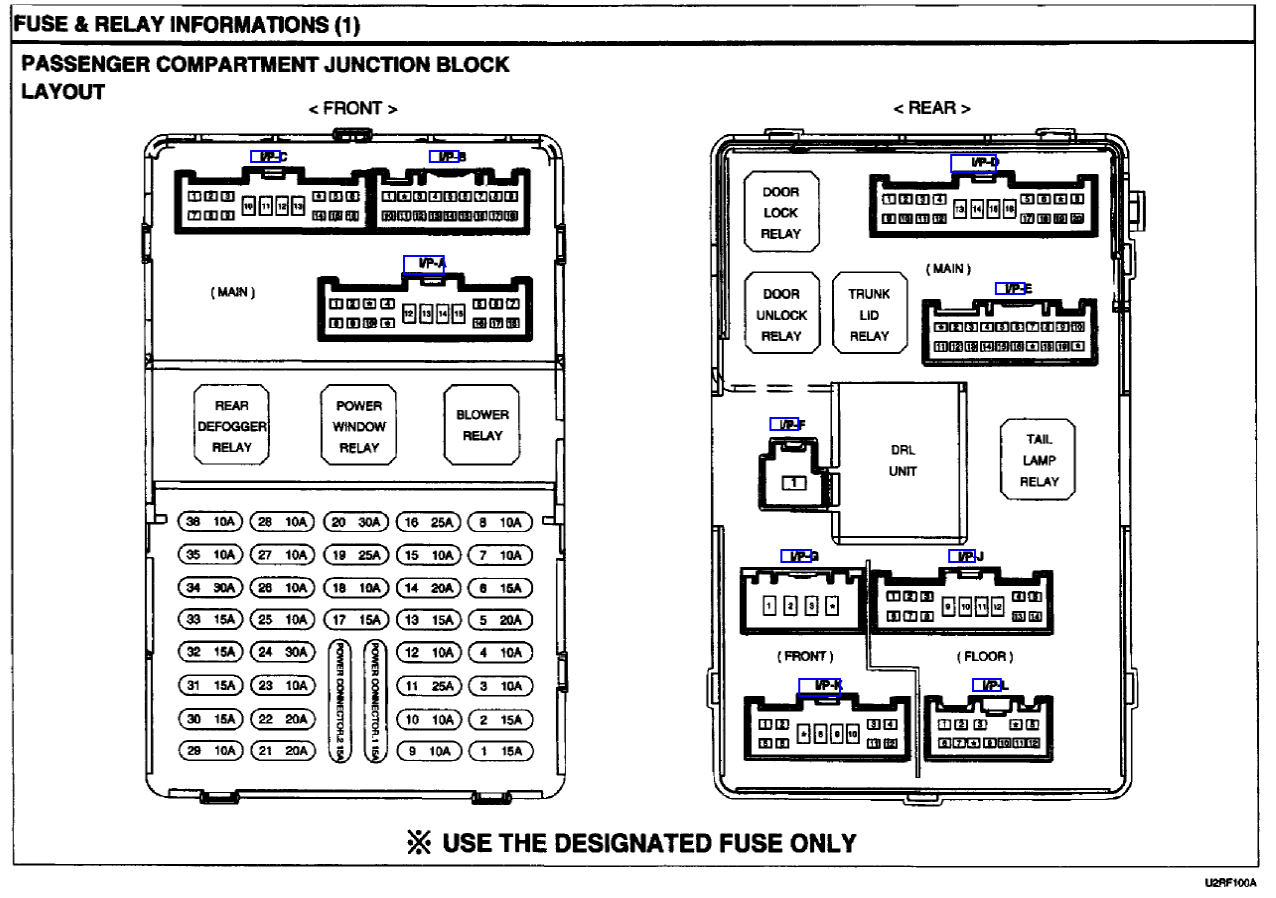

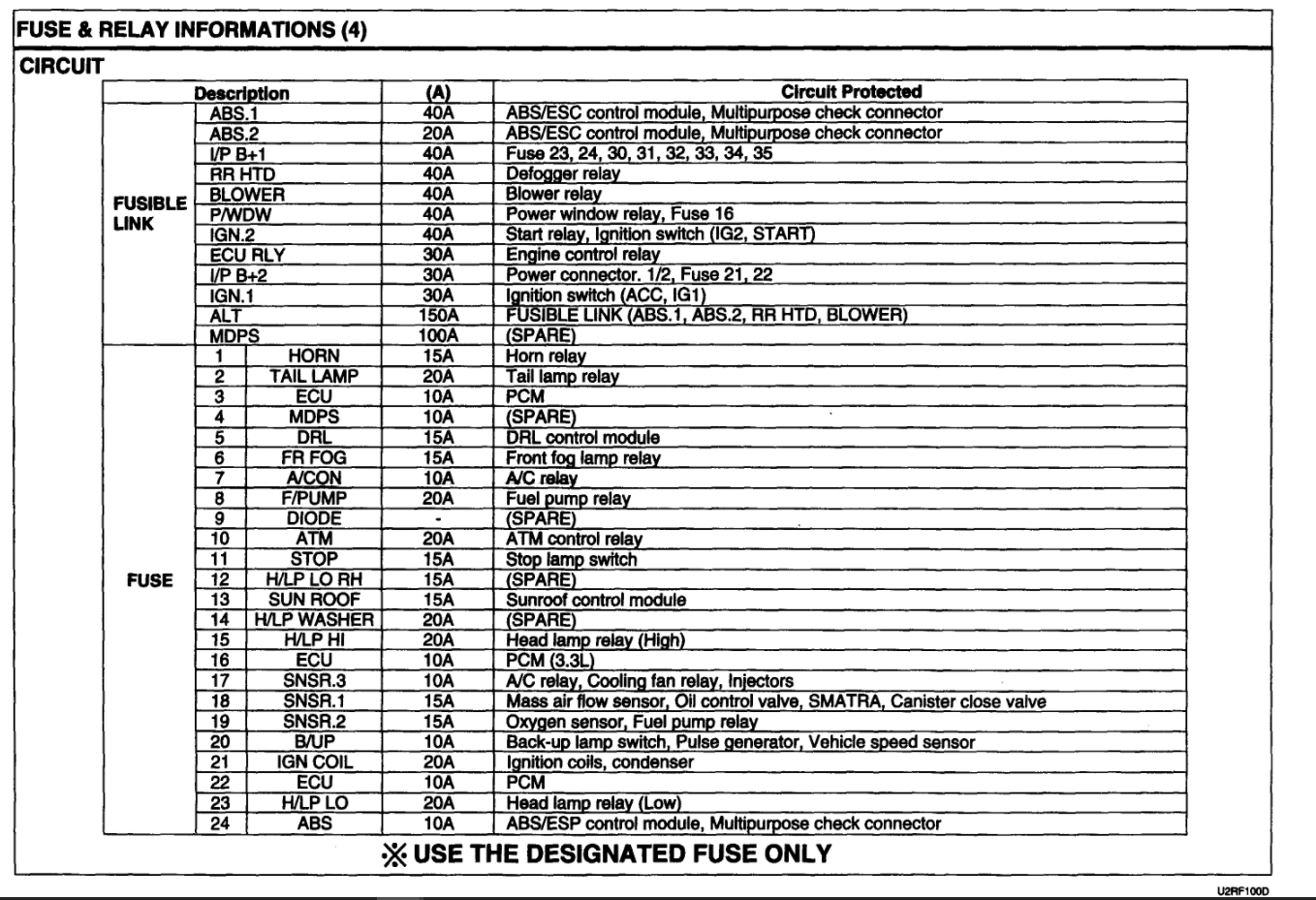

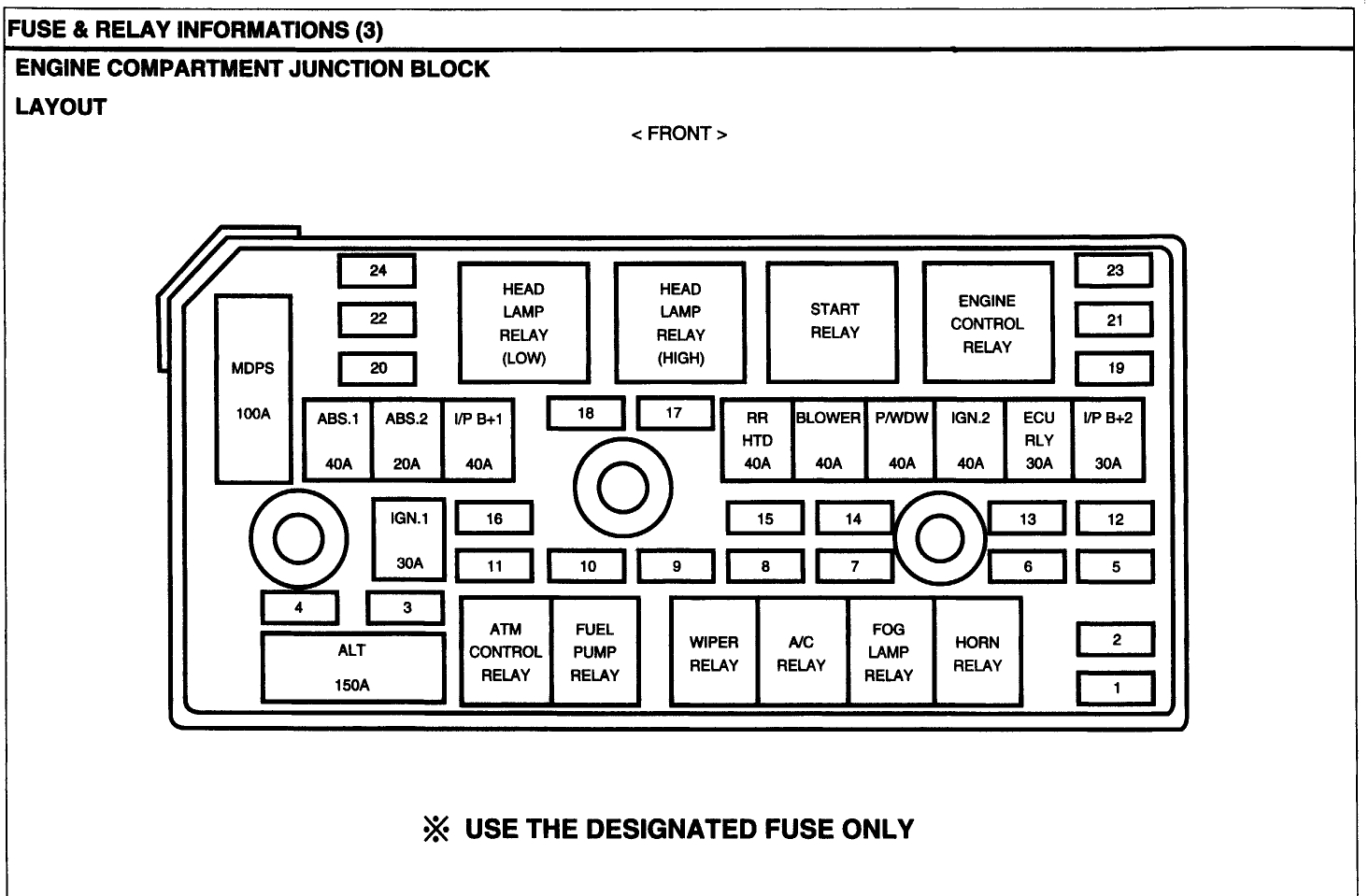

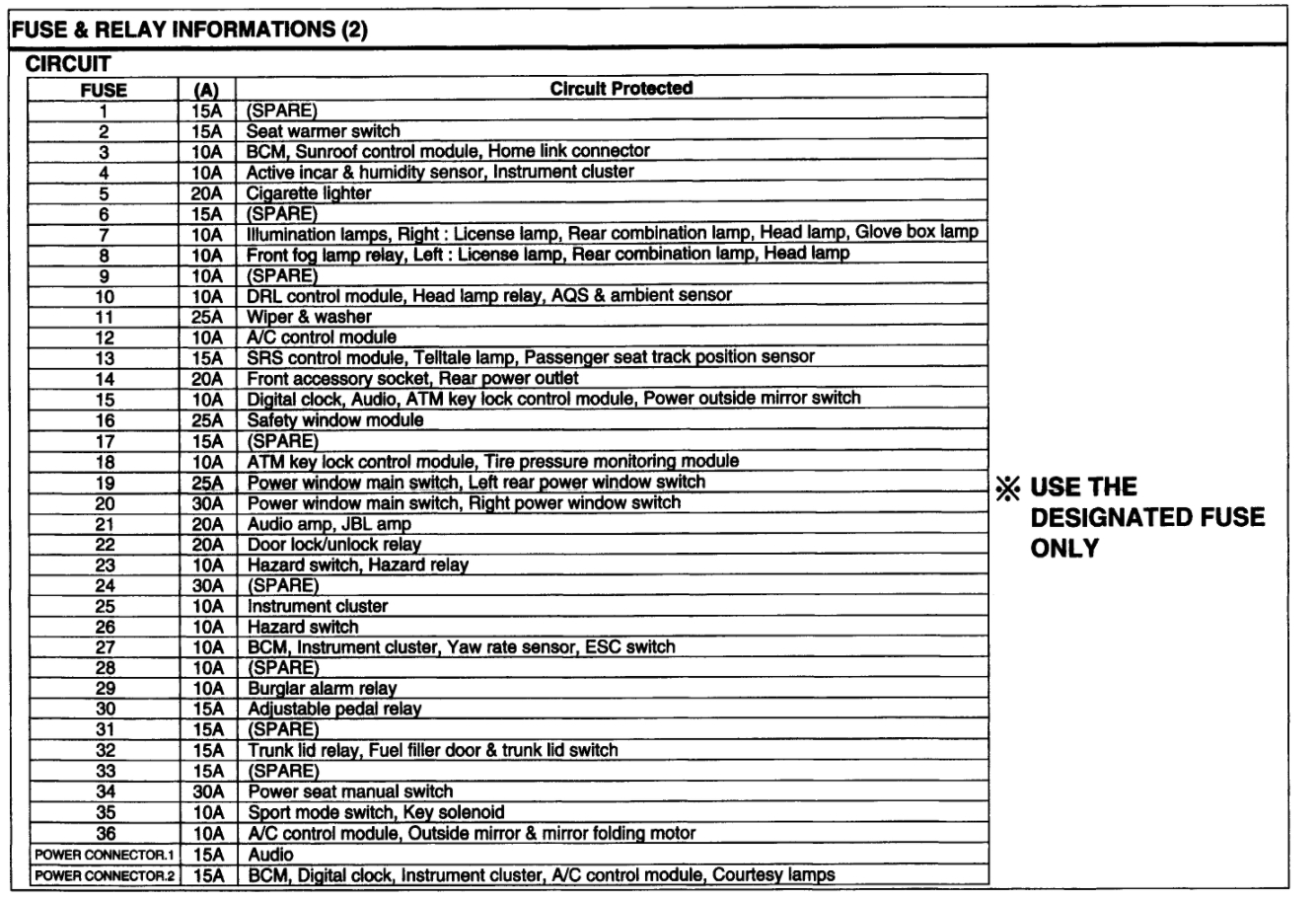

See if the horn is getting power, here are the fuse panels and horn relay location

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Check out the diagrams (Below)

Please let us know what you find.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 3, 2013 at 1:51 PM
Avatar
DENNISGADDY
  • MEMBER
  • 1 POST
Yep it was the horn I replaced it and now everything works.
Jun 4, 2013 at 1:01 PM
