need step by procedure on changing windshield wiper linkage where connects to wiper motor.
Mar 30, 2013 at 2:25 AM
2006 HUMMER H3
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement

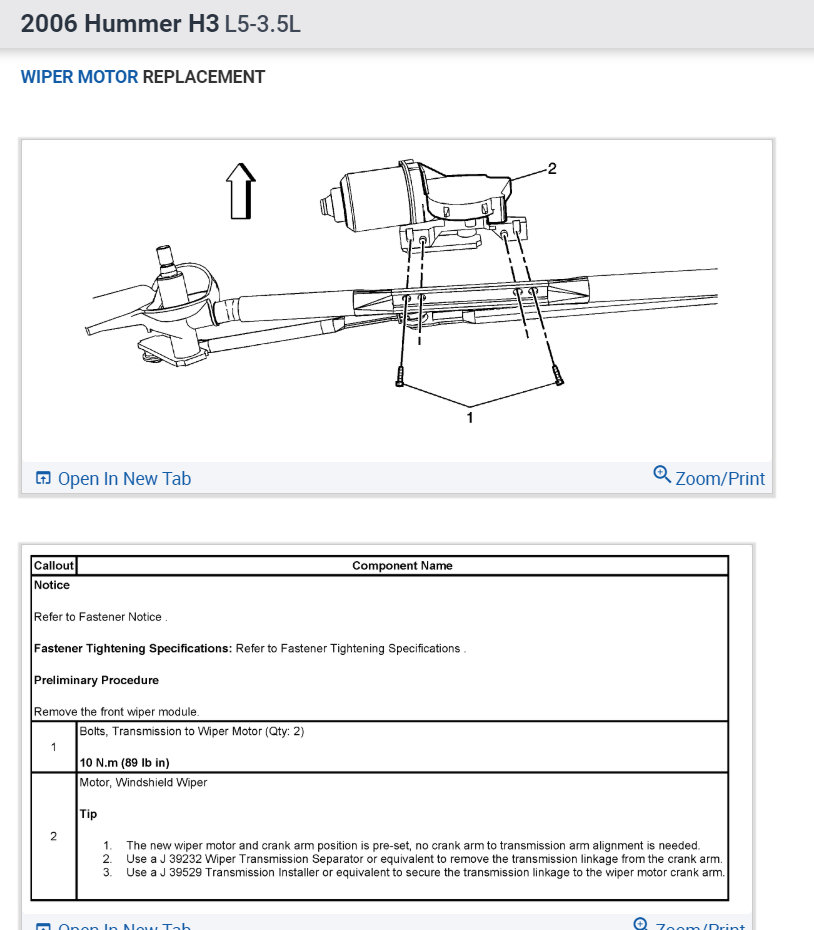

remove air inlet panel, remove electrical remove 2 bolts then tip forward to remove assy. pic inclosed. remove nut for wiper motor if just replacing motor. tighten bolts to 10nm on reinstall.
Images (Click to enlarge)
Mar 30, 2013 at 3:45 PM
