power window relay

2006 HONDA RIDGELINE

200,000 MILES

ADRIEL1523

MEMBER
1 POST
FOLLOW

i need to know the location power window relay i have try looking the fuse box under the hood and the driver side and cannot find it i try moving under the glove compartment but cannot find it please help.

Jun 3, 2013 at 3:08 PM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

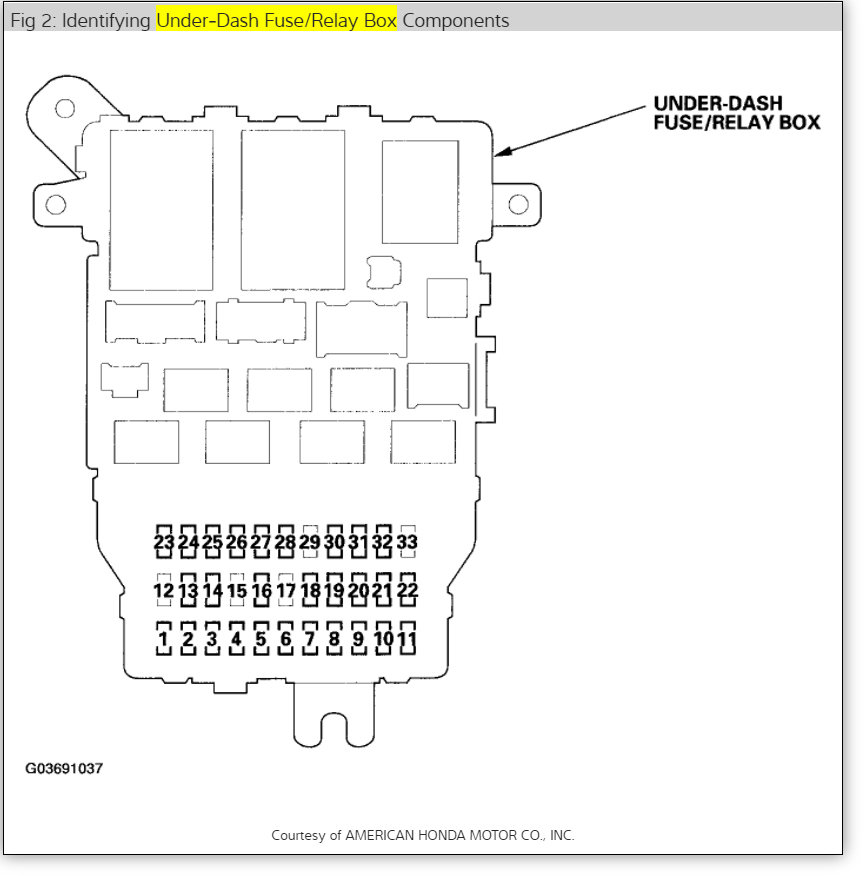

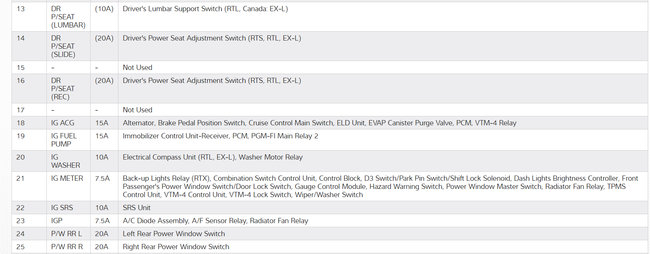

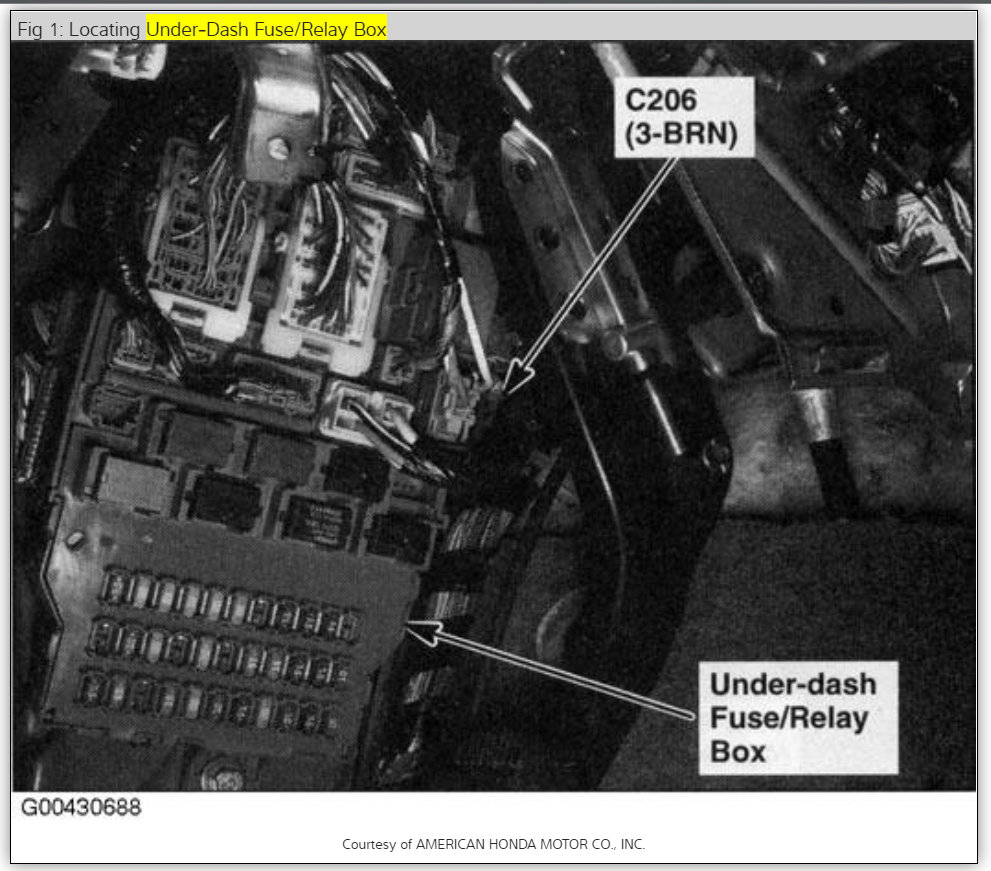

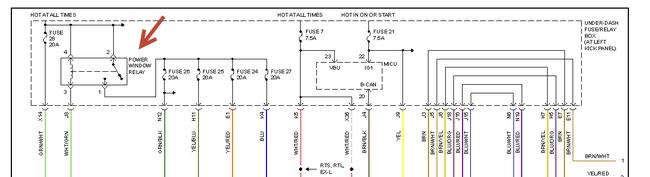

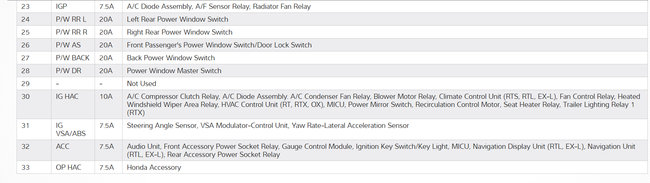

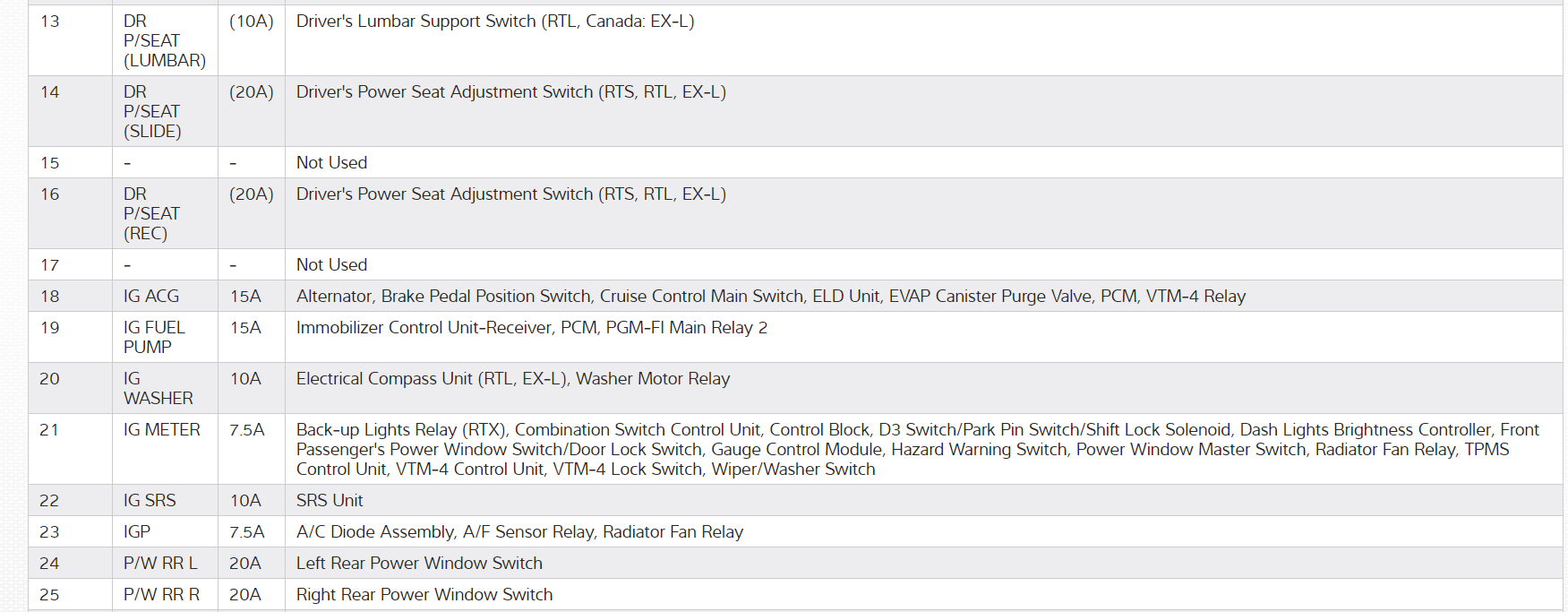

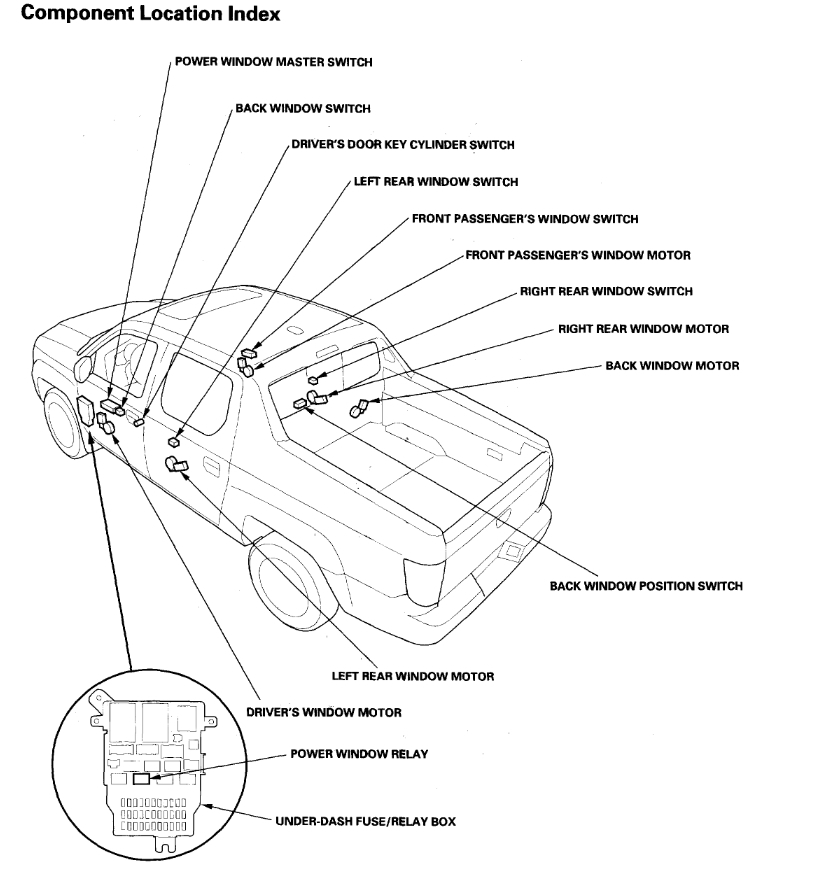

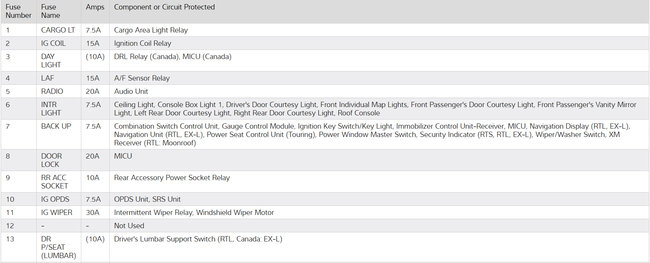

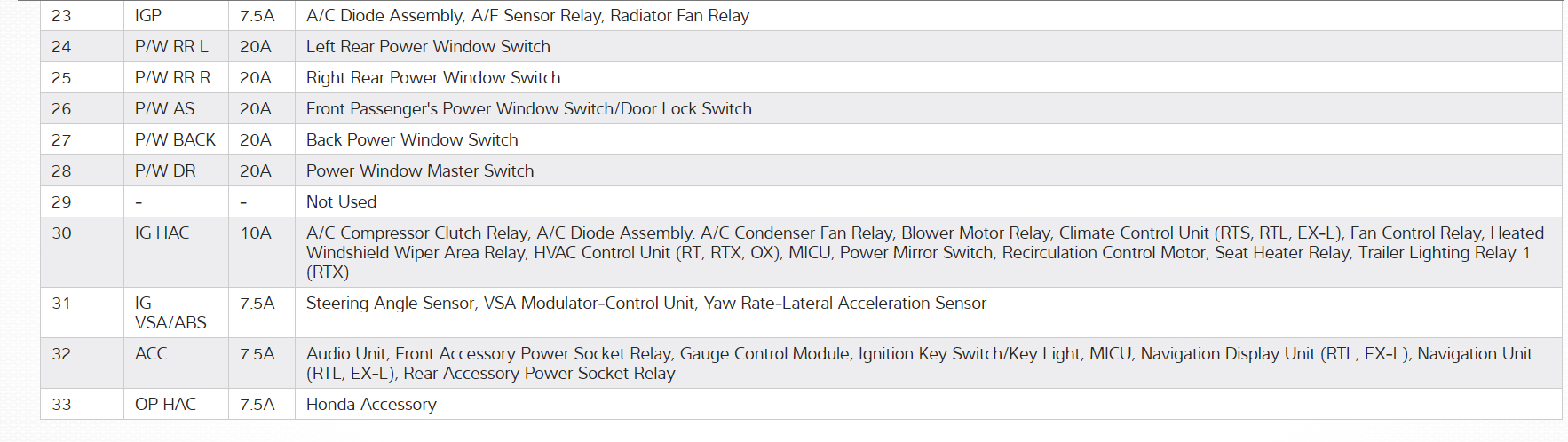

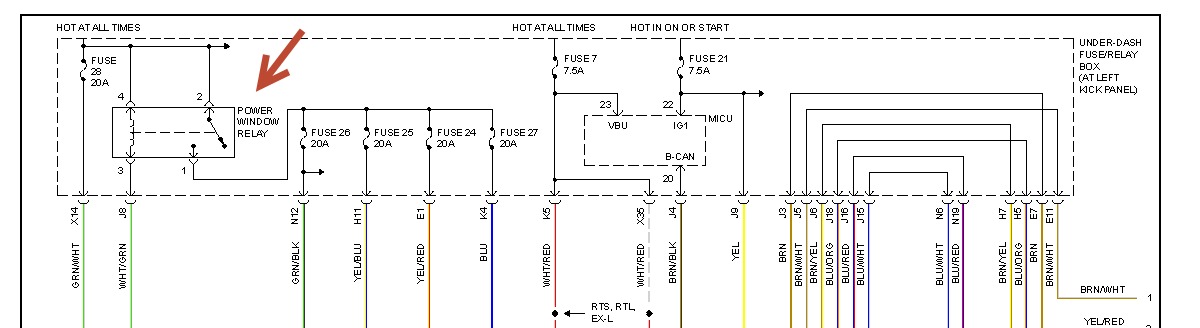

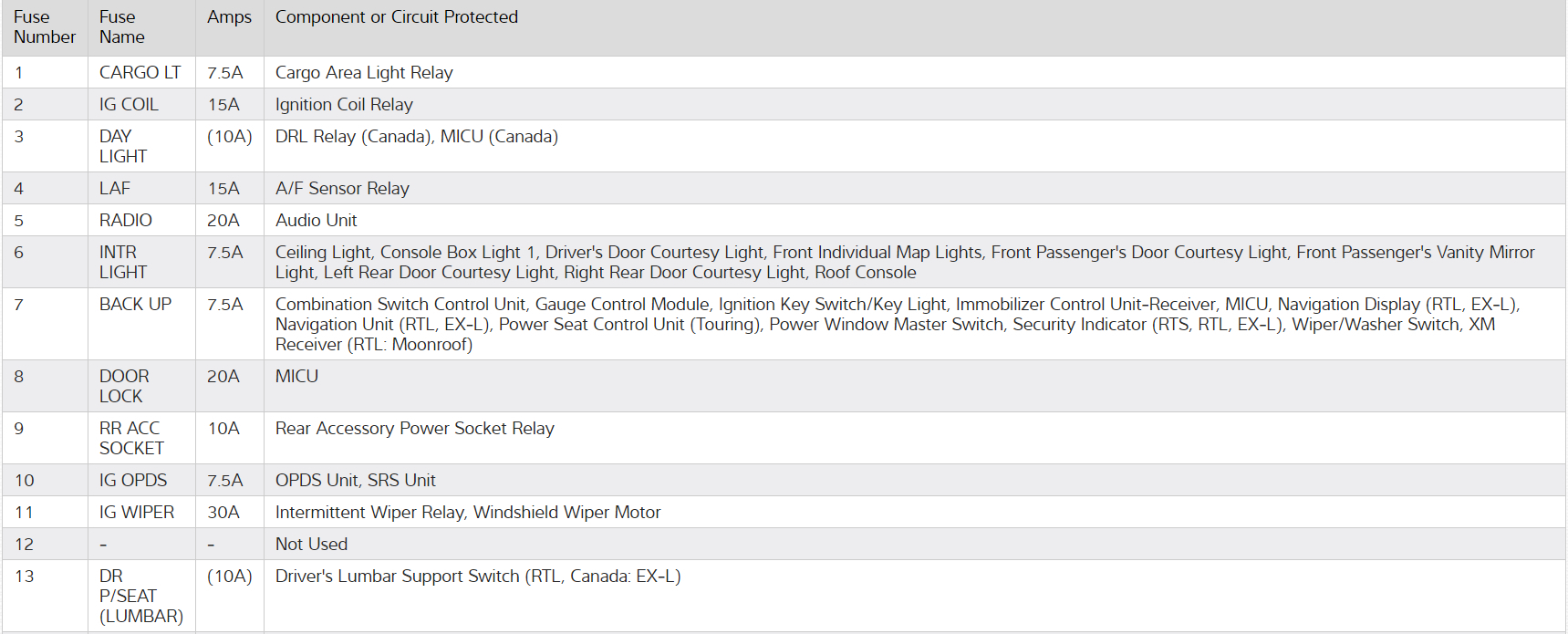

Here is the fuse panel and relay locations with guides to help you test both the relay and the fuse. The power window reply in under the dash on the drivers side in the fuse panel

https://www.2carpros.com/articles/how-to-check-a-car-fuse

and

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers

Images (Click to enlarge)

Jun 3, 2013 at 3:51 PM
