getting code P2008 still coming up Imrc

2006 HOLDEN COMMODORE
70,000 MILES
Avatar
SPURTY05
  • MEMBER
  • 1 POST
p2008 code..imrc circuit low... have taken valve out was stuck, is now free but code still comes up, is it time to replace. 3.6 v6 alloy tec engine. I should say can clear code but comes up when you start car, which is fault code p2008 circuit low Thanks peter.
Dec 14, 2011 at 1:04 PM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
i believe that this is a voltage problem, i would check the continuity of the loom back to the ECU, and pay particular attention to pins in the plugs as they can become loose and corrode causing high resistance readings.
Dec 20, 2011 at 5:58 AM
Avatar
HDC
  • MEMBER
  • 1 POST
Hello did you find a solution to this problem?
I have exactly the same problem with a VE 3.6 Alloytec at the moment, and cannot find the problem. Have replaced the IMRC and still the same.
Jun 20, 2017 at 1:58 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hello,

Remove the actuator and see if the intake runners move by hand. What happens is they get dirty (coking) and stop moving and you must remove the top of the intake to clean it.

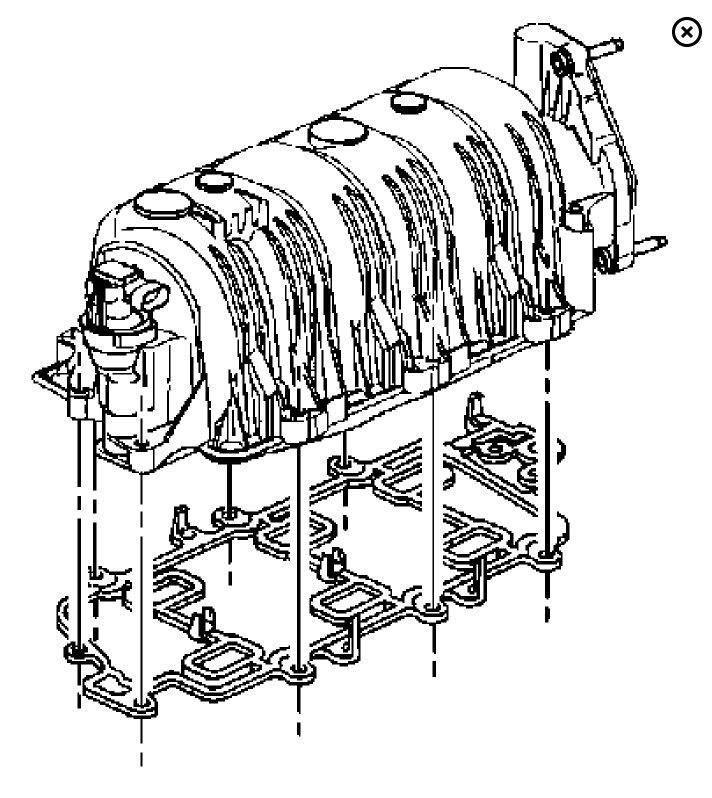

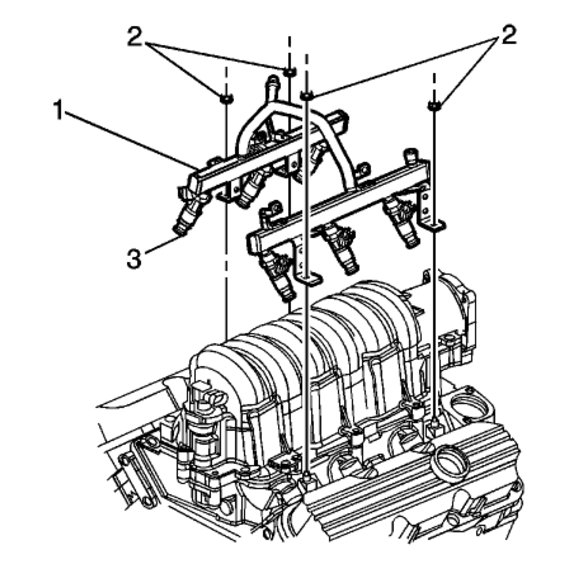

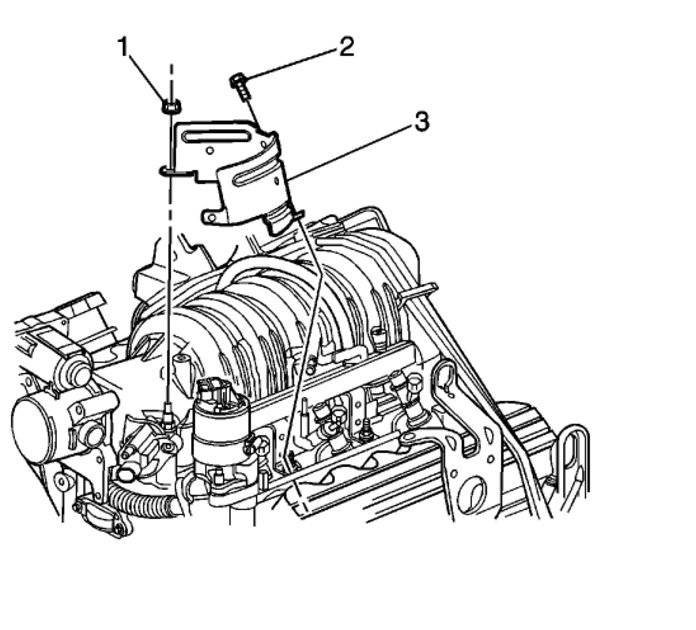

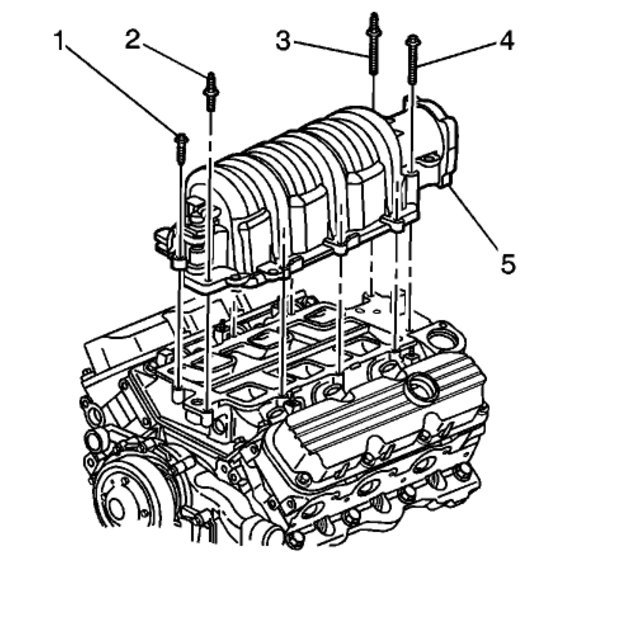

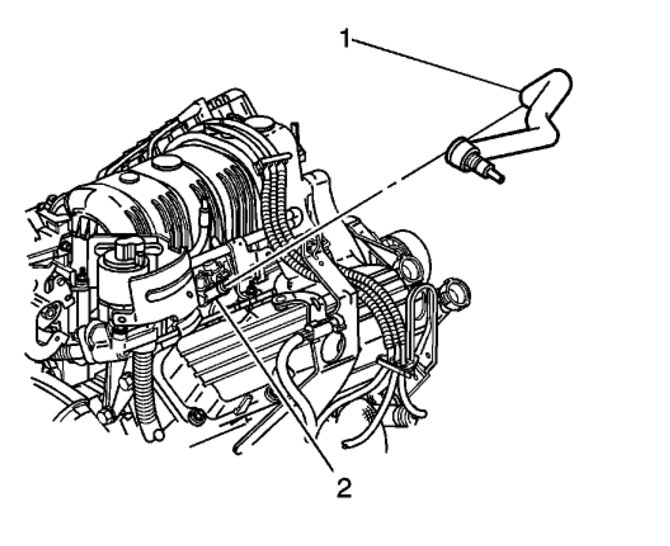

Here is a guide and diagrams (below) to give you an idea on what you are in for when doing the repair.

https://www.2carpros.com/articles/replace-intake-manifold-gasket

Please let us know what happens.

Cheers, Ken

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 22, 2017 at 4:05 PM
