Side mirror repair?

2006 GMC SAVANA
145,000 MILES • 5.8L • V8 • 2WD • AUTOMATIC
Avatar
SAMWILSON
  • MEMBER
  • 1 POST
Passenger side mirror (manual) has been bumped out to the right and wont come back into its proper setting so it can be adjusted. How do I get it back into its setting without replacing it? Ive tried wiggling, pushing, bumping and all other methods i could think of. I see no releases or c"catches" etc to poke a screw driver into.
Jan 20, 2014 at 2:11 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

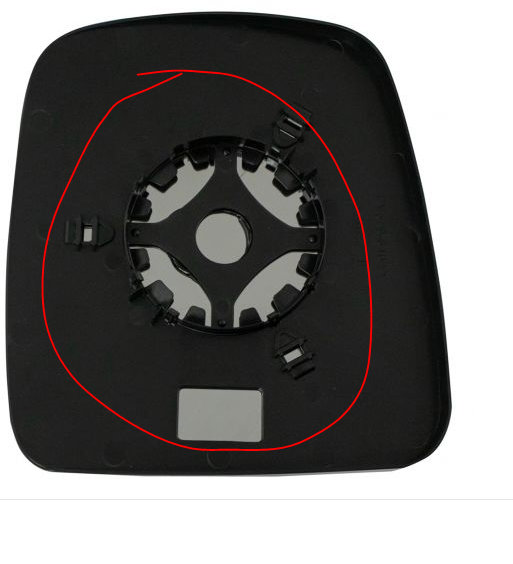

It's likely that the mirror got bumped out of the connection for the pushrod. You will have to pull the mirror out in order to snap it back in place. Unless of course the plastic part tat goes in to the pushrod is broken. In that case you will have to replace the mirror.
To take out the mirror you will have to grab the edges and pull outwards in a firm manner.

https://www.youtube.com/c/2carpros/featured

Please let me know of any questions
Thank you.

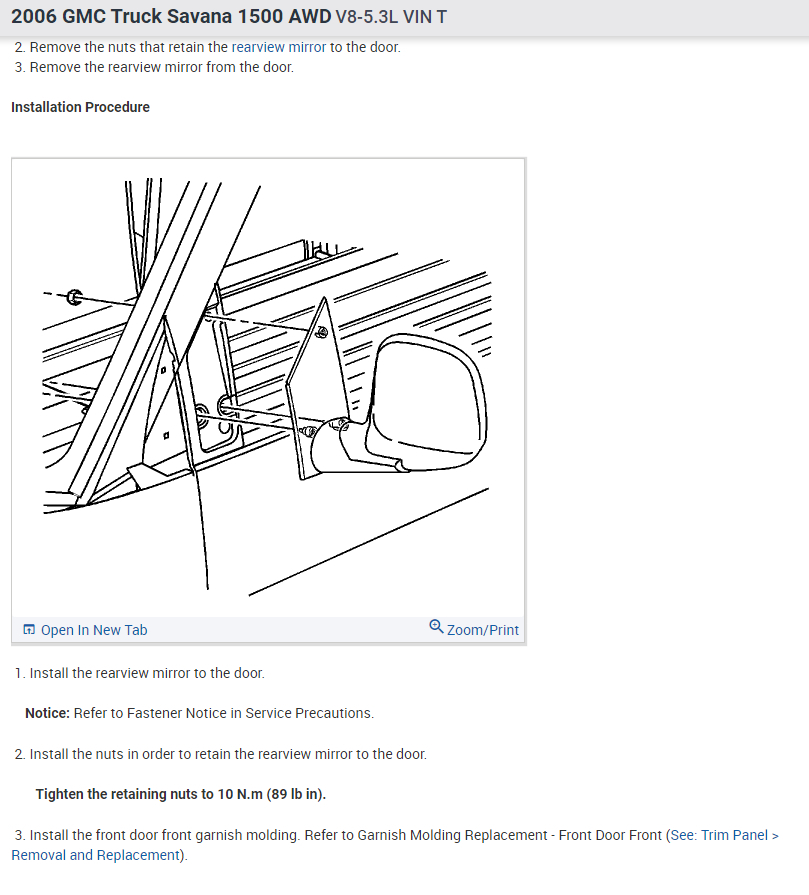

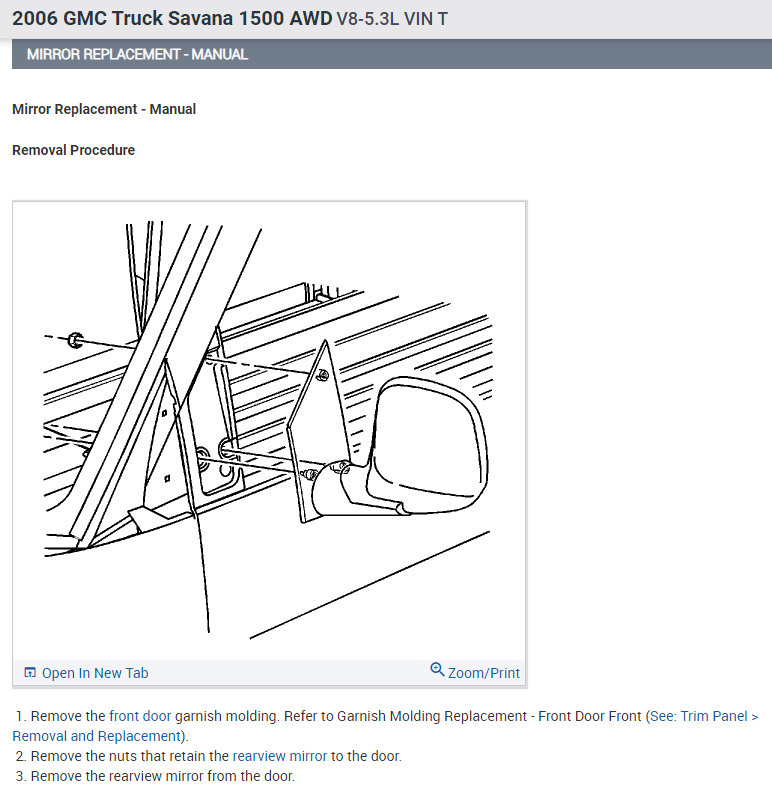

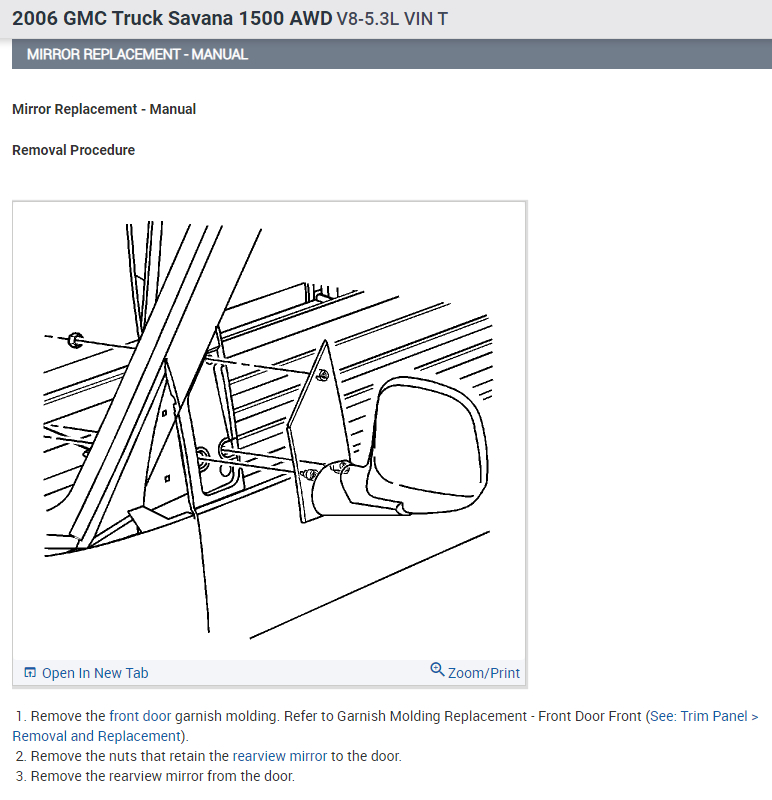

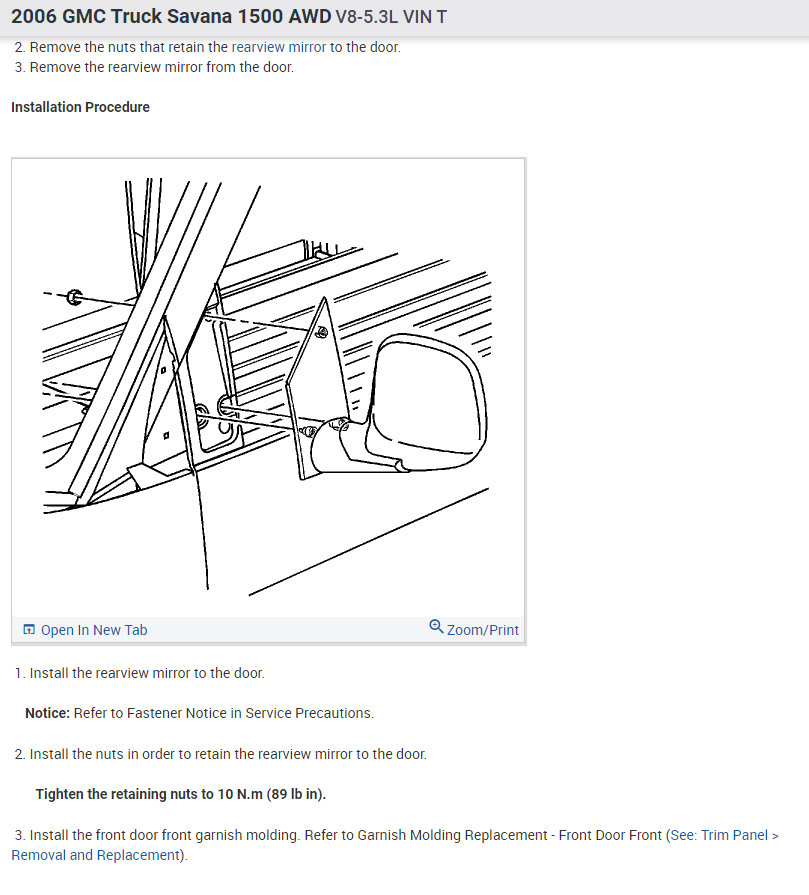

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Sep 11, 2021 at 9:40 PM
