Smart junction box replacement

2006 FORD MUSTANG

103,000 MILES • 4.6L • V8 • 2WD • AUTOMATIC

MEMBER
2 POSTS
FOLLOW

I have been told that I need a new smart junction box for my car listed above GT coupe.

I am having trouble finding the correct part for my car. Everything I see is related to the alarm system. I need the whole box.

Is there a part number or a direction you can point me too?

Thank you,

Georgann

Jan 6, 2020 at 6:25 AM

SCGRANTURISMO

CERTIFIED EXPERT
4,897 POSTS

Hello,

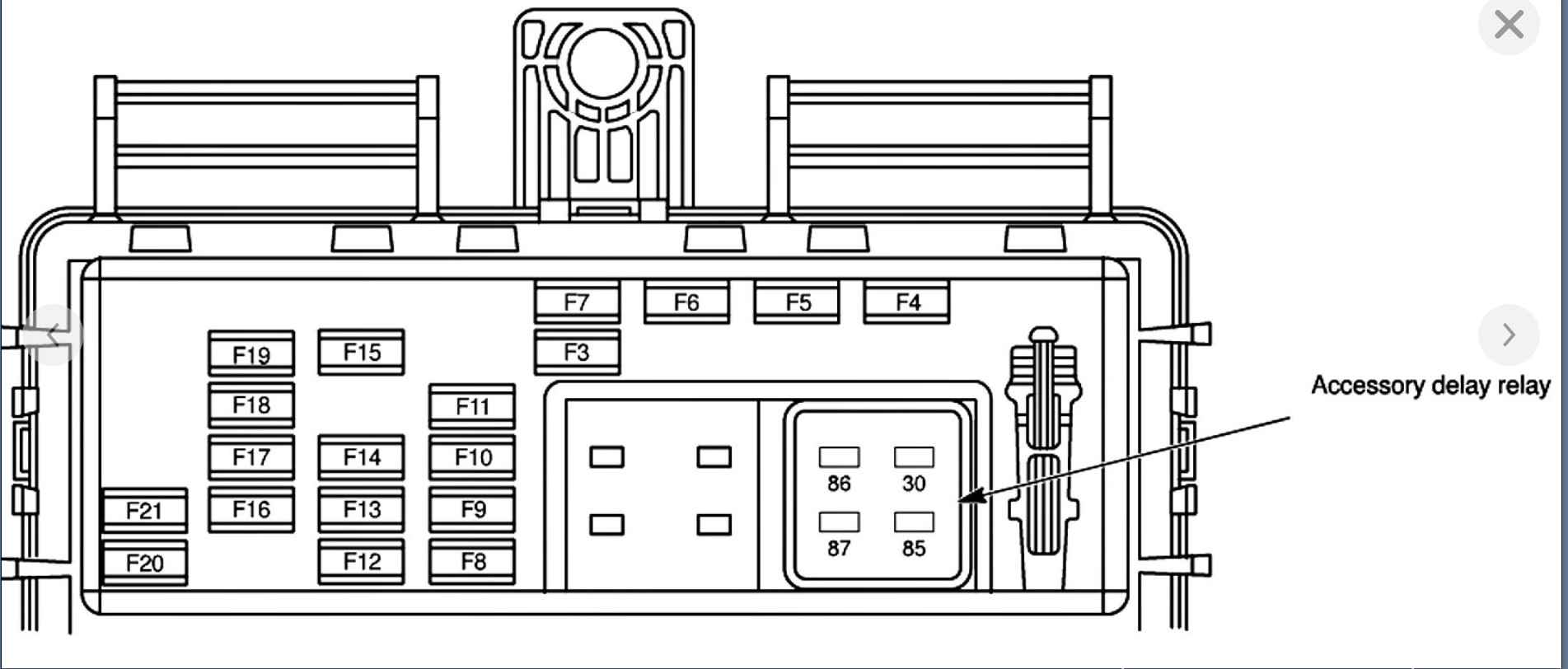

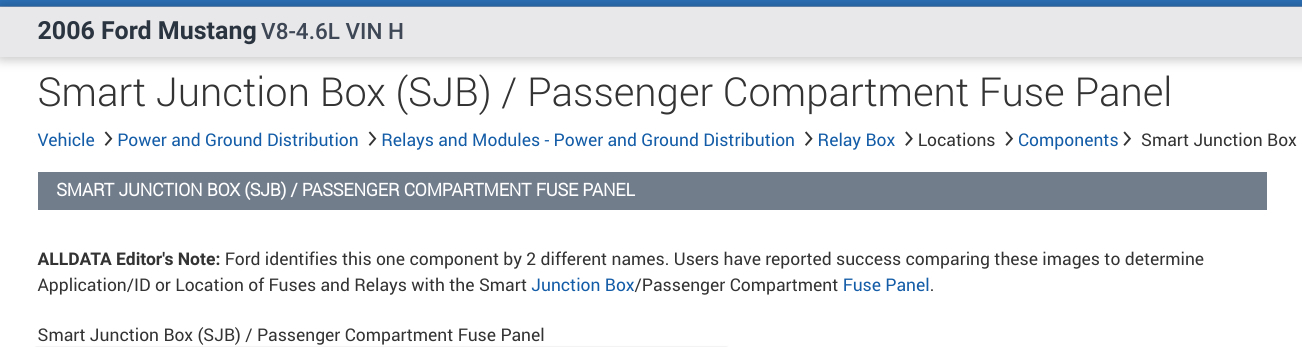

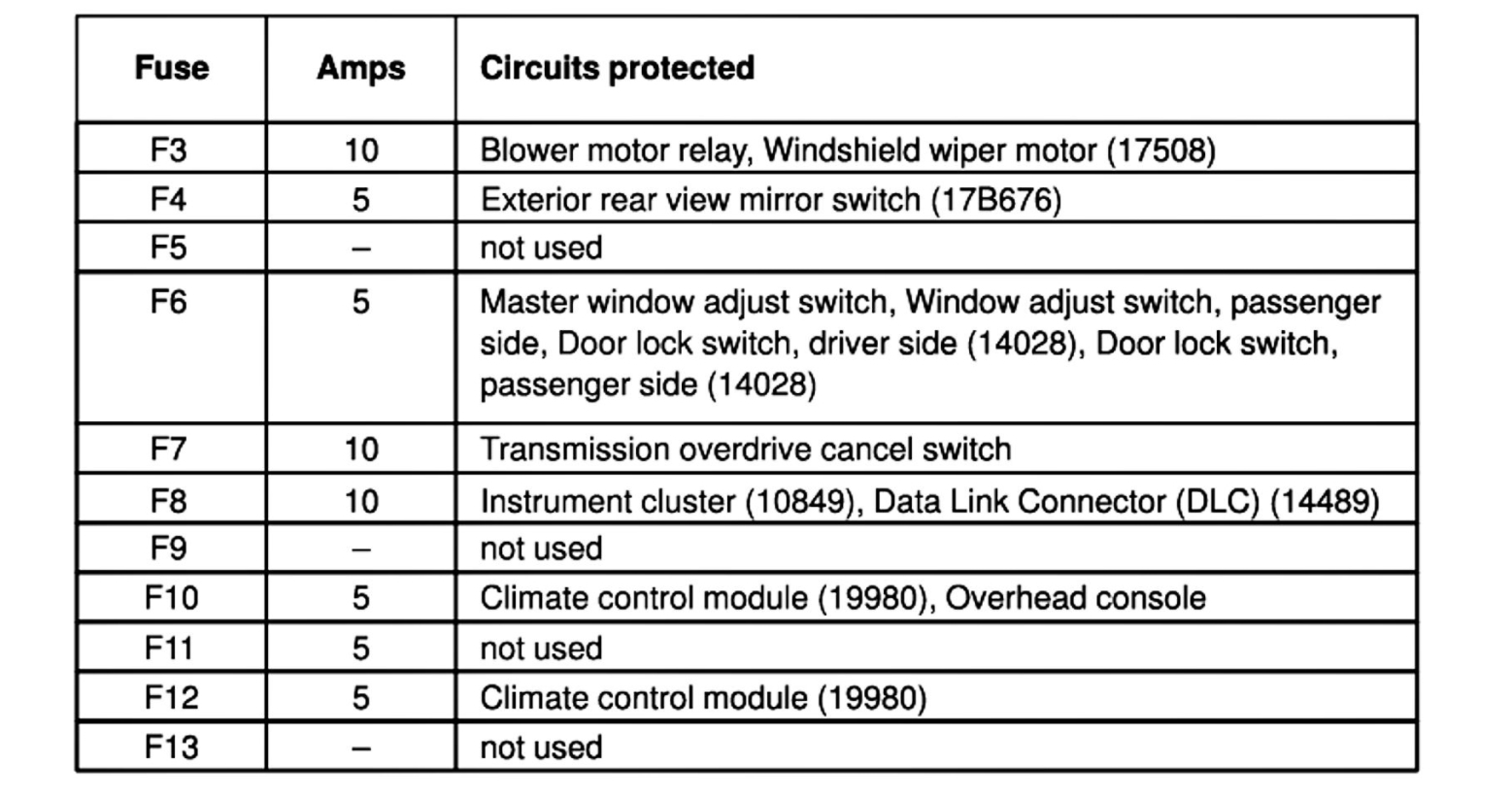

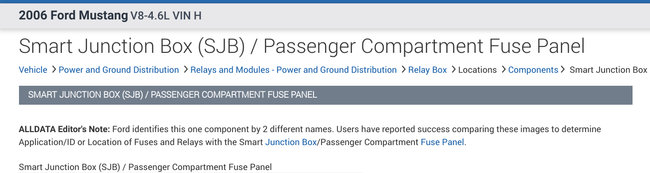

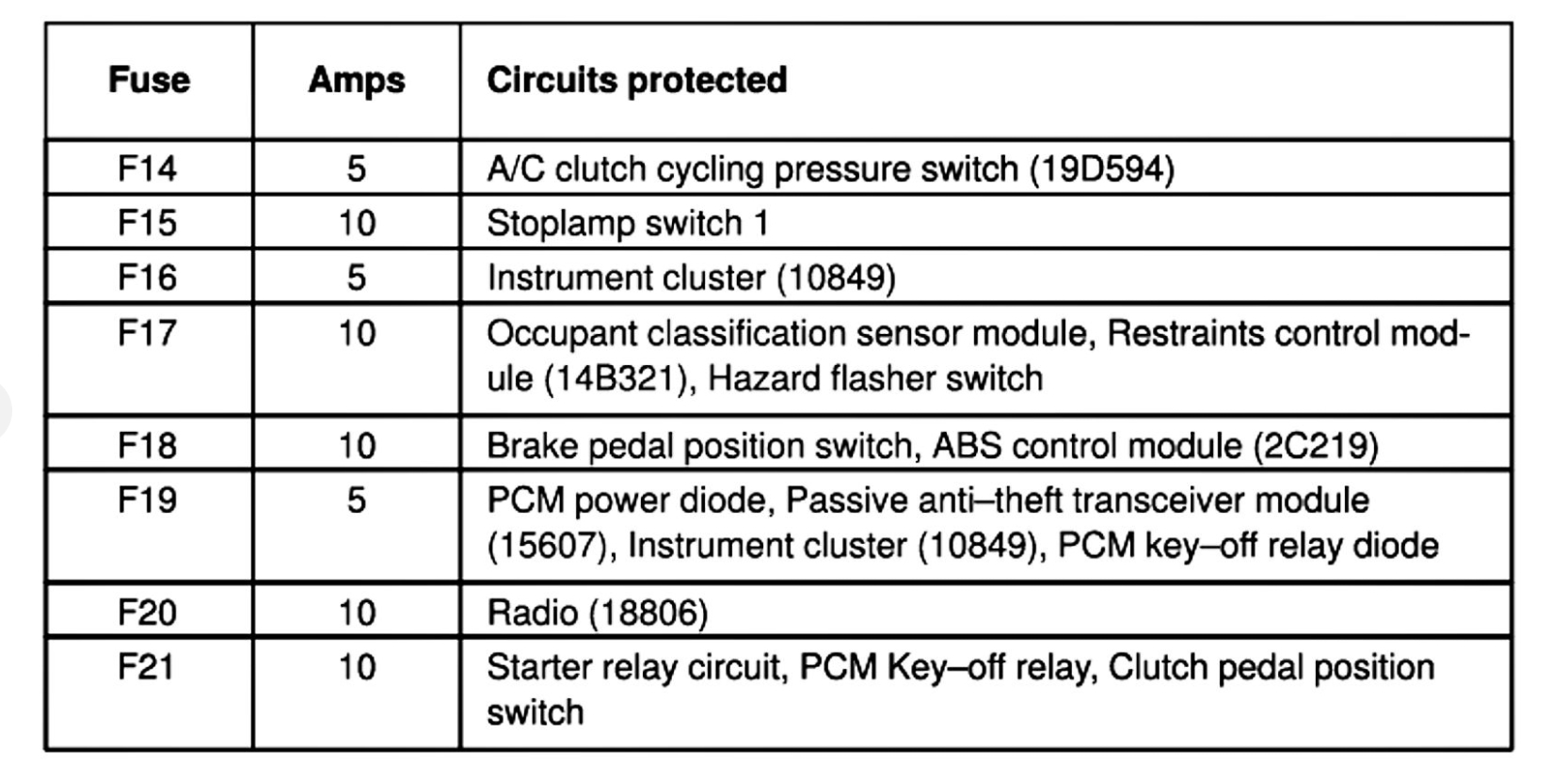

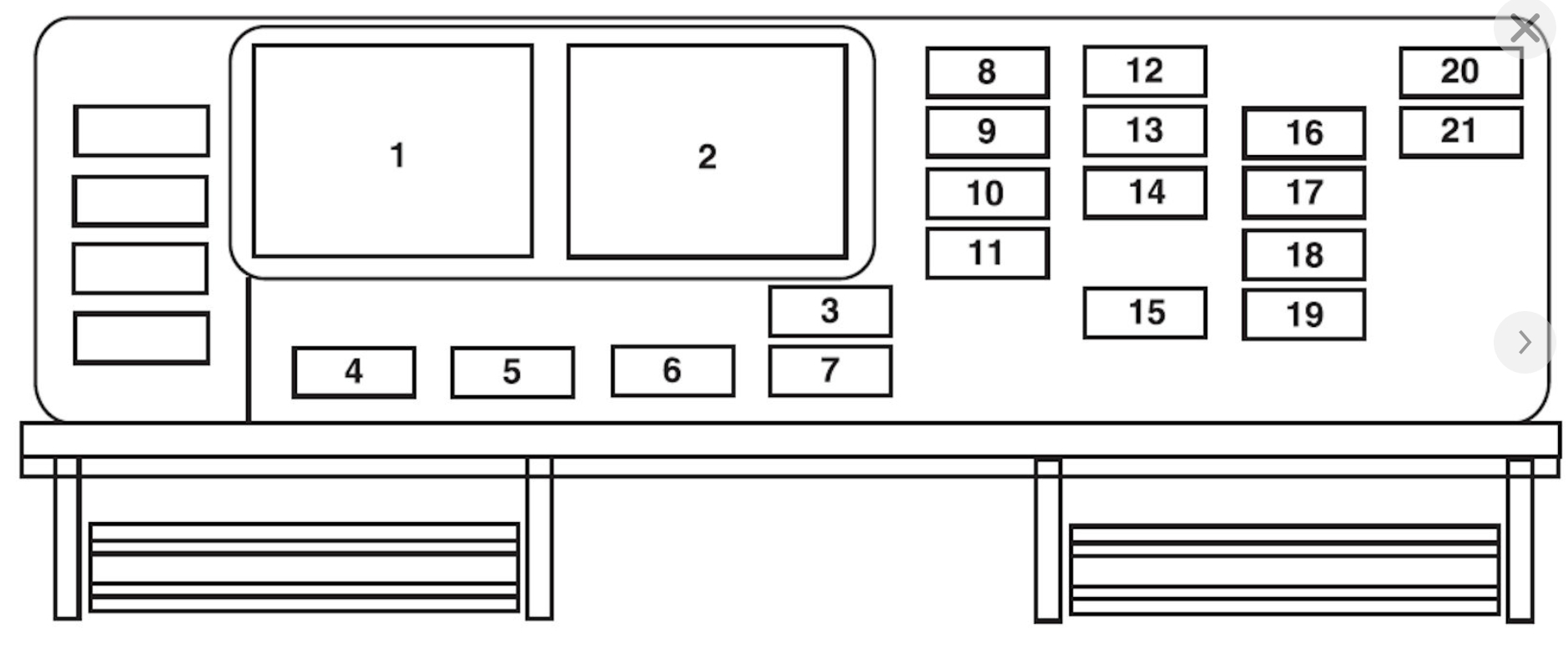

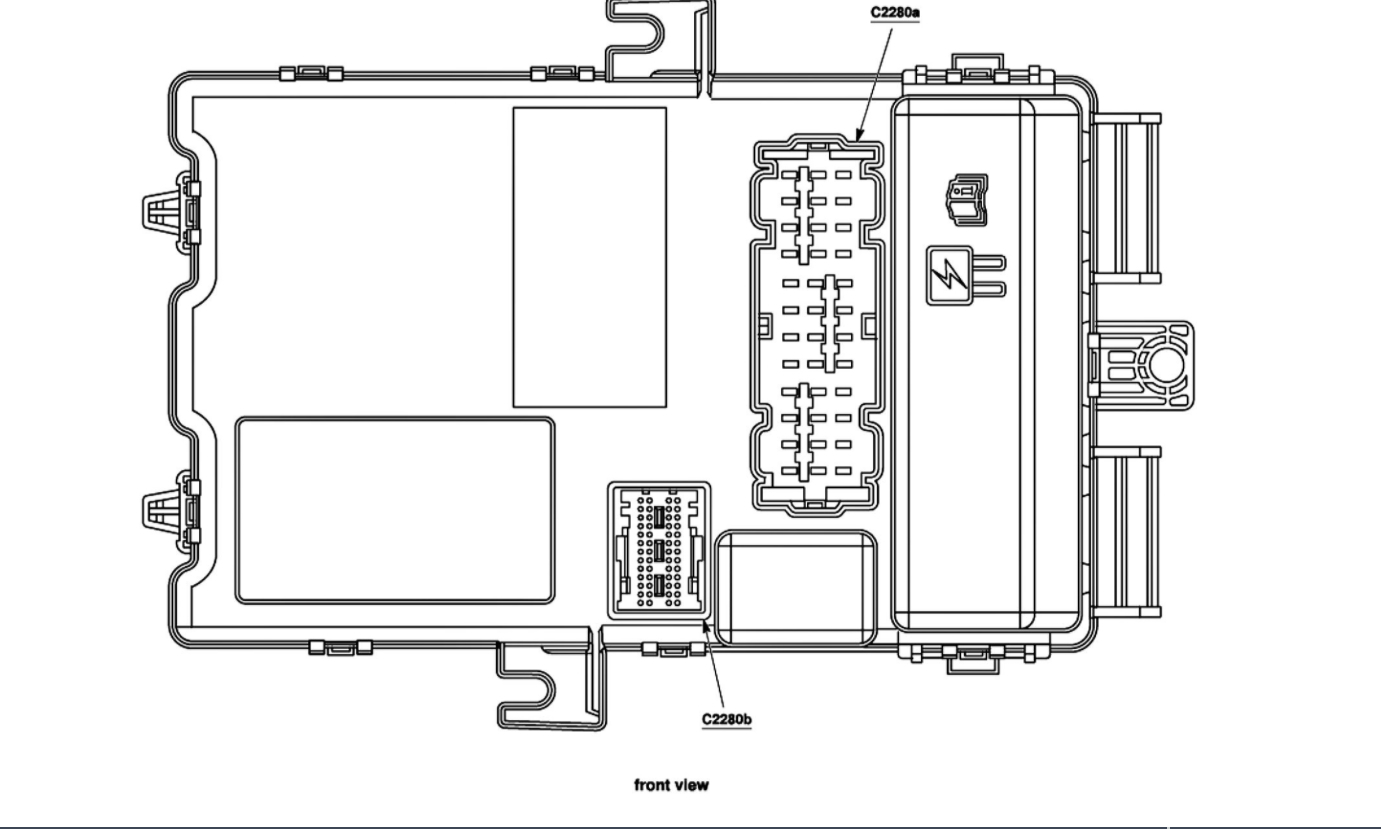

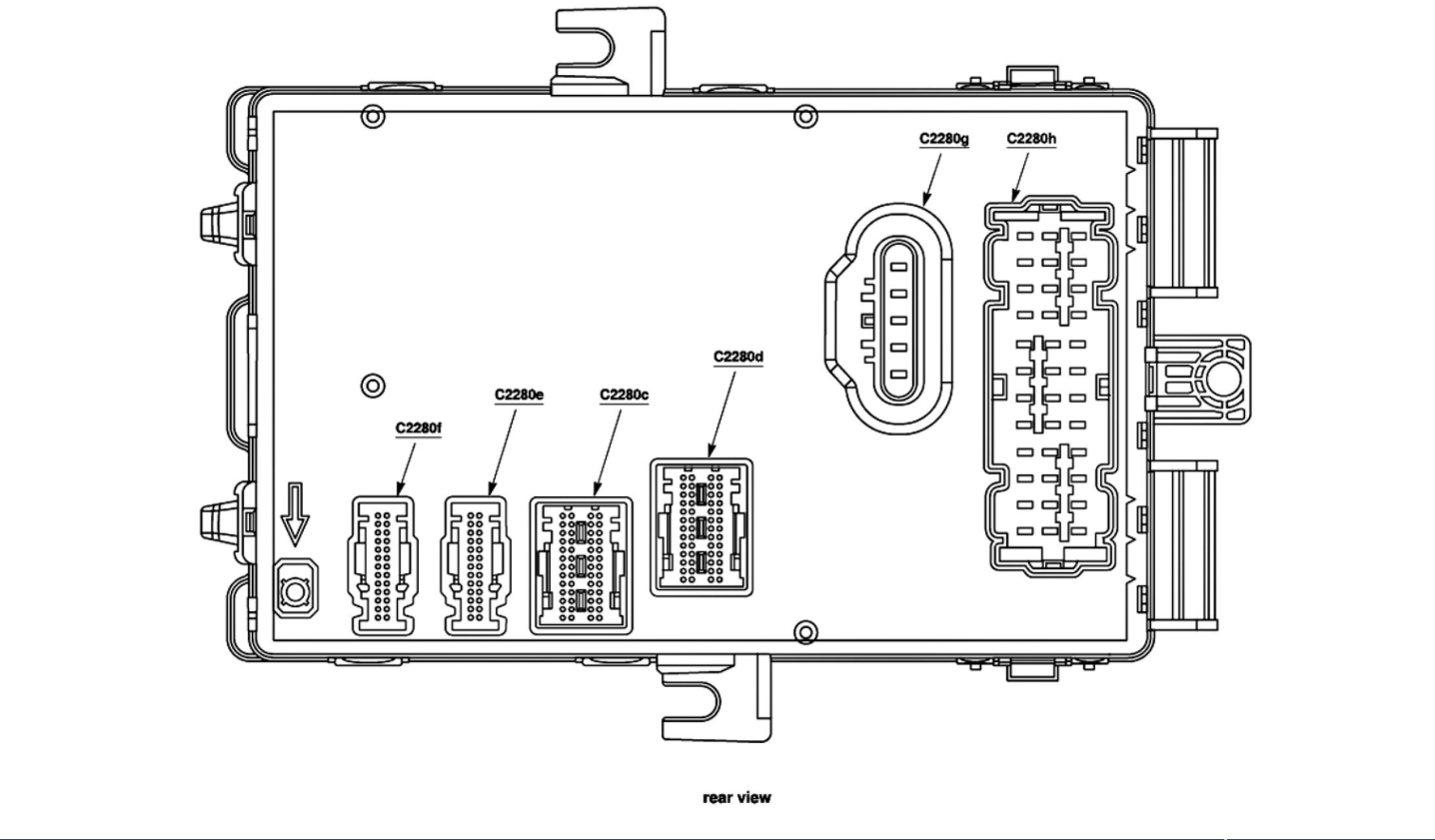

Ford calls the Instrument Panel fuse panel the Smart Junction Box on your vehicle. In the diagrams down below I have included the diagrams with callout for the Smart Junction Box on your vehicle. This is all the information that our reference material has on it. I would recommend contacting the dealership or looking on Ebay or Amazon for a new part.

Thanks,
Alex
2CarPros

Images (Click to enlarge)

Jan 7, 2020 at 2:04 AM

[email protected]

MEMBER
2 POSTS

Thanks for the reply. One more question. Does the smart junction box have anything to do with the horn? My horn does not work from the steering wheel, but works with my fob.

It's not the clock spring or fuse.

Thanks!

Jan 9, 2020 at 2:26 AM

SCGRANTURISMO

CERTIFIED EXPERT
4,897 POSTS

Hello again,

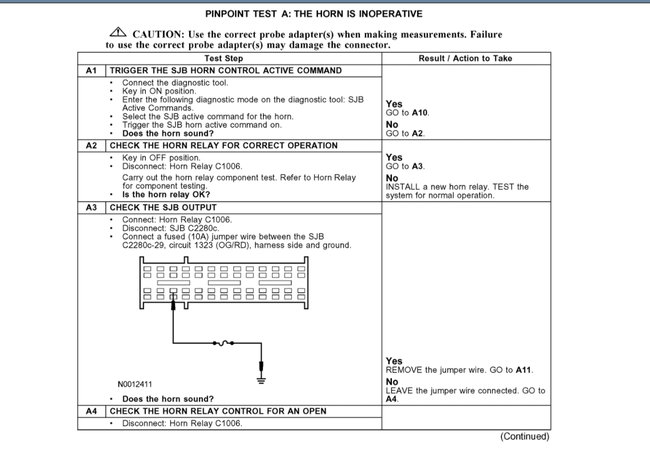

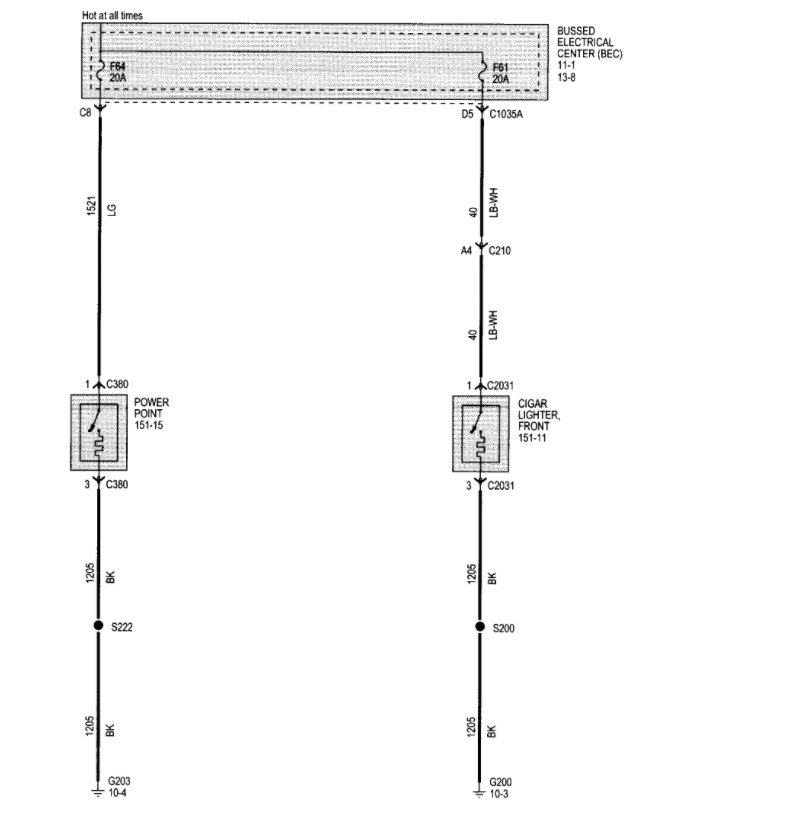

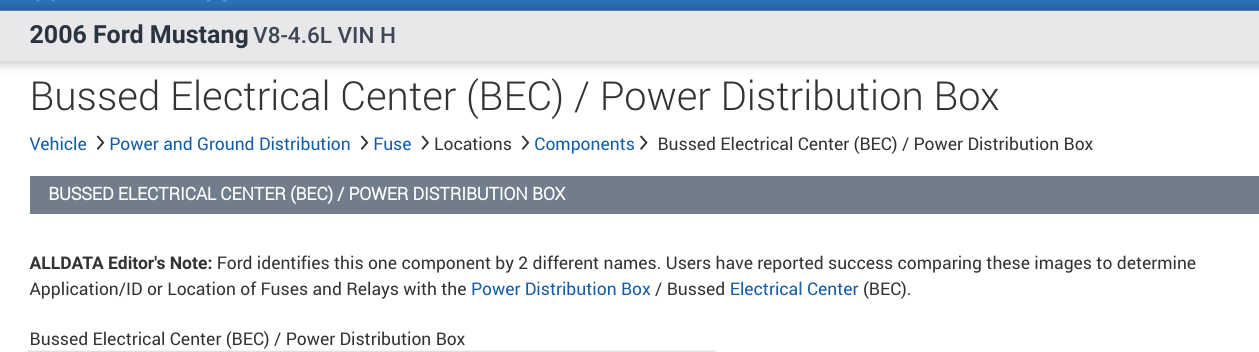

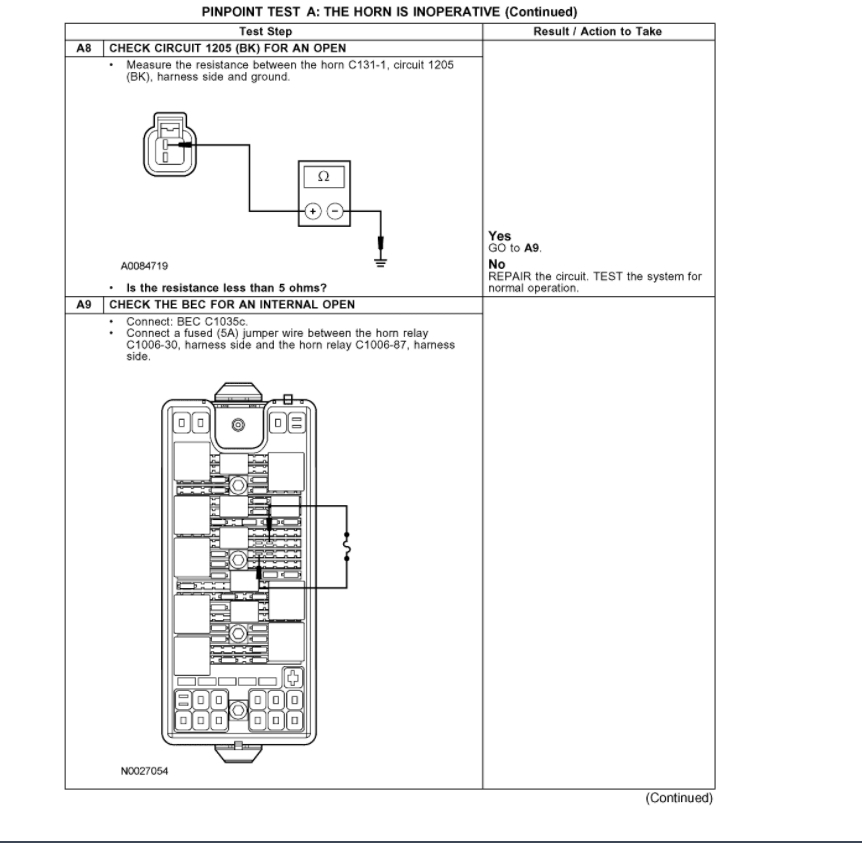

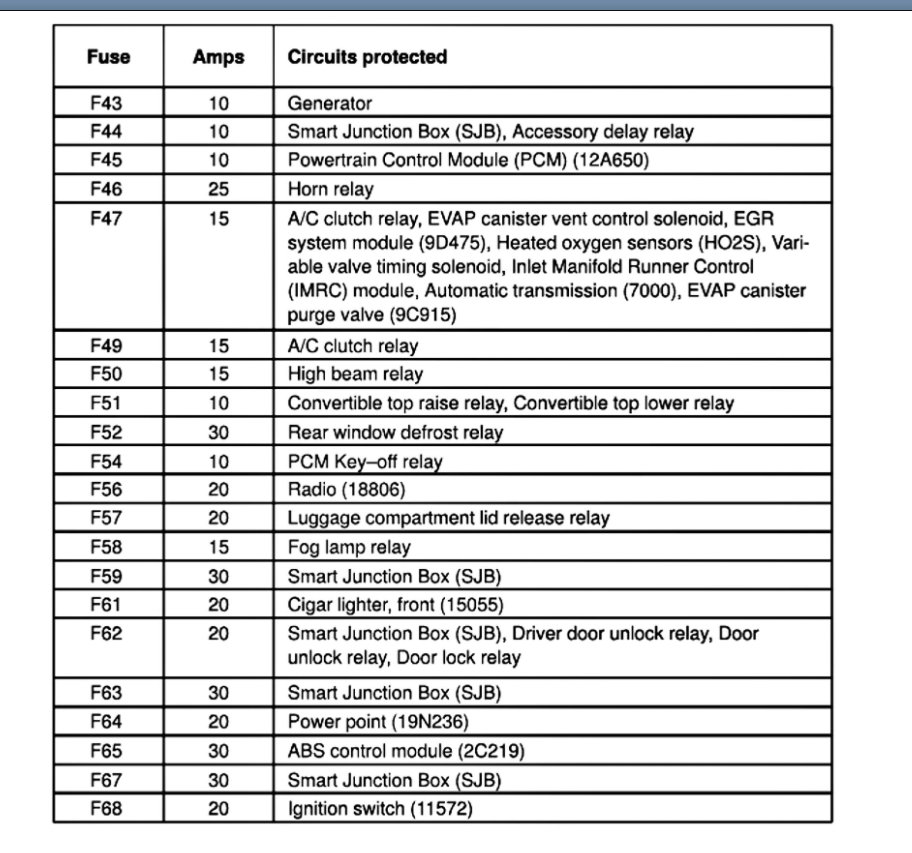

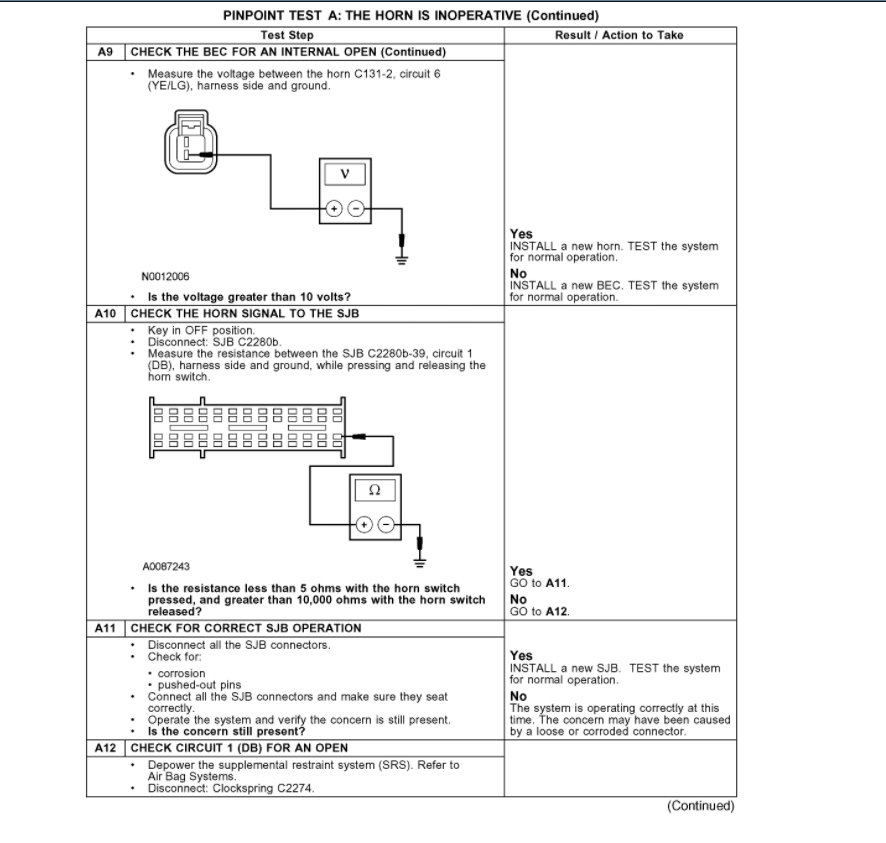

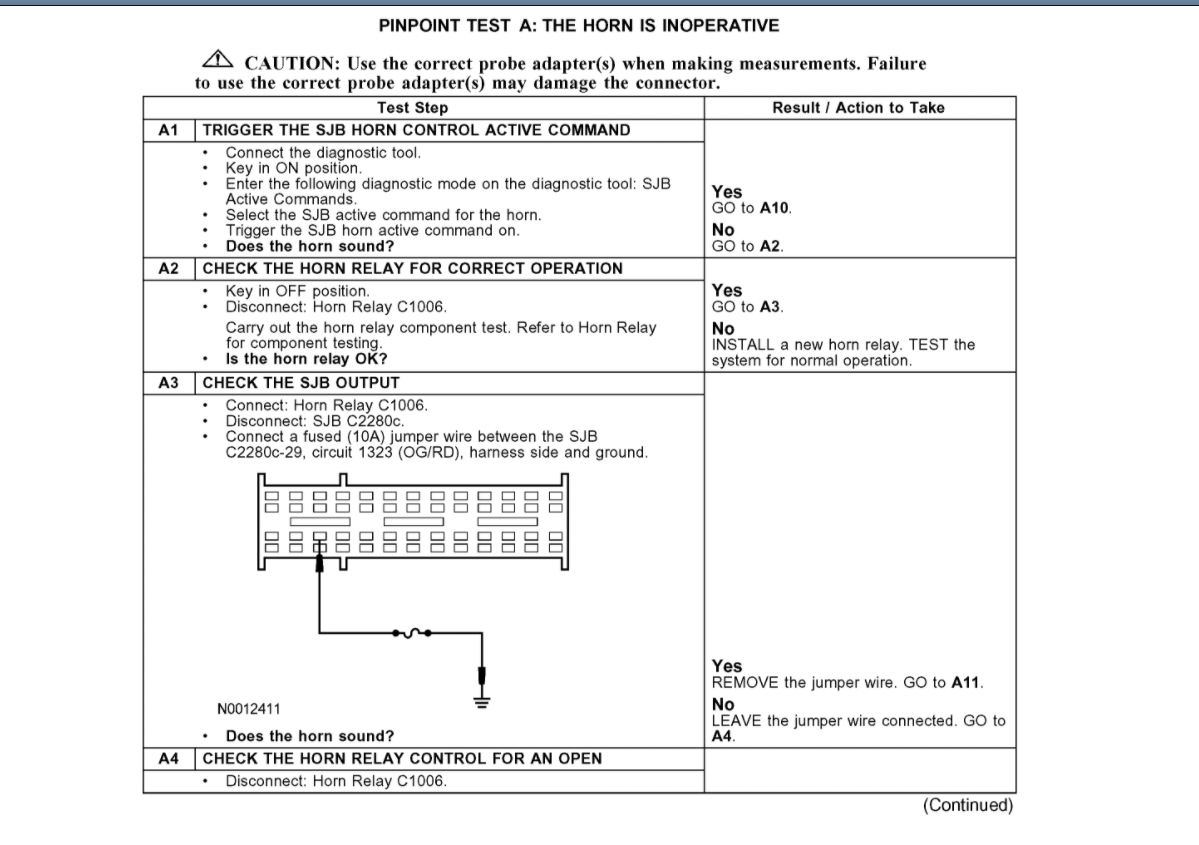

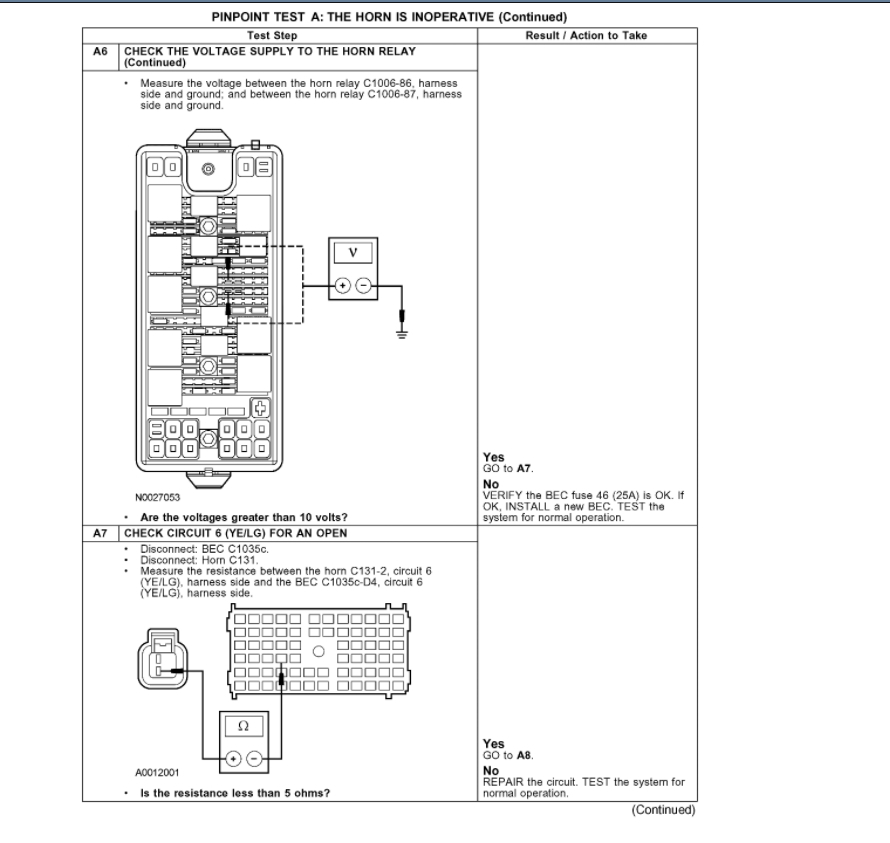

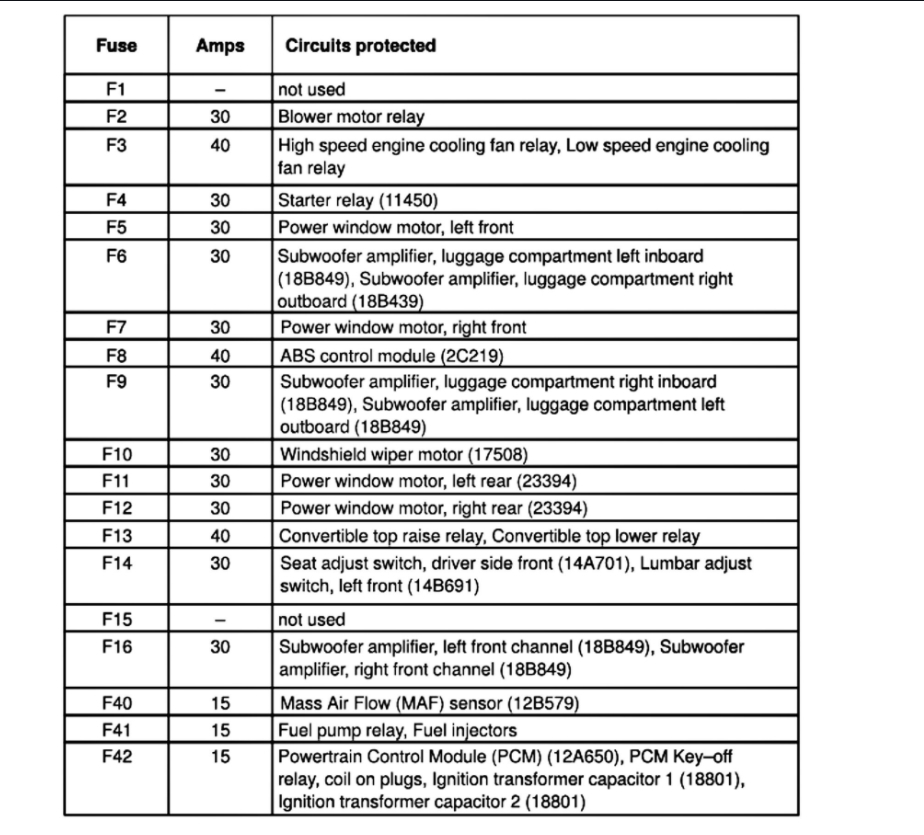

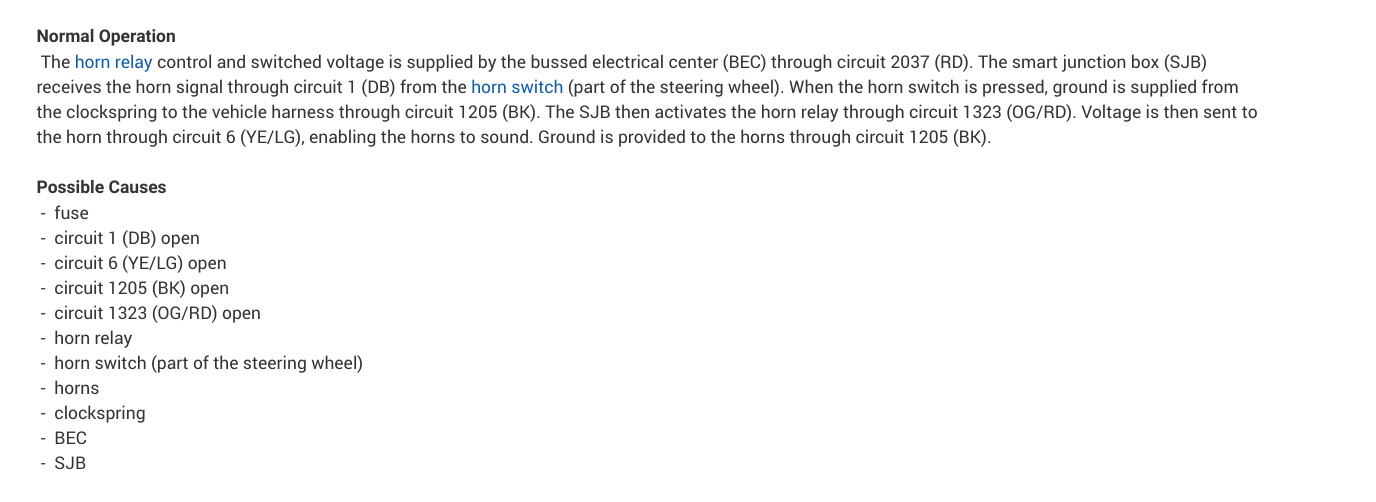

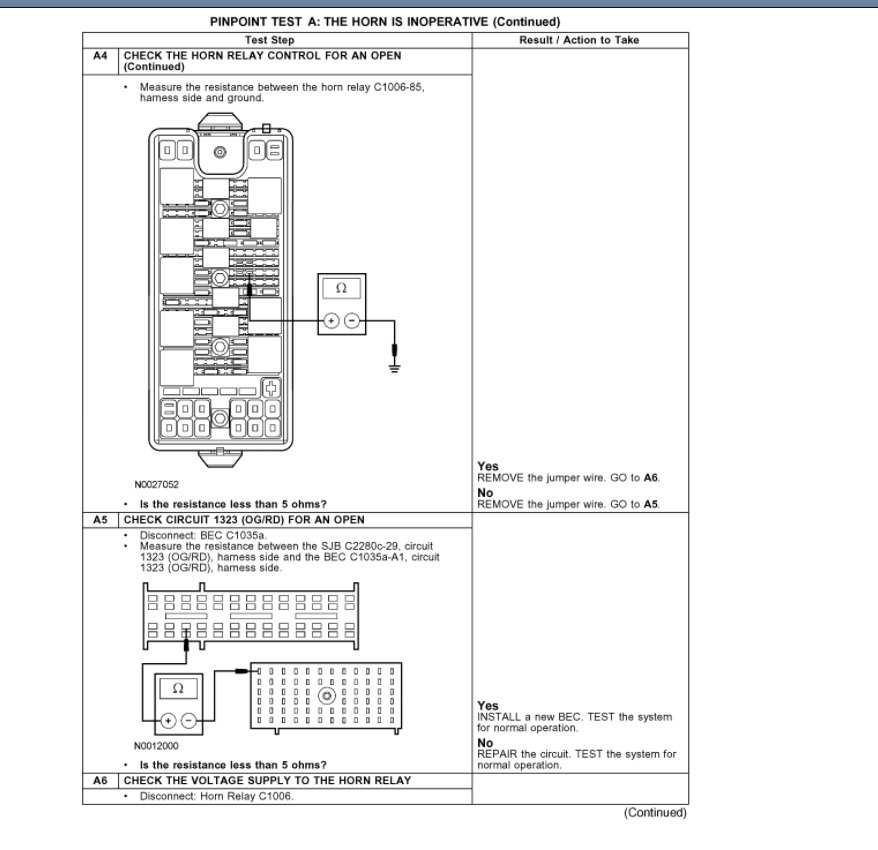

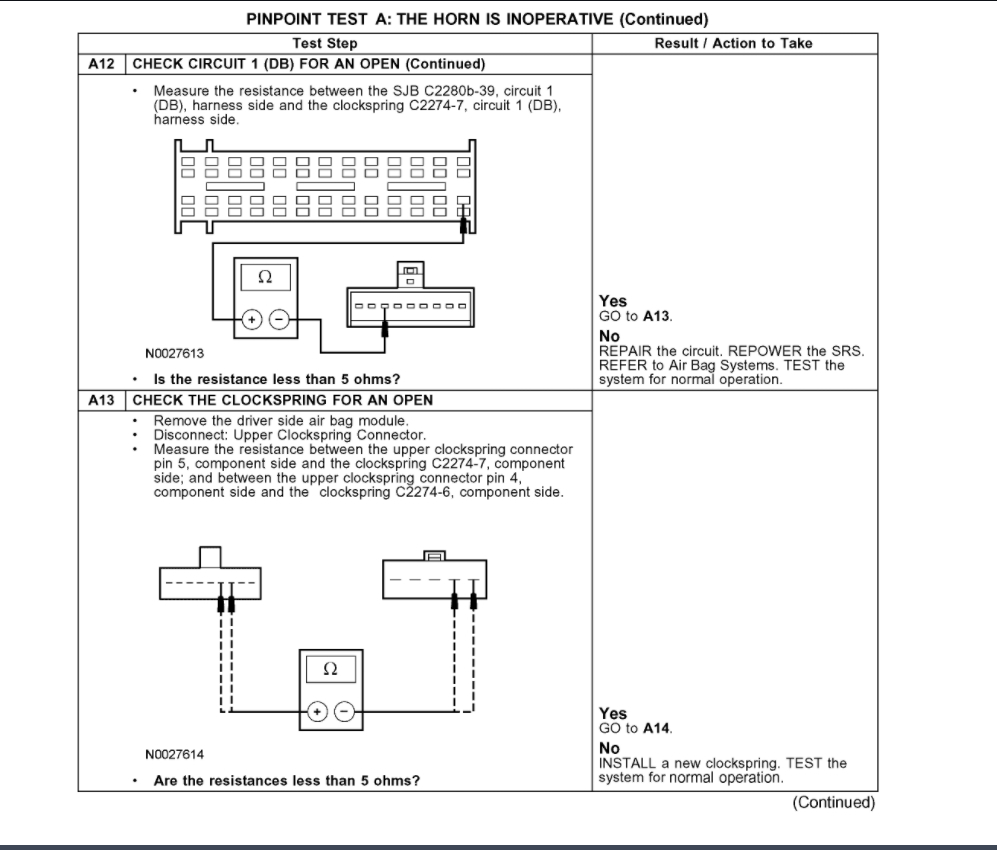

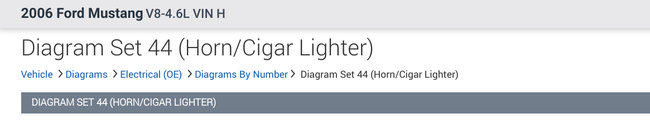

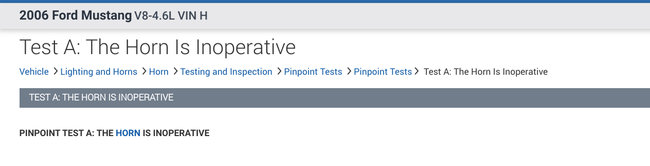

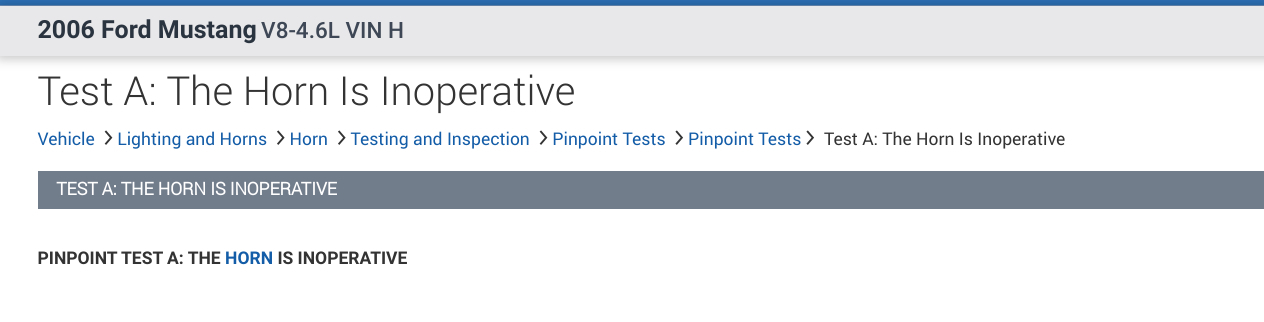

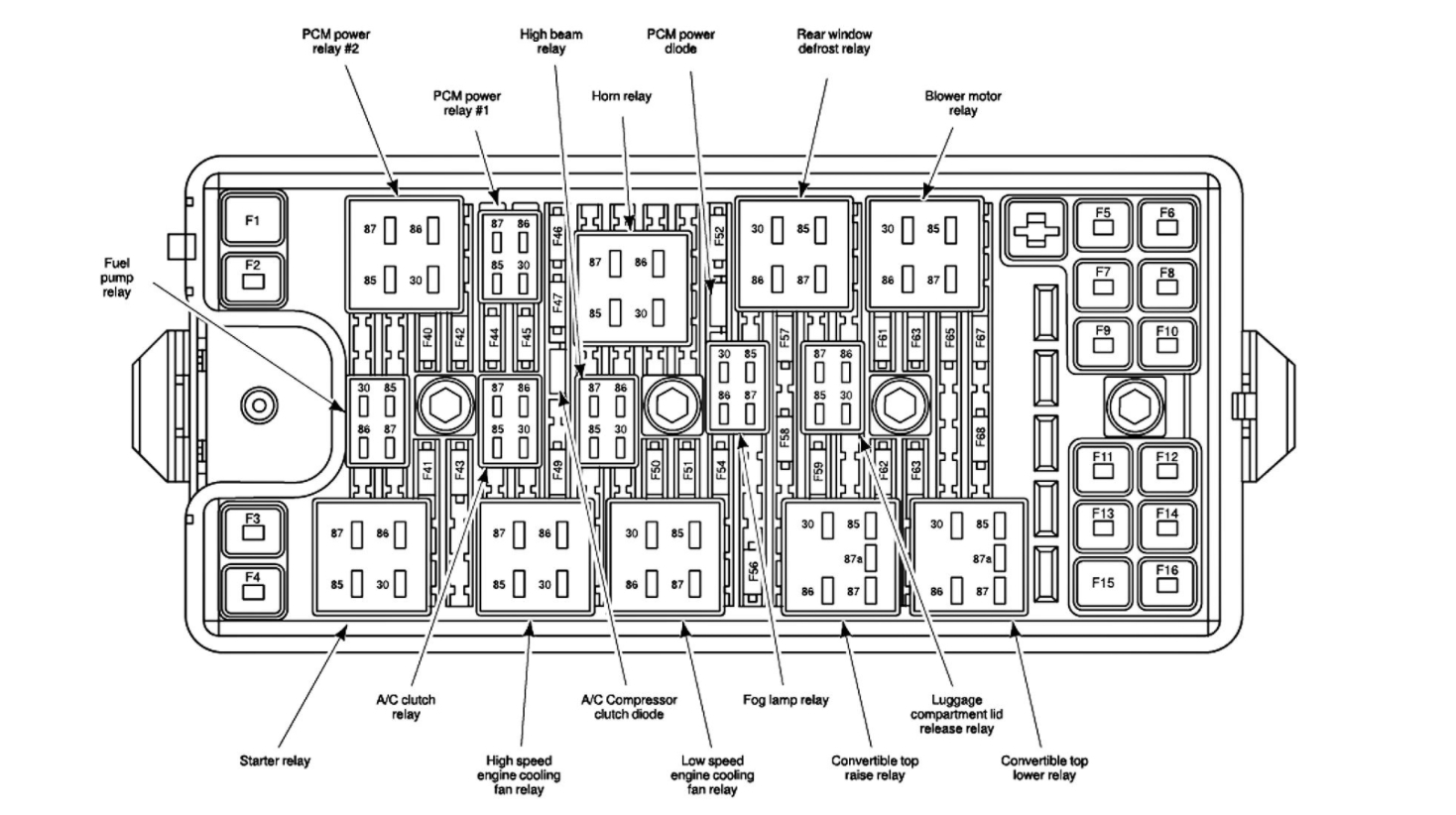

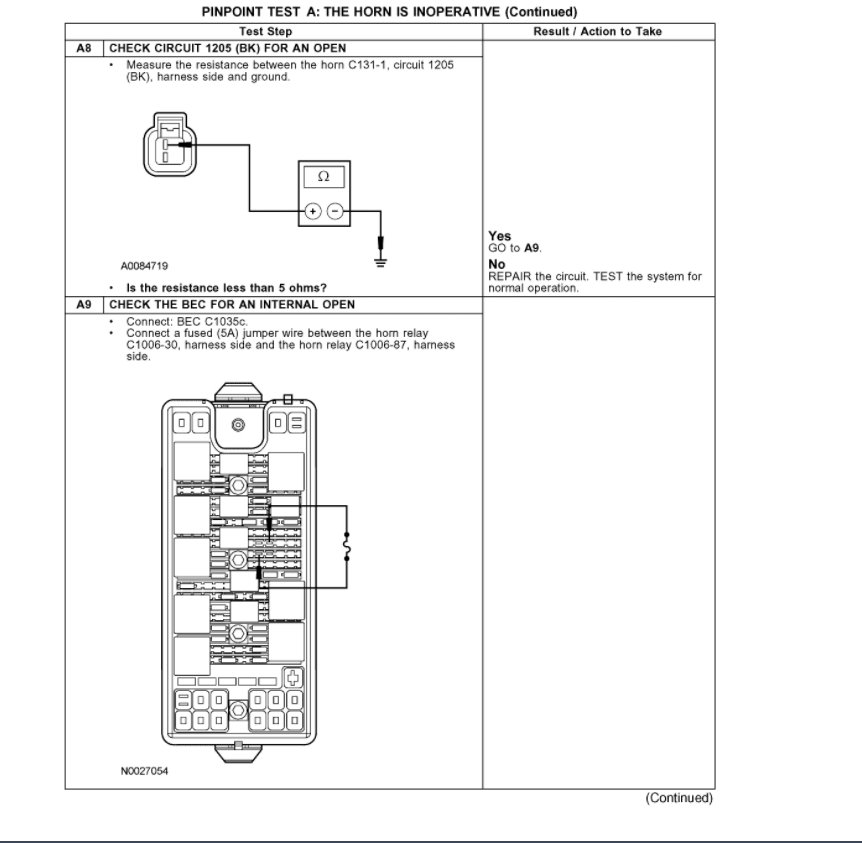

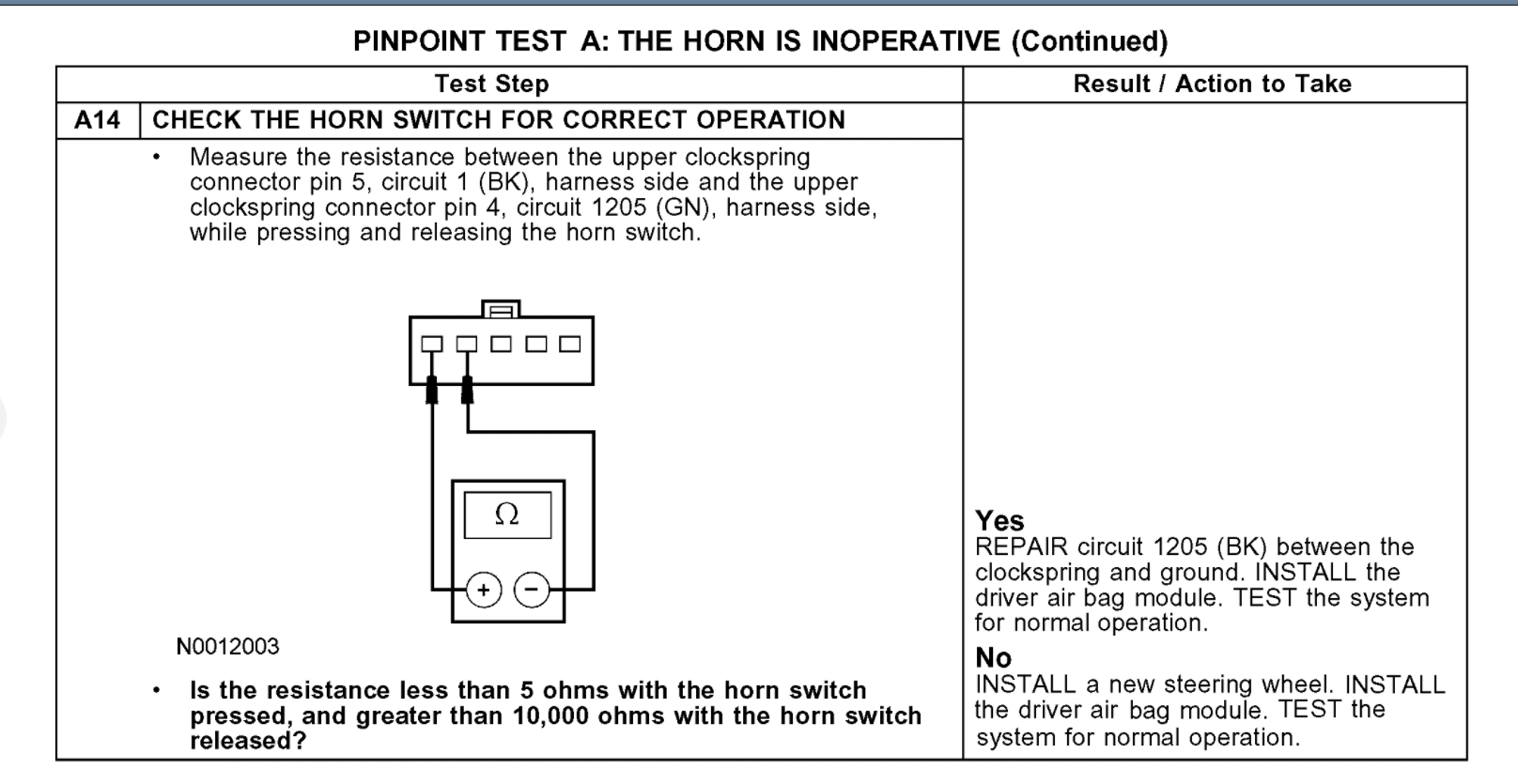

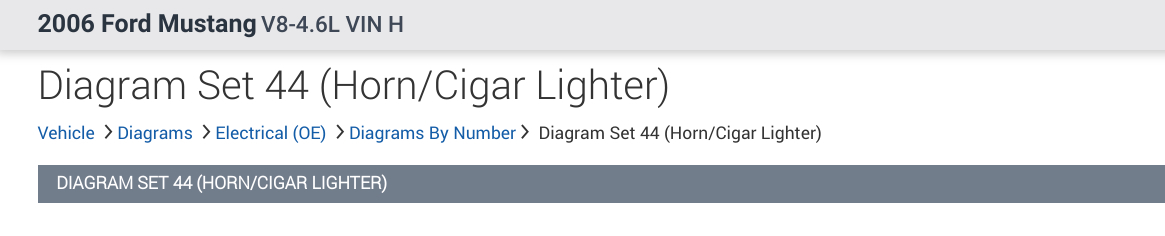

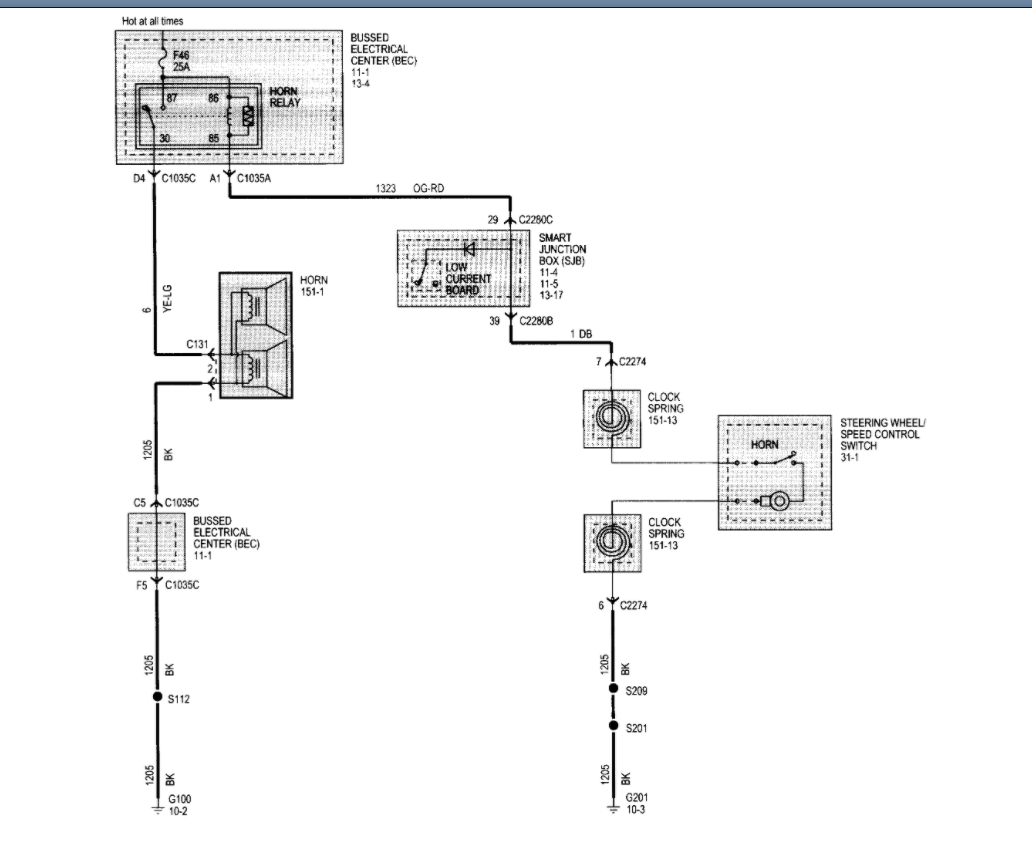

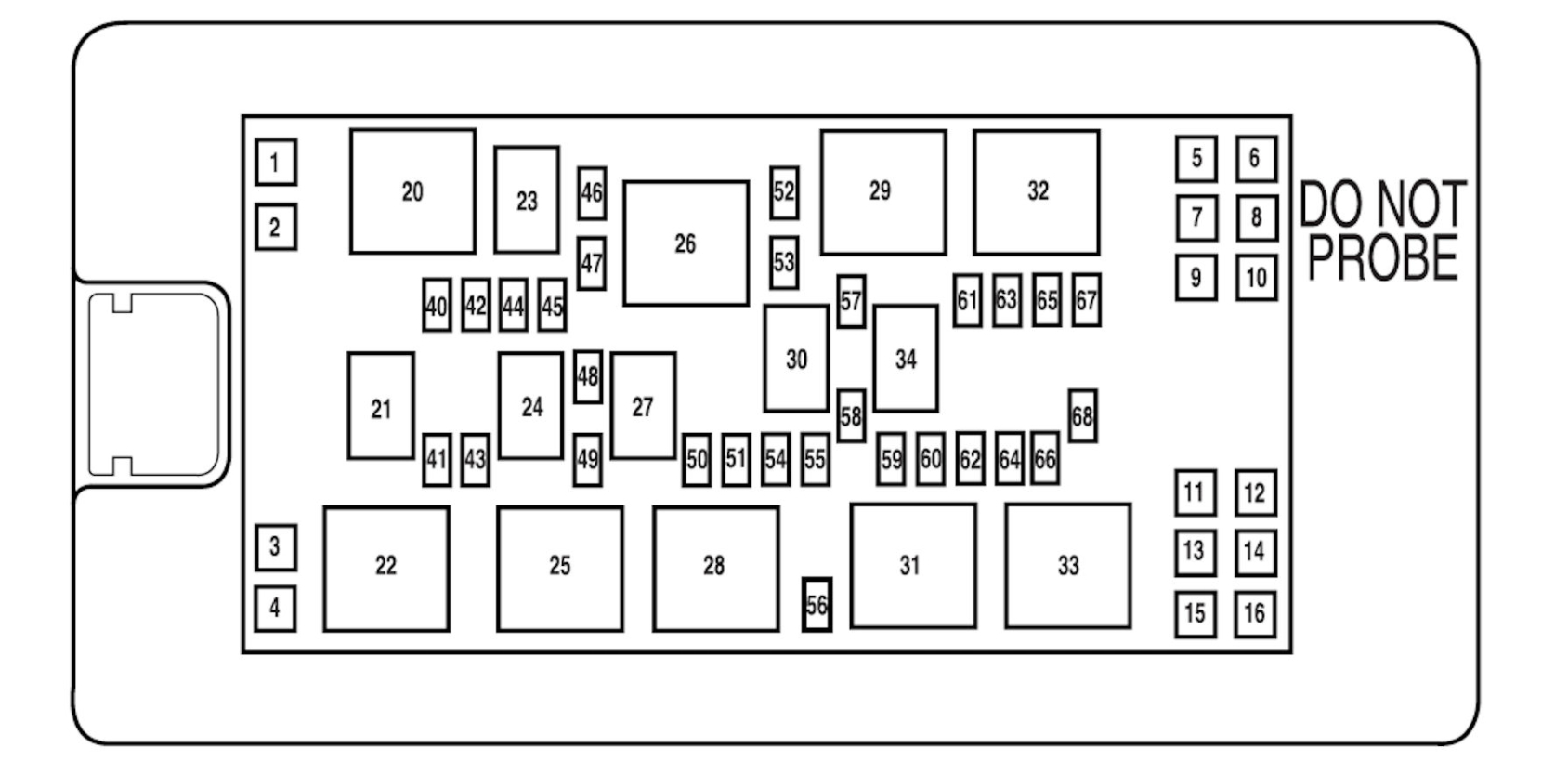

The fuse for the horn is in the Bussed Electrical Center for your vehicle. In the diagrams down below I have included the wiring diagrams for your vehicle's horn circuit, as well as a pinpoint diagnostic troubleshooting guide, and a diagram with callout for the Bussed Electrical Center as well. Please go through these guides and get back to us with how everything turns out.

Thanks,
Alex
2CarPros

Images (Click to enlarge)

Jan 9, 2020 at 6:22 AM
